Schneider Electric

LC1DT25BD - IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 4 NO, 24VDC coil, open style

Category Miscellaneous

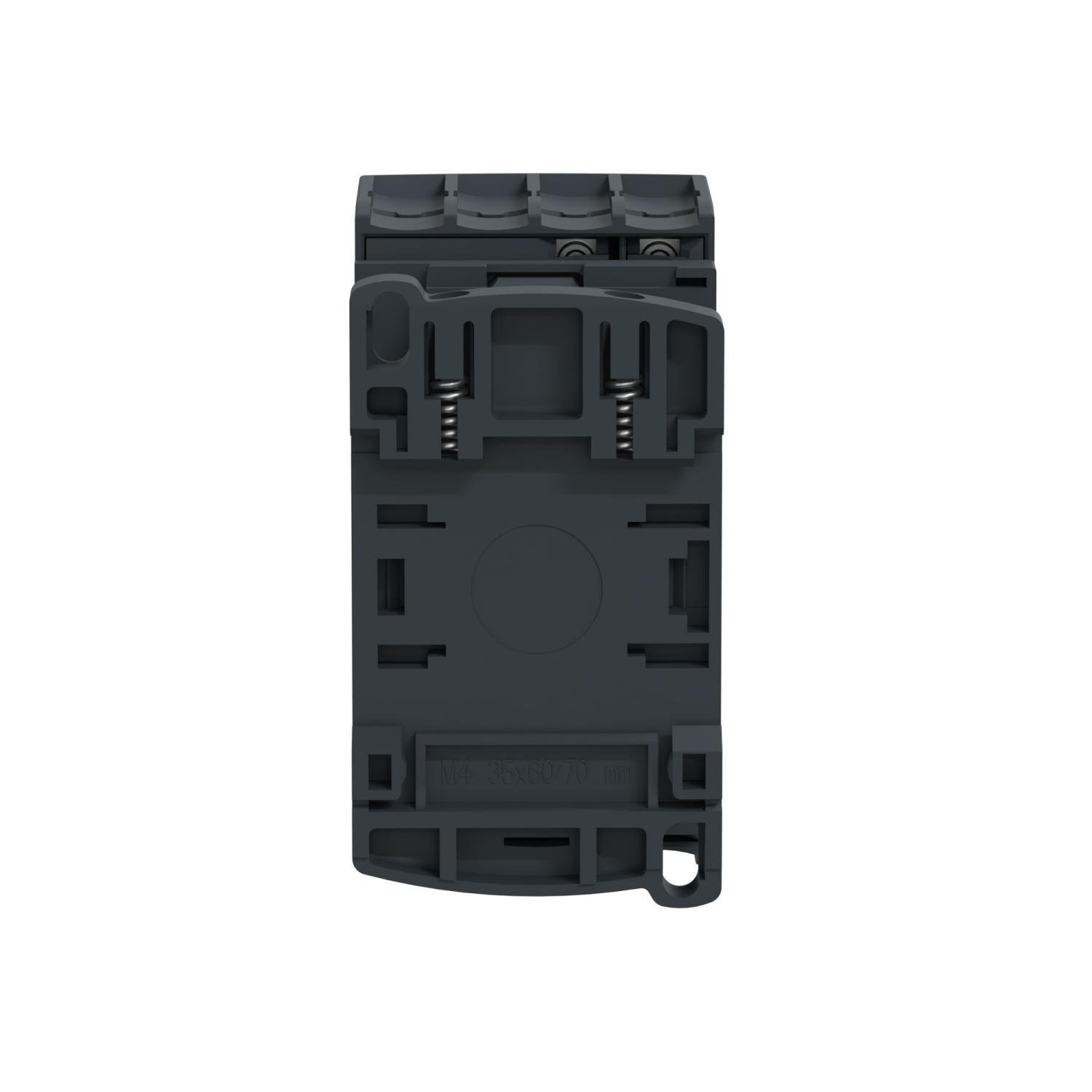

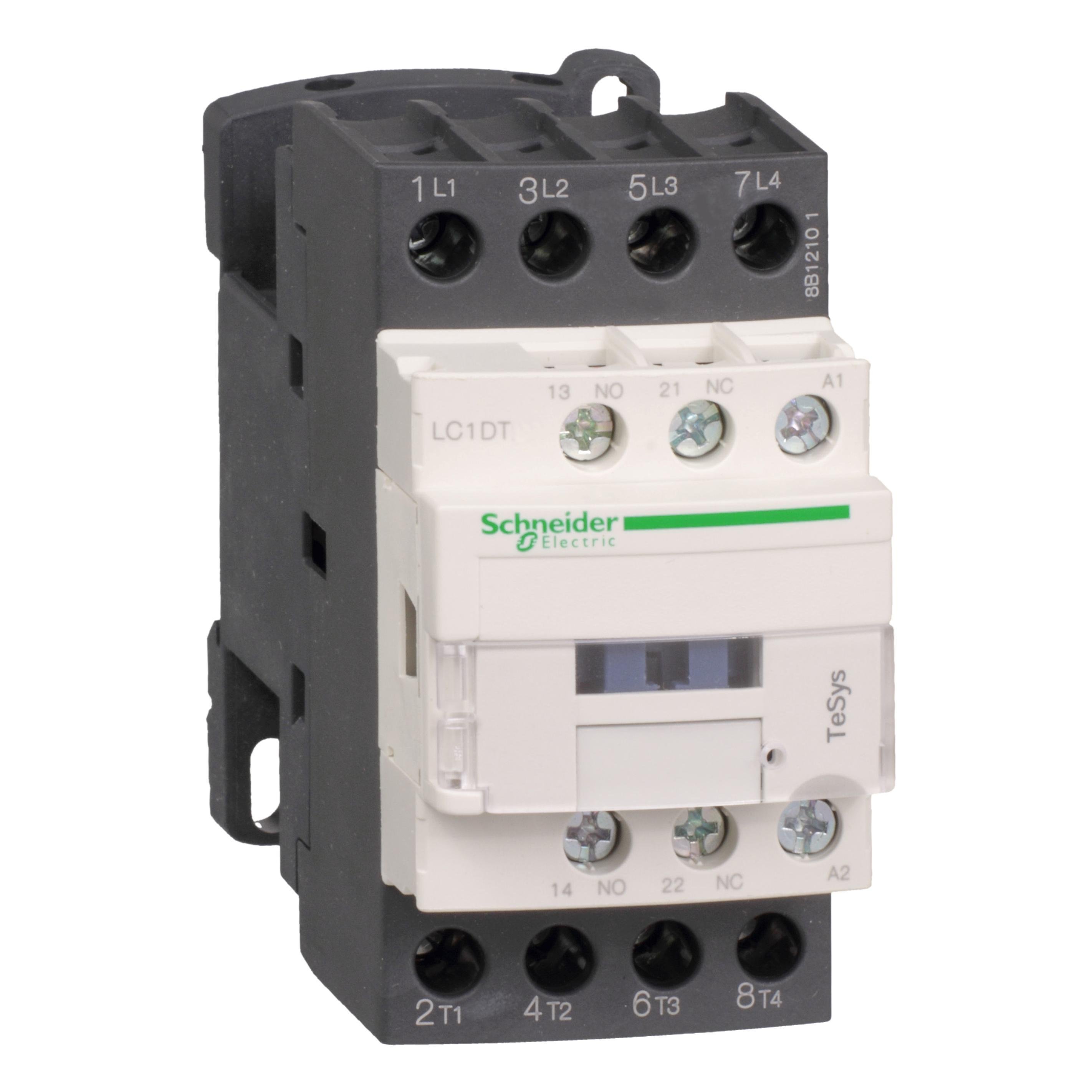

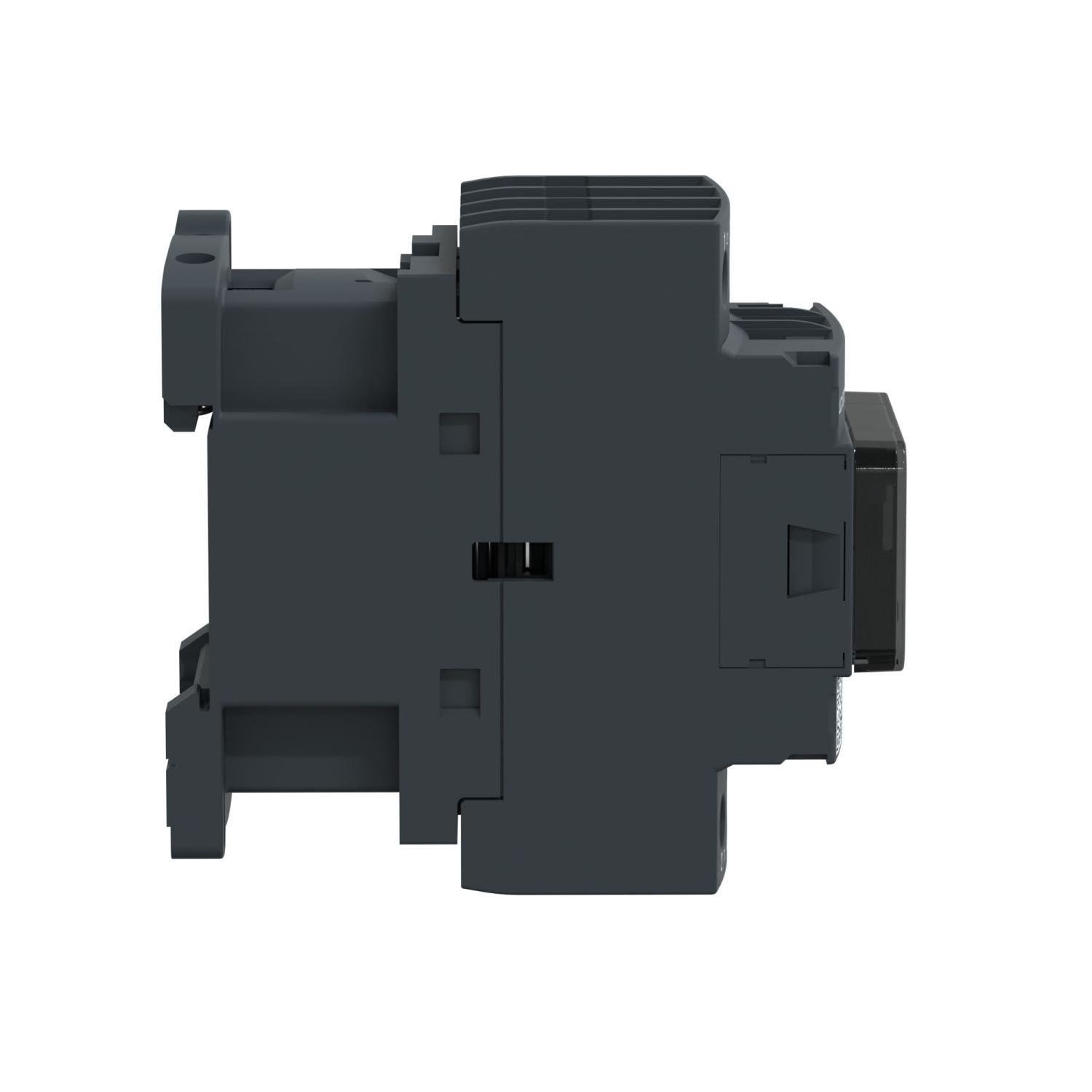

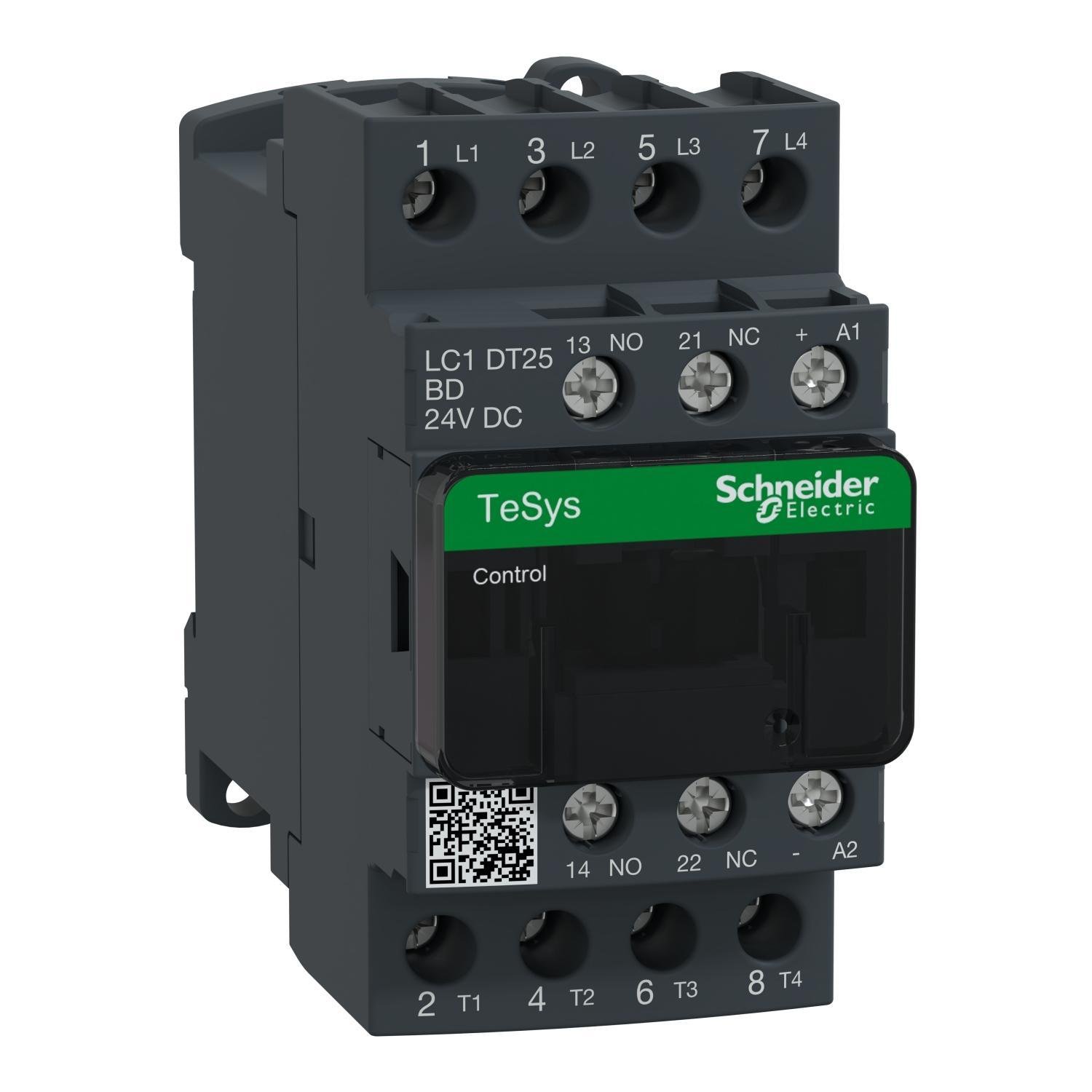

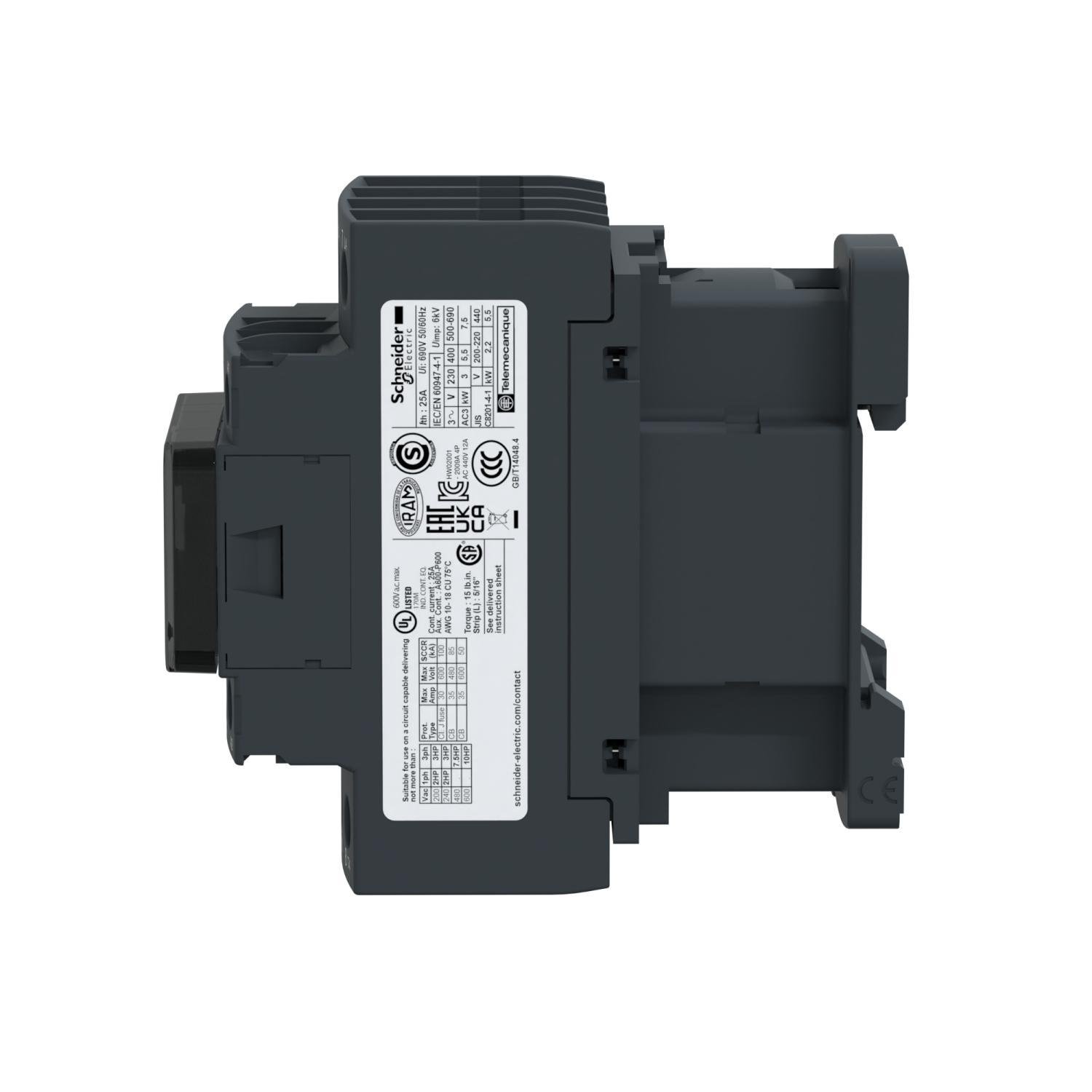

Picture of LC1DT25BD - IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 4 NO, 24VDC coil, open style Picture of LC1DT25BD - IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 4 NO, 24VDC coil, open style
Picture of LC1DT25BD - IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 4 NO, 24VDC coil, open style Picture of LC1DT25BD - IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 4 NO, 24VDC coil, open style
Picture of LC1DT25BD - IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 4 NO, 24VDC coil, open style Picture of LC1DT25BD - IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 4 NO, 24VDC coil, open style
Picture of LC1DT25BD - IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 4 NO, 24VDC coil, open style Picture of LC1DT25BD - IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 4 NO, 24VDC coil, open style
Picture of LC1DT25BD - IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 4 NO, 24VDC coil, open style Picture of LC1DT25BD - IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 4 NO, 24VDC coil, open style
Schneider Electric

LC1DT25BD - IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 4 NO, 24VDC coil, open style

Item Code: 811704
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC1DT25BD

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 25A/690V AC-1. They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxil

Specifications

Weight

1.22

Width

3.71

Length

4.68

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/LC1DT25BD/LC1DT25BD.spin

AD All Features

New modern look and feel of all machines

AD Alternative Part Number

8110913

AD Application

Resistive Load Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

SG

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

3389110247794

AD Gtin

03389110247794

AD IDEA Index ID

8110913

AD Invoice Description

CONTACTOR IEC 690VAC 24/300VDC 25A

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Easier to install and operate with multi-standard screws

AD Item Features 03

Digital customer experience for technical documents

AD Item Features 04

Maintenance guide via EcoStruxureTM Facility Expect

AD Keywords

Square D TeSys D LC1DT25BD D-Line IEC Contactor With Protective Cover, 690 V AC, 24/300 V DC V Coil, 25 A, 4NO Contact, 4 Poles ; Schneider Electric ; Schneider Electric ; LC1DT25BD ; 785901610649 ; NEMA & IEC Contactors

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.6800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.2200

AD Package Weight UOM

LB

AD Package Width

3.7100

AD Package Width UOM

IN

AD Part Number Keywords

LC1DT25BD ; 8110913 ; 785901610649 ; 78590161064 ; 03389110247794 ; 3389110247794

AD Video Links

https://www.youtube.com/embed/e8UrRZljFg0

Brand

Square D

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute UOM

W

Spec 1 Attribute Value

5.4

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Rail/Surface

Spec 11 Attribute

Number of Auxiliary Contacts

Spec 11 Attribute Value

1NO-1NC

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

4

Spec 13 Attribute

Operating Cycles

Spec 13 Attribute UOM

Cycles/hr

Spec 13 Attribute Value

3600

Spec 14 Attribute

Operating Temperature

Spec 14 Attribute UOM

deg C

Spec 14 Attribute Value

-5 to 60/-40 to 70

Spec 15 Attribute

Series

Spec 15 Attribute Value

LC1D

Spec 16 Attribute

Size

Spec 16 Attribute UOM

MM

Spec 16 Attribute Value

45/85/99

Spec 17 Attribute

Terminal Type

Spec 17 Attribute Value

Screw clamp

Spec 18 Attribute

Type

Spec 18 Attribute Value

D-LINE

Spec 19 Attribute

Wattage

Spec 19 Attribute UOM

W

Spec 19 Attribute Value

1.56

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

690 V AC, 24/300 V DC

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

4NO

Spec 5 Attribute

Contact Rating

Spec 5 Attribute Value

10/60 A at 600 V AC, 25/60 A at 600 V AC

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

45 mm W x 99 mm D x 85 mm H

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

Open

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

25 to 400

Spec 9 Attribute

Maximum Load Current

Spec 9 Attribute UOM

A

Spec 9 Attribute Value

25
