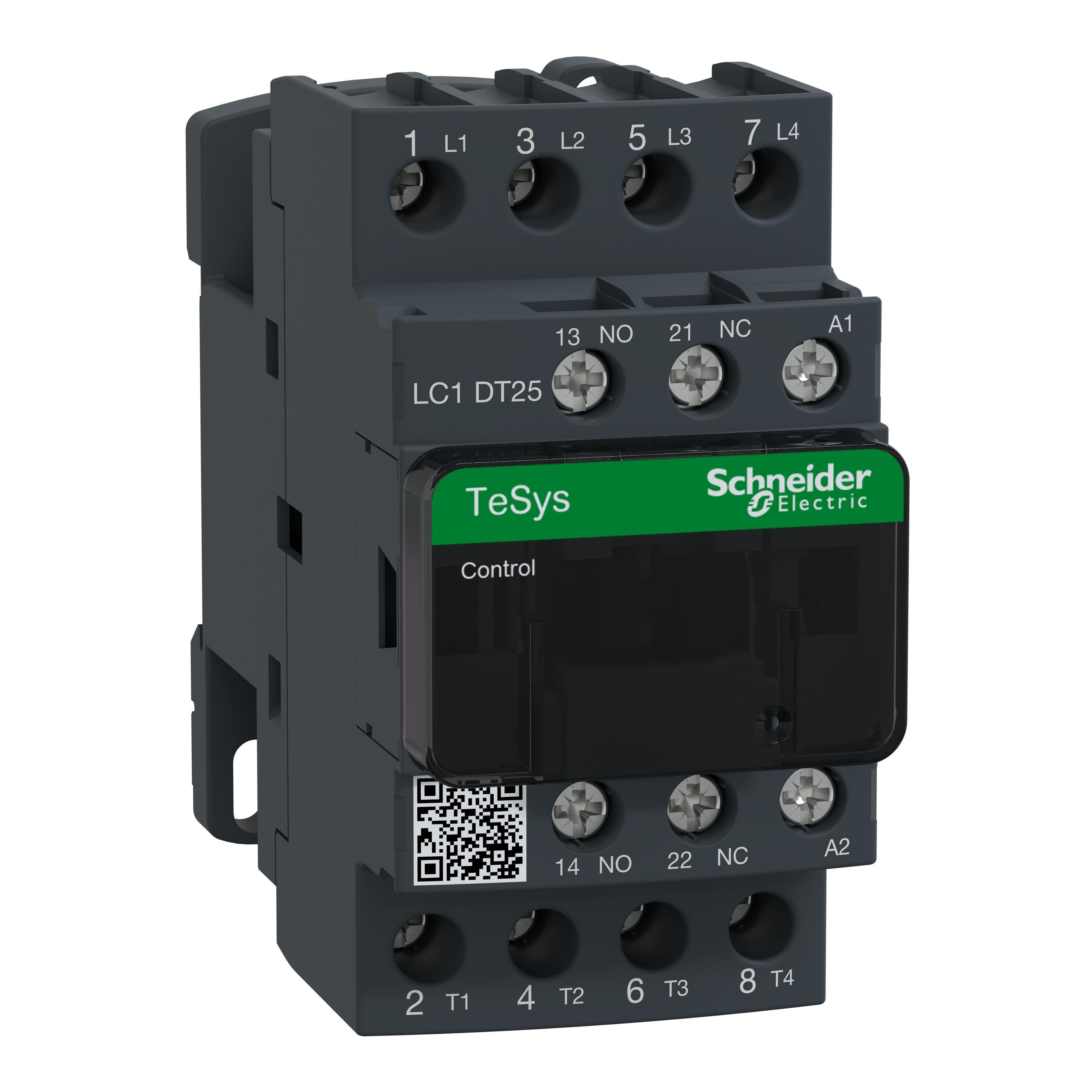

LC1DT25F7 - IEC contactor, TeSys Deca, nonreversing, 25A resistive, 4 pole, 4 NO, 110VAC 50/60Hz coil, open style
Description
Specifications
0.85
3.7
3.71
4.6
New modern look and feel of all machines
Resistive Load Applications
Schneider Electric
USA
ID
CONTACTOR IEC 110/690VAC 300VDC 25A
New modern look and feel of all machines
Easier to install and operate with multi-standard screws
Digital customer experience for technical documents
Maintenance guide via EcoStruxureTM Facility Expect
Schneider Electric
3.7000
IN
4.6000
IN
1
38.2600
cu-in
0.8500
LB
3.7100
IN
https://www.youtube.com/embed/ZspiS_-OK5U
Square D
IEC Contactors
Coil Power Rating
VA
7.5/7.7
Maximum Load Current
A
25
Mounting Type
Rail/Surface
Number of Auxiliary Contacts
1NO-1NC
Number Of Poles
4
Operating Cycles
Cycles/hr
3600
Operating Temperature
deg C
-5 to 60/-40 to 70
Power Factor
0.75 Inrush, 0.3 Hold-In
Series
LC1D
Size
MM
45/85/92
Terminal Type
Screw clamp
Coil Voltage
110/690 V AC, 300 V DC
D-LINE
Wattage
W
1.56
Connection Type
Screw clamp
Contact Configuration
4NO
Contact Rating
10/60 A at 600 V AC, 25/60 A at 600 V AC
Contact Type
Non-reversing
Dimensions
45 mm W x 92 mm D x 85 mm H
Enclosure Type
IP2x
Frequency Rating
HZ
50/60
