Schneider Electric

LC2D09B7V - TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V AC coil

Category Miscellaneous

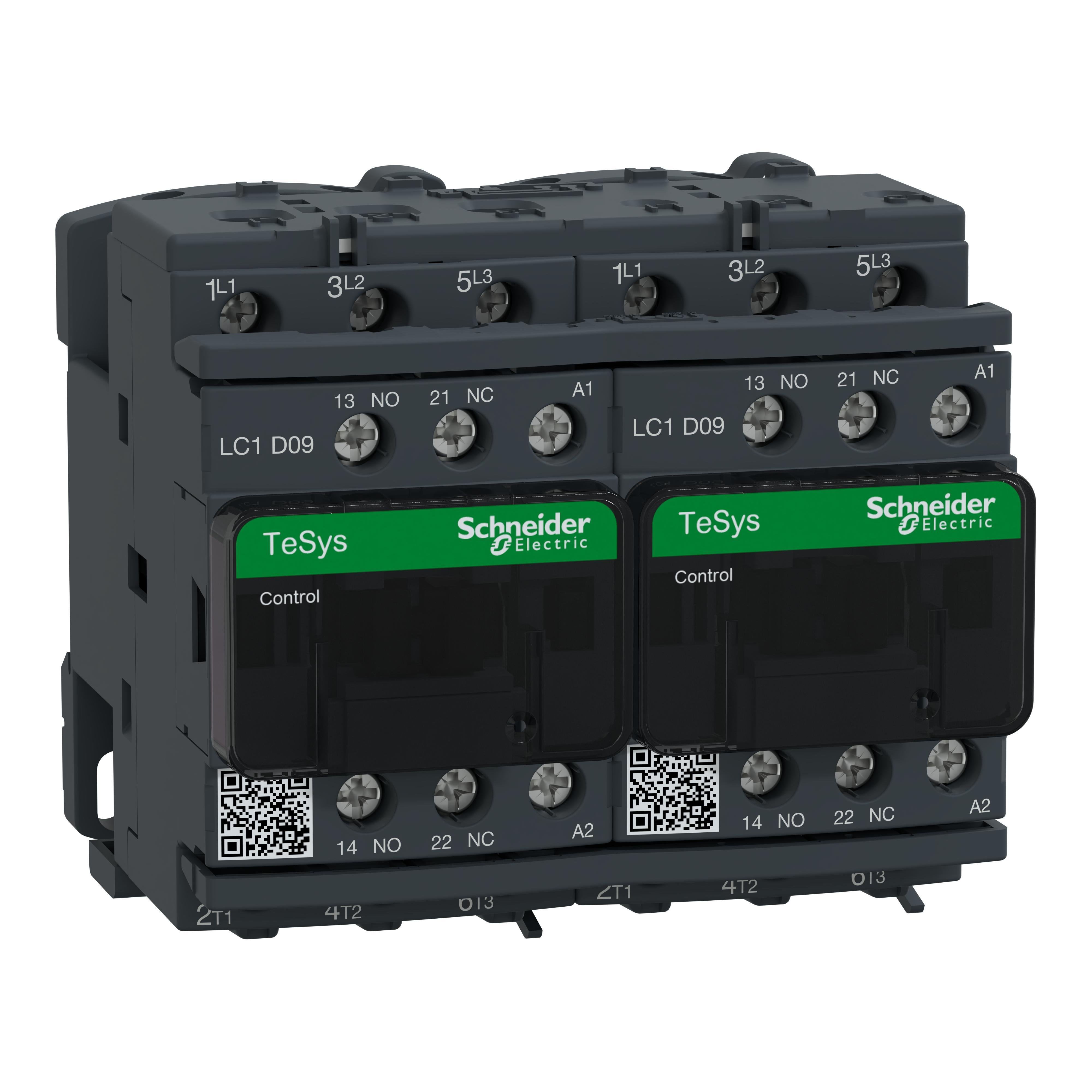

Picture of LC2D09B7V - TeSys Deca reversing contactor - 3P(3 NO) - AC-3 -
Schneider Electric

LC2D09B7V - TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V AC coil

Item Code: 891562
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC2D09B7V

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides 24V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating r

Specifications

Weight

1.8

Width

3.55

Length

4.41

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/LC2D09B7V/LC2D09B7V.spin

AD All Features

New modern look and feel of all machines

AD Alternative Part Number

8110409

AD Application

Industry, Infrastructure, Building, Resistive Load and Motor Control Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3389110407136

AD Gtin

03389110407136

AD IDEA Index ID

8110409

AD Invoice Description

CONTACTOR IEC 24VAC 9/25A 3NO 3 50/60HZ

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Easier to install and operate with multi-standard screws

AD Item Features 03

Digital customer experience for technical documents

AD Item Features 04

Maintenance guide via EcoStruxureTM Facility Expect

AD Keywords

Square D LC2D09B7V TeSys D LC2D Reversing IEC Contactor, 24 V AC V Coil, 9/25 A, 3NO Contact, 3 Poles ; Schneider Electric ; Schneider Electric ; LC2D09B7V ; 785901608004 ; NEMA & IEC Contactors

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.4100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.8000

AD Package Weight UOM

LB

AD Package Width

3.5500

AD Package Width UOM

IN

AD Part Number Keywords

LC2D09B7V ; 8110409 ; 785901608004 ; 78590160800 ; 03389110407136 ; 3389110407136

Brand

Square D

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute Value

7-1/2 hp at 575 to 600 VAC

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

Operating Cycles

Spec 11 Attribute UOM

Cycles/hr

Spec 11 Attribute Value

3600

Spec 12 Attribute

Operating Temperature

Spec 12 Attribute UOM

deg C

Spec 12 Attribute Value

-20 To 60

Spec 13 Attribute

Series

Spec 13 Attribute Value

TeSys™ D LC2D

Spec 14 Attribute

Terminal Type

Spec 14 Attribute Value

Screw clamp

Spec 15 Attribute

Type

Spec 15 Attribute Value

Reversing

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

24

Spec 3 Attribute

Contact Configuration

Spec 3 Attribute Value

3NO

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

77 mm H x 90 mm W x 86 mm D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

Open

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Maximum Load Current

Spec 7 Attribute UOM

A

Spec 7 Attribute Value

25-Sep

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Plate/Rail

Spec 9 Attribute

Number of Auxiliary Contacts

Spec 9 Attribute Value

1NO-1NC
