Schneider Electric

LC2D50G7 - Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, IEC, <=440V, 50A, 120V AC 60Hz coil

Category IEC Contactors

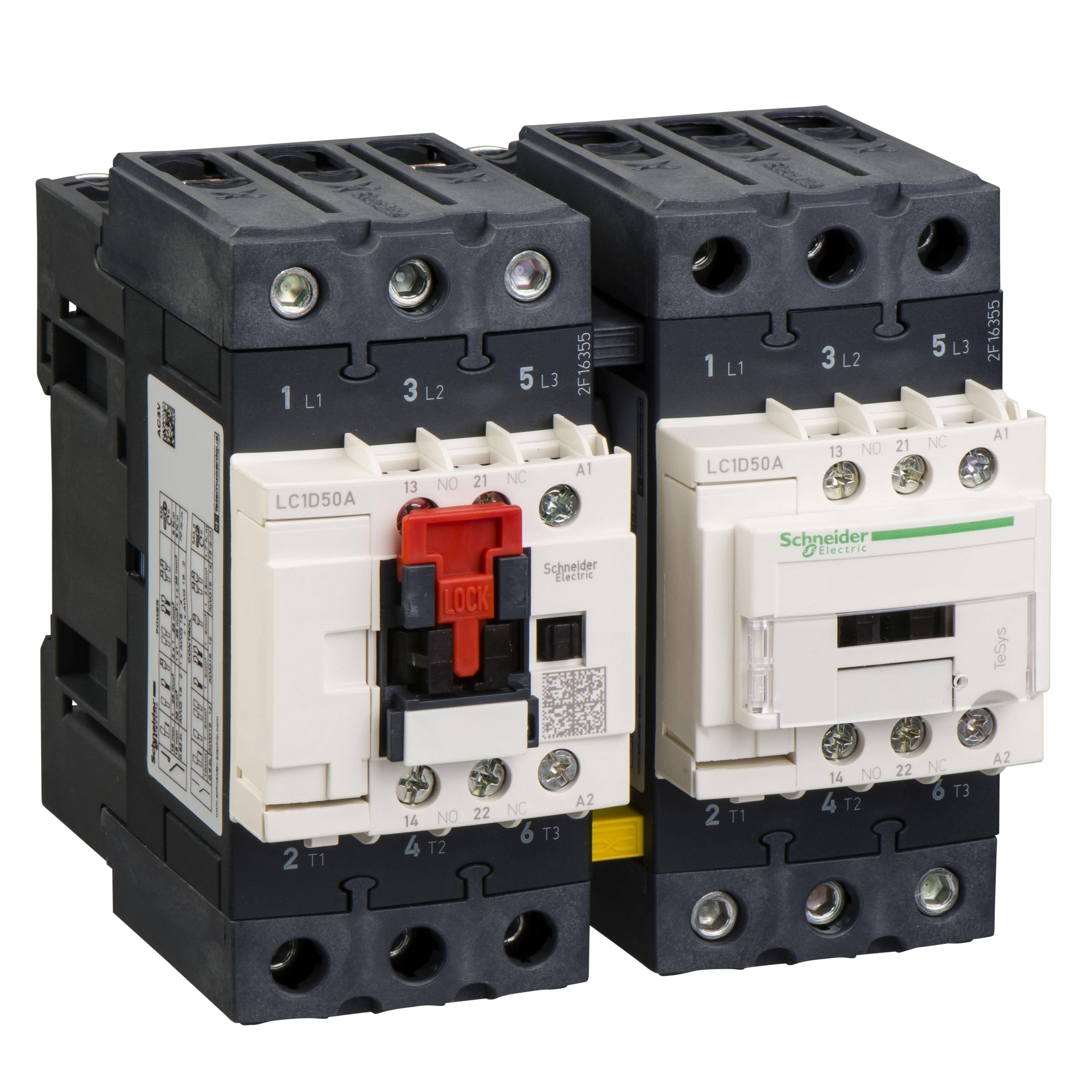

Picture of LC2D50G7 - Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, IEC, Picture of LC2D50G7 - Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, IEC,
Picture of LC2D50G7 - Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, IEC, Picture of LC2D50G7 - Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, IEC,
Schneider Electric

LC2D50G7 - Reversing Contactor, TeSys Deca, 3P(3NO), AC-3, IEC, <=440V, 50A, 120V AC 60Hz coil

Item Code: 668089
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LC2D50G7

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca reversing contactor, 3 poles (3NO),for motor control applications 50A/440V,AC-3/3e 22kW@400V. Pre-wired power connections, with mechanical interlock,without electrical interlocking. It provides a 120V 60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Compact (90mm width), with DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN).

Specifications

Weight

7.23

Height

7.3

Width

7.02

Length

9.67

AD All Features

Re-assamble kits of reversing contactors

AD Application

For motor control

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

CONTACTOR IEC 120VAC 10A 3NO 3 50/60HZ

AD Item Features 01

Re-assamble kits of reversing contactors

AD Item Features 02

New modern look and feel of all machines

AD Item Features 03

Easier to install and operate with multi-standard screws

AD Item Features 04

Digital customer experience for technical documents

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.3000

AD Package Height UOM

IN

AD Package Length

9.6700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

540.2000

AD Package Volume UOM

cu-in

AD Package Weight

7.2300

AD Package Weight UOM

LB

AD Package Width

7.0200

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=vlEODblcQoo&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn

Brand

Square D

Category

IEC Contactors

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute Value

200/220/245 VA Inrush, 20/22/26 VA Hold-In

Spec 10 Attribute

Maximum Load Current

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

10

Spec 11 Attribute

Mounting Type

Spec 11 Attribute Value

Surface

Spec 12 Attribute

Number of Auxiliary Contacts

Spec 12 Attribute Value

1NO-1NC

Spec 13 Attribute

Number Of Poles

Spec 13 Attribute Value

3

Spec 14 Attribute

Operating Cycles

Spec 14 Attribute UOM

Cycles

Spec 14 Attribute Value

6000000

Spec 15 Attribute

Operating Temperature

Spec 15 Attribute UOM

deg C

Spec 15 Attribute Value

-5 To 60

Spec 16 Attribute

Power Factor

Spec 16 Attribute Value

0.75 Inrush, 0.3 Hold-In

Spec 17 Attribute

Series

Spec 17 Attribute Value

D-Line LC2D

Spec 18 Attribute

Terminal Type

Spec 18 Attribute Value

Screw clamp

Spec 19 Attribute

Type

Spec 19 Attribute Value

Standard

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

120

Spec 20 Attribute UOM

KW

Spec 20 Attribute Value

30

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

3NO

Spec 5 Attribute

Contact Rating

Spec 5 Attribute Value

50 A at 575 V AC

Spec 6 Attribute

Contact Type

Spec 6 Attribute Value

Reversing

Spec 7 Attribute

Dimensions

Spec 7 Attribute Value

132 mm H x 165 mm W x 142 mm D

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

IP2x

Spec 9 Attribute

Frequency Rating

Spec 9 Attribute UOM

HZ

Spec 9 Attribute Value

50/60
