Square D

LDL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 14kA, lugs, MicroLogic 3.3, 80%

Category Thermal Magnetic Trip Molded Case Circuit Breakers

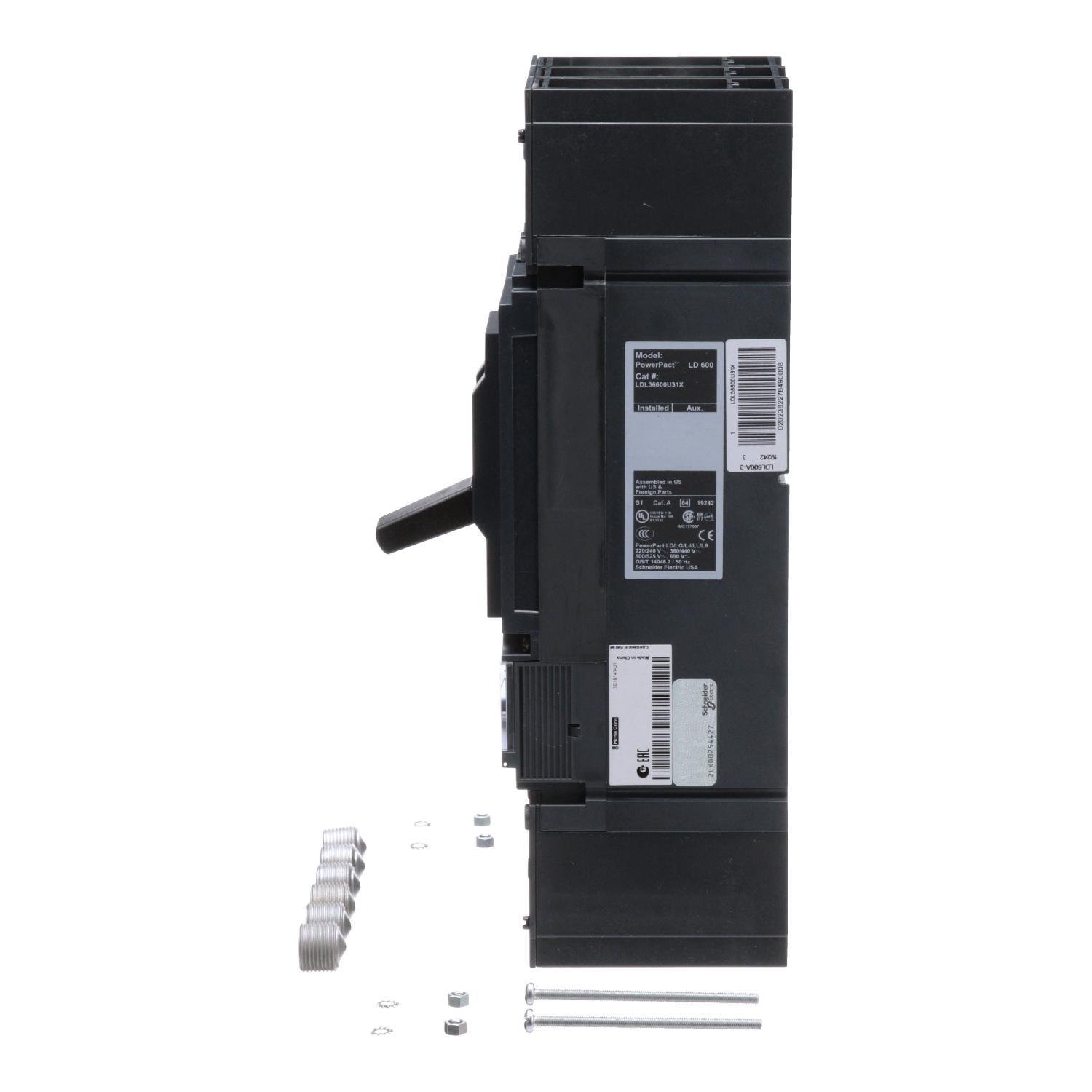

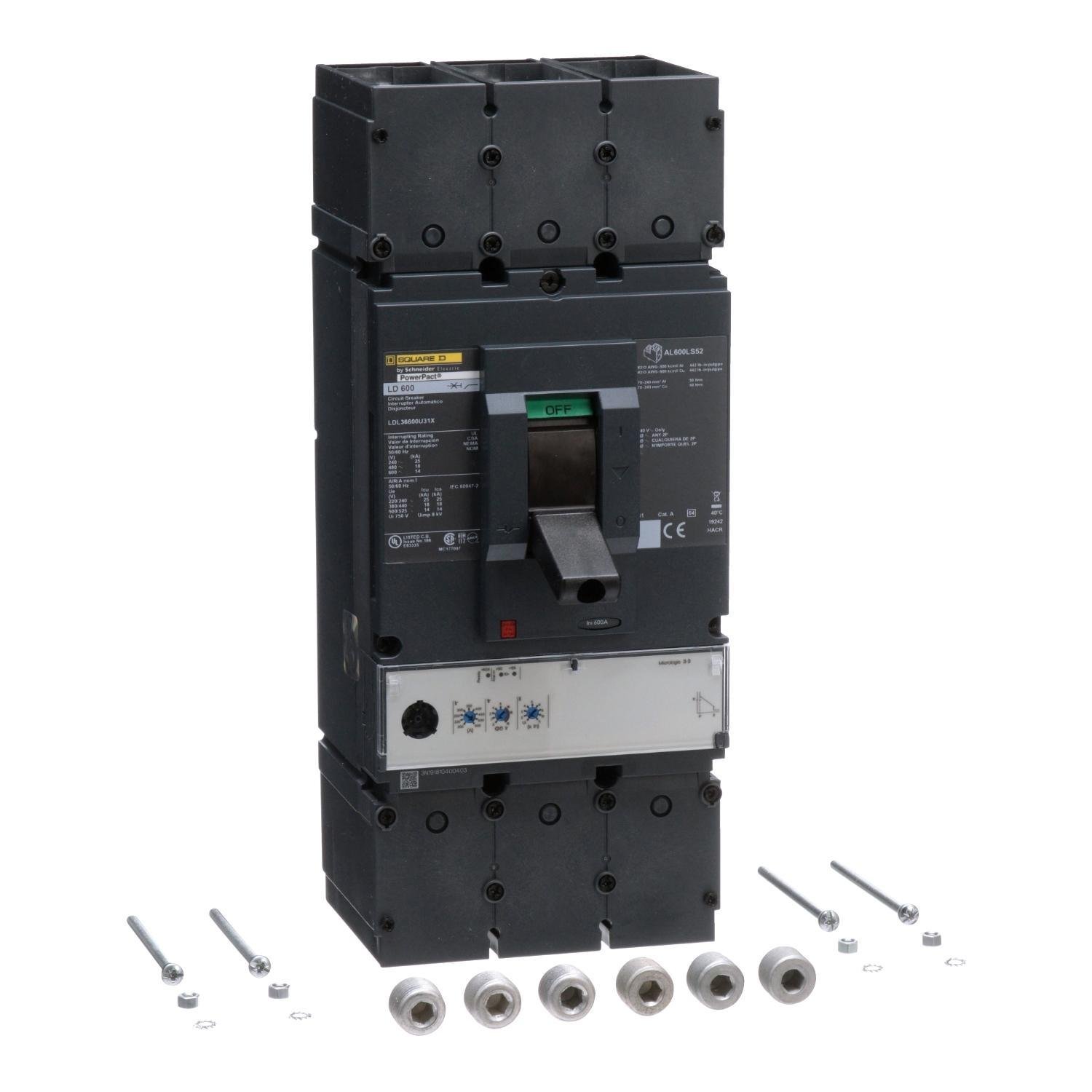

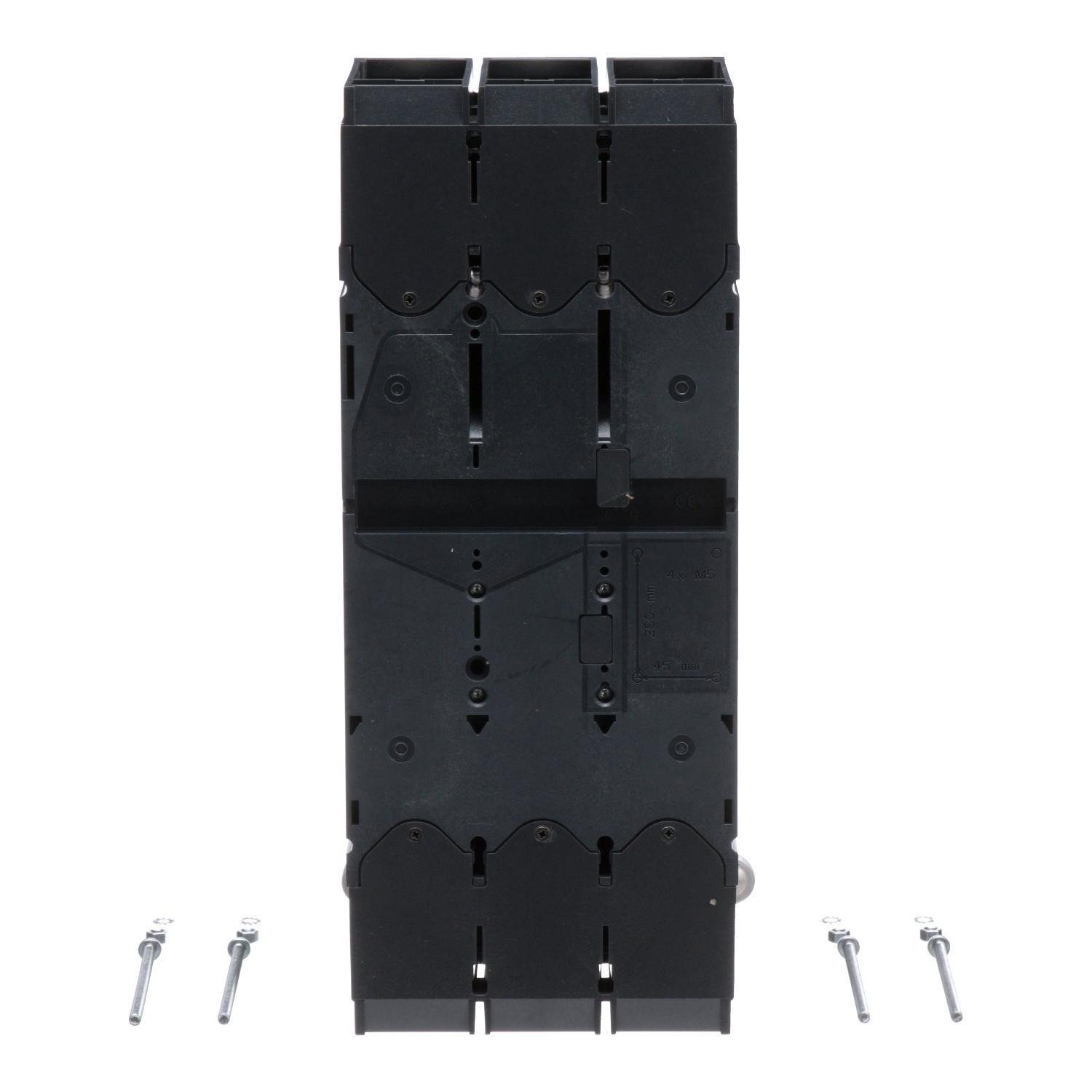

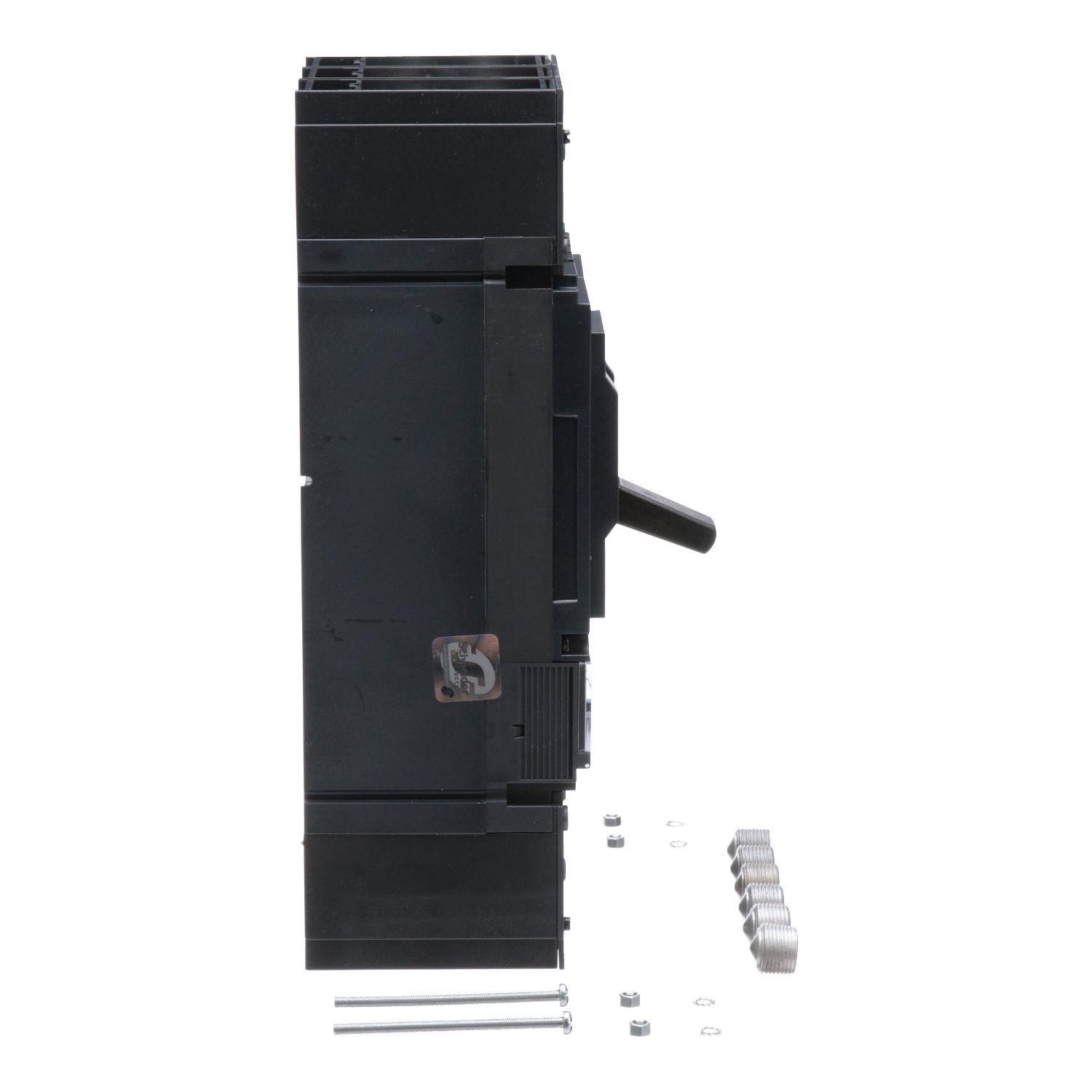

Picture of LDL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 14kA, lugs, MicroLogic 3.3, 80% Picture of LDL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 14kA, lugs, MicroLogic 3.3, 80%
Picture of LDL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 14kA, lugs, MicroLogic 3.3, 80% Picture of LDL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 14kA, lugs, MicroLogic 3.3, 80%
Picture of LDL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 14kA, lugs, MicroLogic 3.3, 80% Picture of LDL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 14kA, lugs, MicroLogic 3.3, 80%
Picture of LDL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 14kA, lugs, MicroLogic 3.3, 80% Picture of LDL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 14kA, lugs, MicroLogic 3.3, 80%
Picture of LDL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 14kA, lugs, MicroLogic 3.3, 80% Picture of LDL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 14kA, lugs, MicroLogic 3.3, 80%
Square D

LDL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 14kA, lugs, MicroLogic 3.3, 80%

Item Code: 882275
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LDL36600U31X

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 14kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

17.06lb

Height

340mm

Width

11.39mm

Length

19.81mm

Depth

110mm

AD All Features

Available in 3 or 4 pole design

AD Application

Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 600A 14KA 3

AD Item Features 01

Available in 3 or 4 pole design

AD Item Features 02

Protection from overloads and short circuits

AD Item Features 03

Common accessories across the range

AD Item Features 04

Used as main panel disconnect for control panel

AD Item Features 05

QR codes for easy access to device documentation

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

19.8100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

17.0600

AD Package Weight UOM

LB

AD Package Width

11.3900

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/xbXWcq35EIo

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle Handle

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

-13 To 158

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

600

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Electronic

Spec 13 Attribute

Type

Spec 13 Attribute Value

80% rated

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

2/0 AWG to 500 kcmil

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

600

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Line/Load Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

5.5 in W x 6.61 in D x 13.39 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

L

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

14

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Unit

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
