Square D

LGA36400CU33X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.3S, 100%, ABC

Category Miscellaneous

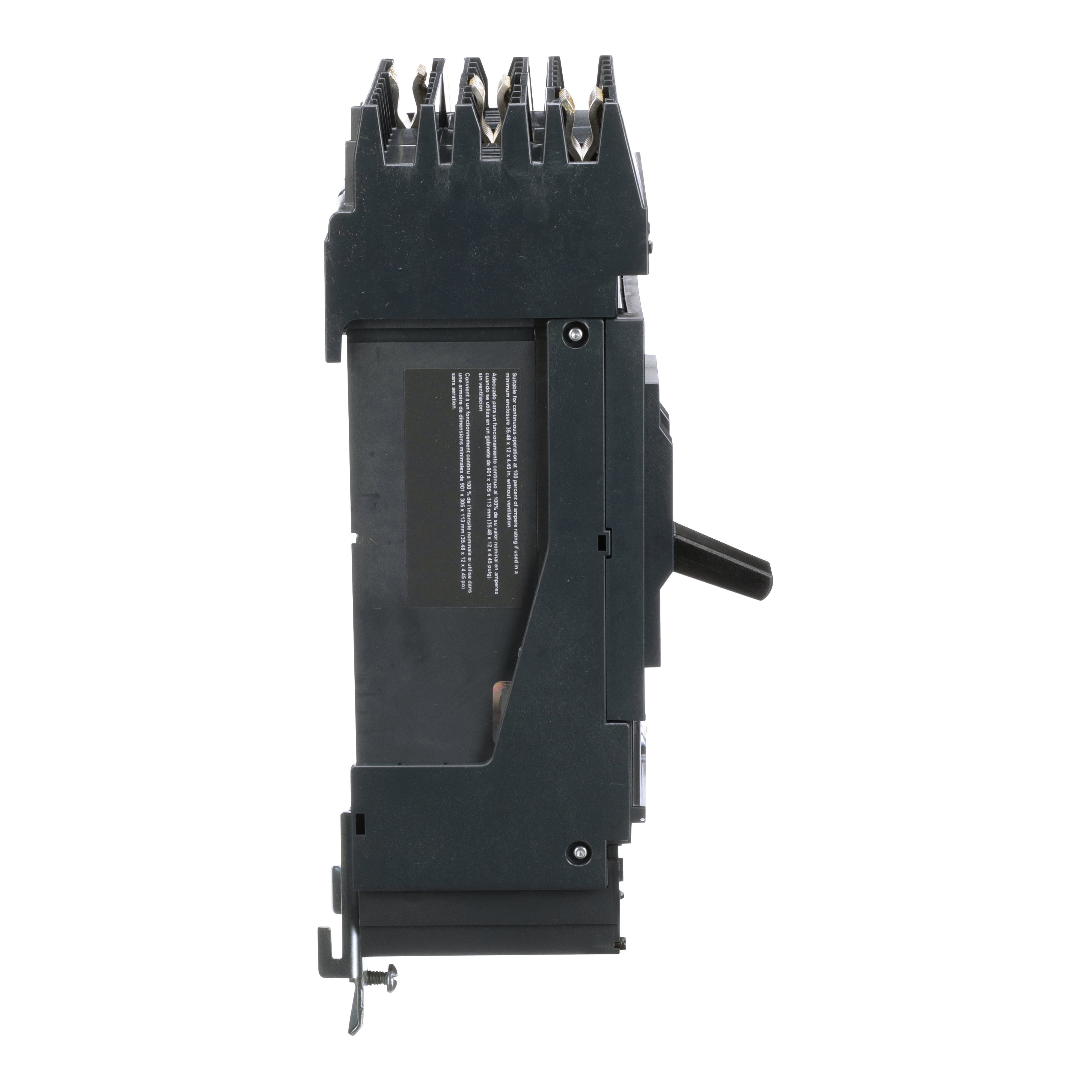

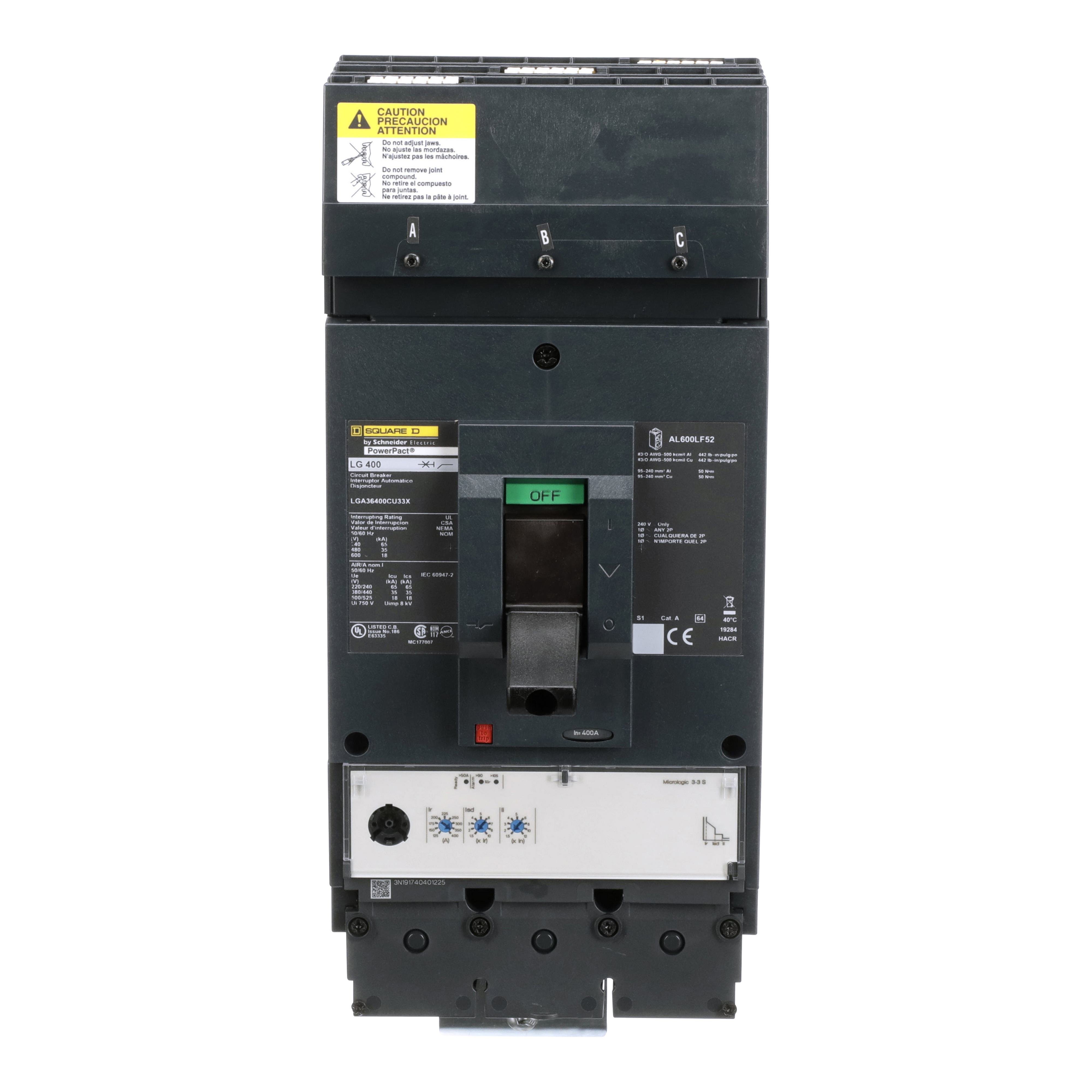

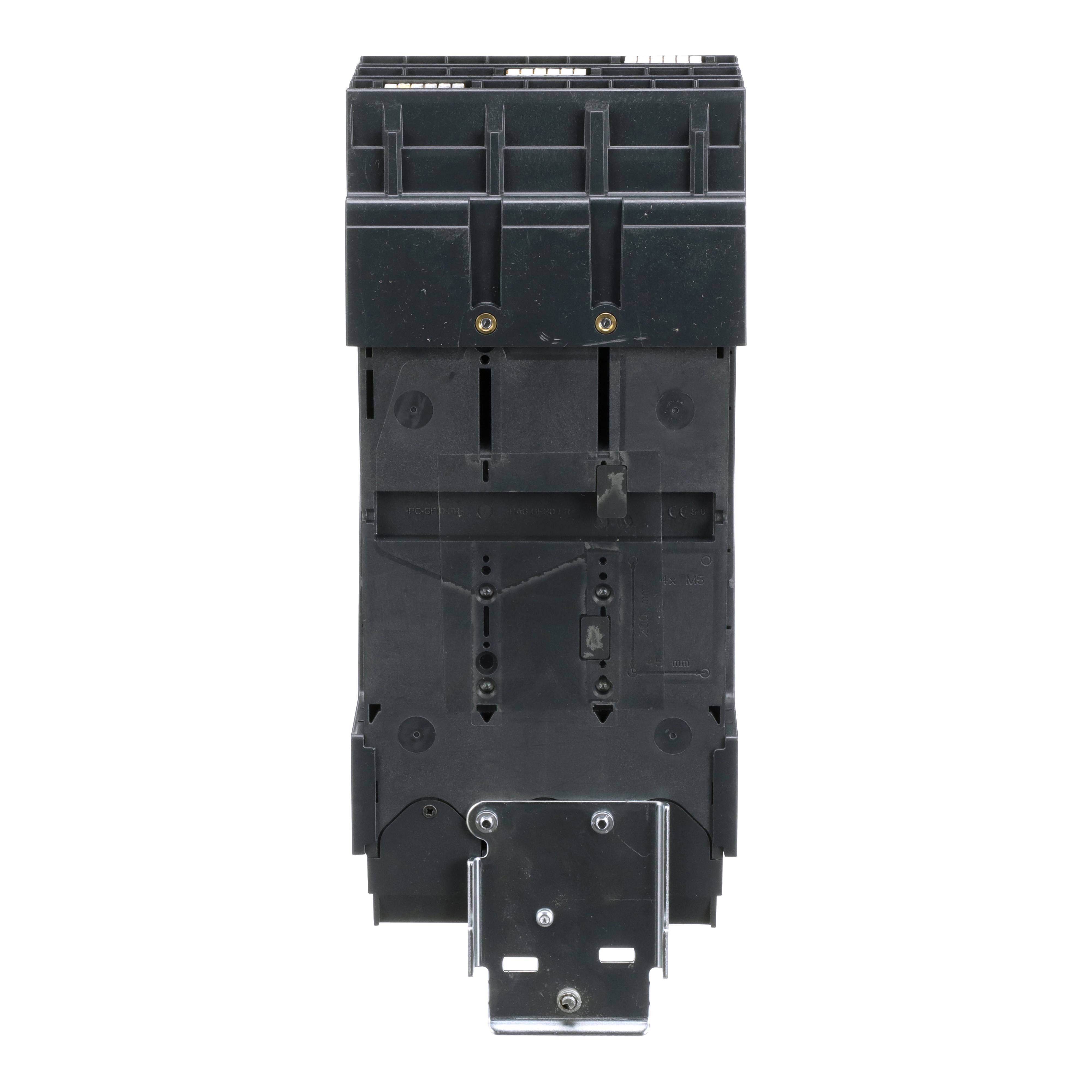

Picture of LGA36400CU33X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.3S, 100%, ABC Picture of LGA36400CU33X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.3S, 100%, ABC
Picture of LGA36400CU33X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.3S, 100%, ABC Picture of LGA36400CU33X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.3S, 100%, ABC
Picture of LGA36400CU33X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.3S, 100%, ABC Picture of LGA36400CU33X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.3S, 100%, ABC
Picture of LGA36400CU33X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.3S, 100%, ABC Picture of LGA36400CU33X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.3S, 100%, ABC
Picture of LGA36400CU33X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.3S, 100%, ABC Picture of LGA36400CU33X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.3S, 100%, ABC
Square D

LGA36400CU33X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.3S, 100%, ABC

Item Code: 1186029
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LGA36400CU33X

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

16.96

Width

10.65

Length

19.32

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/LGA36400CU33X/LGA36400CU33X.spin

AD All Features

Available in 3 or 4 pole design

AD Alternative Part Number

14563118

AD Application

For reverse connection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901193531

AD Gtin

00785901193531

AD IDEA Index ID

14563118

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 400A 18KA

AD Item Features 01

Available in 3 or 4 pole design

AD Item Features 02

Protection from overloads and short circuits

AD Item Features 03

Common accessories across the range

AD Item Features 04

Used as main panel disconnect for control panel

AD Keywords

PowerPact LGA36400CU33X Molded Case Circuit Breaker With Factory Sealed Trip Unit, 600 V AC, 400 A, 18 kA Interrupt, 3 Poles, Electronic Trip ; Schneider Electric ; Square D ; LGA36400CU33X ; LGA36400CU33X ; 785901193531 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

19.3200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

16.9600

AD Package Weight UOM

LB

AD Package Width

10.6500

AD Package Width UOM

IN

AD Part Number Keywords

LGA36400CU33X ; 14563118 ; 785901193531 ; 78590119353 ; 00785901193531 ; 0785901193531

AD Video Links

https://www.youtube.com/embed/xbXWcq35EIo

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

400

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

600

Spec 11 Attribute

Wire Size

Spec 11 Attribute Value

2/0 AWG to 500 kcmil

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Plug-In I-Line/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

14.7 in H x 5.94 in W x 6.61 in D

Spec 4 Attribute

Frame

Spec 4 Attribute Value

Frame L

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

18

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

3

Spec 9 Attribute

Trip Type

Spec 9 Attribute Value

Electronic
