Square D

LGL36000S40X - Automatic switch, PowerPact L, 400A, 3 pole, 600VAC, 18kA, lugs, magnetic

Category Thermal Magnetic Trip Molded Case Circuit Breakers

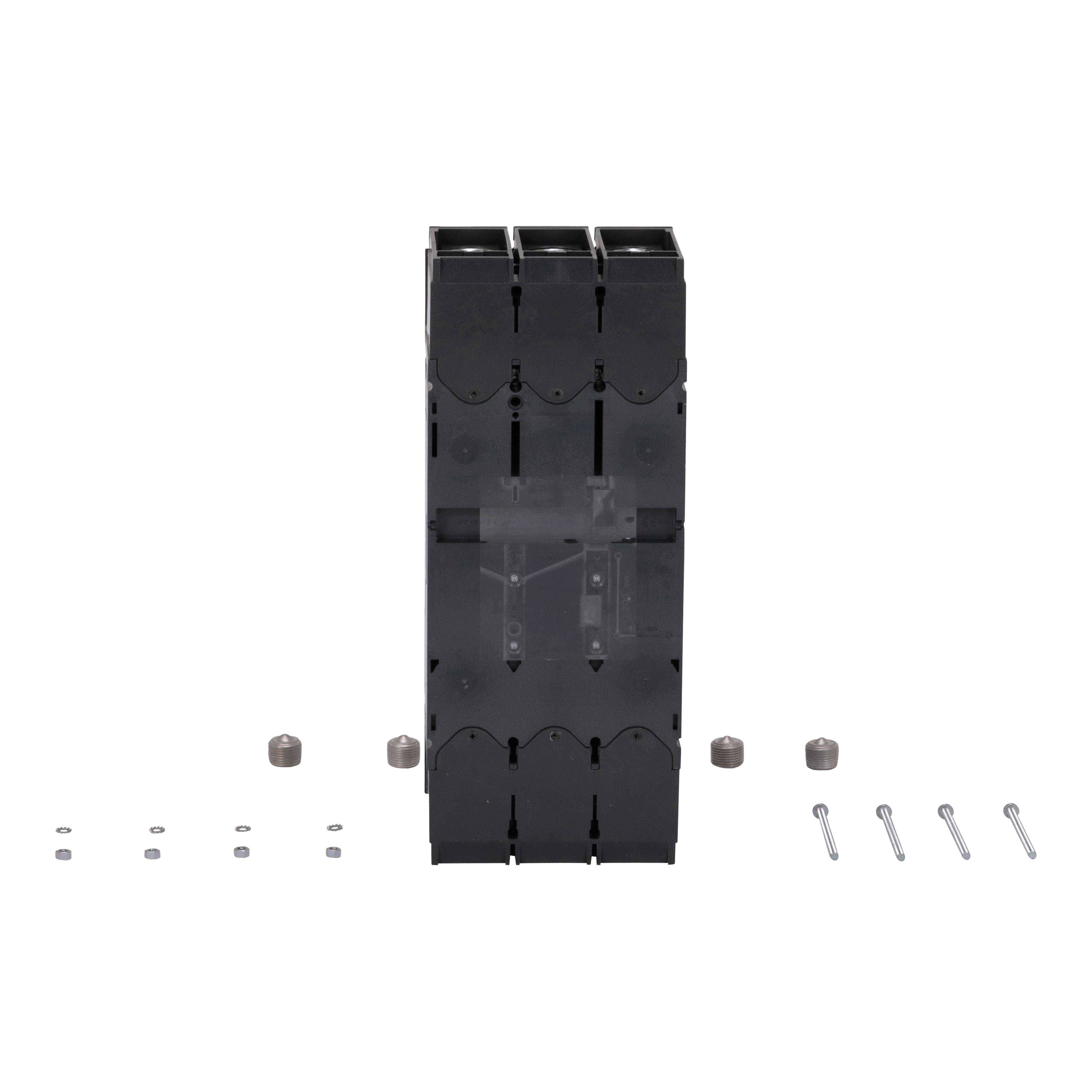

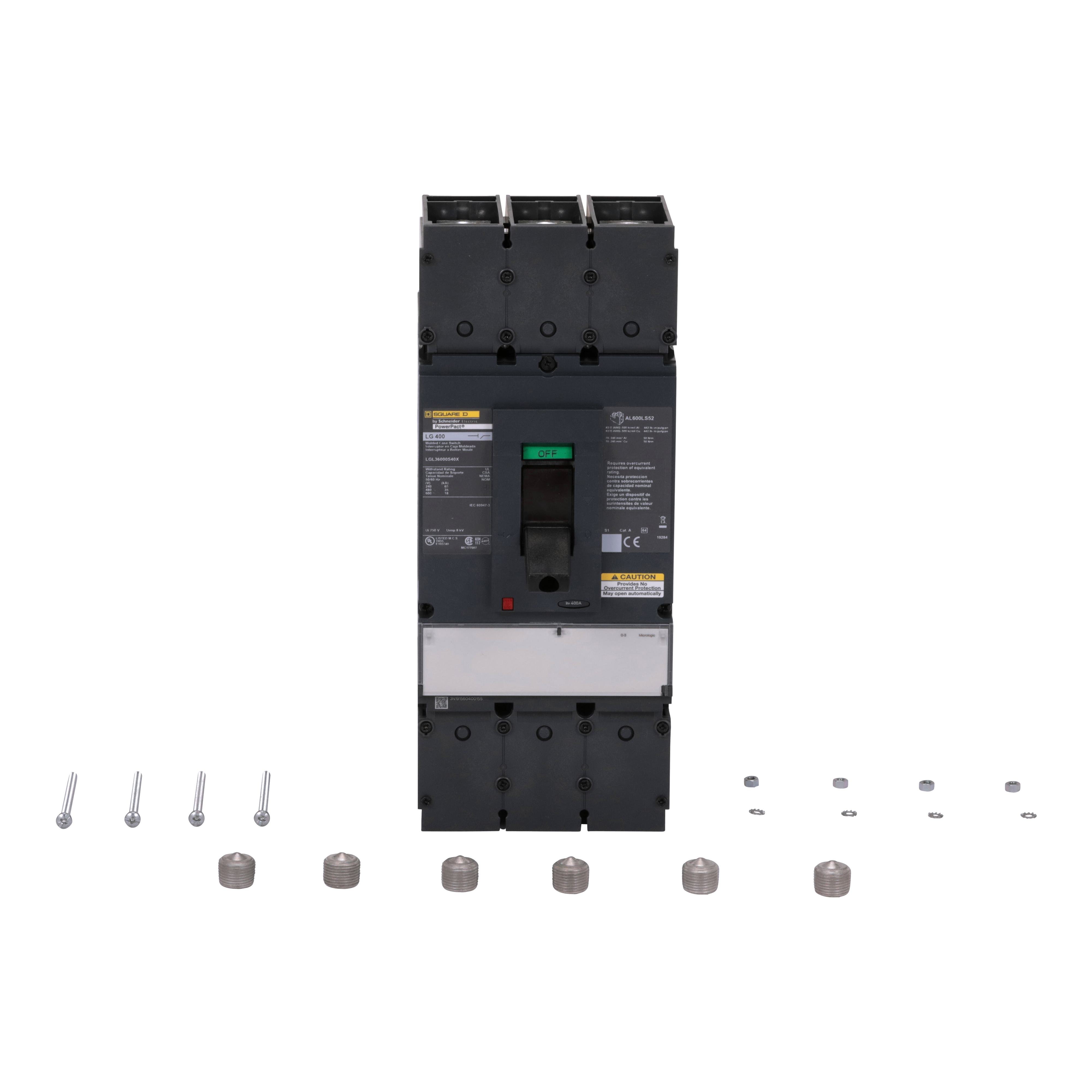

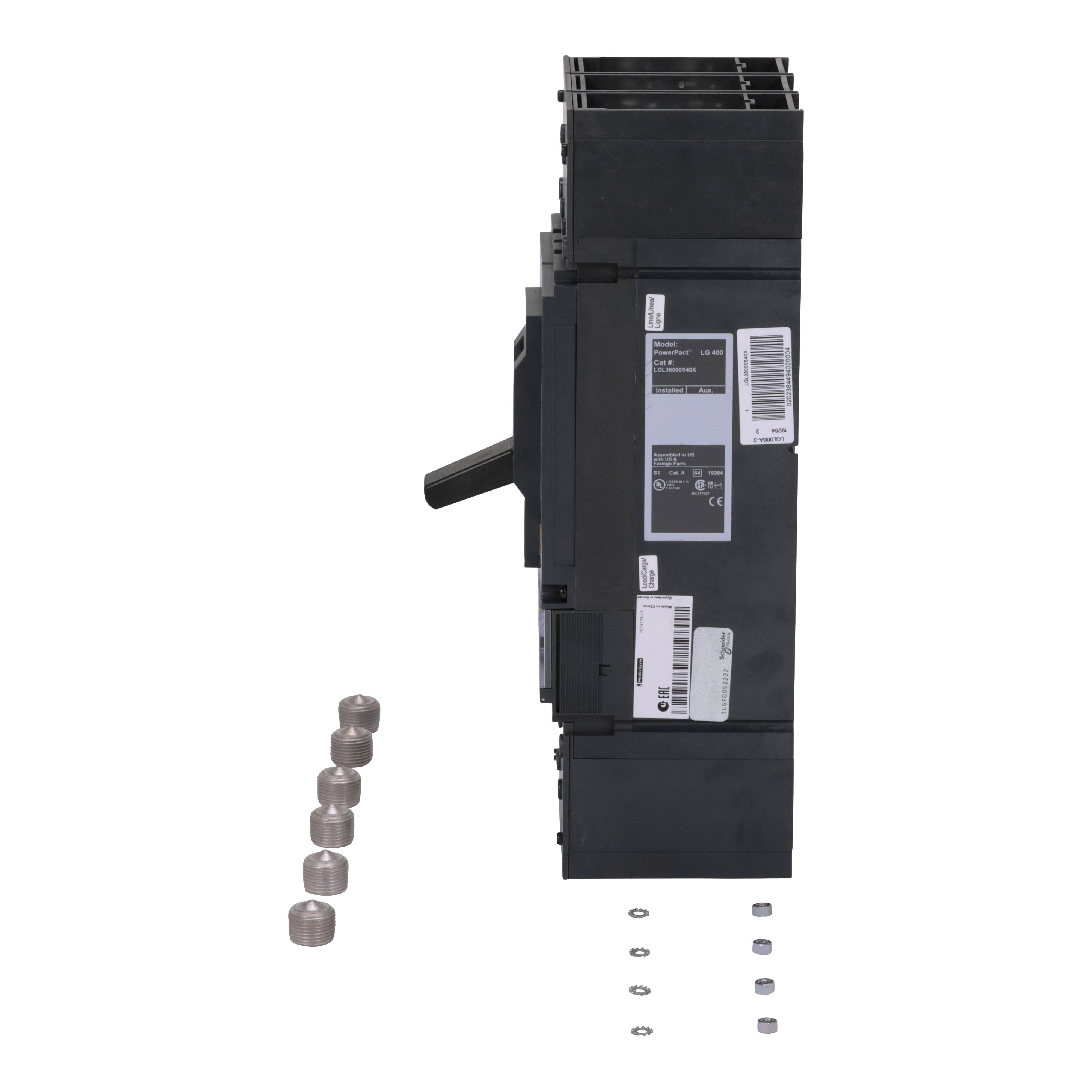

Picture of LGL36000S40X - Automatic switch, PowerPact L, 400A, 3 pole, 600VAC, 18kA, lugs, magnetic Picture of LGL36000S40X - Automatic switch, PowerPact L, 400A, 3 pole, 600VAC, 18kA, lugs, magnetic
Picture of LGL36000S40X - Automatic switch, PowerPact L, 400A, 3 pole, 600VAC, 18kA, lugs, magnetic Picture of LGL36000S40X - Automatic switch, PowerPact L, 400A, 3 pole, 600VAC, 18kA, lugs, magnetic
Picture of LGL36000S40X - Automatic switch, PowerPact L, 400A, 3 pole, 600VAC, 18kA, lugs, magnetic Picture of LGL36000S40X - Automatic switch, PowerPact L, 400A, 3 pole, 600VAC, 18kA, lugs, magnetic
Picture of LGL36000S40X - Automatic switch, PowerPact L, 400A, 3 pole, 600VAC, 18kA, lugs, magnetic Picture of LGL36000S40X - Automatic switch, PowerPact L, 400A, 3 pole, 600VAC, 18kA, lugs, magnetic
Square D

LGL36000S40X - Automatic switch, PowerPact L, 400A, 3 pole, 600VAC, 18kA, lugs, magnetic

Item Code: 995110
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LGL36000S40X

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT L-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. PowerPacT L-Frame switches are available in unit mount, I-Line, plug in, or drawout constructions. This switch has lugs on both the line and load sides. This PowerPacT L, 400A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT L automatic switches comply to UL, CSA, ANCE, and IEC standards.

Specifications

Weight

17.16

Width

12.09

Length

20.4

AD Application

For disconnect devices applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 400A 18KA

AD Item Features 01

To open and close a circuit under normal operating conditions

AD Item Features 02

Can make and break its rated current

AD Item Features 03

Factory set nonadjustable trip point to protect the molded case switch

AD Item Features 04

A wide range of accessories, auxiliaries, and lug connections available

AD Item Features 05

Main applications are Industrial markets and OEM Commercial

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

20.4000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

17.1600

AD Package Weight UOM

LB

AD Package Width

12.0900

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/kWQ8eqRwgrk

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Rotary Handle

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

104

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

A

Spec 12 Attribute Value

4800

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Magnetic

Spec 14 Attribute

Type

Spec 14 Attribute Value

Automatic

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

600

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

2 AWG to 500 kcmil

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

400

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Line/Load Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

6.61 in L x 5.51 in W x 13.38 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

L

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

18

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Unit

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
