Square D

LGL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80%

Category Thermal Magnetic Trip Molded Case Circuit Breakers

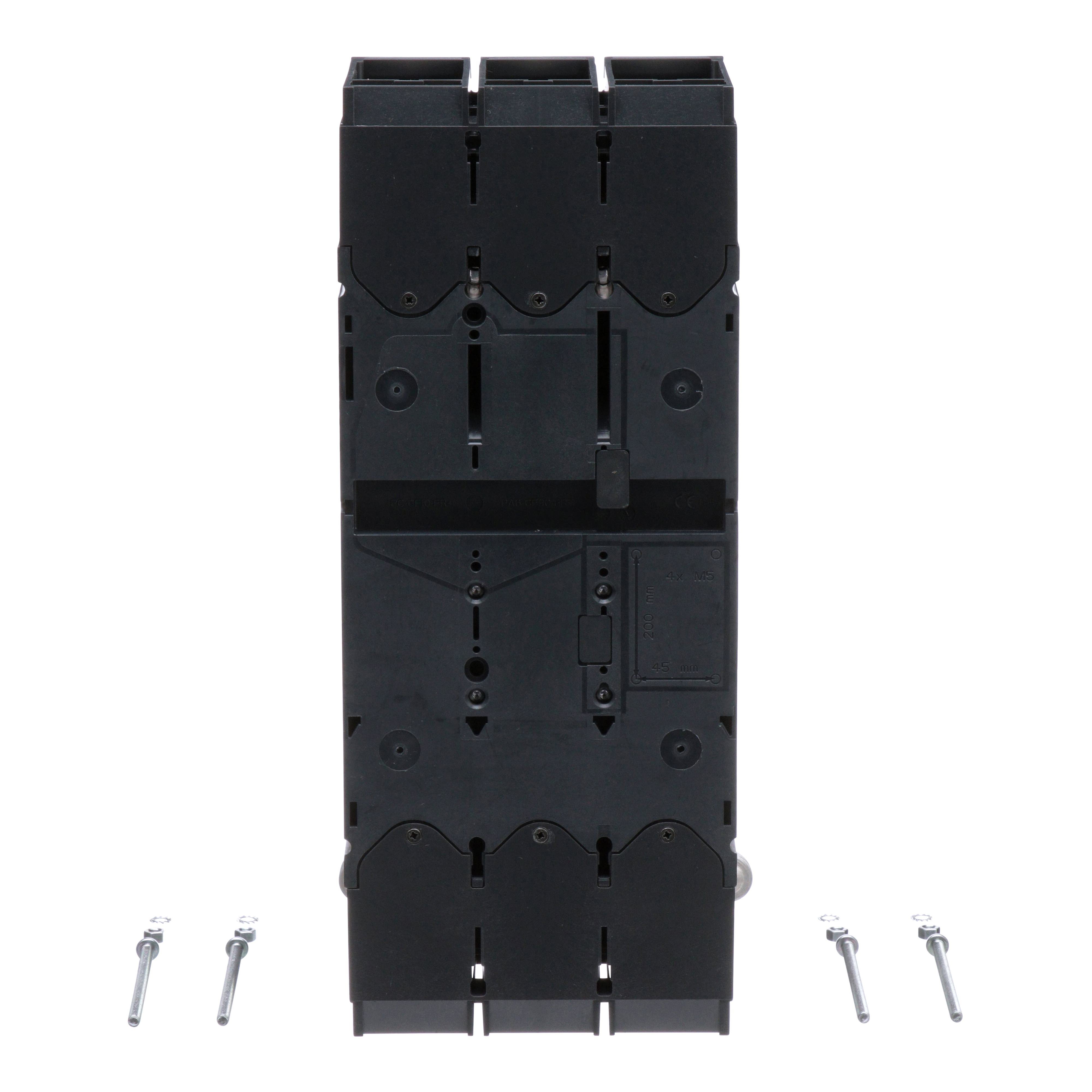

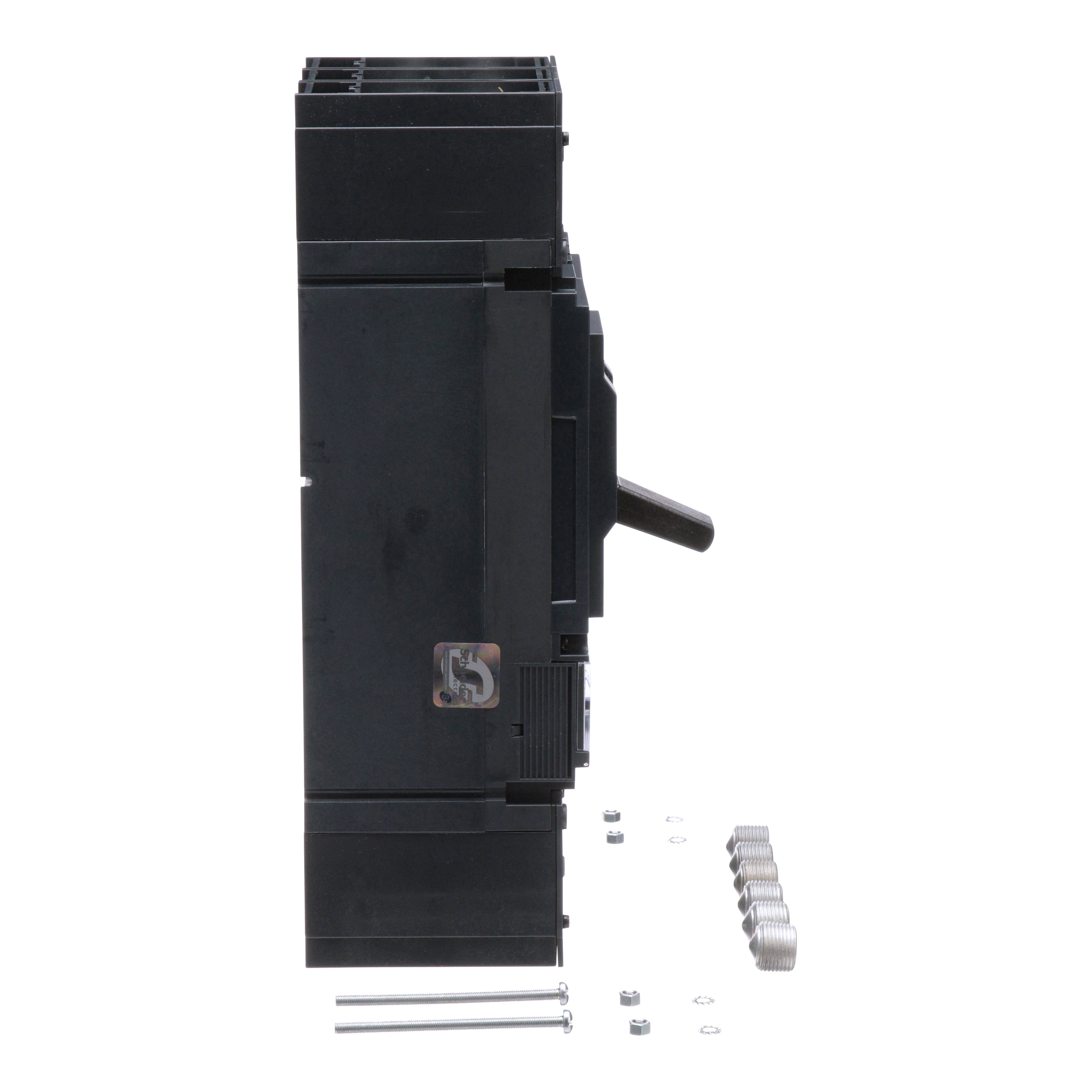

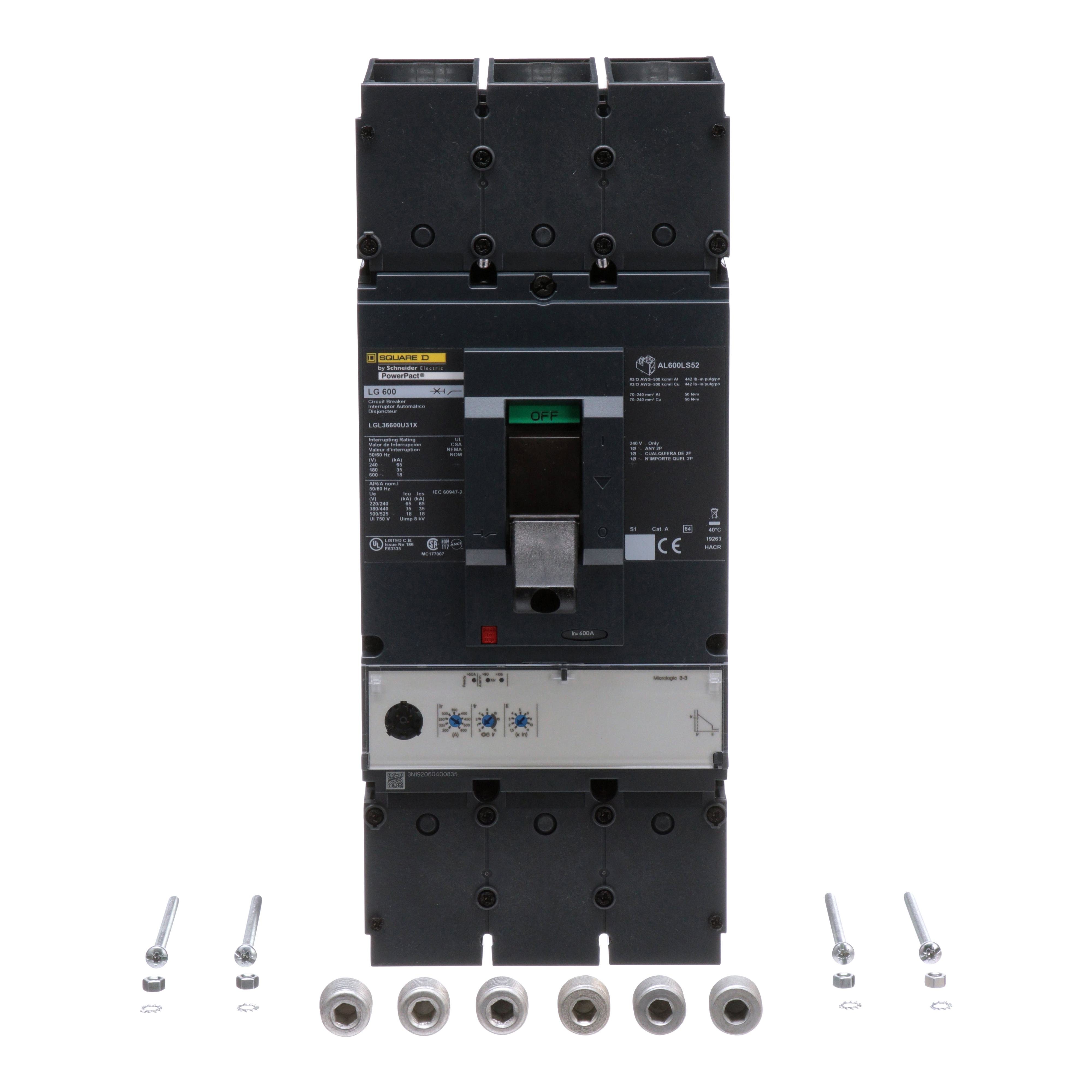

Picture of LGL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80%
Square D

LGL36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80%

Item Code: 783256
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LGL36600U31X

Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

17.02lb

Height

340mm

Width

13.87mm

Length

31.4mm

Depth

110mm

Actuator Type

Toggle Handle

Amperage Rating

600 A

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Connection Type

Line/Load Lug

Dimensions

6.61 in L x 5.5 in W x 11.3 in H

Frame

L

Frequency Rating

50/60 Hz

Interrupt Rating

18 kA at 600 VAC

Mounting Type

Unit

Number Of Poles

3

Phase

3

Temperature Rating

-13 to 158 deg f

Trip Range

600 A

Trip Type

Electronic

Type

80% rated

Voltage Rating

600 V AC

Wire Size

2/0 AWG to 500 kcmil Aluminum/Copper
