Square D

LGP36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80%

Category Miscellaneous

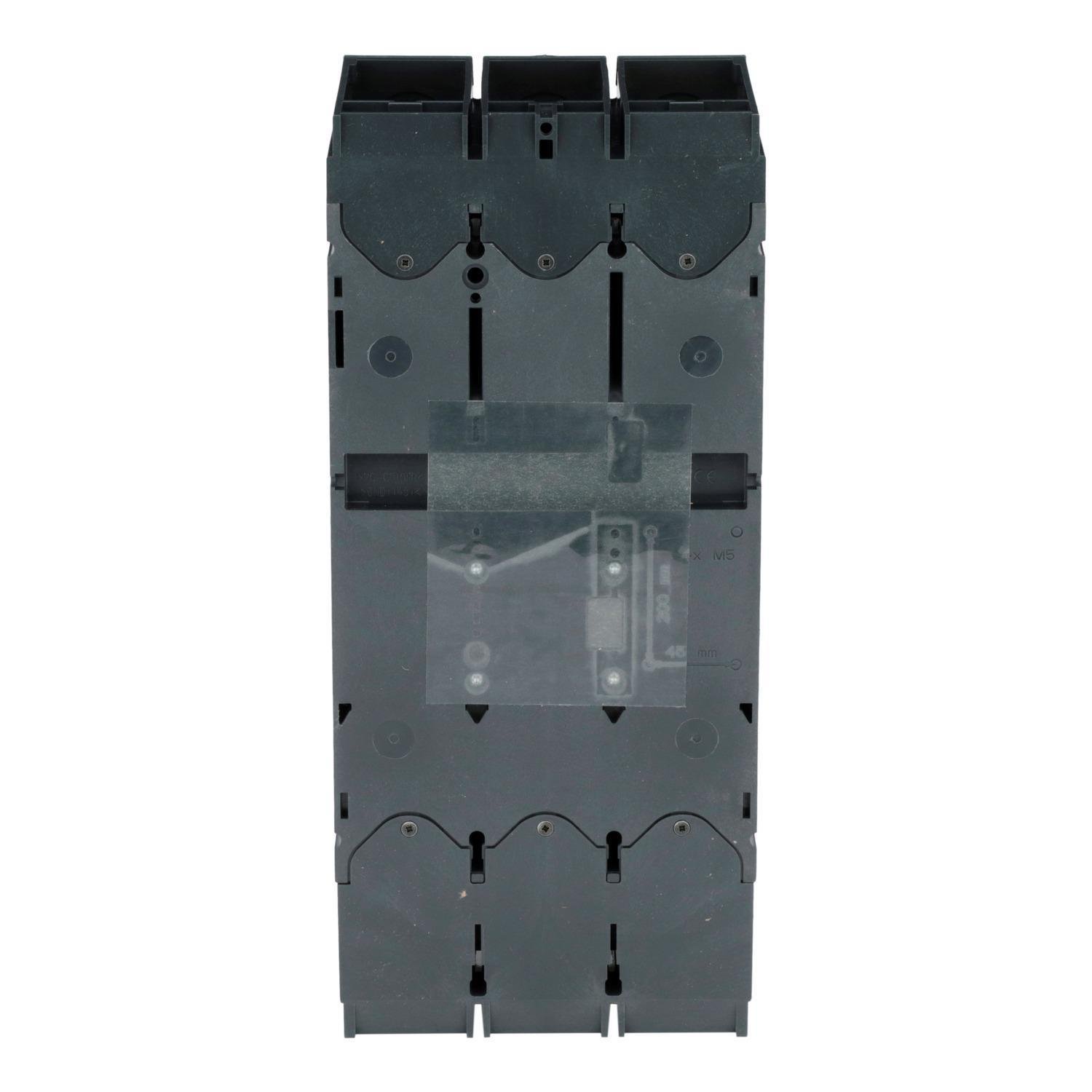

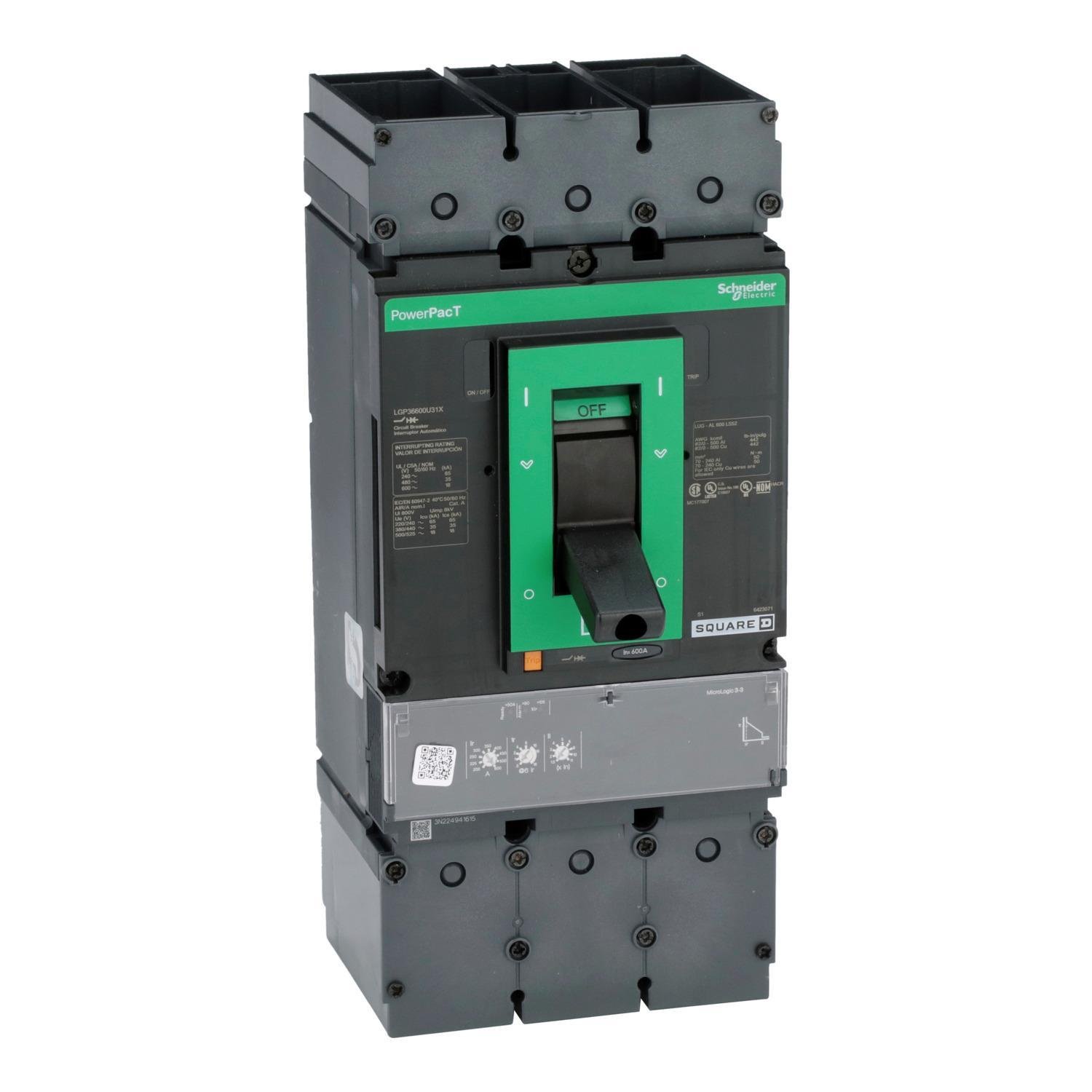

Picture of LGP36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80% Picture of LGP36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80%

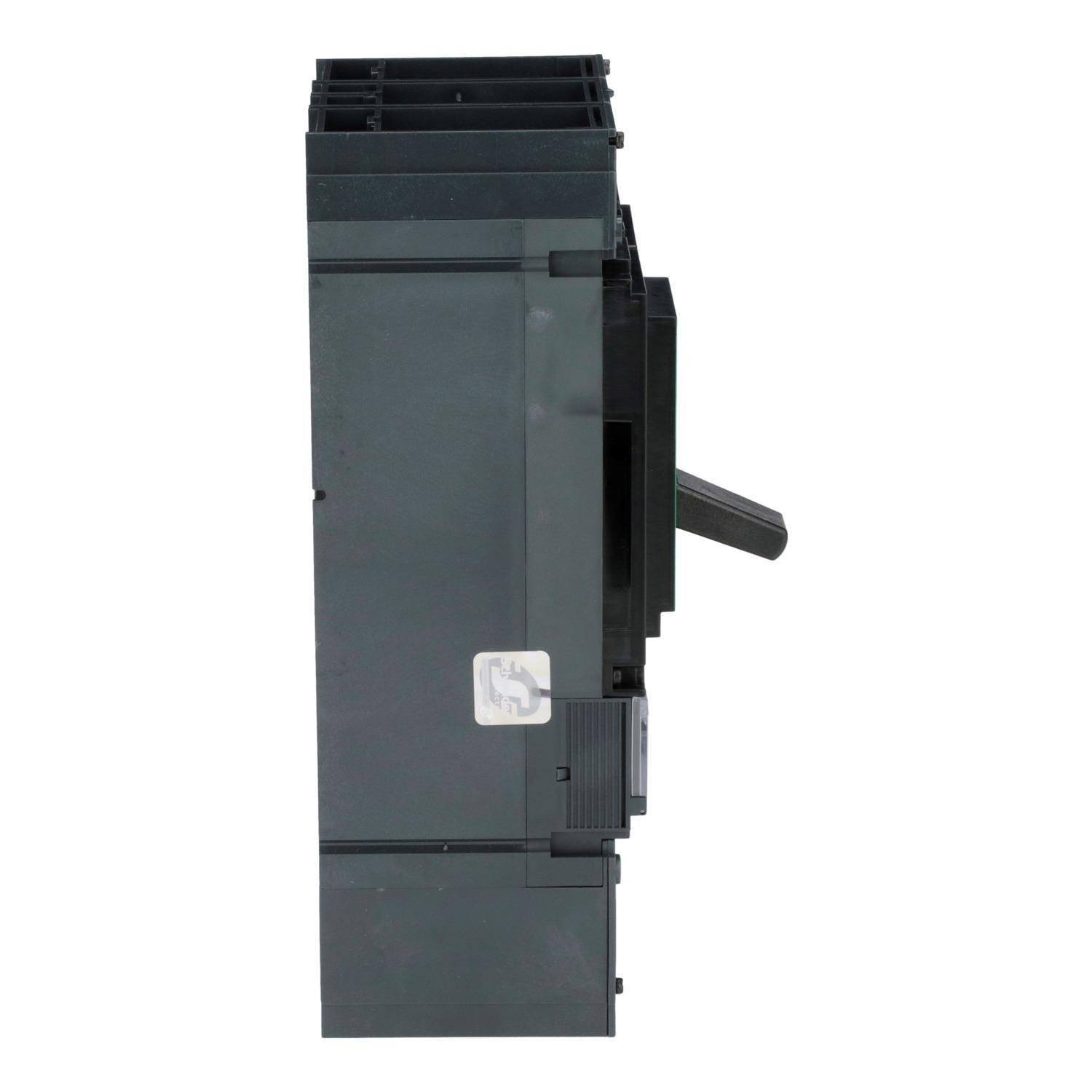

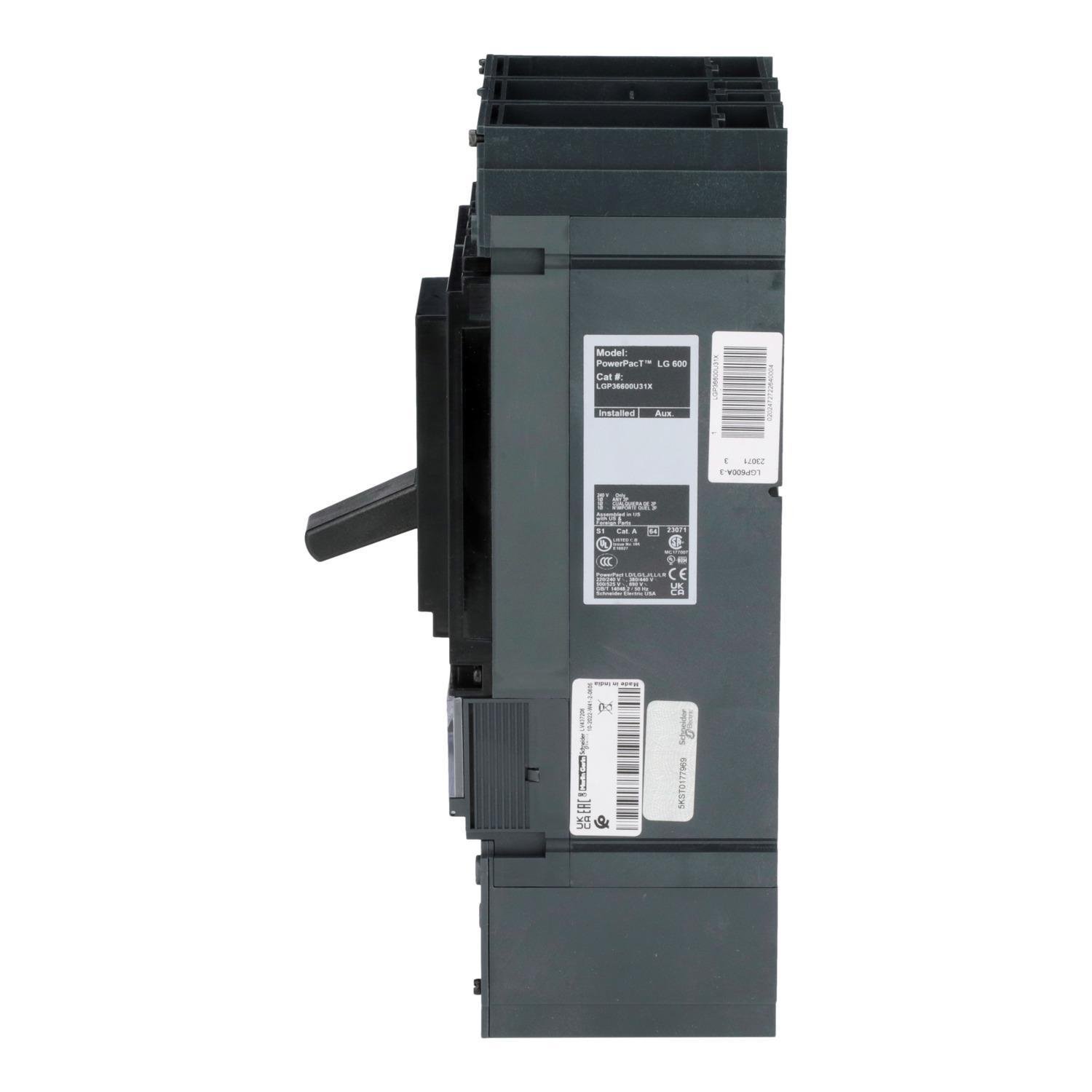

Picture of LGP36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80% Picture of LGP36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80%
Picture of LGP36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80% Picture of LGP36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80%
Picture of LGP36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80% Picture of LGP36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80%
Picture of LGP36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80% Picture of LGP36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80%
Square D

LGP36600U31X - Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 3.3, 80%

Item Code: 1166291
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LGP36600U31X

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has terminal nuts on the line side and lugs on the load side. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

14.97

Width

10.65

Length

19.32

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/LGP36600U31X/LGP36600U31X.spin

AD All Features

Available in 3 or 4 pole design

AD Alternative Part Number

14839940

AD Application

Construction, Commercial Buildings, Oil and Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD IDEA Index ID

14839940

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 600A 18KA 3

AD Item Features 01

Available in 3 or 4 pole design

AD Item Features 02

Protection from overloads and short circuits

AD Item Features 03

Common accessories across the range

AD Item Features 04

Used as main panel disconnect for control panel

AD Item Features 05

QR codes for easy access to device documentation

AD Keywords

PowerPact L LGP36600U31X Molded Case Circuit Breaker, 600 V AC, 600 A, 18 kA Interrupt, 3 Poles, Electronic Trip ; Schneider Electric ; Square D ; LGP36600U31X ; LGP36600U31X ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

19.3200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

14.9700

AD Package Weight UOM

LB

AD Package Width

10.6500

AD Package Width UOM

IN

AD Part Number Keywords

LGP36600U31X ; 14839940

AD Video Links

https://www.youtube.com/embed/kWQ8eqRwgrk

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

600

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

122

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Electronic

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

(2) 2/0 AWG to 500 kcmil Al/Cu

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Terminal Nut Line/Lug Load

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

6.61 in L x 5.5 in W x 11.3 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA AB1

Spec 5 Attribute

Frame

Spec 5 Attribute Value

L

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

18

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Backplate/DIN Rail/Flush

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
