Square D

LHL36350 - Circuit breaker, LH, 350A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, thermal magnetic

Category Thermal Magnetic Trip Molded Case Circuit Breakers

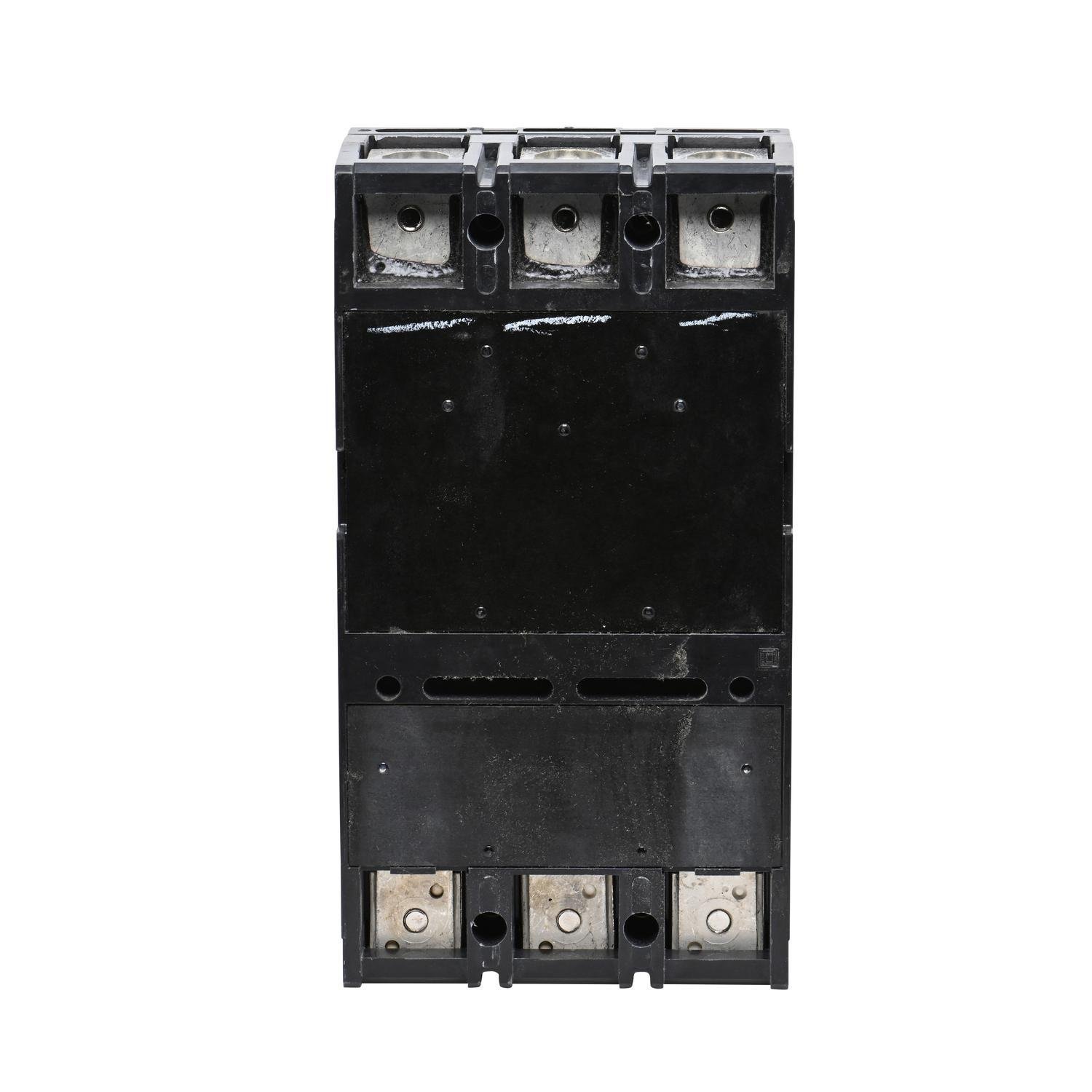

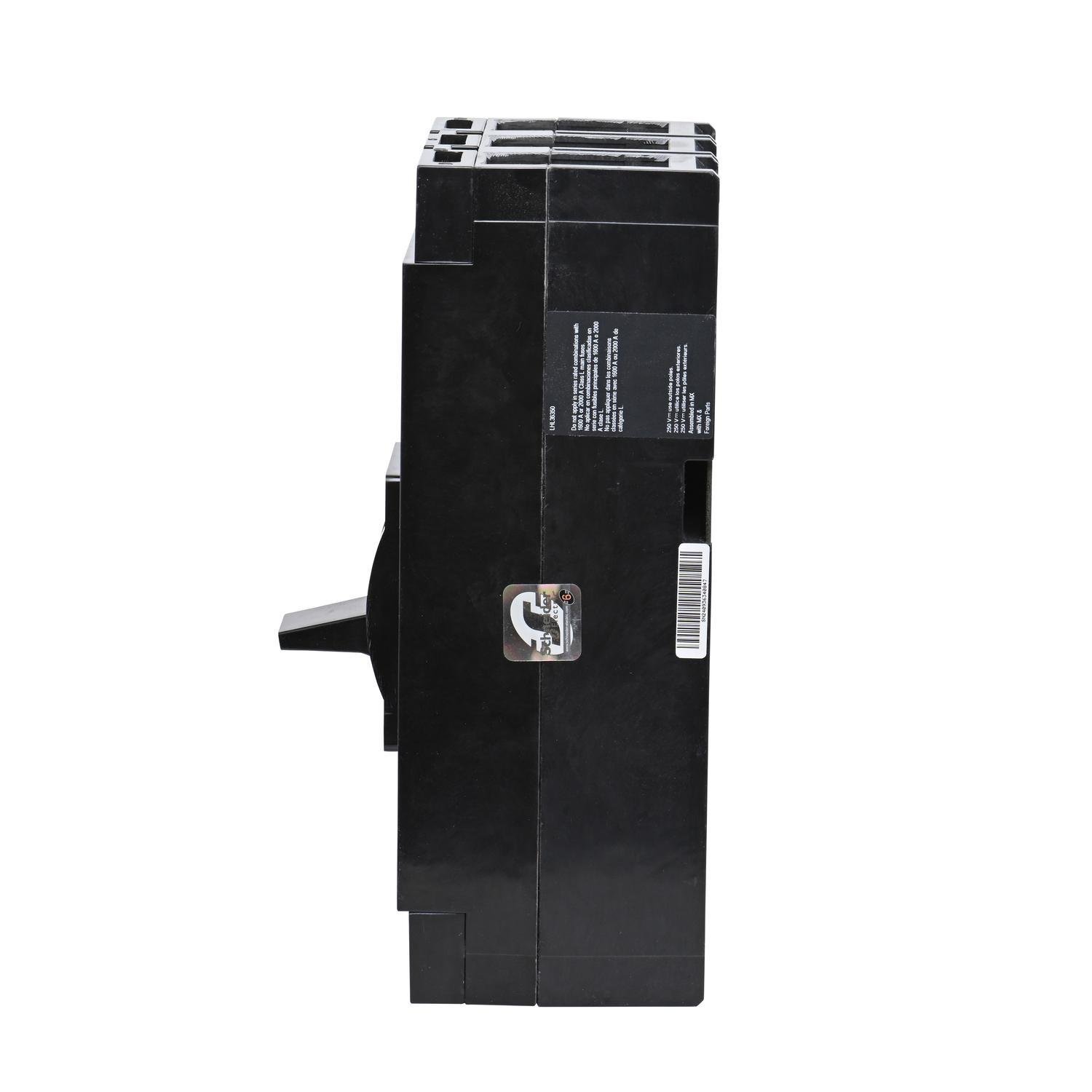

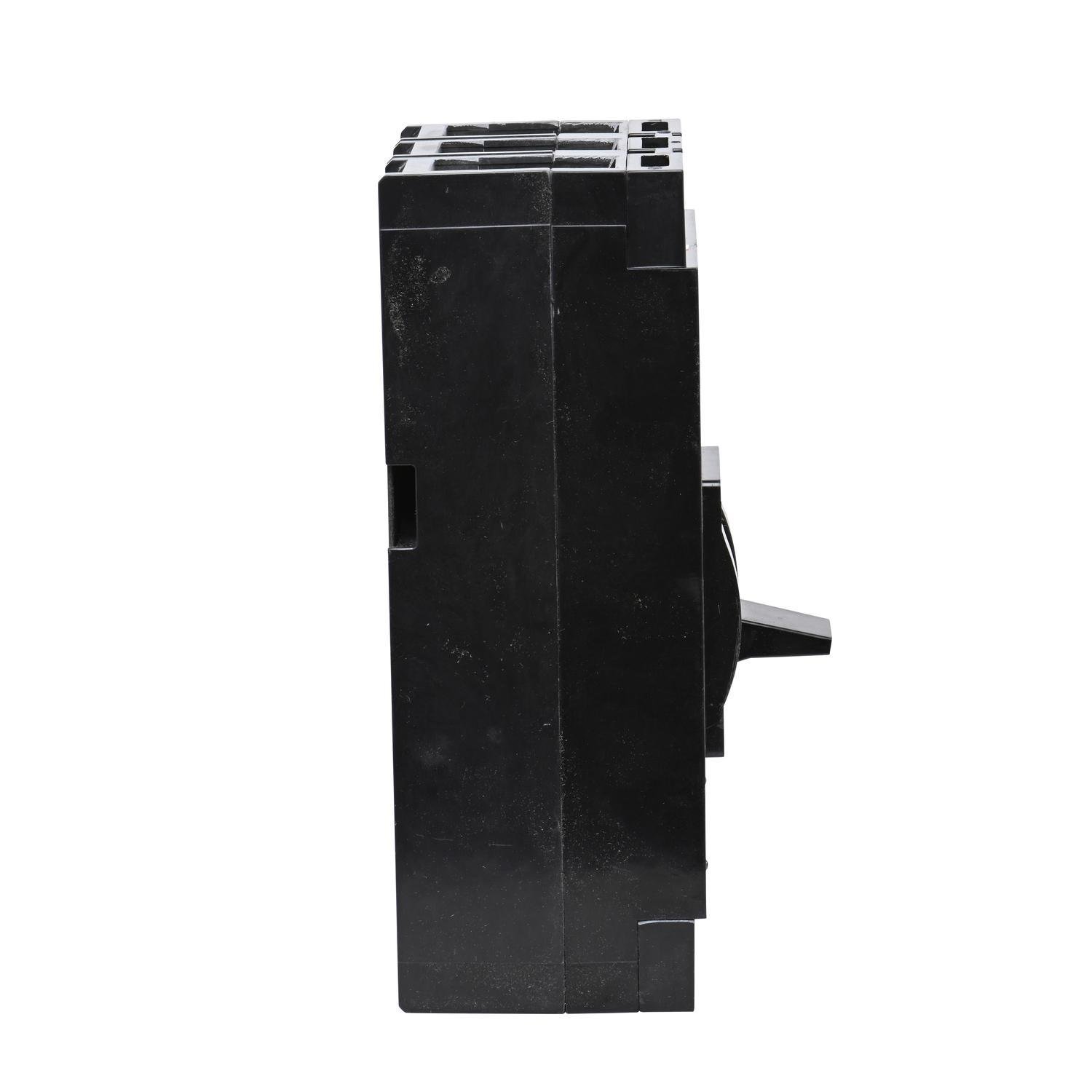

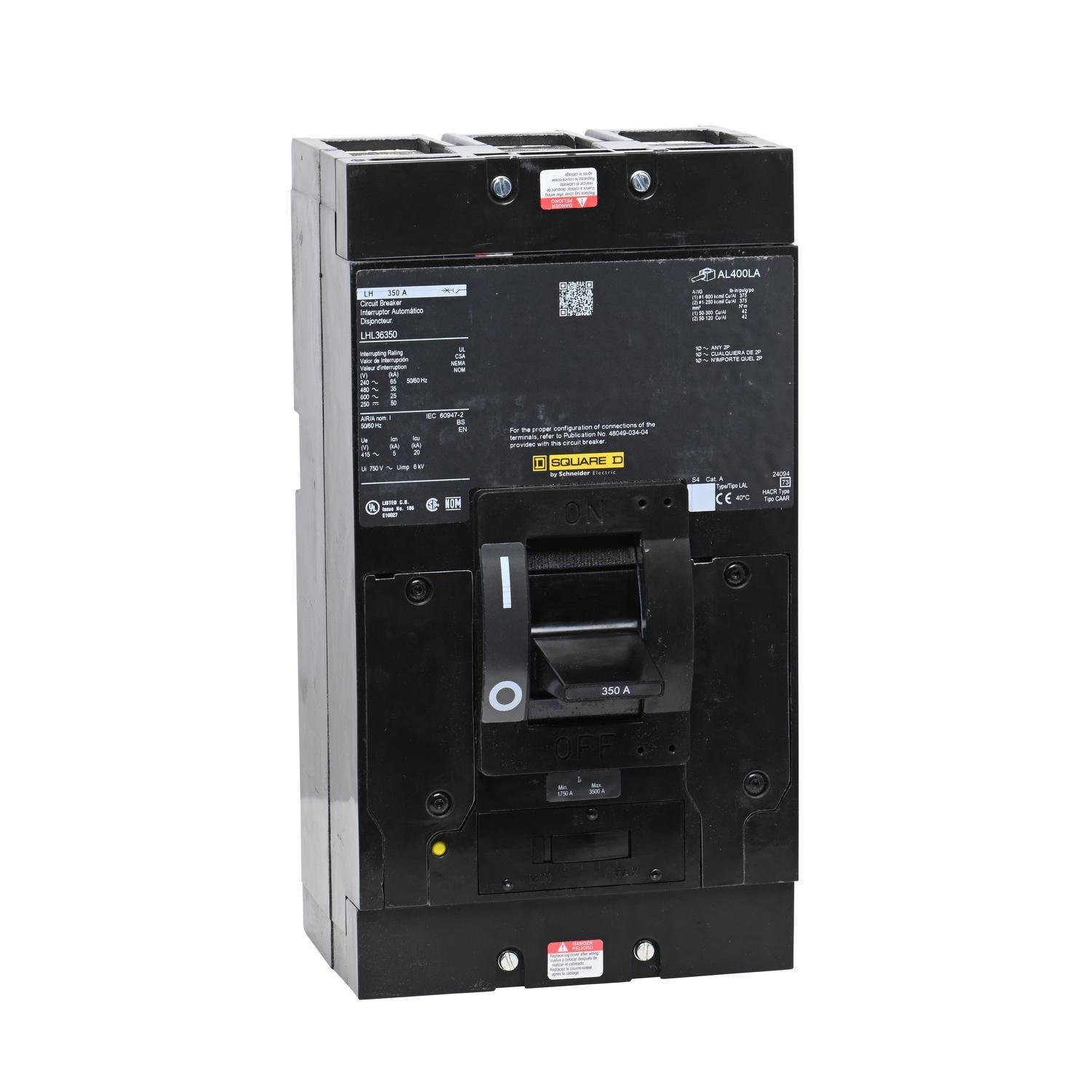

Picture of LHL36350 - Circuit breaker, LH, 350A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, thermal magnetic Picture of LHL36350 - Circuit breaker, LH, 350A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, thermal magnetic
Picture of LHL36350 - Circuit breaker, LH, 350A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, thermal magnetic Picture of LHL36350 - Circuit breaker, LH, 350A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, thermal magnetic
Picture of LHL36350 - Circuit breaker, LH, 350A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, thermal magnetic Picture of LHL36350 - Circuit breaker, LH, 350A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, thermal magnetic
Picture of LHL36350 - Circuit breaker, LH, 350A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, thermal magnetic Picture of LHL36350 - Circuit breaker, LH, 350A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, thermal magnetic
Picture of LHL36350 - Circuit breaker, LH, 350A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, thermal magnetic Picture of LHL36350 - Circuit breaker, LH, 350A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, thermal magnetic
Square D

LHL36350 - Circuit breaker, LH, 350A, 3 pole, 600VAC, 25kA, 250VDC, 50kA, lugs, thermal magnetic

Item Code: 656480
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LHL36350

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D LH molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LH circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LH molded case circuit breaker is a 3 pole unit mount breaker, 350A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 25kA for 600VAC and 50kA for 250VDC. LH breakers are UL 489, CSA, IEC certified.

Specifications

Weight

16.15

Height

9.1

Width

11.39

Length

17.34

AD All Features

Use manual circuit open or automatic current interruption for overload or short circuit conditions

AD Application

Panelboard and Switchboard Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER CKT CASE MLD 600 VAC 250 VDC

AD Item Features 01

Use manual circuit open or automatic current interruption for overload or short circuit conditions

AD Item Features 02

Flexible platform for various types of mounting and terminations

AD Item Features 03

Unit mount and I-Line construction available

AD Manufacturer (Description)

Schneider Electric

AD Package Height

9.1000

AD Package Height UOM

IN

AD Package Length

17.3400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1831.3800

AD Package Volume UOM

cu-in

AD Package Weight

16.1500

AD Package Weight UOM

LB

AD Package Width

11.3900

AD Package Width UOM

IN

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

350

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

-13 To 158

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

350/1750/3500

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute Value

600 V AC/250 V DC

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

1 AWG to 250 kcmil, 1 AWG to 600 kcmil

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Line/Load Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

5.84 in L x 6 in W x 11 in H

Spec 4 Attribute

Frame

Spec 4 Attribute Value

H

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute Value

250 VDC/600 VAC/50 kA at 125 VDC/50 kA at 250 VDC

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Unit

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
