Square D™

LJA36250U31X - Circuit breaker, PowerPacT L, 250A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 80%, ABC

Category Miscellaneous

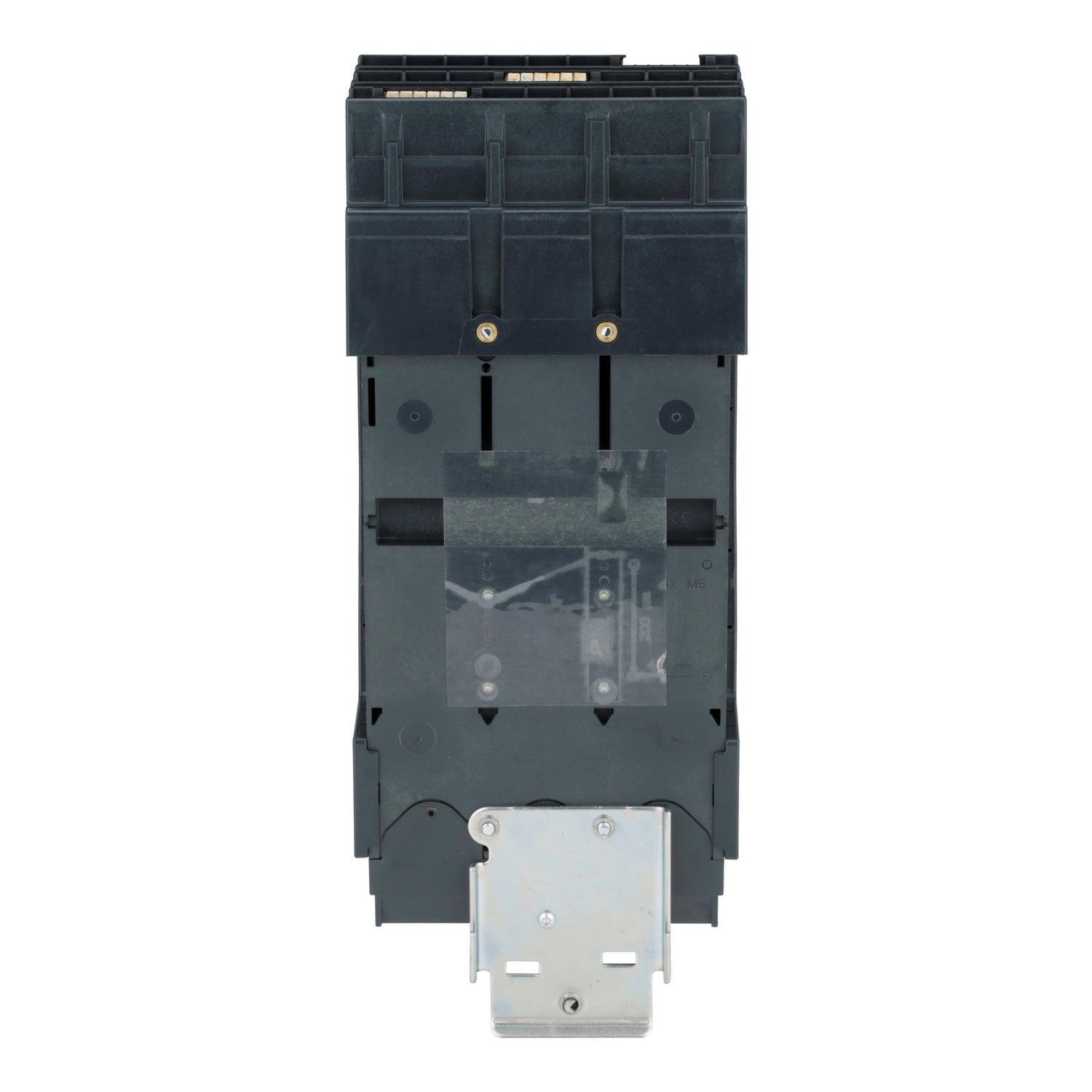

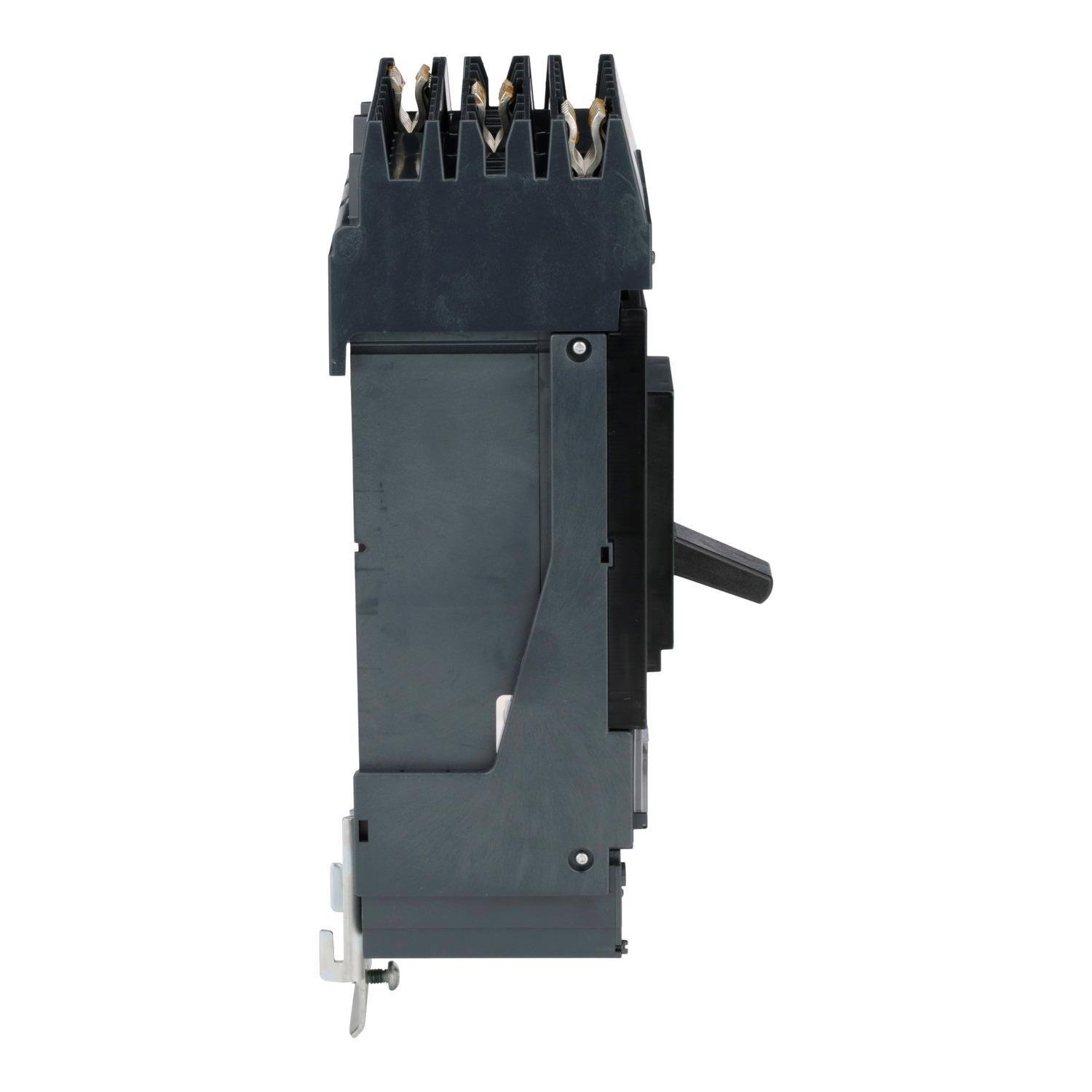

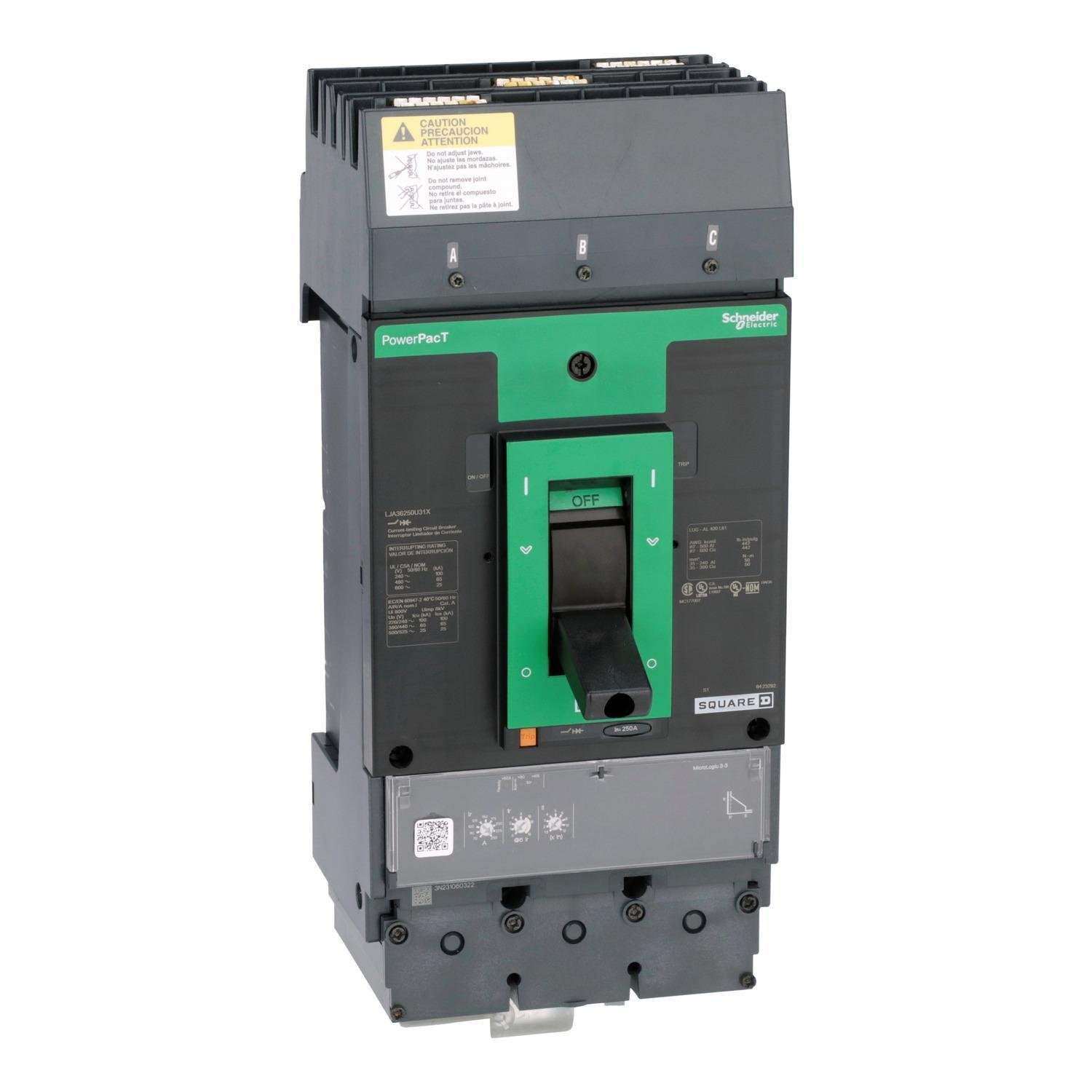

Picture of LJA36250U31X - Circuit breaker, PowerPacT L, 250A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 80%, ABC Picture of LJA36250U31X - Circuit breaker, PowerPacT L, 250A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 80%, ABC
Picture of LJA36250U31X - Circuit breaker, PowerPacT L, 250A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 80%, ABC Picture of LJA36250U31X - Circuit breaker, PowerPacT L, 250A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 80%, ABC
Picture of LJA36250U31X - Circuit breaker, PowerPacT L, 250A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 80%, ABC Picture of LJA36250U31X - Circuit breaker, PowerPacT L, 250A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 80%, ABC
Picture of LJA36250U31X - Circuit breaker, PowerPacT L, 250A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 80%, ABC Picture of LJA36250U31X - Circuit breaker, PowerPacT L, 250A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 80%, ABC
Picture of LJA36250U31X - Circuit breaker, PowerPacT L, 250A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 80%, ABC Picture of LJA36250U31X - Circuit breaker, PowerPacT L, 250A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 80%, ABC
Square D™

LJA36250U31X - Circuit breaker, PowerPacT L, 250A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 80%, ABC

Item Code: 1011538
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LJA36250U31X

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 250A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

16.96

Width

10.65

Length

19.32

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/LJA36250U31X/LJA36250U31X.spin

AD All Features

Available in 3 or 4 pole design

AD Alternative Part Number

13948359

AD Application

Construction, Commercial Buildings, Oil, Gas, Control Equipment Panels, Marine, Industrial Buildings, Water Wastewater, OEM Commercial, Healthcare Facilities, Data Centers, Educational Campuses and Industrial Markets

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

CA

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901234579

AD Gtin

00785901234579

AD IDEA Index ID

13948359

AD Invoice Description

BREAKER CKT CASE MLD 600VAC 250A 25KA

AD Item Features 01

Available in 3 or 4 pole design

AD Item Features 02

Protection from overloads and short circuits

AD Item Features 03

Common accessories across the range

AD Item Features 04

Used as main panel disconnect for control panel

AD Item Features 05

QR codes for easy access to device documentation

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

19.3200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

16.9600

AD Package Weight UOM

LB

AD Package Width

10.6500

AD Package Width UOM

IN

AD Part Number Keywords

LJA36250U31X ; 13948359 ; 785901234579 ; 78590123457 ; 00785901234579 ; 0785901234579

AD Video Links

https://www.youtube.com/embed/kWQ8eqRwgrk

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Electronic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Standard

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

2 AWG to 500 kcmil Al/2 AWG to 600 kcmil Cu

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

250

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Line/Load Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

14.7 in H x 5.94 in W x 6.61 in D

Spec 5 Attribute

Frame

Spec 5 Attribute Value

L Frame

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute Value

100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

-13 To 158
