Square D

LJA36400CU31X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 100%, ABC

Category Thermal Magnetic Trip Molded Case Circuit Breakers

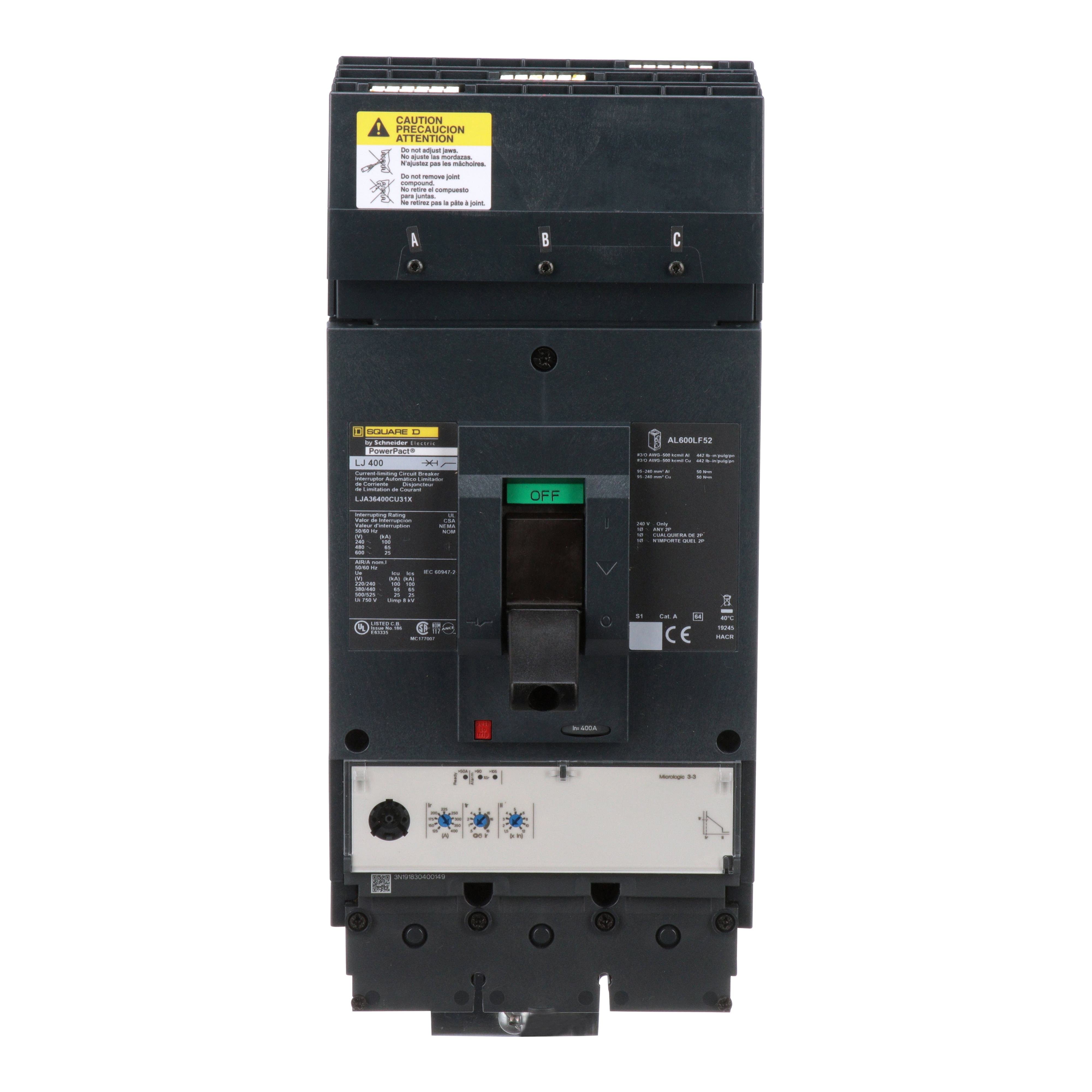

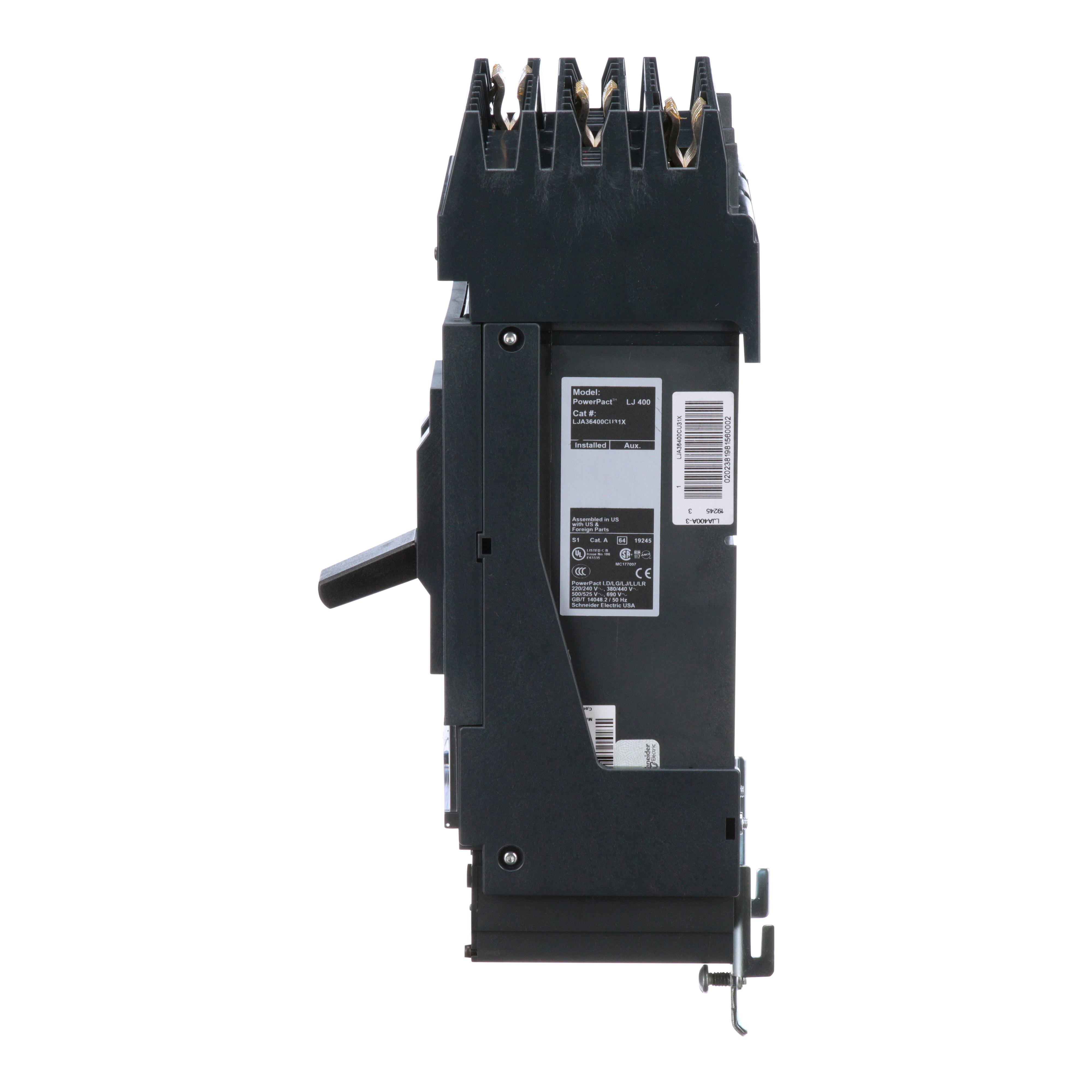

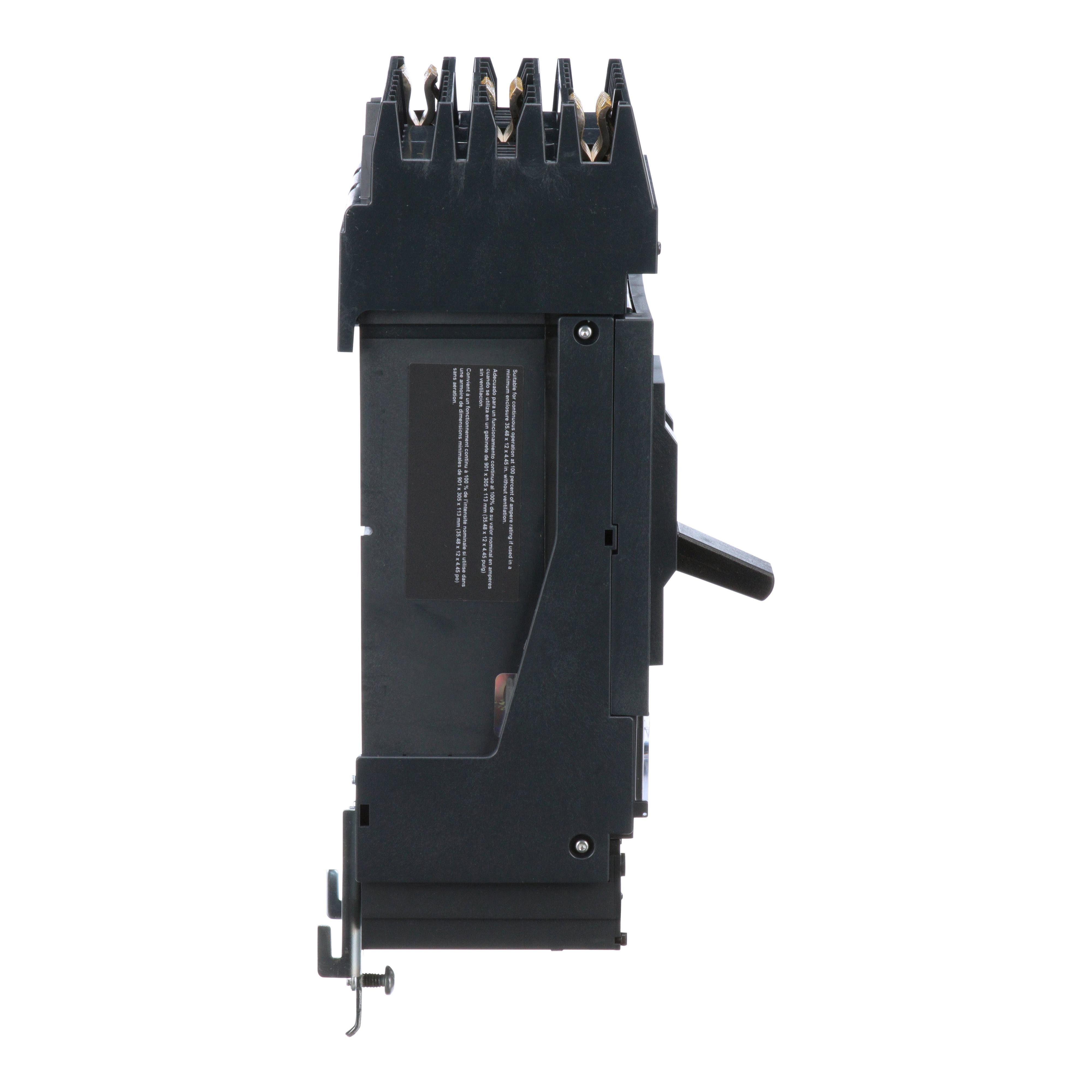

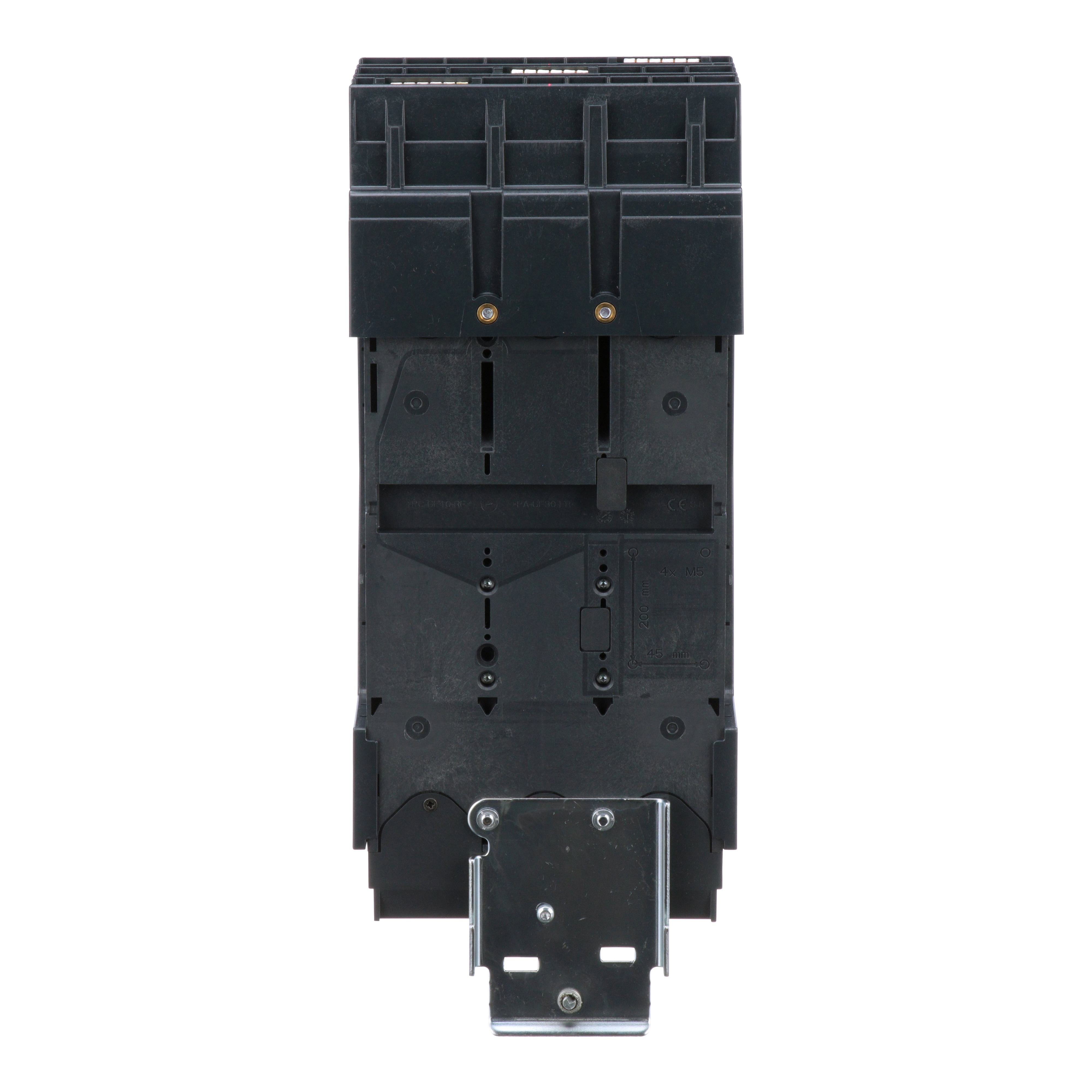

Picture of LJA36400CU31X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 100%, ABC
Square D

LJA36400CU31X - Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 100%, ABC

Item Code: 980580
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LJA36400CU31X

Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Watch video
Call for Availability
Add to Favorites
Compare

Description

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

18.71

Width

13.87

Length

31.4

Actuator Type

Toggle

Amperage Rating

400 A

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Connection Type

Line/Load Lug

Dimensions

14.7 in H x 5.94 in W x 6.61 in D

Frame

L Frame

Frequency Rating

50/60 Hz

Interrupt Rating

100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC

Number Of Poles

3

Temperature Rating

-13 to 158 deg f

Trip Type

Electronic

Type

Standard

Voltage Rating

600 V AC

Wire Size

(2) 2/0 AWG to 500 kcmil Al/Cu
