Schneider Electric

LK4QU3N - Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR

Category Disconnect Motor Switches & Accessories

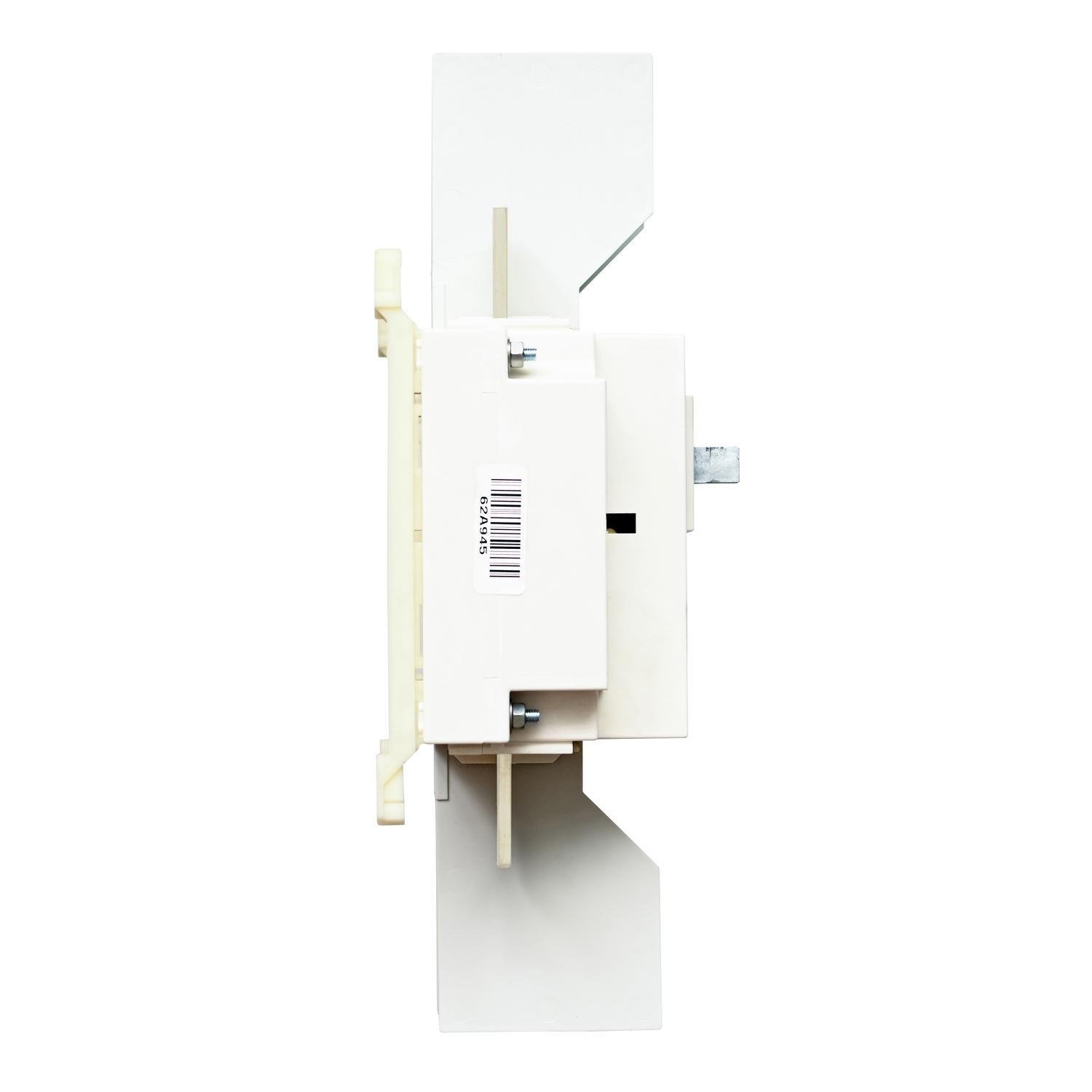

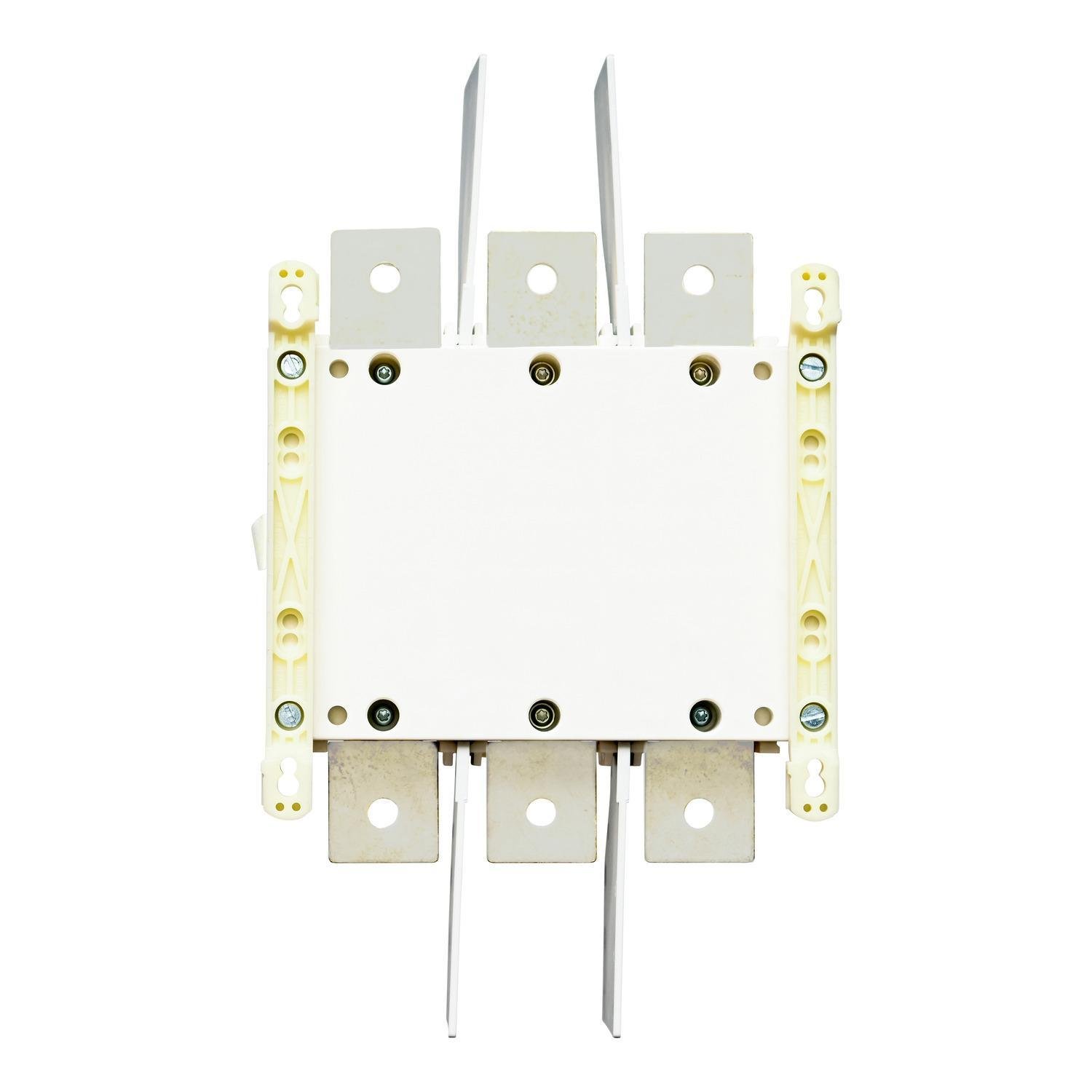

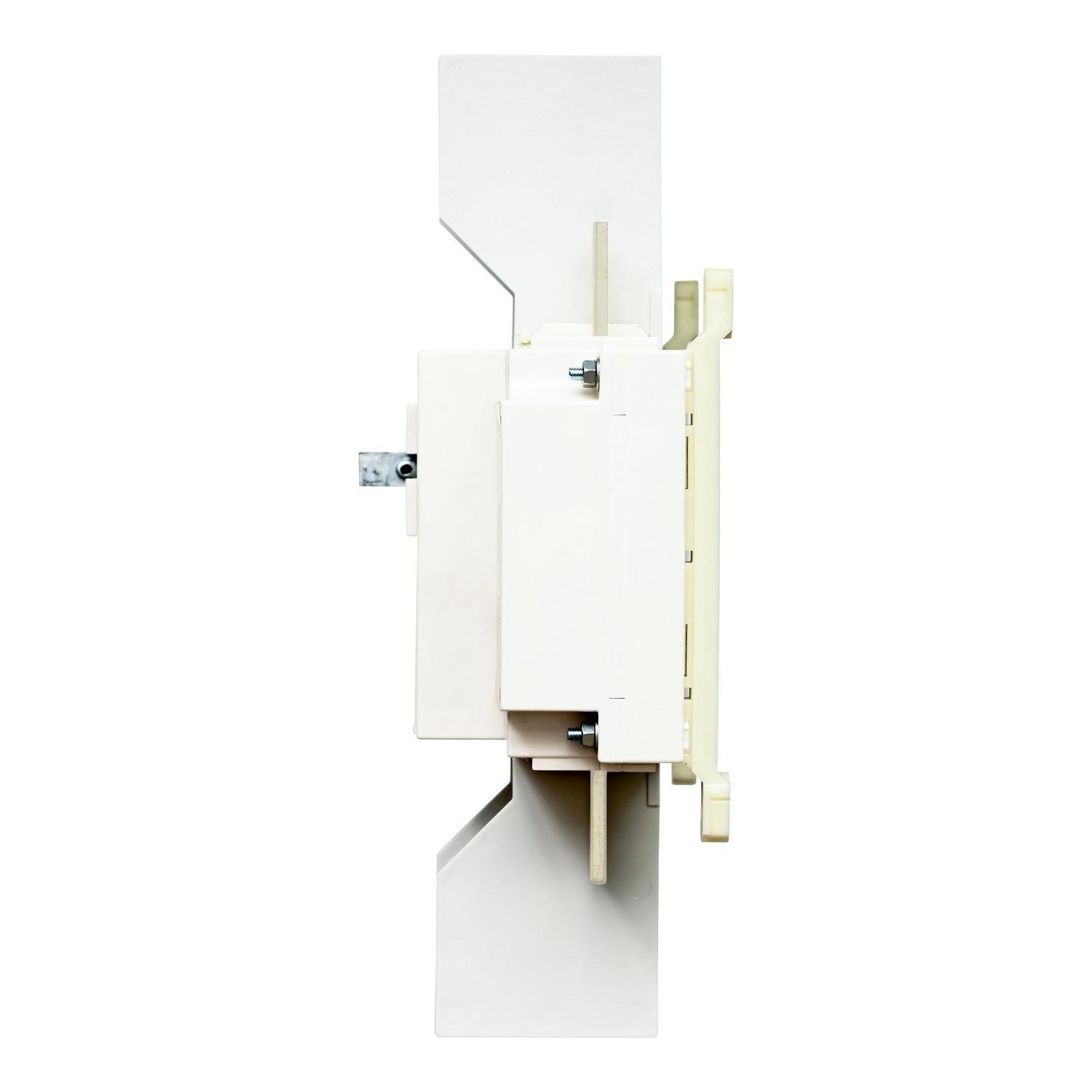

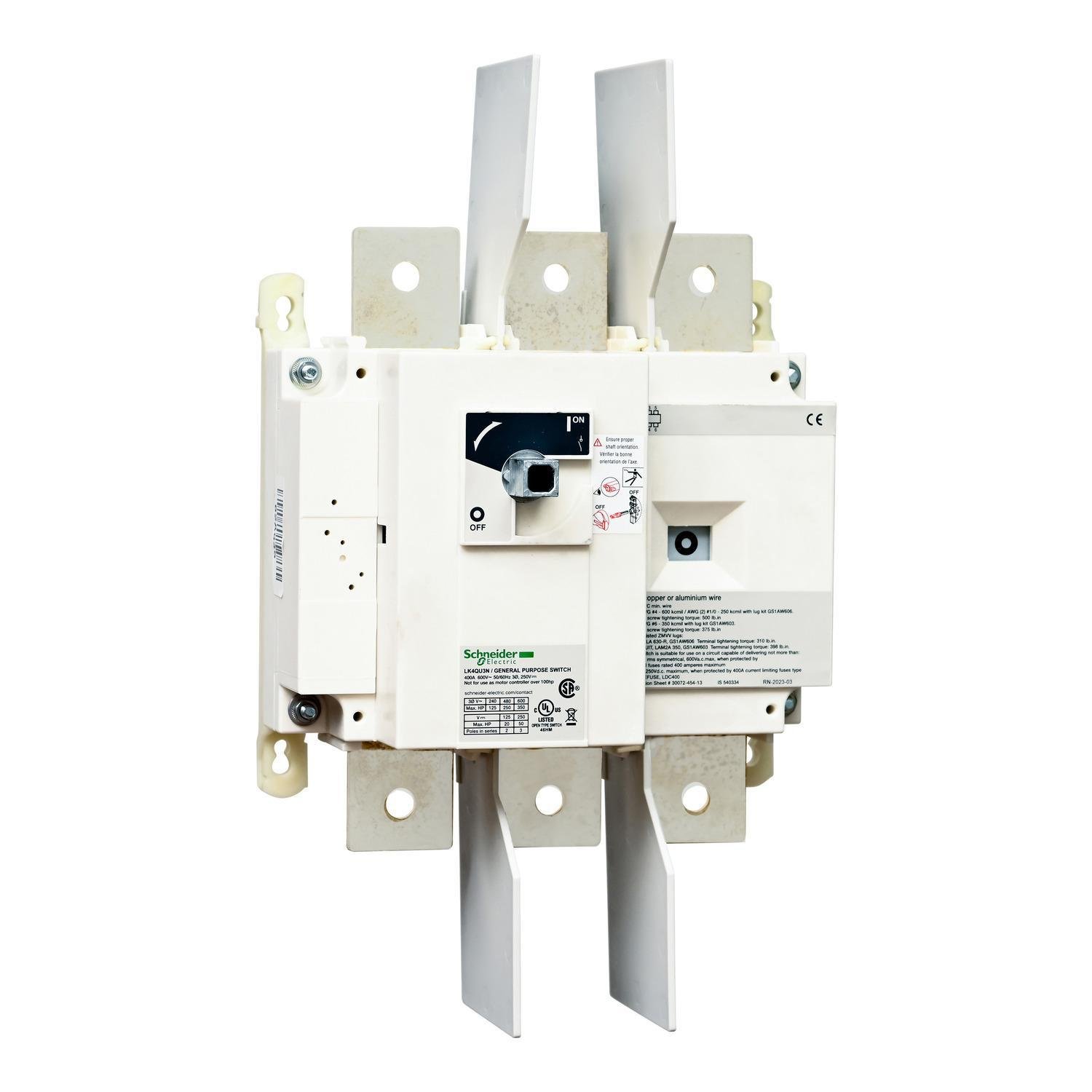

Picture of LK4QU3N - Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR Picture of LK4QU3N - Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR
Picture of LK4QU3N - Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR Picture of LK4QU3N - Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR
Picture of LK4QU3N - Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR Picture of LK4QU3N - Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR
Picture of LK4QU3N - Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR Picture of LK4QU3N - Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR
Picture of LK4QU3N - Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR Picture of LK4QU3N - Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR
Schneider Electric

LK4QU3N - Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR

Item Code: 791729
Category Disconnect Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LK4QU3N

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 400 ampere rating. It can be used in appl

Specifications

Weight

14.08

Width

21.1

Length

16.38

AD All Features

Break and make power circuits and on/off loads

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SWITCH DISC 600VAC 400A 350HP 3 50/60HZ

AD Item Features 01

Break and make power circuits and on/off loads

AD Item Features 02

Provides safety isolation

AD Item Features 03

Positive break indication

AD Item Features 04

Full line of NEMA/UL/IP rated handles

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

16.3800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

14.0800

AD Package Weight UOM

LB

AD Package Width

21.1000

AD Package Width UOM

IN

Brand

Square D

Category

DISCONNECT MOTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Rotary Handle

Spec 10 Attribute

Series

Spec 10 Attribute Value

LK4

Spec 11 Attribute

Short Circuit Current Rating

Spec 11 Attribute UOM

KA

Spec 11 Attribute Value

48

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Ring Lug

Spec 13 Attribute

Type

Spec 13 Attribute Value

Non-fusible

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

400

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

10.24 in H x 9.06 in W x 5.04 in D

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

HORSEPOWER

Spec 5 Attribute UOM

HP

Spec 5 Attribute Value

350

Spec 6 Attribute

Insulation Type

Spec 6 Attribute Value

Class J

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Number Of Wires

Spec 9 Attribute Value

1
