Schneider Electric

LR2D3561 - TeSys Deca thermal overload relays , 55...70A - class 20

Category Miscellaneous

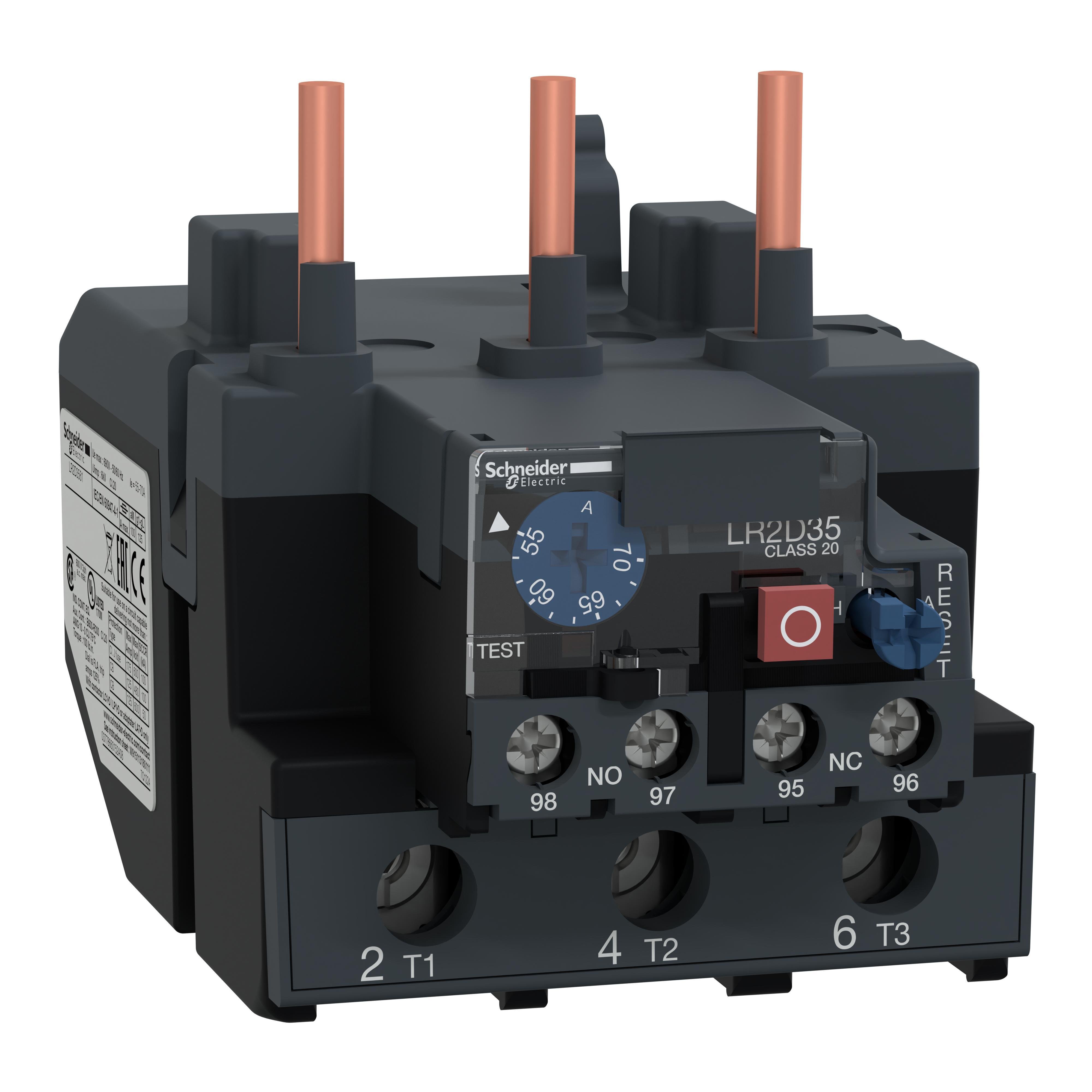

Picture of LR2D3561 - TeSys Deca thermal overload relays , 55...70A - class 20
Schneider Electric

LR2D3561 - TeSys Deca thermal overload relays , 55...70A - class 20

Item Code: 913121
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LR2D3561

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

LR2D3361 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 30-37kW@400V thanks to a thermal range 55-70A, a tripping class 20 and phase unbalance protection. LR2D3361 is a TeSys LRD ther

Specifications

Weight

1.14

Height

3.5

Width

3.04

Length

4.6

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/LR2D3561/LR2D3561.spin

AD All Features

New modern look and feel of all machines

AD Alternative Part Number

8133526

AD Application

For used to protect AC circuits and motors against overload, phase failure, long starting times and prolonged stalling of the motor

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3389110229127

AD Gtin

03389110229127

AD IDEA Index ID

8133526

AD Invoice Description

RELAY OVLD THRM DIFF 55 TO 70A 3 IP20

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Easier to install and operate with multi-standard screws

AD Item Features 03

Digital customer experience for technical documents

AD Keywords

LR2D3561 TeSys™ LRD Differential Thermal Overload Relay, 55 to 70 A, 1NO-1NC 1 Form A/1 Form B Contac ; Schneider Electric ; LR2D3561 ; 8133526 ; 7320287 ; 785901317197 ; Overload Relays

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.5000

AD Package Height UOM

IN

AD Package Length

4.6000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

51.0000

AD Package Volume UOM

cu-in

AD Package Weight

1.1400

AD Package Weight UOM

LB

AD Package Width

3.0400

AD Package Width UOM

IN

AD Part Number Keywords

LR2D3561 ; 8133526 ; 7320287 ; 785901317197 ; 78590131719 ; 03389110229127 ; 3389110229127

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

55 to 70

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Screw clamp

Spec 11 Attribute

Type

Spec 11 Attribute Value

Bi-Metallic Differential

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

1NO-1NC 1 Form A/1 Form B

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

100 mm H x 75 mm W x 121 mm D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

IP20

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

0 to 400

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

DIN Rail/Surface

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

Series

Spec 8 Attribute Value

TeSys™ LRD

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

-20 To 60
