Schneider Electric

LRD07 - TeSys Deca, thermal overload relay, 1.6 to 2.5 A, class 10A

Category Overload Relays & Accessories

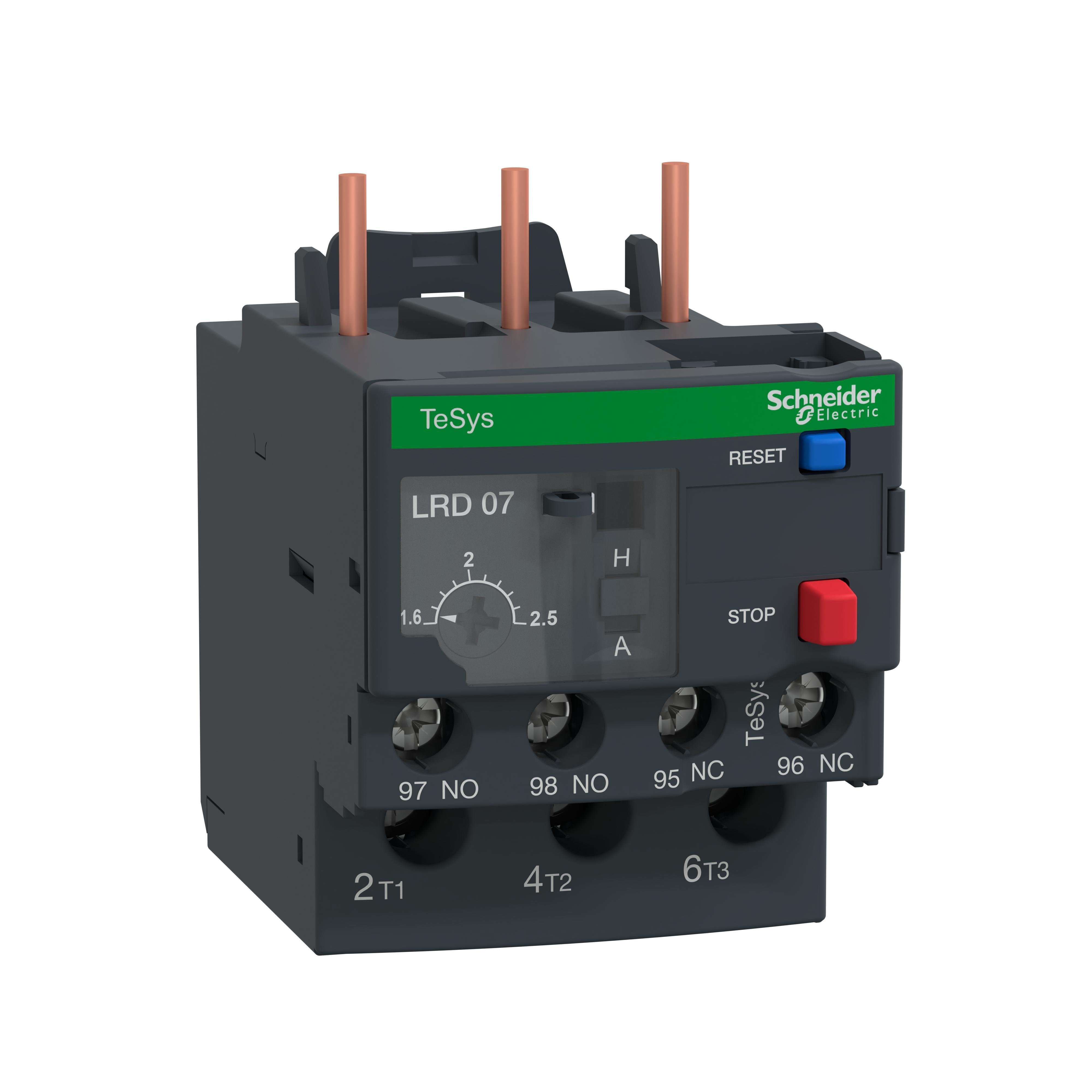

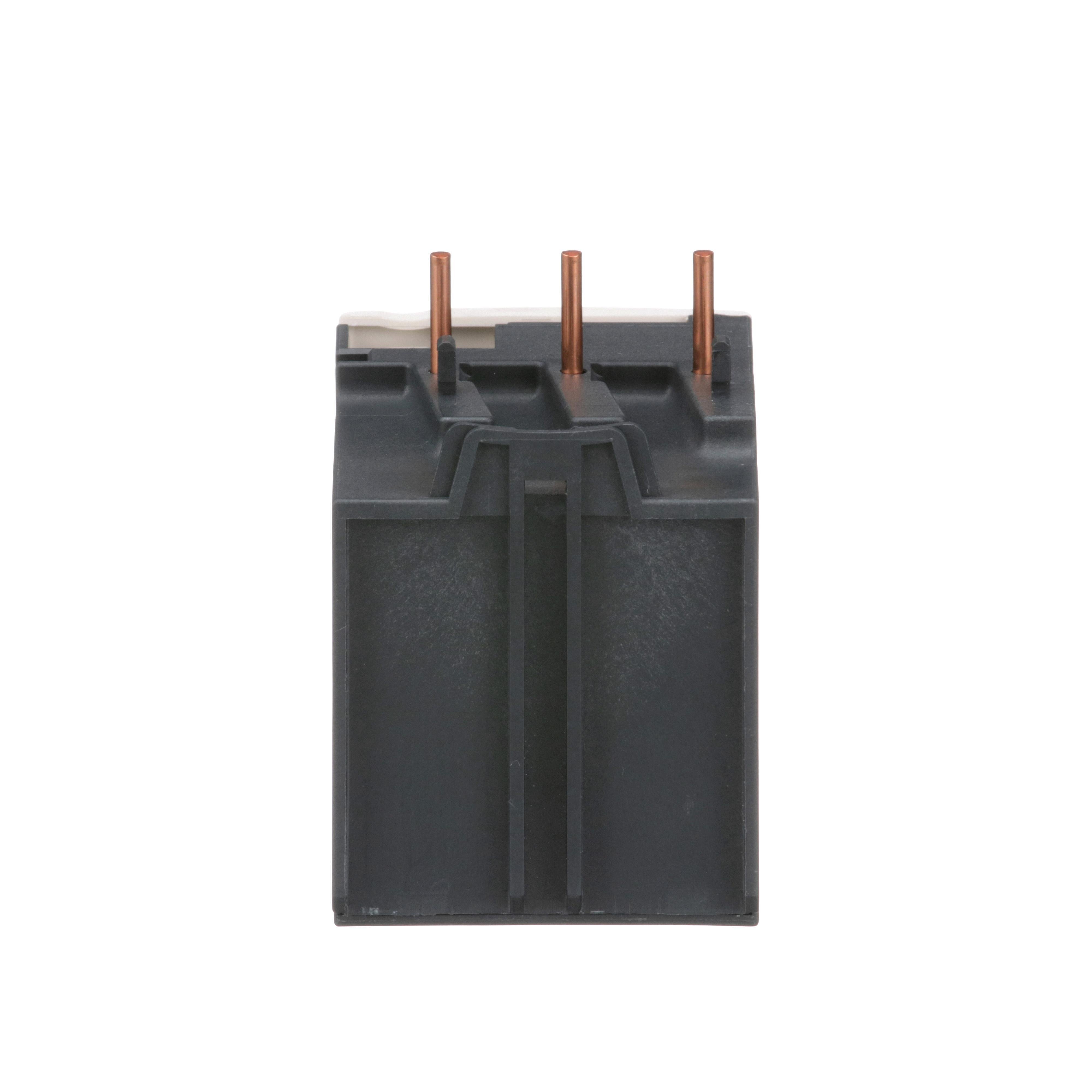

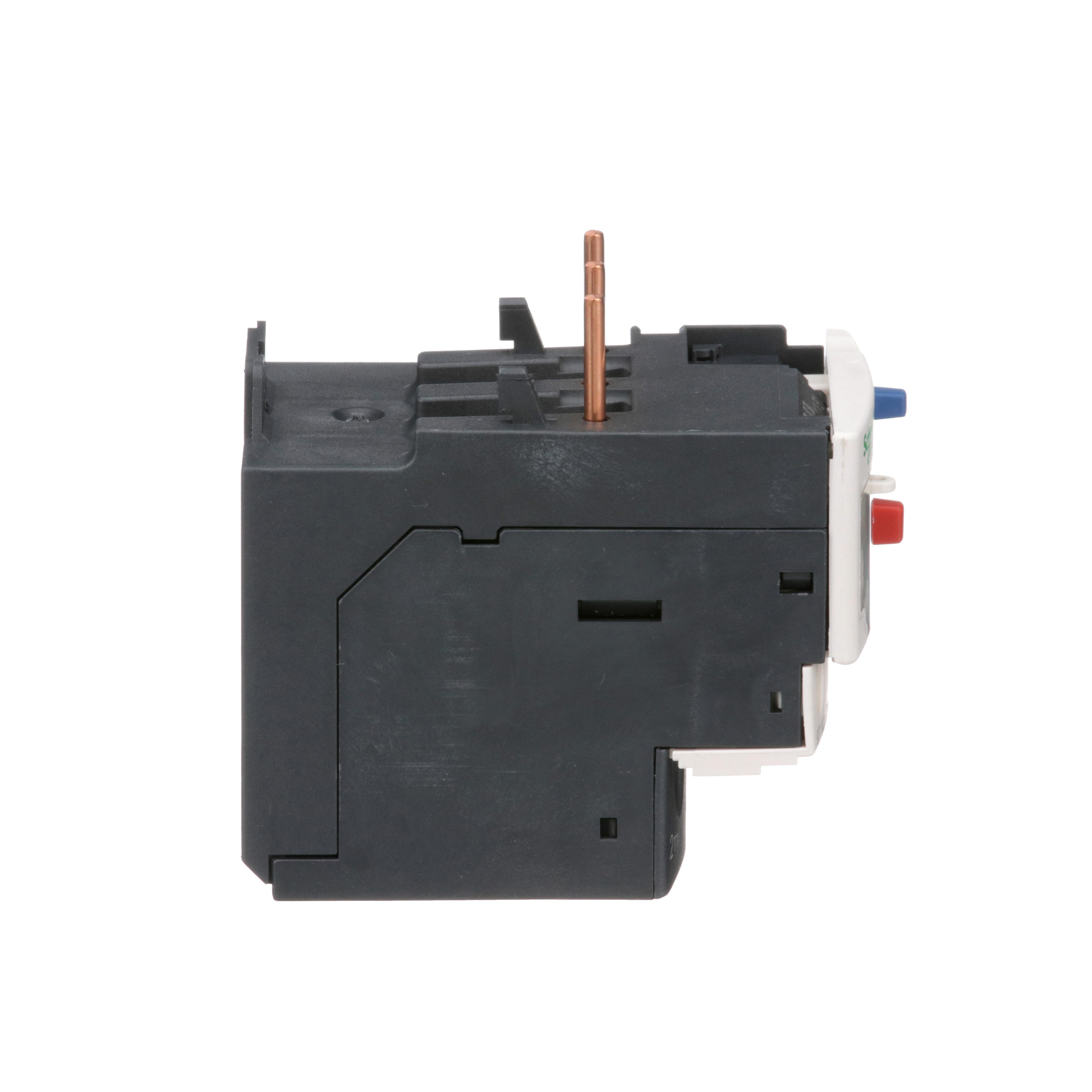

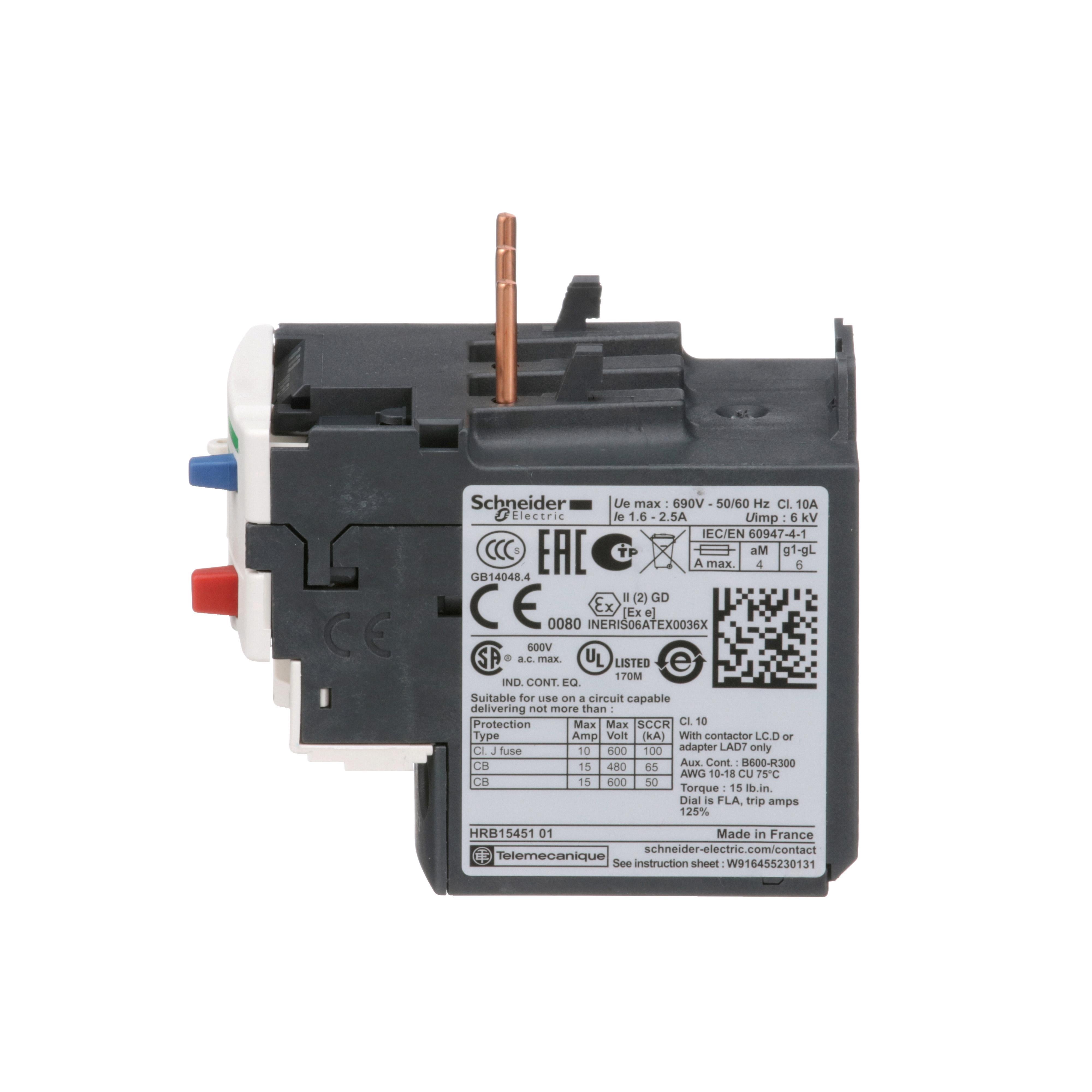

Picture of LRD07 - TeSys Deca, thermal overload relay, 1.6 to 2.5 A, class 10A
Schneider Electric

LRD07 - TeSys Deca, thermal overload relay, 1.6 to 2.5 A, class 10A

Item Code: 18351
Category Overload Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LRD07

Owners User Manual
RoHS
Specification Sheet
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 1.6 to 2.5 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Specifications

Weight

0.3lb

Height

66mm

Width

3mm

Length

1.91mm

Depth

70mm

Amperage Rating

1.6 to 2.5 A

Brand

Square D

Category

OVERLOAD RELAYS & ACCESSORIES

Contact Form

1NO-1NC 1 Form A/1 Form B

Contact Rating

10 A

Dimensions

70 mm L x 45 mm W

Enclosure Type

IP20

Frequency Rating

0 to 400 Hz

Mounting Type

Contactor/Stand Alone

Number Of Poles

3

Series

D-LINE

Temperature Rating

-20 To 60 Deg C

Terminal Type

Screw clamp
