LRD21 - TeSys Deca, thermal overload relay, 12 to 18 A, class 10A

Category Overload Relays & Accessories

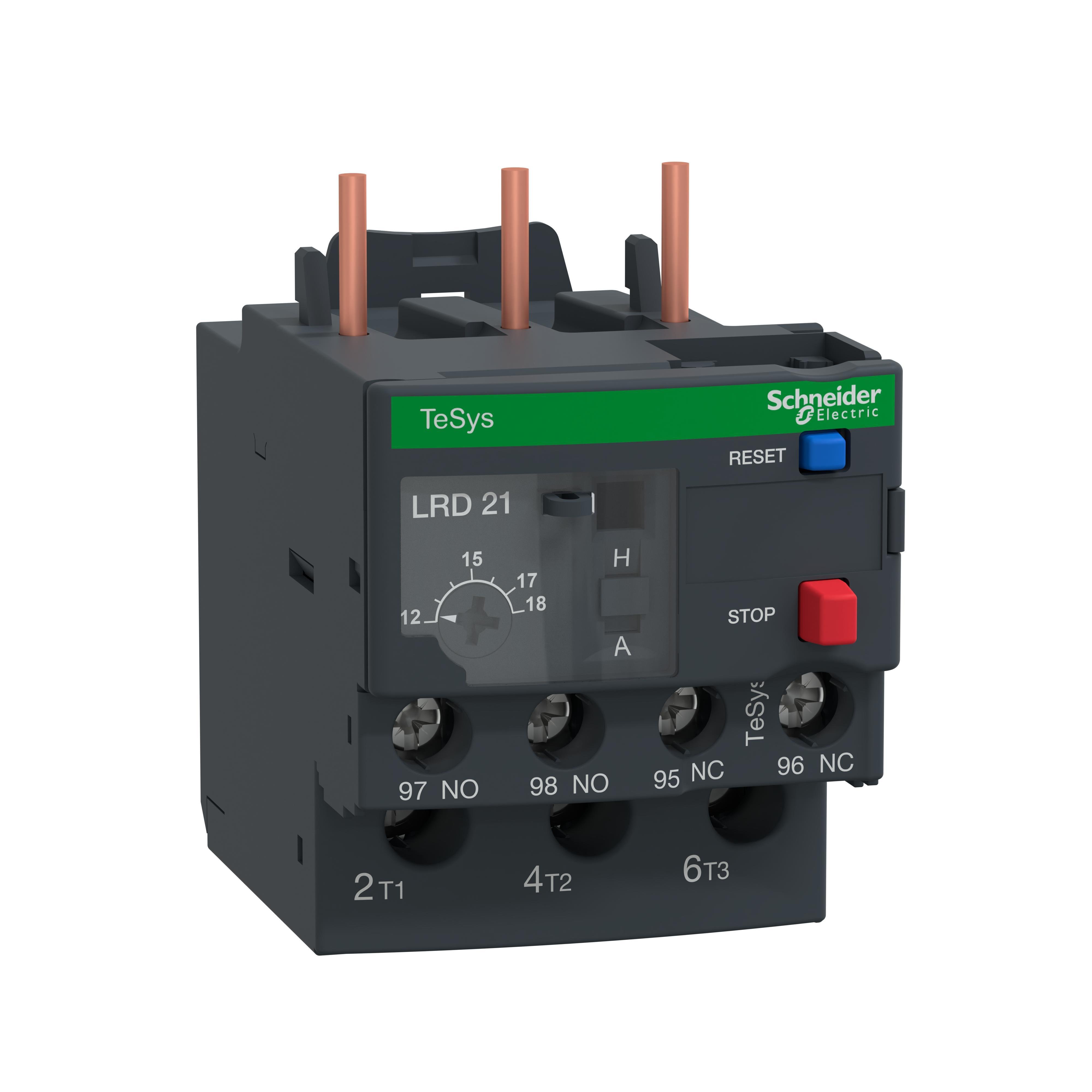

Picture of LRD21 - TeSys Deca, thermal overload relay, 12 to 18 A, class 10A Picture of LRD21 - TeSys Deca, thermal overload relay, 12 to 18 A, class 10A

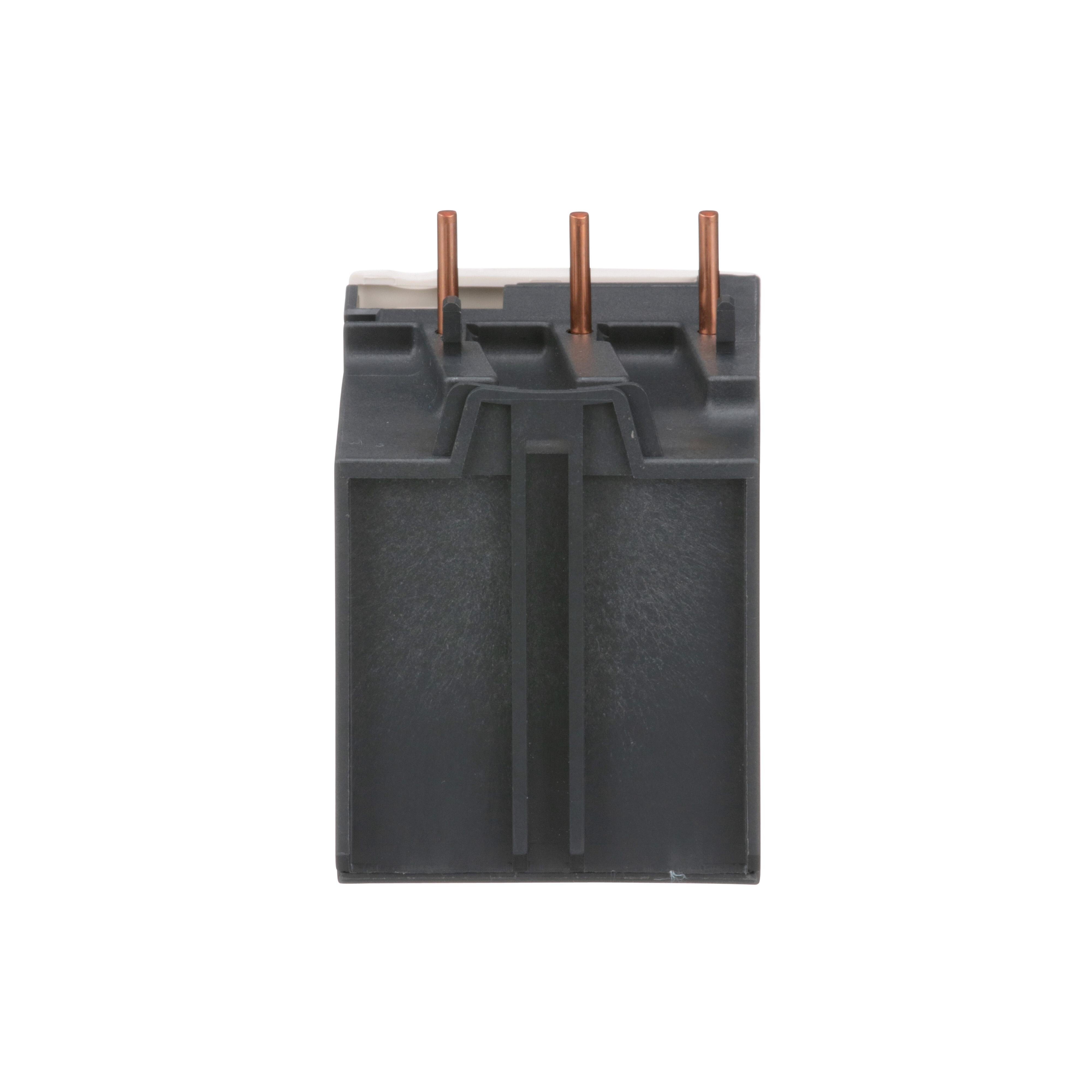

Picture of LRD21 - TeSys Deca, thermal overload relay, 12 to 18 A, class 10A Picture of LRD21 - TeSys Deca, thermal overload relay, 12 to 18 A, class 10A

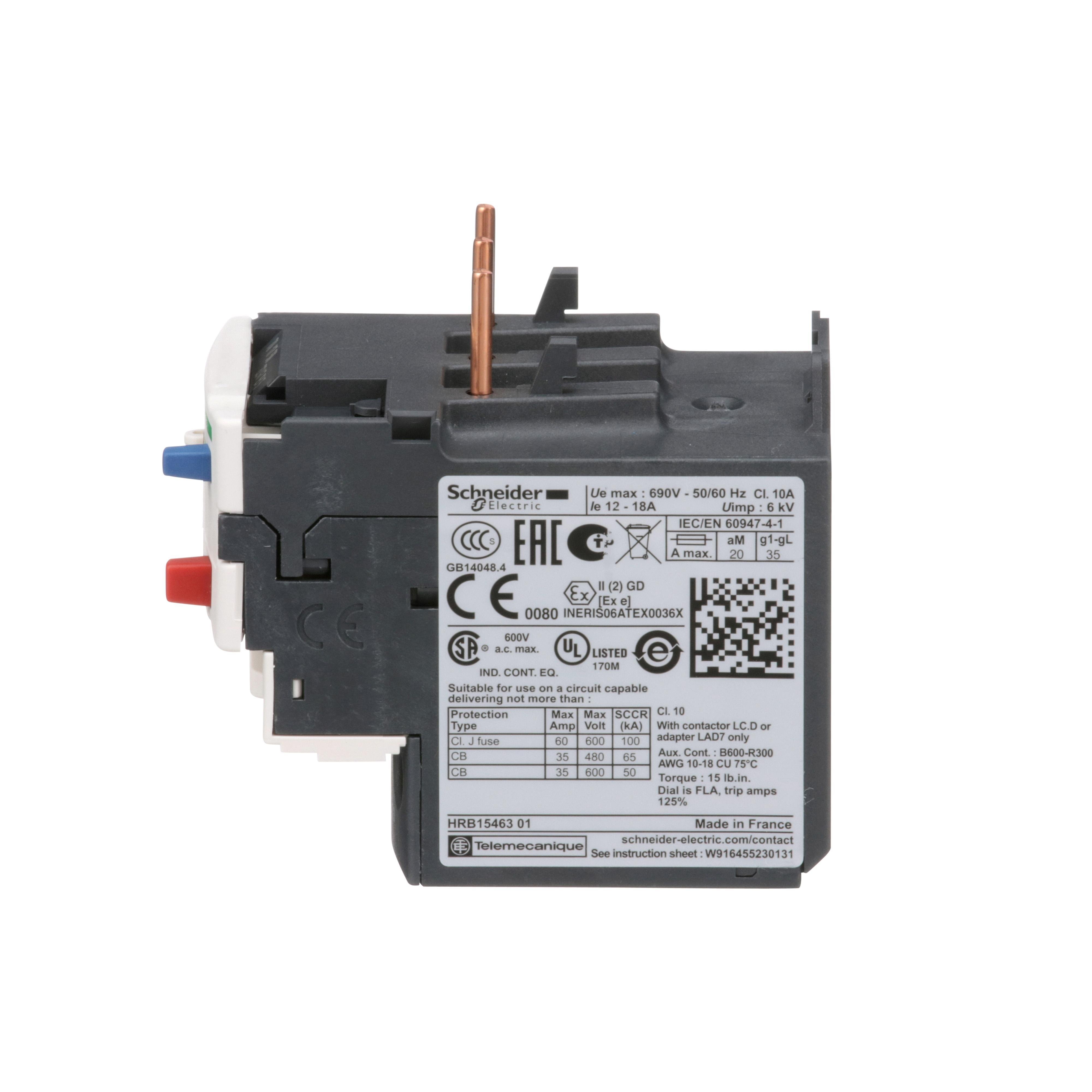

Picture of LRD21 - TeSys Deca, thermal overload relay, 12 to 18 A, class 10A Picture of LRD21 - TeSys Deca, thermal overload relay, 12 to 18 A, class 10A

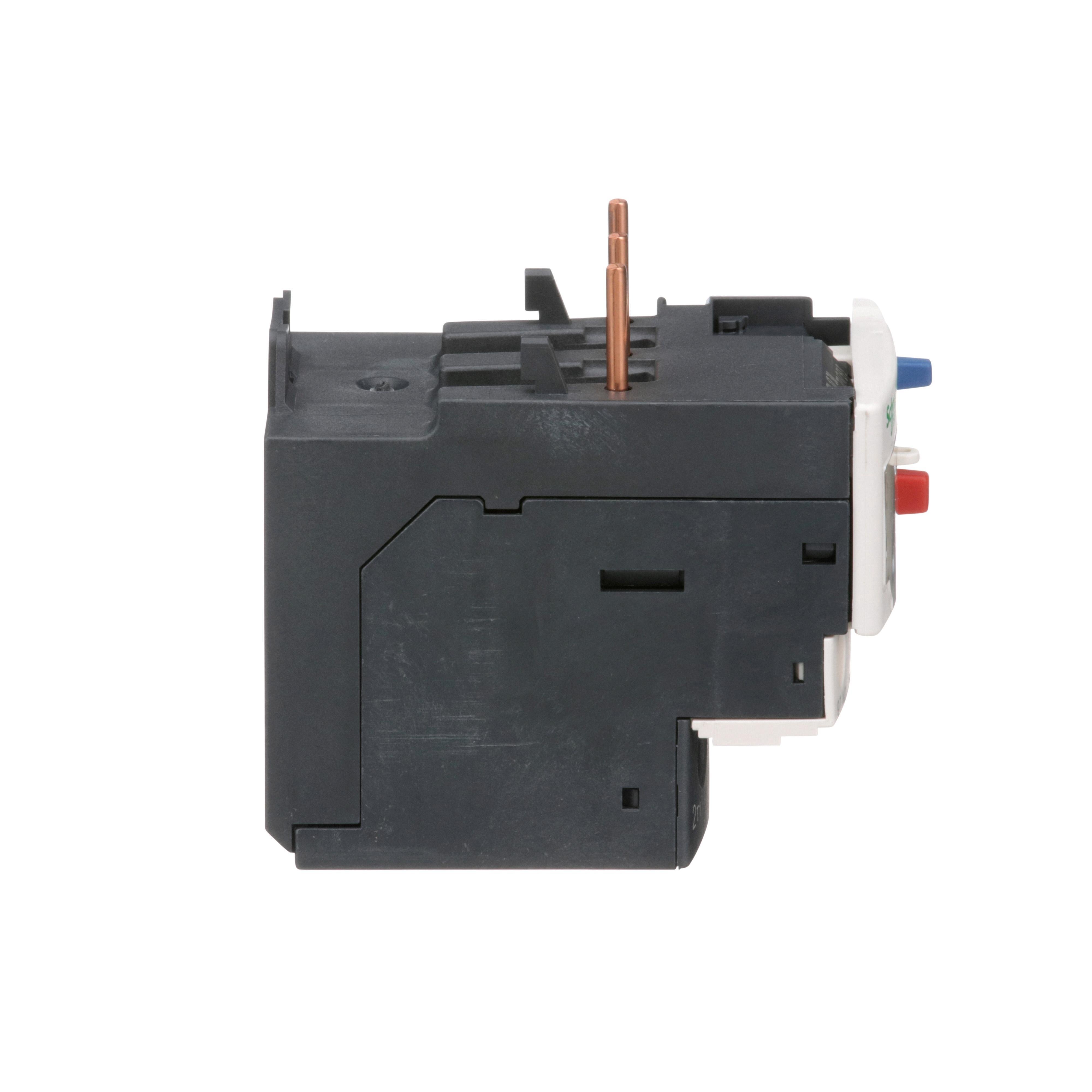

Picture of LRD21 - TeSys Deca, thermal overload relay, 12 to 18 A, class 10A Picture of LRD21 - TeSys Deca, thermal overload relay, 12 to 18 A, class 10A
Picture of LRD21 - TeSys Deca, thermal overload relay, 12 to 18 A, class 10A Picture of LRD21 - TeSys Deca, thermal overload relay, 12 to 18 A, class 10A
Schneider Electric

LRD21 - TeSys Deca, thermal overload relay, 12 to 18 A, class 10A

Item Code: 18357
Category Overload Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LRD21

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 12 to 18 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).
