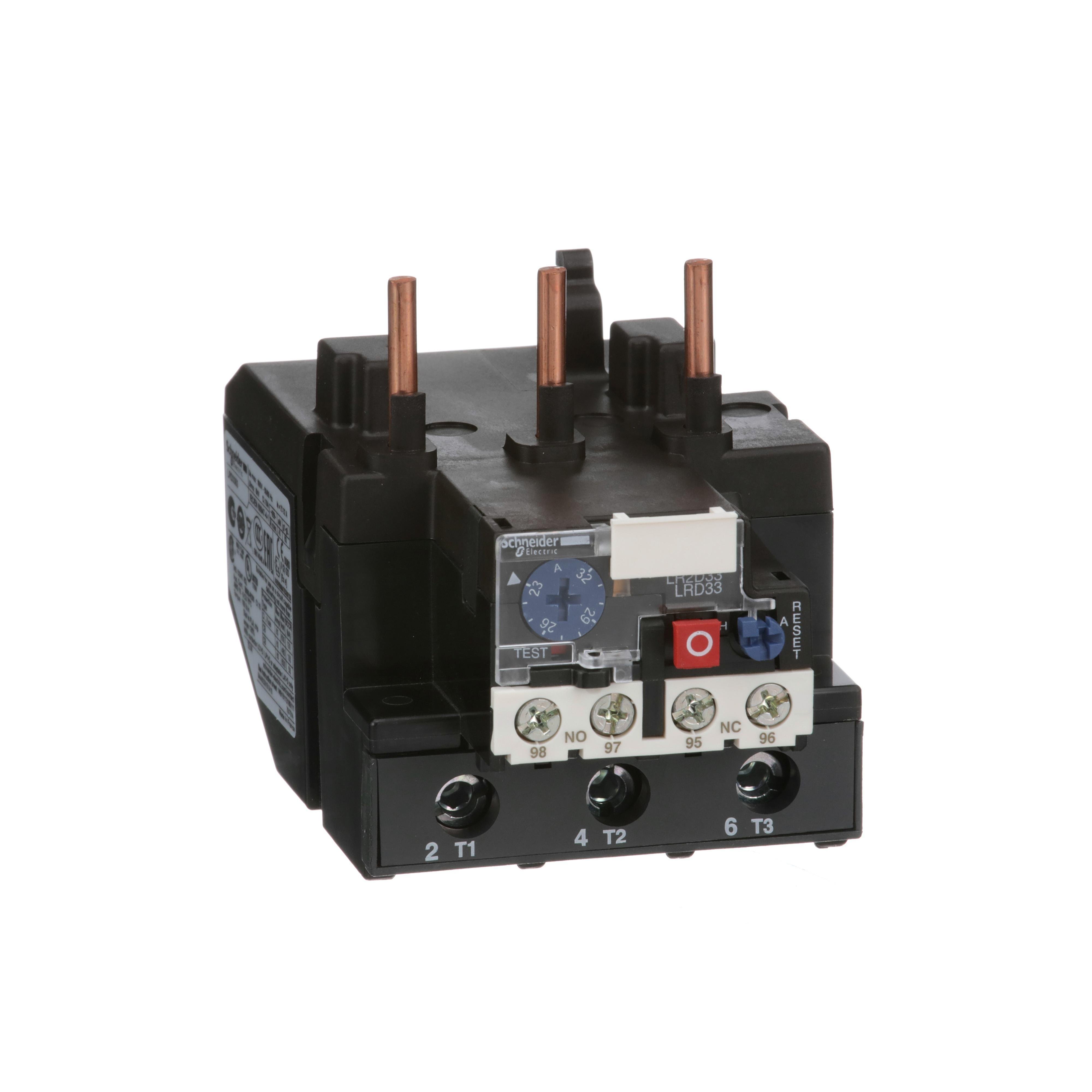

LRD3353 - TeSys Deca, thermal overload relay, 23 to 32 A, class 10A, for LC1D80 and LC1D95
Description
Specifications
1.1
3.1
3.43
4.68
For TeSys™ D40-D80 contactors or standalone applications
Schneider Electric
USA
FR
RELAY OVLD THRM 23 TO 32A 1NC-1NO 10A
Ensure high safty with phase failure and load unbalance detection
The thermal adjustement dial enables accurate and reliable operation
It is designed with a transparent cover lockable by sealing in case of misoperation
Simple mounting on DIN rail or screw fixing
Simple and quick maintenance with compact size
Schneider Electric
3.1000
IN
4.6800
IN
1
48.0800
cu-in
1.1000
LB
3.4300
IN
https://www.youtube.com/embed/tr9ayeSDB80
Square D
OVERLOAD RELAYS & ACCESSORIES
Amperage Rating
A
23 to 32
Temperature Rating
deg C
-20 To 60
Terminal Type
Clamp/Threaded
Contact Form
1NO-1NC 1 Form A/1 Form B
Contact Rating
A
10
Dimensions
75 mm W x 121 mm D x 123 mm H
Enclosure Type
IP20
Frequency Rating
HZ
0 to 400
Mounting Type
Contactor/Stand Alone
Number Of Poles
3
Series
D-LINE
