Schneider Electric

LRD3355 - TeSys Deca, thermal overload relay, 30 to 40 A, class 10A, for LC1D80 and LC1D95

Category Overload Relays & Accessories

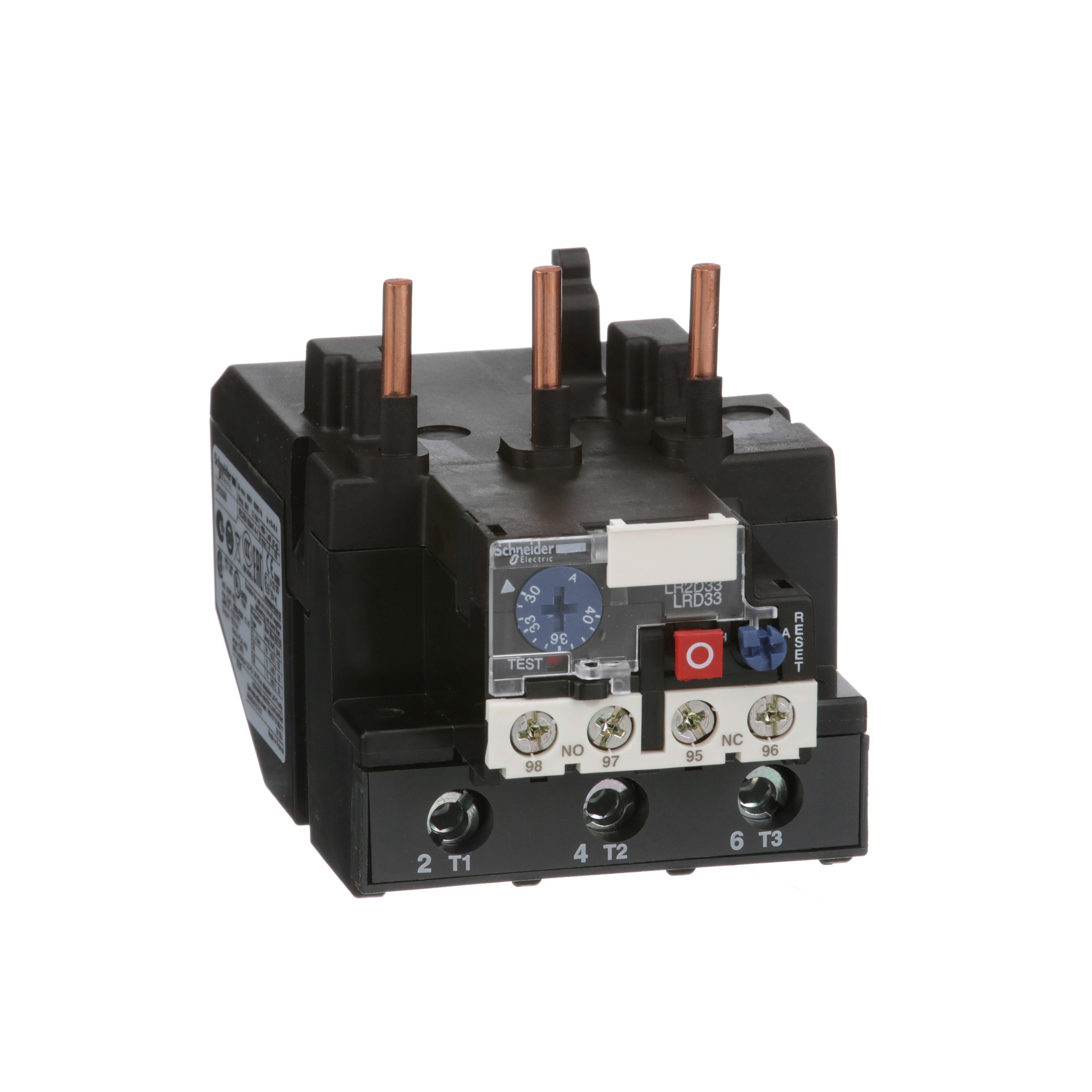

Picture of LRD3355 - TeSys Deca, thermal overload relay, 30 to 40 A, class 10A, for LC1D80 and LC1D95 Picture of LRD3355 - TeSys Deca, thermal overload relay, 30 to 40 A, class 10A, for LC1D80 and LC1D95
Picture of LRD3355 - TeSys Deca, thermal overload relay, 30 to 40 A, class 10A, for LC1D80 and LC1D95 Picture of LRD3355 - TeSys Deca, thermal overload relay, 30 to 40 A, class 10A, for LC1D80 and LC1D95
Schneider Electric

LRD3355 - TeSys Deca, thermal overload relay, 30 to 40 A, class 10A, for LC1D80 and LC1D95

Item Code: 1526697
Category Overload Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LRD3355

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 80 amp through 95 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 30 to 40 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Specifications

Weight

1.1

Width

4.68

Length

3.35

AD Application

For TeSys™ D contactors or standalone applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

RELAY OVLD THRM 30 TO 40A 1NC-1NO 10A

AD Item Features 01

Ensure high safty with phase failure and load unbalance detection

AD Item Features 02

The thermal adjustement dial enables accurate and reliable operation

AD Item Features 03

It is designed with a transparent cover lockable by sealing in case of misoperation

AD Item Features 04

Simple mounting on DIN rail or screw fixing

AD Item Features 05

Simple and quick maintenance with compact size

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.3500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.1000

AD Package Weight UOM

LB

AD Package Width

4.6800

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/RDSY92nZ3jE

Brand

Schneider Electric

Category

OVERLOAD RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30 to 40

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

1NO-1NC 1 Form A/1 Form B

Spec 3 Attribute

Contact Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

10

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

75 mm W x 121 mm D x 123 mm H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP20

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

0 to 400

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

Series

Spec 8 Attribute Value

D-LINE

Spec 9 Attribute

Terminal Type

Spec 9 Attribute Value

Screw clamp
