Schneider Electric

LRD35 - TeSys Deca, thermal overload relay, 30 to 38 A, class 10A

Category Overload Relays & Accessories

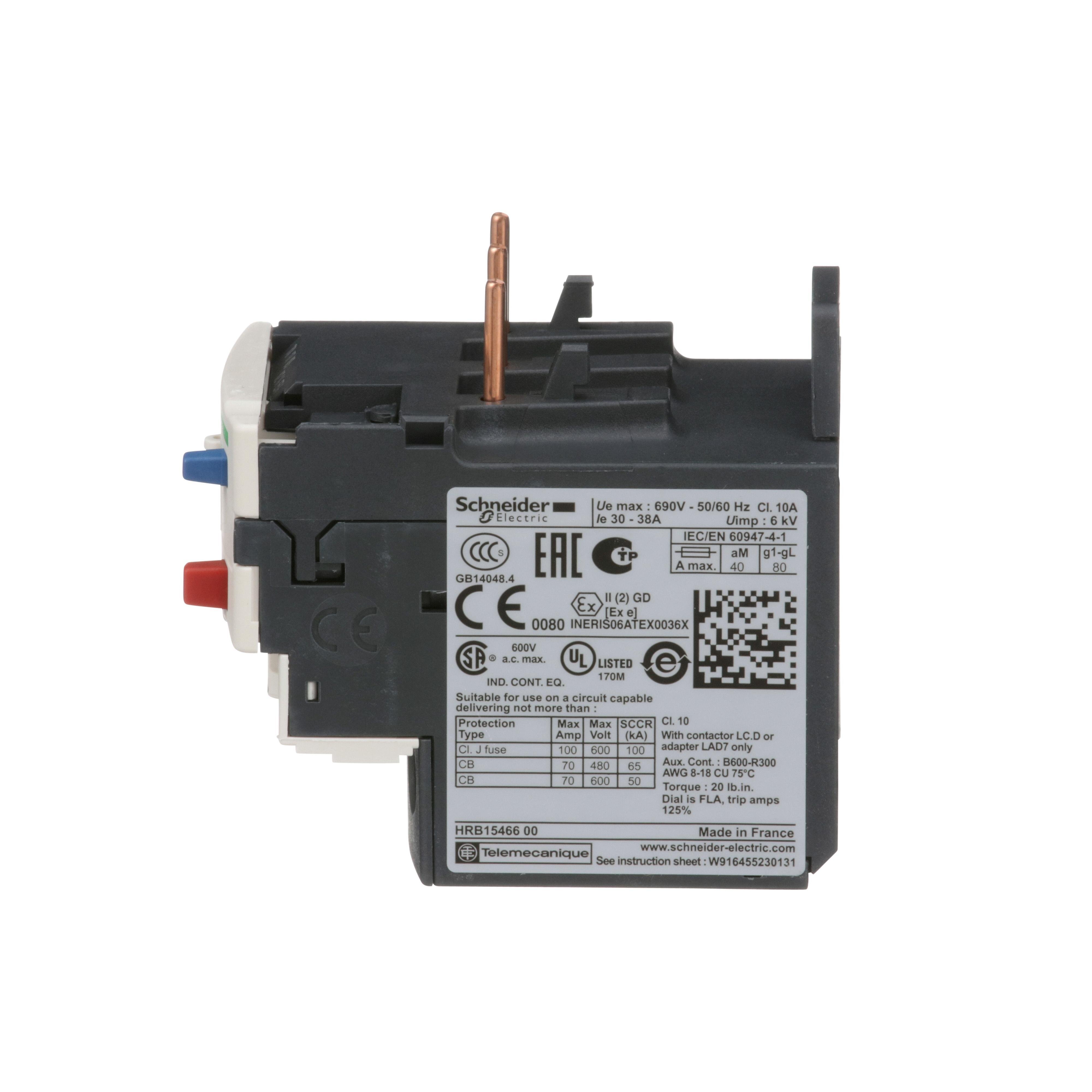

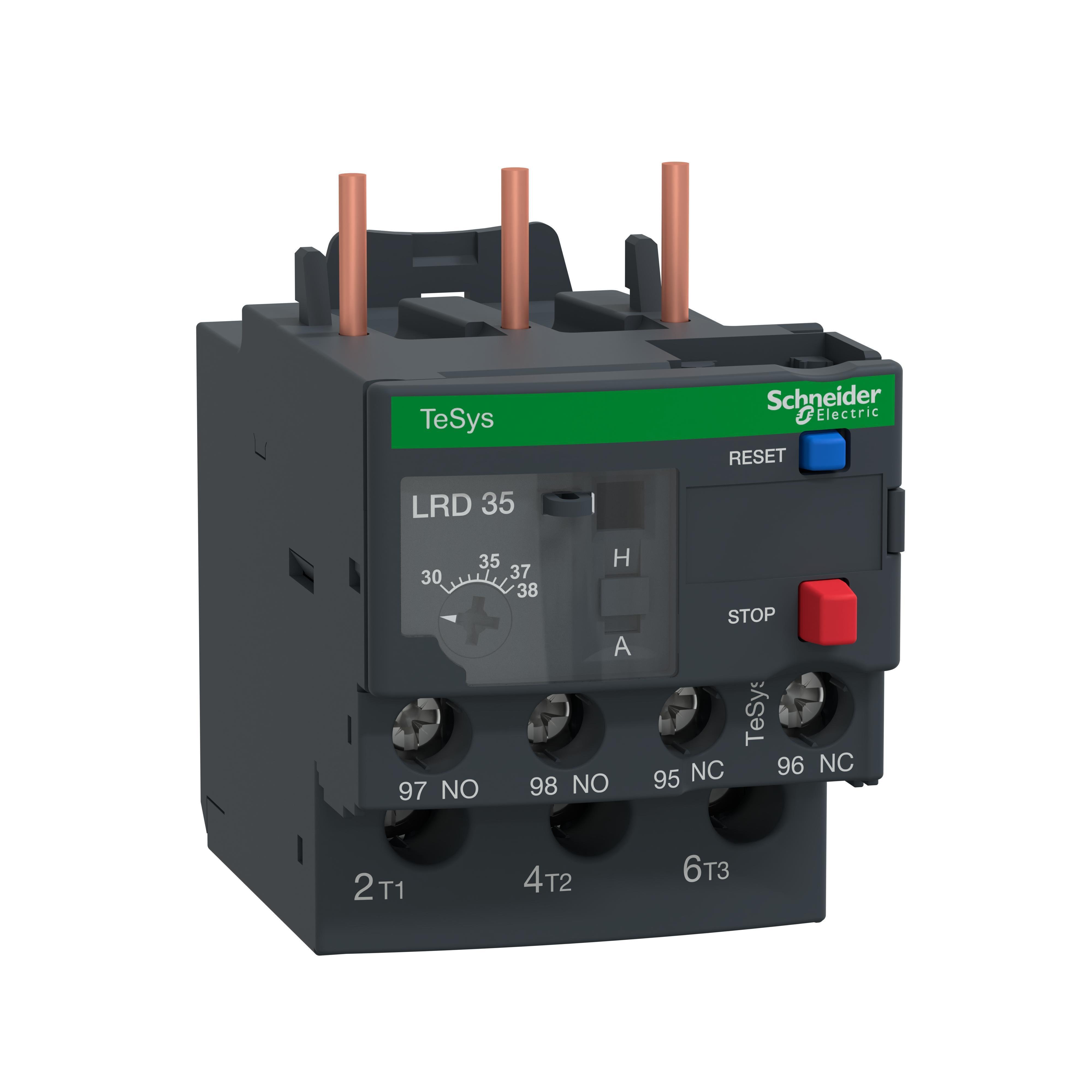

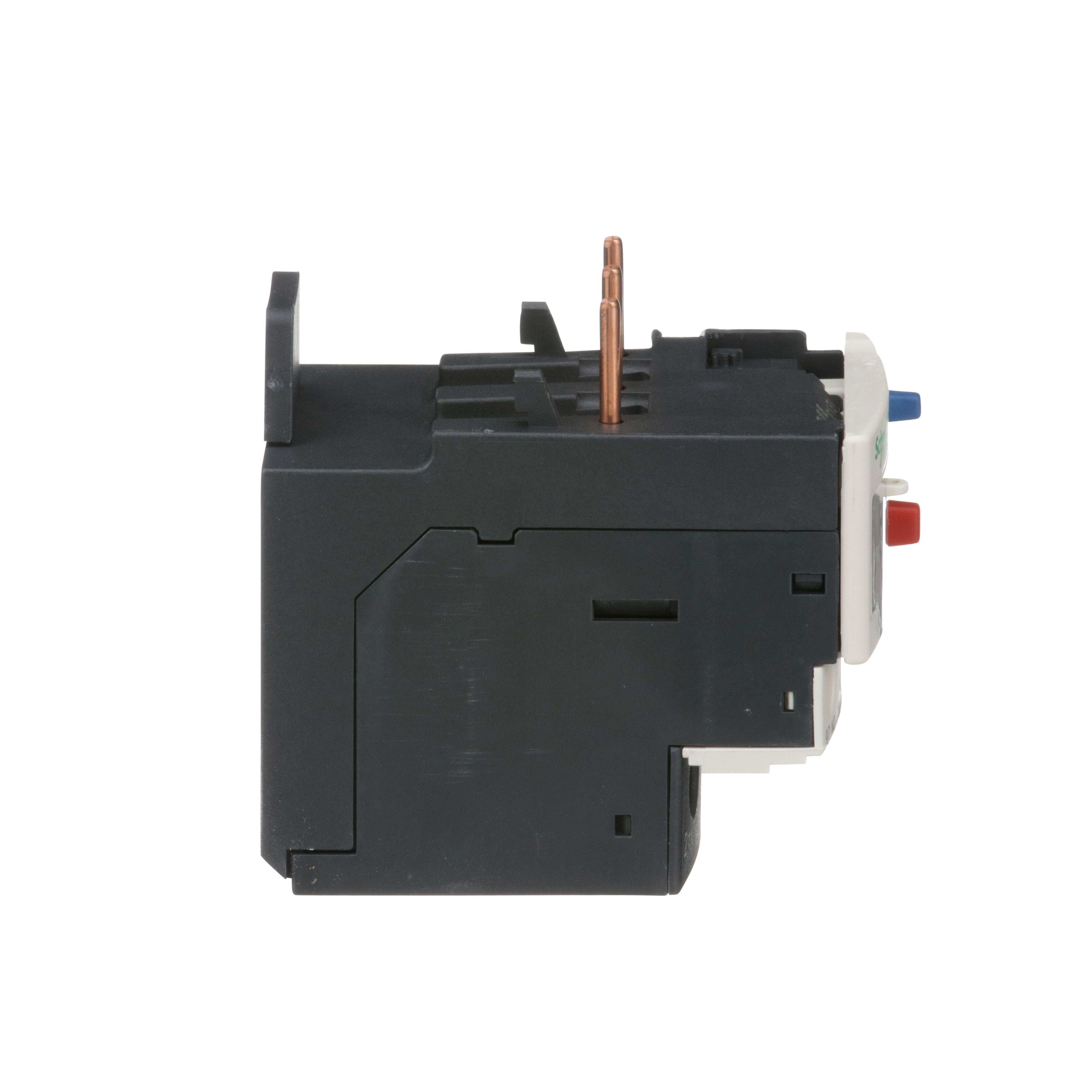

Picture of LRD35 - TeSys Deca, thermal overload relay, 30 to 38 A, class 10A Picture of LRD35 - TeSys Deca, thermal overload relay, 30 to 38 A, class 10A
Picture of LRD35 - TeSys Deca, thermal overload relay, 30 to 38 A, class 10A Picture of LRD35 - TeSys Deca, thermal overload relay, 30 to 38 A, class 10A
Picture of LRD35 - TeSys Deca, thermal overload relay, 30 to 38 A, class 10A Picture of LRD35 - TeSys Deca, thermal overload relay, 30 to 38 A, class 10A
Picture of LRD35 - TeSys Deca, thermal overload relay, 30 to 38 A, class 10A Picture of LRD35 - TeSys Deca, thermal overload relay, 30 to 38 A, class 10A
Schneider Electric

LRD35 - TeSys Deca, thermal overload relay, 30 to 38 A, class 10A

Item Code: 548410
Category Overload Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LRD35

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 32 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 30 to 38 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Specifications

Weight

0.31lb

Height

2mm

Width

3.04mm

Length

1.91mm

Depth

70mm

AD Application

For TeSys™ D32 contactors or standalone applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

RELAY OVLD THRM 30 TO 38A 1NC-1NO 10A

AD Item Features 01

Tesys Deca thermal overload relays are designed to protect a.c. circuits and motors against overloads

AD Item Features 02

New modern look and feel of all machines

AD Item Features 03

Easier to install and operate with multi-standard screws

AD Item Features 04

Digital customer experience for technical documents

AD Item Features 05

Maintenance guide via EcoStruxureTM Facility Expert

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.0000

AD Package Height UOM

IN

AD Package Length

1.9100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

21.0000

AD Package Volume UOM

cu-in

AD Package Weight

0.3100

AD Package Weight UOM

LB

AD Package Width

3.0400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/RDSY92nZ3jE

Brand

Schneider Electric

Category

OVERLOAD RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30 to 38

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

-20 To 60

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Clamp/Threaded

Spec 12 Attribute

Type

Spec 12 Attribute Value

Bi-Metallic

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

1NO-1NC 1 Form A/1 Form B

Spec 3 Attribute

Contact Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

10

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

1.77 in W x 2.76 in D x 2.76 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP20

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

0 to 400

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Series

Spec 9 Attribute Value

D-LINE
