Square D

LU9BN11 - Screw clamp terminal block, TeSys Ultra, terminal block for power base LU9, 0.045 kg

Category Starter Accessories

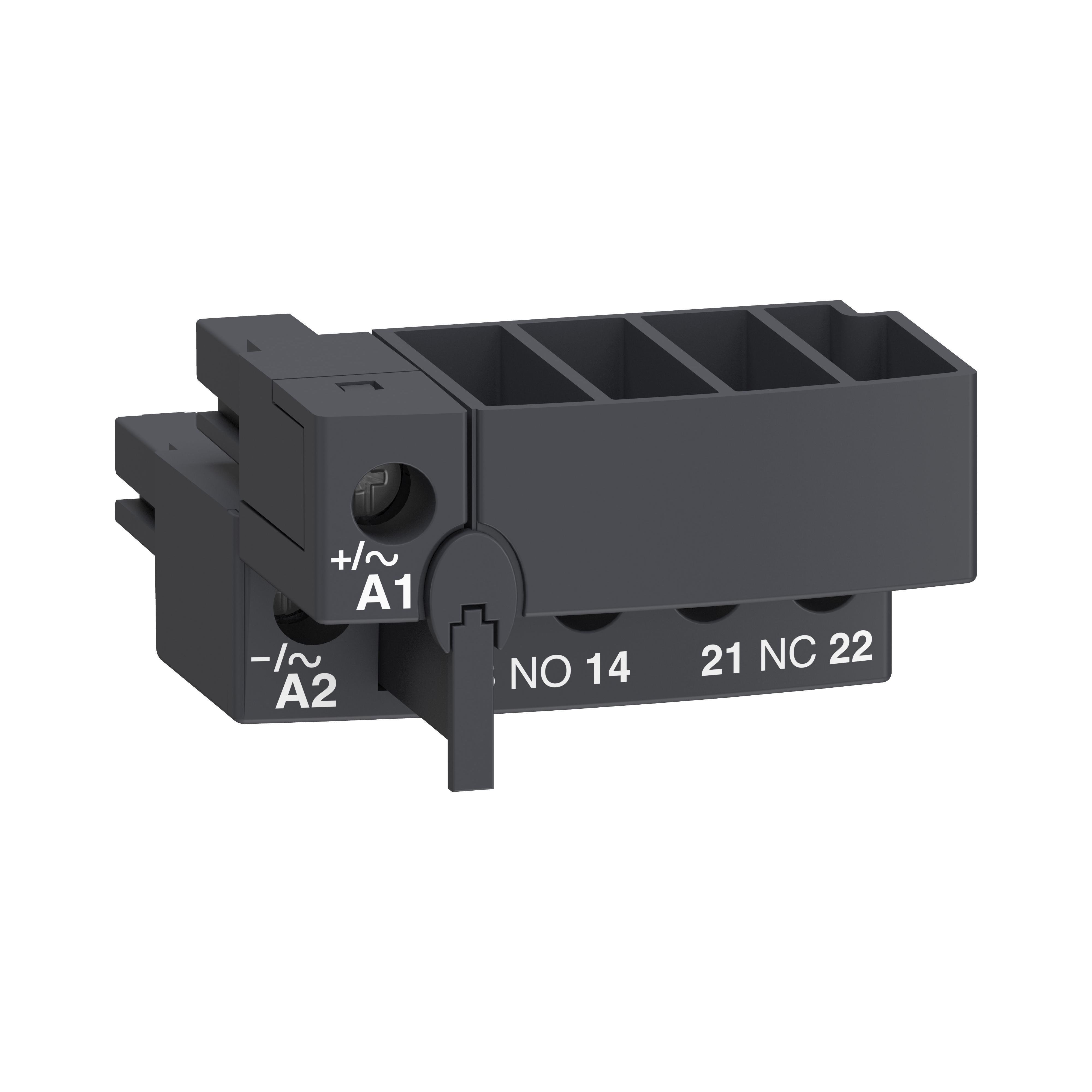

Picture of LU9BN11 - Screw clamp terminal block, TeSys Ultra, terminal block for power base LU9, 0.045 kg
Square D

LU9BN11 - Screw clamp terminal block, TeSys Ultra, terminal block for power base LU9, 0.045 kg

Item Code: 577160
Category Starter Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LU9BN11

RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

TeSys U control terminal block to be inserted in advanced power bases LUB120, LUB320, LUB380 for the local control of a starter controller. To be used for ON/OFF control of one direction motor applications with wired control. It provides screw clamp terminals to access to the auxiliary contacts 1NO+1NC internal to the starter controller, and to the coil supply circuit. Block included with a standard power base LUB12, LUB32, LUB38. Green Premium compliant (RoHS/REACh).

Specifications

Weight

0.08lb

Width

4.29mm

Length

2.34mm

Brand

Schneider Electric

Category

Starter Accessories

Series

LU9BN

Specifications

1NO-1NC Contact, <=400 Hz, Screw Terminal, -25 to 70 deg C Operating

Suitable For Use With

LUB120 and LUB320 Power Base

Type

2-pole
