Schneider Electric

LUCA18BL - Standard control unit, TeSys Ultra, 4.5A to 18A, 3P motors, thermal magnetic protection, class 10, coil 24VDC

Category Miscellaneous

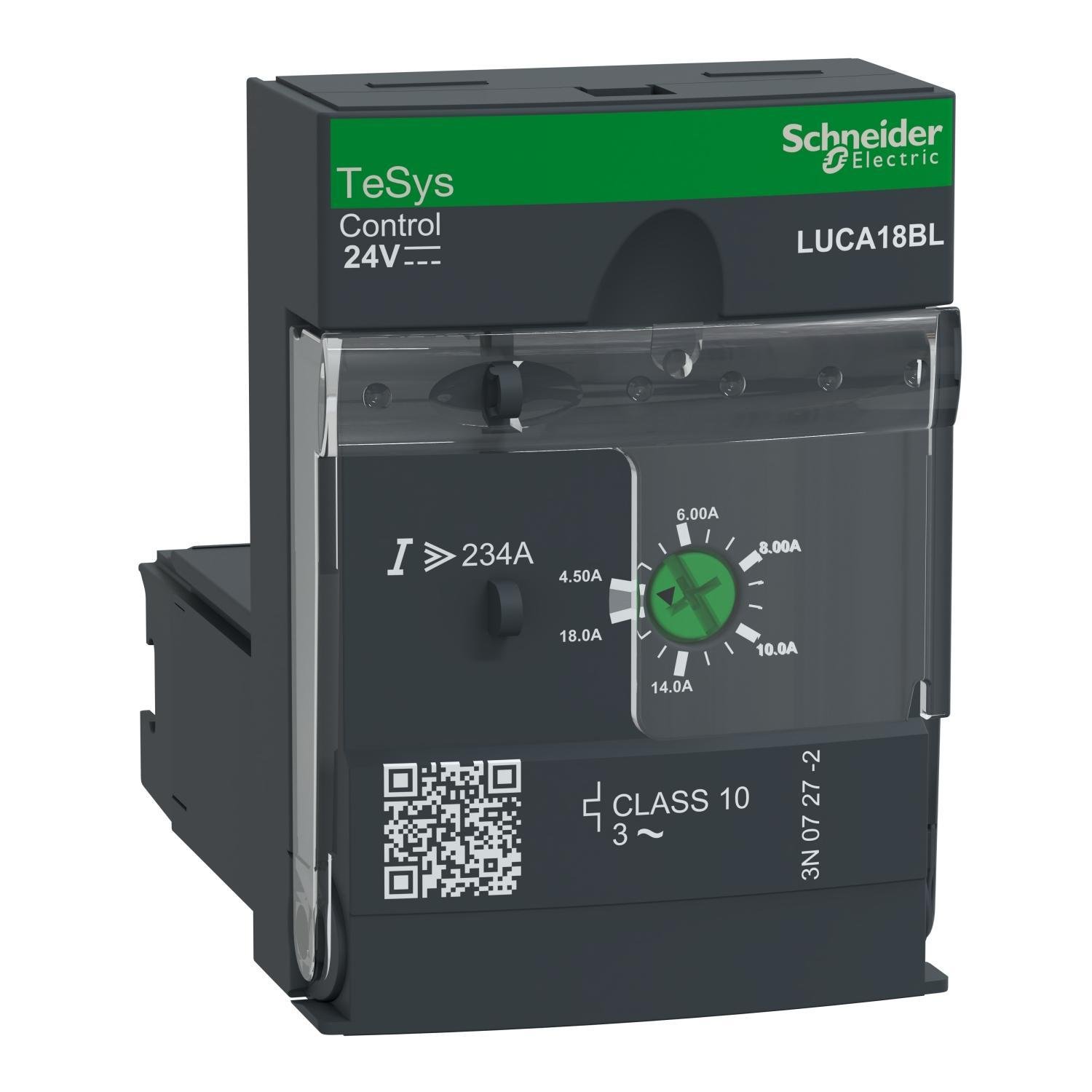

Picture of LUCA18BL - Standard control unit, TeSys Ultra, 4.5A to 18A, 3P motors, thermal magnetic protection, class 10, coil 24VDC
Schneider Electric

LUCA18BL - Standard control unit, TeSys Ultra, 4.5A to 18A, 3P motors, thermal magnetic protection, class 10, coil 24VDC

Item Code: 813915
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LUCA18BL

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

TeSys U standard control unit to be inserted in power bases LUB32, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 7.5kW@400V. It provides full protection to motors with a rated current Ir 4.5-18A (Ir adjustable),

Specifications

Weight

0.26

Height

4

Width

3.2

Length

3.51

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/LUCA18BL/LUCA18BL.spin

AD Alternative Part Number

8092650

AD Application

For basic protection requirements of motor starters overload and short circuit applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3389110363852

AD Gtin

03389110363852

AD IDEA Index ID

8092650

AD Invoice Description

UNIT CTRL 3 ASILUFC5 ASILUFC51 600VAC

AD Item Features 01

Control unit includes electronic components and the current adjustment dial

AD Item Features 02

Modular, plug and play structure helps you to perform quick maintenance

AD Item Features 03

Direct access to detailed information for every motor starter of your installation

AD Item Features 04

Advanced motor management system

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.0000

AD Package Height UOM

IN

AD Package Length

3.5100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

27.2800

AD Package Volume UOM

cu-in

AD Package Weight

0.2600

AD Package Weight UOM

LB

AD Package Width

3.2000

AD Package Width UOM

IN

AD Part Number Keywords

LUCA18BL ; 8092650 ; 785901221937 ; 78590122193 ; 03389110363852 ; 3389110363852

Brand

Square D

Spec 1 Attribute

Number Of Poles

Spec 1 Attribute Value

3

Spec 2 Attribute

Series

Spec 2 Attribute Value

Luca

Spec 3 Attribute

Specifications

Spec 3 Attribute Value

600 V AC, 3 ph, 18 A, 15 kW, 50/60 Hz, 4.5 to 18 A Full Load Current, 24 V DC Coil, Front Side Mount, Plug-In

Spec 4 Attribute

Suitable For Use With

Spec 4 Attribute Value

ASILUFC5, ASILUFC51, LUFC00 and LUFN Communication Module

Spec 5 Attribute

Type

Spec 5 Attribute Value

3-Phase Manual Solid State Standard
