Schneider Electric

LUCD32FU - Advanced control unit, TeSys Ultra, 8A to 32A, 3P motors, protection & diagnostic, class 20, coil 110-240VAC/DC

Category Miscellaneous

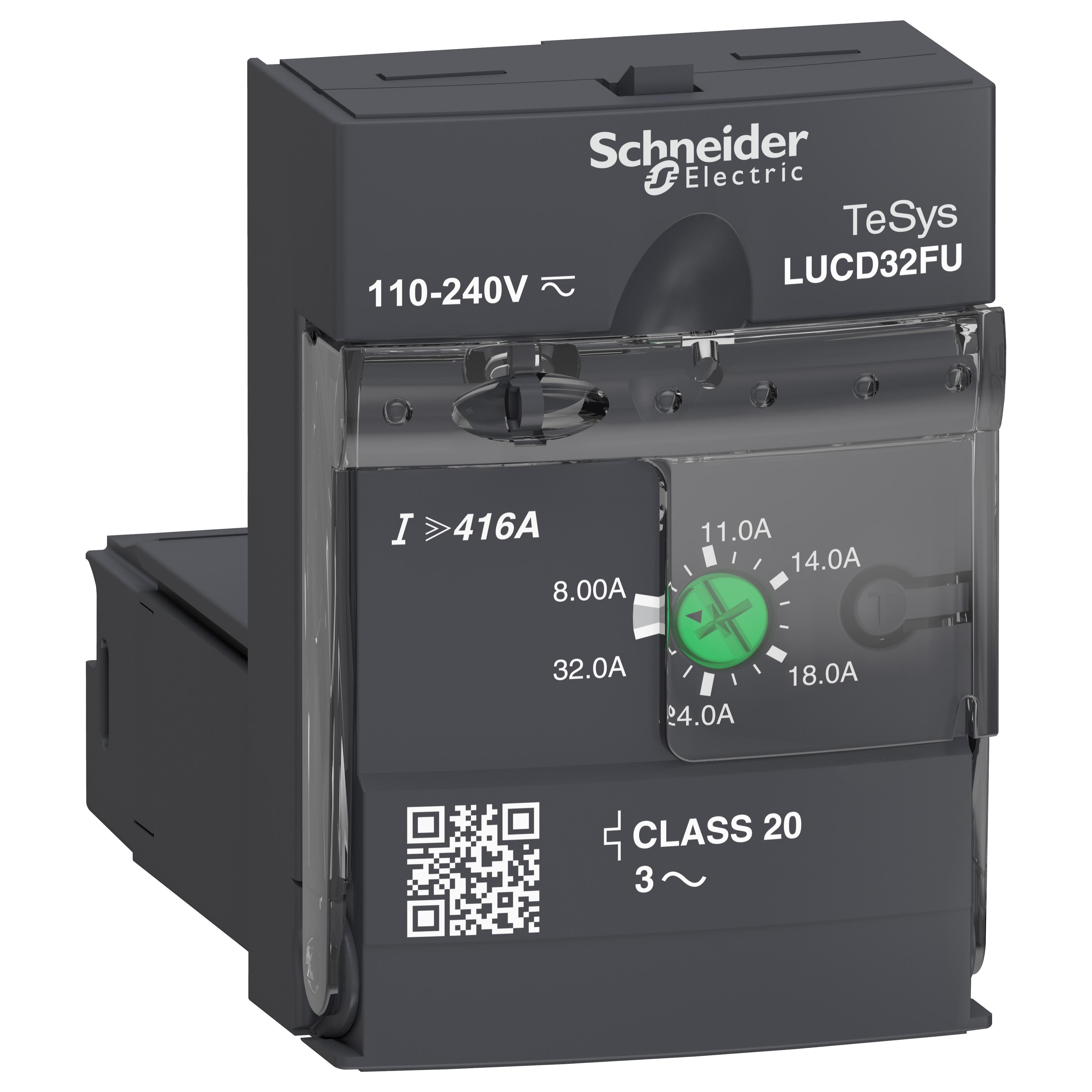

Picture of LUCD32FU - Advanced control unit, TeSys Ultra, 8A to 32A, 3P motors, protection & diagnostic, class 20, coil 110-240VAC/DC
Schneider Electric

LUCD32FU - Advanced control unit, TeSys Ultra, 8A to 32A, 3P motors, protection & diagnostic, class 20, coil 110-240VAC/DC

Item Code: 813954
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LUCD32FU

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB320, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. It provides full protection to motors with a rated current Ir 8-32A (Ir adjust

Specifications

Weight

0.28

Height

4.1

Width

2.15

Length

3.12

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/LUCD32FU/LUCD32FU.spin

AD Alternative Part Number

8039758

AD Application

For basic protection and advanced functions, communication applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3389110365078

AD Gtin

03389110365078

AD IDEA Index ID

8039758

AD Invoice Description

UNIT CTRL 3 LUFC00 LUFDA01 LUFDA10 3 PH

AD Item Features 01

Protection against overload and short-circuit

AD Item Features 02

Control unit includes electronic components and the current adjustment dial

AD Item Features 03

Modular, plug and play structure helps you to perform quick maintenance

AD Item Features 04

Direct access to detailed information for every motor starter of your installation

AD Item Features 05

Advanced motor management system

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.1000

AD Package Height UOM

IN

AD Package Length

3.1200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

28.4100

AD Package Volume UOM

cu-in

AD Package Weight

0.2800

AD Package Weight UOM

LB

AD Package Width

2.1500

AD Package Width UOM

IN

AD Part Number Keywords

LUCD32FU ; 8039758 ; 785901412588 ; 78590141258 ; 03389110365078 ; 3389110365078

Brand

Square D

Spec 1 Attribute

Number Of Poles

Spec 1 Attribute Value

3

Spec 2 Attribute

Series

Spec 2 Attribute Value

LUCD

Spec 3 Attribute

Specifications

Spec 3 Attribute Value

600 V AC, 3 ph, 32 A, 18.5 kW, 50/60 Hz, 8 to 32 A Full Load Current, 110/240 V AC/DC Coil, Front Side Mount, Plug-In

Spec 4 Attribute

Suitable For Use With

Spec 4 Attribute Value

LUFC00, LUFDA01, LUFDA10, LUFDH11 LUFN, LUFV2 and LUFW10 Communication Module

Spec 5 Attribute

Type

Spec 5 Attribute Value

3-Phase Advanced Manual Solid State

Schneider Electric
