Schneider Electric

LUFN11 - Auxiliary contact module, TeSys Ultra1 NO and 1 NC

Category Starter Accessories

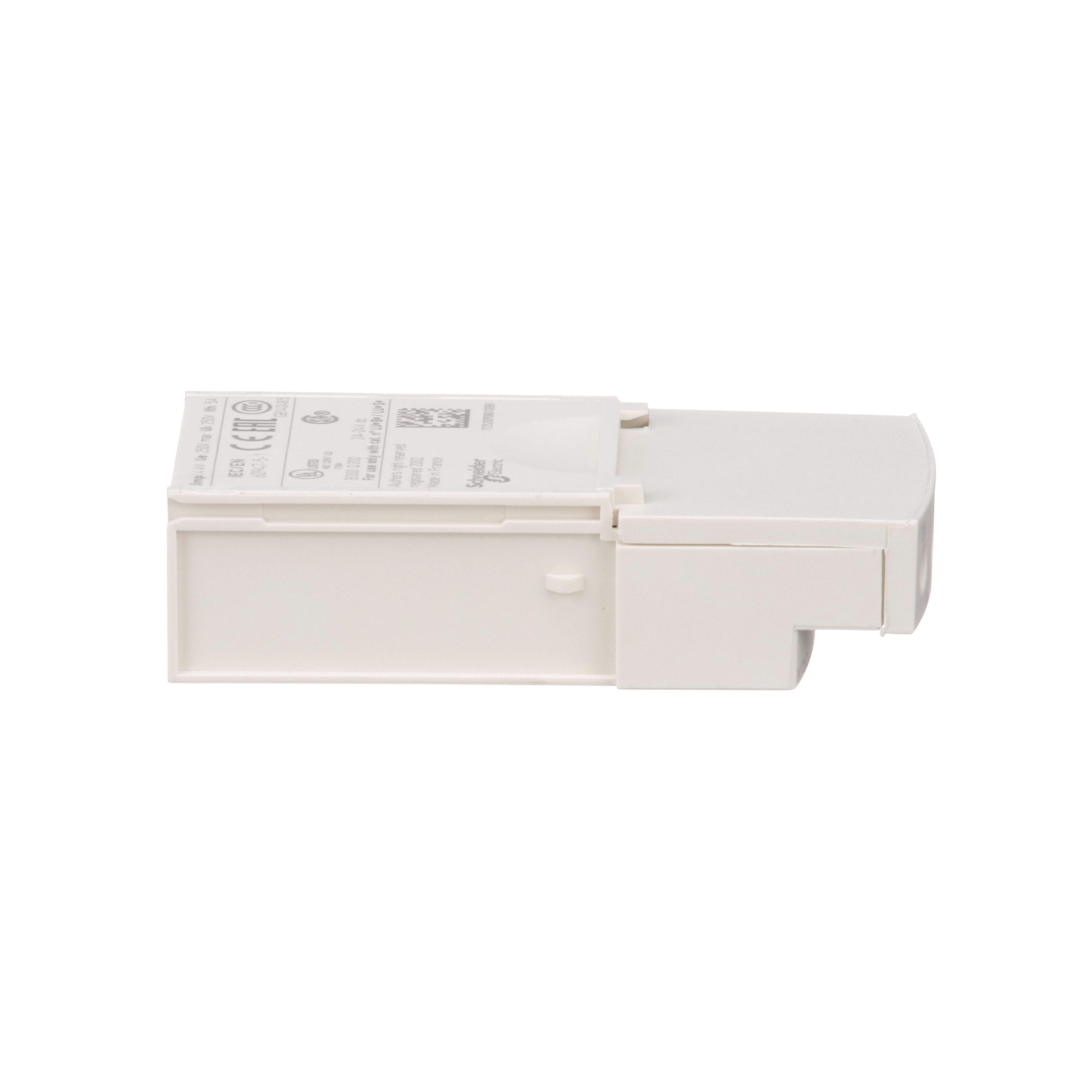

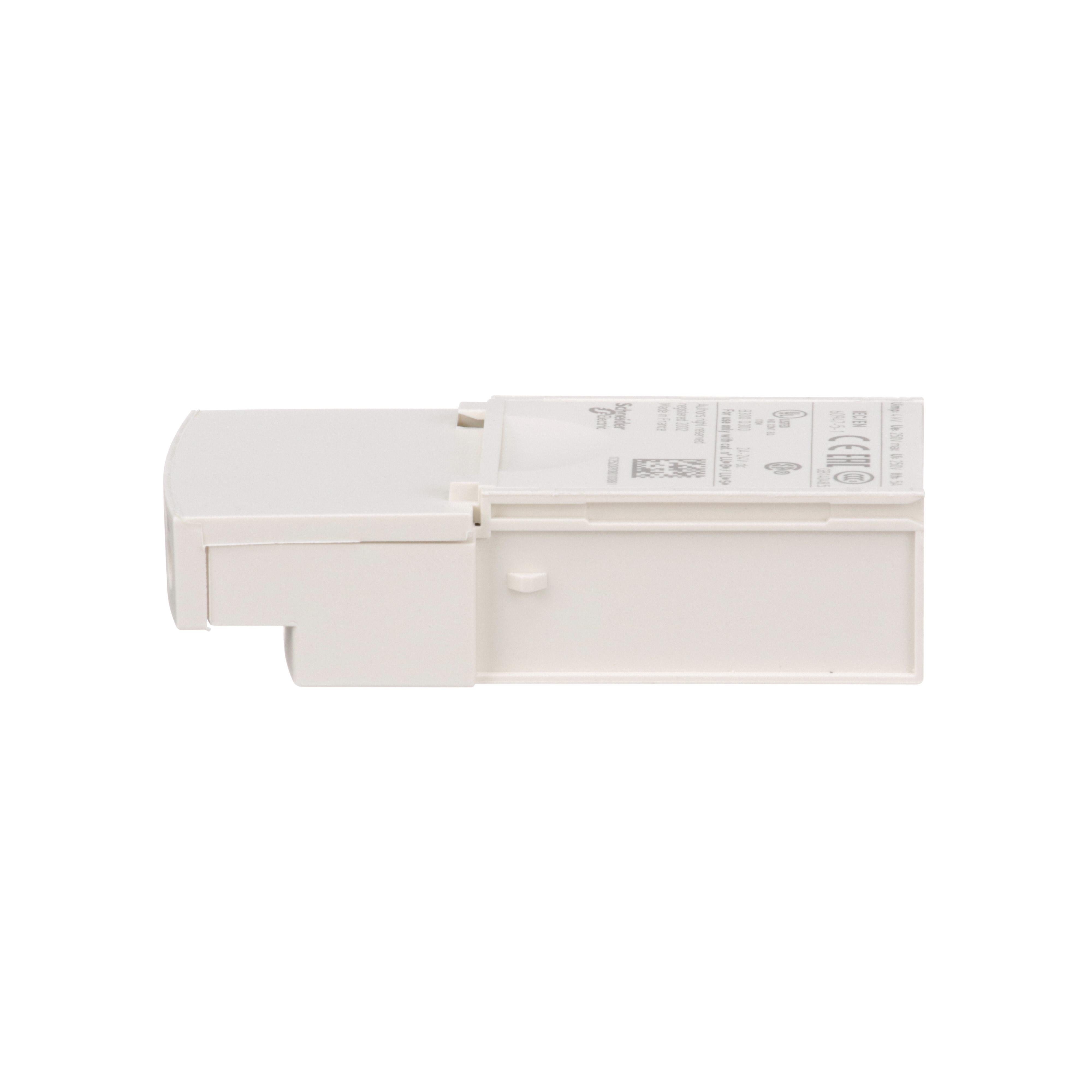

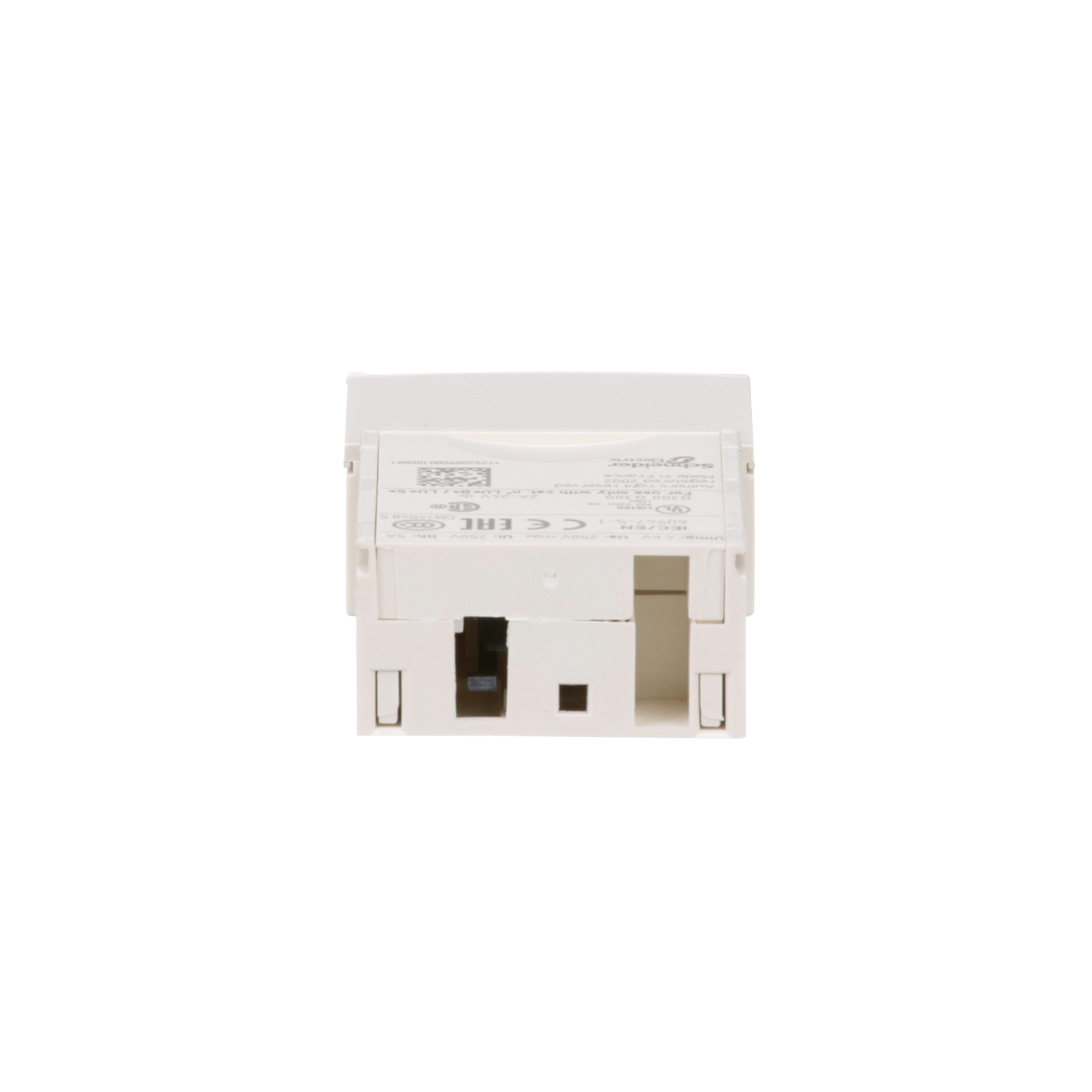

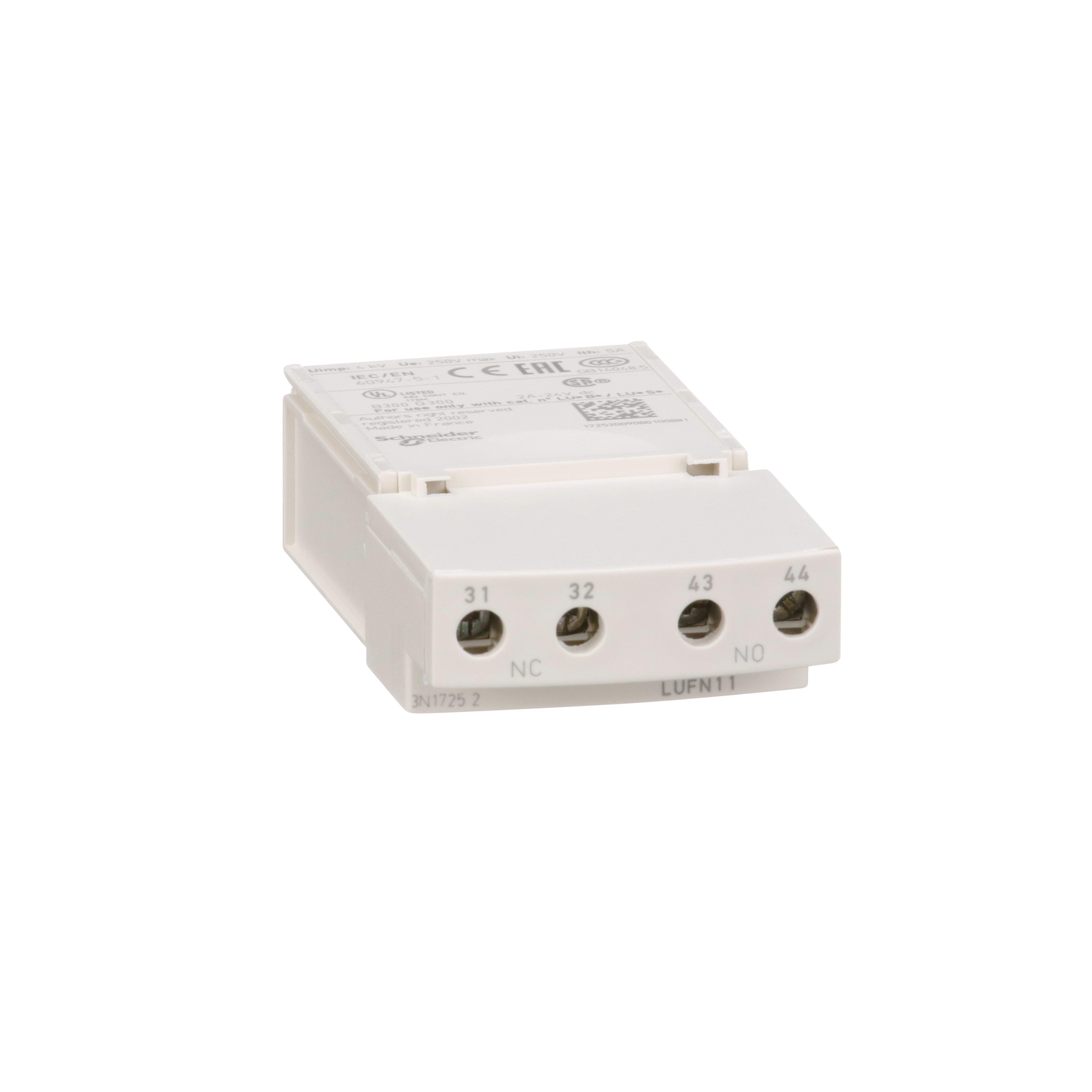

Picture of LUFN11 - Auxiliary contact module, TeSys Ultra1 NO and 1 NC
Schneider Electric

LUFN11 - Auxiliary contact module, TeSys Ultra1 NO and 1 NC

Item Code: 523382
Category Starter Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref LUFN11

RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

TeSys U auxiliary signaling contacts module to be inserted in standard power bases LUB12, LUB32, LUB38 or advanced power base LUB120, LUB320, LUB380. It indicates the ON/OFF running status of the motor, whatever the direction of rotation. It provides 1NO+1NC instantaneous auxiliary contacts rated 24-250V AC/DC 5A max. It is powered by the control unit. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Specifications

Weight

0.1lb

Height

3.7mm

Width

1.29mm

Length

1.87mm

Brand

Schneider Electric

Category

Starter Accessories

Number Of Poles

2

Specifications

250 V AC/DC, 5 A, 1NO-NC, 2-Pole, Open Enclosure, -25 to 70 deg C Operating Temperature, 400 Hz Operating Cycles, Surface Mount, Screw Clamp Connection

Suitable For Use With

TeSys™ U Simple Motor Starter

Type

Auxiliary Contact
