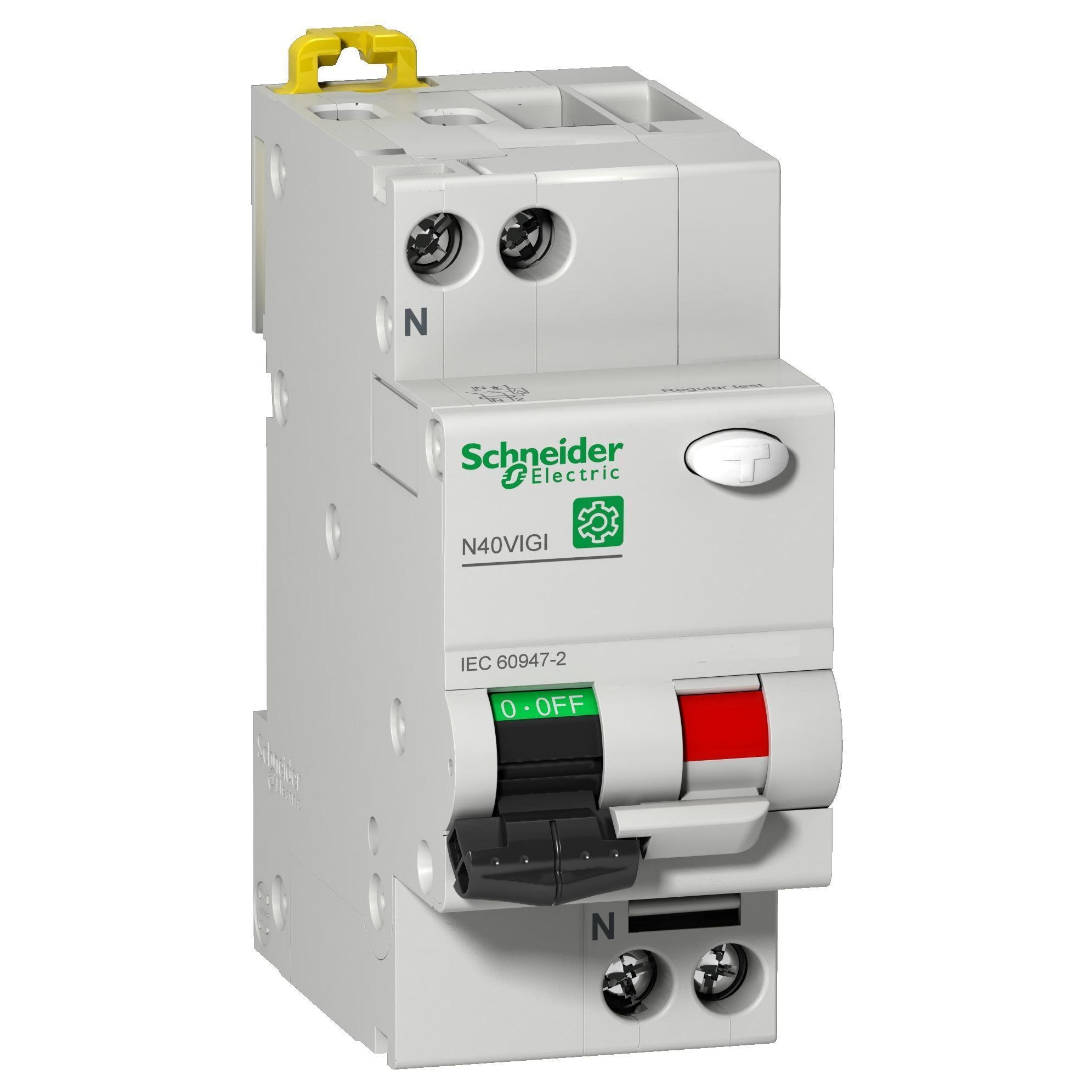

M9D11616 - Residual current breaker with overcur. prot. (RCBO), Multi9 N40 Vigi, 1P+N, 16A, C curve, 6000A/6kA, AC type, 30mA

Category Circuit Breaker Accessories
Picture of M9D11616 - Residual current breaker with overcur. prot. (RCBO), Multi9 N40 Vigi, 1P+N, 16A, C curve, 6000A/6kA, AC type, 30mA
Schneider Electric

M9D11616 - Residual current breaker with overcur. prot. (RCBO), Multi9 N40 Vigi, 1P+N, 16A, C curve, 6000A/6kA, AC type, 30mA

Item Code: 1014509
Category Circuit Breaker Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref M9D11616

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Multi9 N40 Vigi is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 16A In rated current and C tripping curve. The earth leakage protection class is AC type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icu rated short circuit breaking capacity is up to 6kA according EN/IEC 60947-2 standard. The Icn rated short circuit breaking capacity is up to 6000 A according EN/IEC 61009-1 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. A green strip on the toggle guarantees opening of all the poles in safety conditions. This product is compliant with EN/IEC 61009-1 and EN/IEC 60947-2 standards. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 70mm. The weight is 125g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -30°C to 70°C.

Specifications

Weight

0.45lb

Height

81mm

Width

1.56mm

Length

3.9mm

Depth

70mm

AD All Features

0.75 to 16 sq-mm maximum top or bottom rigid wire, 0.33 to 10 sq-mm maximum top or bottom flexible wire, 0.33 to 10 sq-mm maximum top or bottom flexible with ferrule wire tunnel type terminal

AD Application

Distribution Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ES

AD Invoice Description

BREAKER CKT 240VAC 16A 6KA 1 50HZ TGL

AD Item Features 01

0.75 to 16 sq-mm maximum top or bottom rigid wire, 0.33 to 10 sq-mm maximum top or bottom flexible wire, 0.33 to 10 sq-mm maximum top or bottom flexible with ferrule wire tunnel type terminal

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.9000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4500

AD Package Weight UOM

LB

AD Package Width

1.5600

AD Package Width UOM

IN

Brand

Schneider Electric

Category

Circuit Breaker Accessories

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

1

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

-5 To 60

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type AC N40 Vigi™

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

240

Spec 15 Attribute

Wire Size

Spec 15 Attribute UOM

sq-mm

Spec 15 Attribute Value

0.75 to 16/0.33 to 10

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

16

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Tunnel

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

70 mm L x 36 mm W x 81 mm H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP20/IP40

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

6

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Clip-On/DIN Rail
