Schneider Electric

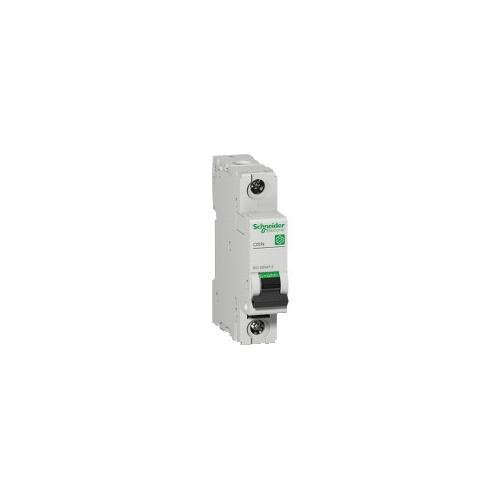

M9F11120 - Miniature circuit breaker (MCB), Multi9 C60N, 1P, 20A, C curve, 10kA (IEC/EN 60947-2)

Category Circuit Breaker Accessories
Picture of M9F11120 - Miniature circuit breaker (MCB), Multi9 C60N, 1P, 20A, C curve, 10kA (IEC/EN 60947-2) Picture of M9F11120 - Miniature circuit breaker (MCB), Multi9 C60N, 1P, 20A, C curve, 10kA (IEC/EN 60947-2)
Picture of M9F11120 - Miniature circuit breaker (MCB), Multi9 C60N, 1P, 20A, C curve, 10kA (IEC/EN 60947-2) Picture of M9F11120 - Miniature circuit breaker (MCB), Multi9 C60N, 1P, 20A, C curve, 10kA (IEC/EN 60947-2)
Schneider Electric

M9F11120 - Miniature circuit breaker (MCB), Multi9 C60N, 1P, 20A, C curve, 10kA (IEC/EN 60947-2)

Item Code: 1034262
Category Circuit Breaker Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref M9F11120

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 20A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. The weight is 0.12kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.

Specifications

Weight

0.23lb

Height

81mm

Width

2.92mm

Length

3.31mm

Depth

72mm

AD Application

Circuit Protection Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

BREAKER CKT MINTR 240/415VAC 20A 10KA

AD Item Features 01

Circuit protection against short circuit, overload currents

AD Item Features 02

The presence of the green strip guarantees physical opening of the contacts and allows operations to be performed on the downstream circuit in complete safety

AD Item Features 03

Overvoltage resistance

AD Item Features 04

High performance limitation

AD Item Features 05

Fast closing independent of the speed of actuation of the toggle

AD Item Features 06

Upstream or downstream connection

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.3100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2300

AD Package Weight UOM

LB

AD Package Width

2.9200

AD Package Width UOM

IN

Brand

Square D

Category

Circuit Breaker Accessories

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

1

Spec 11 Attribute

Series

Spec 11 Attribute Value

C60N

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

-22 To 158

Spec 13 Attribute

Trip Range

Spec 13 Attribute Value

8.5X In AC/12X In DC

Spec 14 Attribute

Trip Type

Spec 14 Attribute Value

Thermal Magnetic

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

240/415

Spec 16 Attribute

Wire Size

Spec 16 Attribute UOM

sq-mm

Spec 16 Attribute Value

1 to 25

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

20

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Tunnel Terminal

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

0.71 in W x 2.83 in D x 3.19 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP20/IP40

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50 To 60

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

10

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Clip-On/DIN Rail
