Schneider Electric

Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 3A, B curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)

Category Miscellaneous

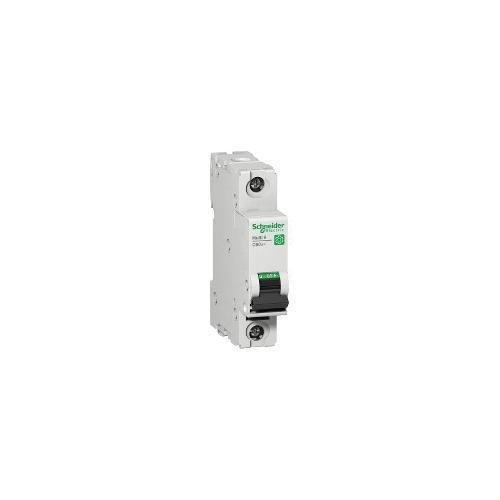

Picture of Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 3A, B curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) Picture of Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 3A, B curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)
Picture of Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 3A, B curve, 10kA (UL1077), 10kA (IEC/EN 60947-2) Picture of Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 3A, B curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)
Schneider Electric

Miniature circuit breaker (MCB), Multi9 C60SP, 1P, 3A, B curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)

Item Code: 1033039
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref M9F21103

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 3A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.

Specifications

Weight

0.25

Width

2.92

Length

3.31

AD All Features

Circuit protection against short circuit, overload currents

AD Alternative Part Number

14115747

AD Application

OEMs, Control Panel Builders, Supplementary Protection and Circuit Protection Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3606481167644

AD Gtin

03606481167644

AD IDEA Index ID

14115747

AD Invoice Description

BREAKER CKT MINTR 240/415 VAC 60 VDC 3A

AD Item Features 01

Circuit protection against short circuit, overload currents

AD Item Features 02

Tripping and fault indication by the addition of auxiliaries

AD Keywords

M9F21103 C60SP Multi-Standard Miniature Circuit Breaker, 240/415 VAC, 60 VDC, 3 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip ; Schneider Electric ; Schneider Electric ; M9F21103 ; 785901726197 ; Miniature Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.3100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2500

AD Package Weight UOM

LB

AD Package Width

2.9200

AD Package Width UOM

IN

AD Part Number Keywords

M9F21103 ; 14115747 ; 785901726197 ; 78590172619 ; 03606481167644 ; 3606481167644

Brand

Square D

Category

Miscellaneous

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

1

Spec 11 Attribute

Series

Spec 11 Attribute Value

C60SP

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

-22 To 158

Spec 13 Attribute

Trip Range

Spec 13 Attribute Value

4X In AC/5.7X In DC

Spec 14 Attribute

Trip Type

Spec 14 Attribute Value

Thermal Magnetic

Spec 15 Attribute

Type

Spec 15 Attribute Value

Multi-Standard

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute Value

240 to 415 V AC/60 V DC

Spec 17 Attribute

Wire Size

Spec 17 Attribute Value

18 to 8 AWG Cu

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

3

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Tunnel Terminal

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

0.71 in W x 2.83 in D x 3.19 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP20/IP40

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

10

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Clip-On/DIN Rail
