Schneider Electric

M9F22310 - Miniature circuit breaker (MCB), Multi9 C60SP, 3P, 10A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)

Category Base Mount, Unit Mount, Din Rail Mount Circuit Breakers

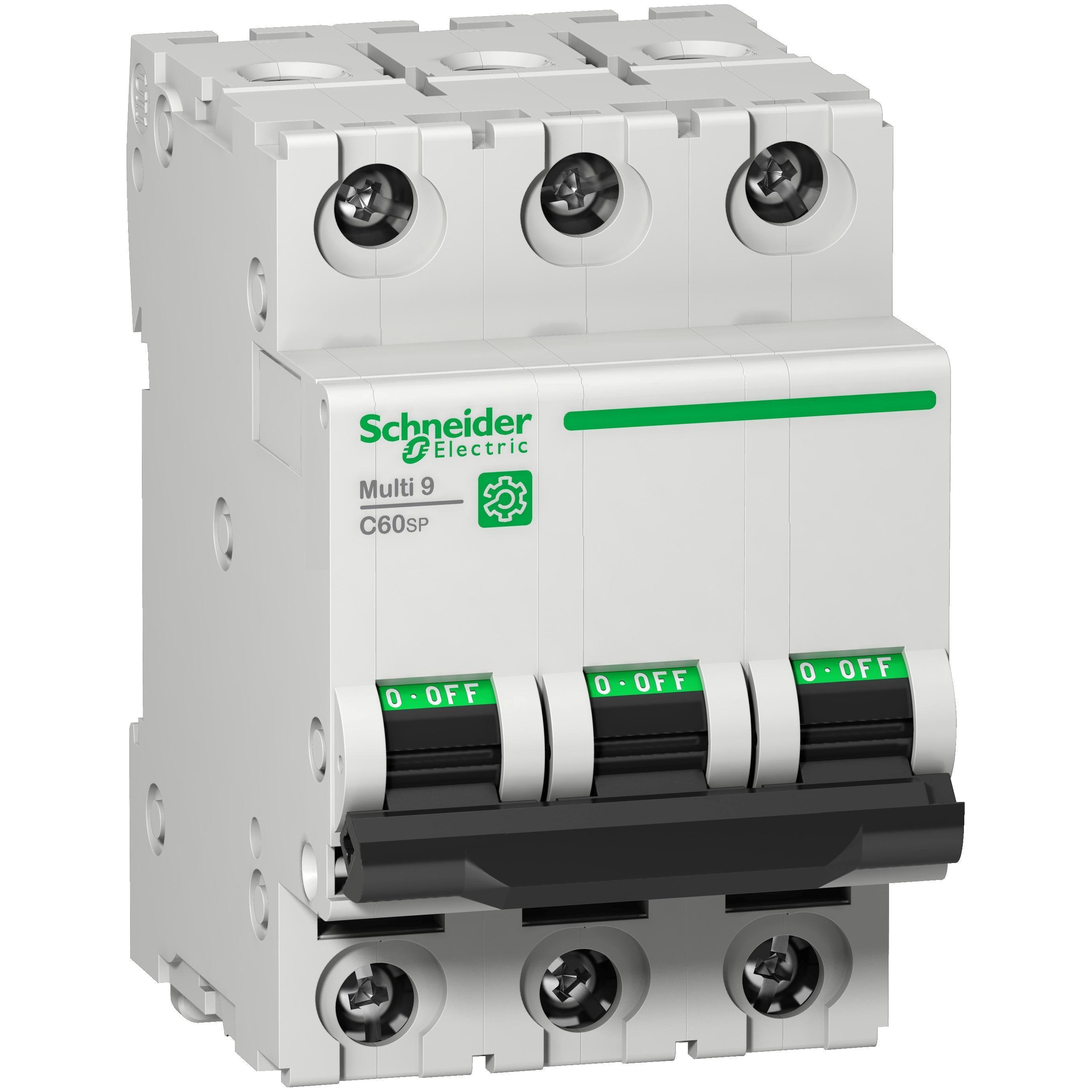

Picture of M9F22310 - Miniature circuit breaker (MCB), Multi9 C60SP, 3P, 10A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)
Schneider Electric

M9F22310 - Miniature circuit breaker (MCB), Multi9 C60SP, 3P, 10A, C curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)

Item Code: 1028023
Category Base Mount, Unit Mount, Din Rail Mount Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref M9F22310

Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 10A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.

Specifications

Weight

0.74lb

Height

81mm

Width

2.11mm

Length

3.31mm

Depth

72mm

Actuator Type

Toggle

Amperage Rating

10 A

Brand

Schneider Electric

Category

BASE MOUNT, UNIT MOUNT, DIN RAIL MOUNT CIRCUIT BREAKERS

Color

Gray

Connection Type

Tunnel Terminal

Dimensions

2.13 in W x 2.83 in D x 3.19 in H

Enclosure Type

IP20/IP40

Frequency Rating

50 to 60 Hz

Interrupt Rating

10 kA

Mounting Type

Clip-On/DIN Rail

Number Of Poles

3

Series

C60SP

Temperature Rating

-22 to 158 deg F

Trip Range

8.5X In AC

Trip Type

Thermal Magnetic

Type

Multi-Standard

Voltage Rating

240/415/440 V AC

Wire Size

18 to 8 AWG Cu
