Schneider Electric

M9U21206 - Miniature circuit breaker (MCB), Multi9 C60H-DC, 2P, 6A, C curve, 5kA (UL1077), 6kA (IEC/EN 60947-2)

Category Base Mount, Unit Mount, Din Rail Mount Circuit Breakers

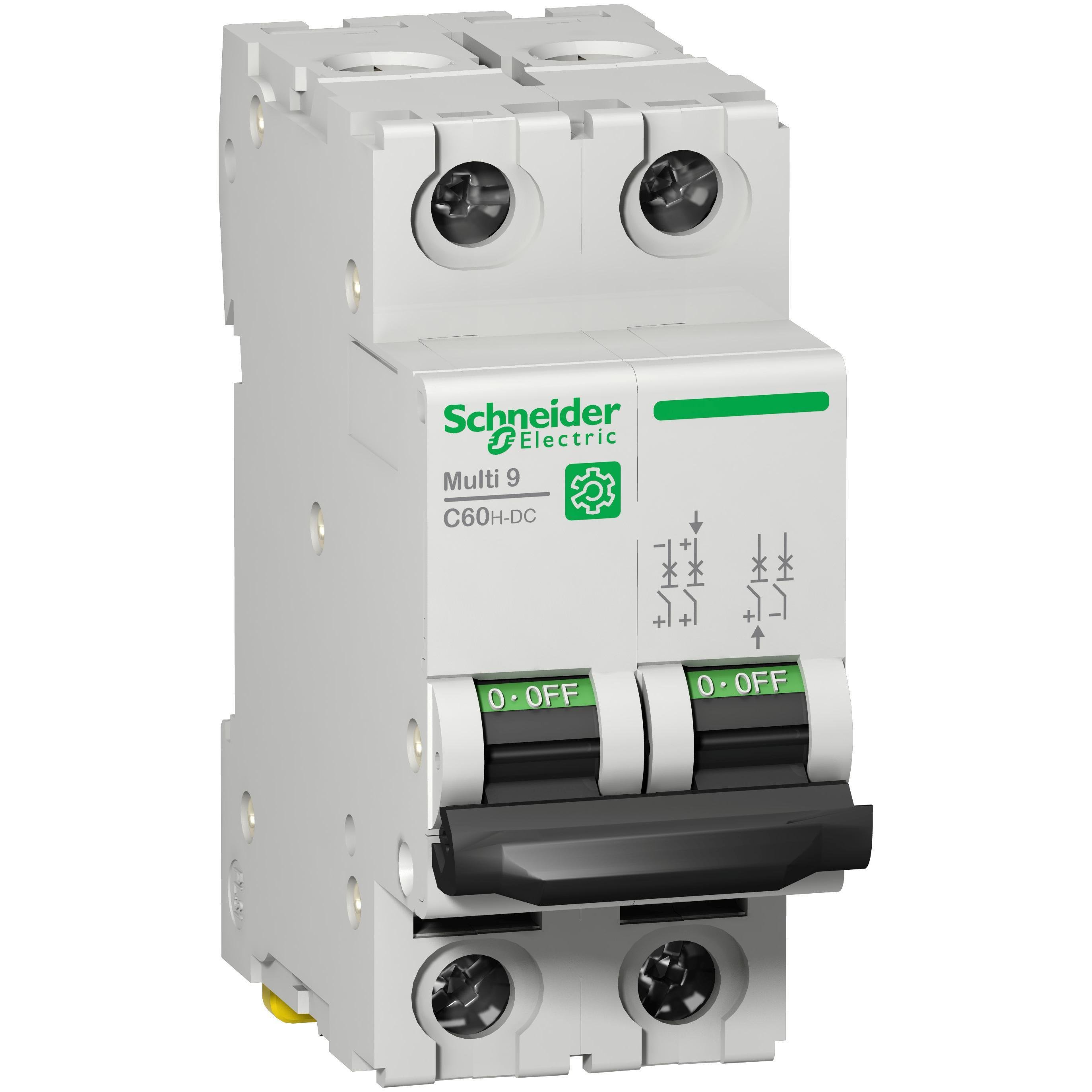

Picture of M9U21206 - Miniature circuit breaker (MCB), Multi9 C60H-DC, 2P, 6A, C curve, 5kA (UL1077), 6kA (IEC/EN 60947-2) Picture of M9U21206 - Miniature circuit breaker (MCB), Multi9 C60H-DC, 2P, 6A, C curve, 5kA (UL1077), 6kA (IEC/EN 60947-2)
Picture of M9U21206 - Miniature circuit breaker (MCB), Multi9 C60H-DC, 2P, 6A, C curve, 5kA (UL1077), 6kA (IEC/EN 60947-2) Picture of M9U21206 - Miniature circuit breaker (MCB), Multi9 C60H-DC, 2P, 6A, C curve, 5kA (UL1077), 6kA (IEC/EN 60947-2)
Schneider Electric

M9U21206 - Miniature circuit breaker (MCB), Multi9 C60H-DC, 2P, 6A, C curve, 5kA (UL1077), 6kA (IEC/EN 60947-2)

Item Code: 1228549
Category Base Mount, Unit Mount, Din Rail Mount Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref M9U21206

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current. It is a 2P circuit breaker with 2 protected poles, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VD

Specifications

Weight

0.49

Width

1.4

Length

2.92

AD All Features

Circuit protection against short circuit, overload currents

AD Application

OEMs, Control Panel Builders, Supplementary Protection and Circuit Protection Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER CKT MINTR 6A 10KA 2 50 TO 60HZ

AD Item Features 01

Circuit protection against short circuit, overload currents

AD Item Features 02

Tripping and fault indication by the addition of auxiliaries

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.9200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4900

AD Package Weight UOM

LB

AD Package Width

1.4000

AD Package Width UOM

IN

Brand

Square D

Category

BASE MOUNT, UNIT MOUNT, DIN RAIL MOUNT CIRCUIT BREAKERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

2

Spec 11 Attribute

Series

Spec 11 Attribute Value

C60H-DC

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

-13 To 158

Spec 13 Attribute

Trip Range

Spec 13 Attribute Value

7 to 10X In DC

Spec 14 Attribute

Trip Type

Spec 14 Attribute Value

Thermal Magnetic

Spec 15 Attribute

Type

Spec 15 Attribute Value

Multi-Standard

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute Value

220/440/500 V AC/500 V DC

Spec 17 Attribute

Wire Size

Spec 17 Attribute Value

18 to 4 AWG Cu

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

6

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Tunnel

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

3.19 in H x 1.42 in W x 2.87 in D

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP20/IP40

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50 To 60

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

10

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Clip-On/DIN Rail
