Schneider Electric

MD3304X - Motor disconnect switch, 3P, 30A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure

Category Manual Motor Switches & Accessories

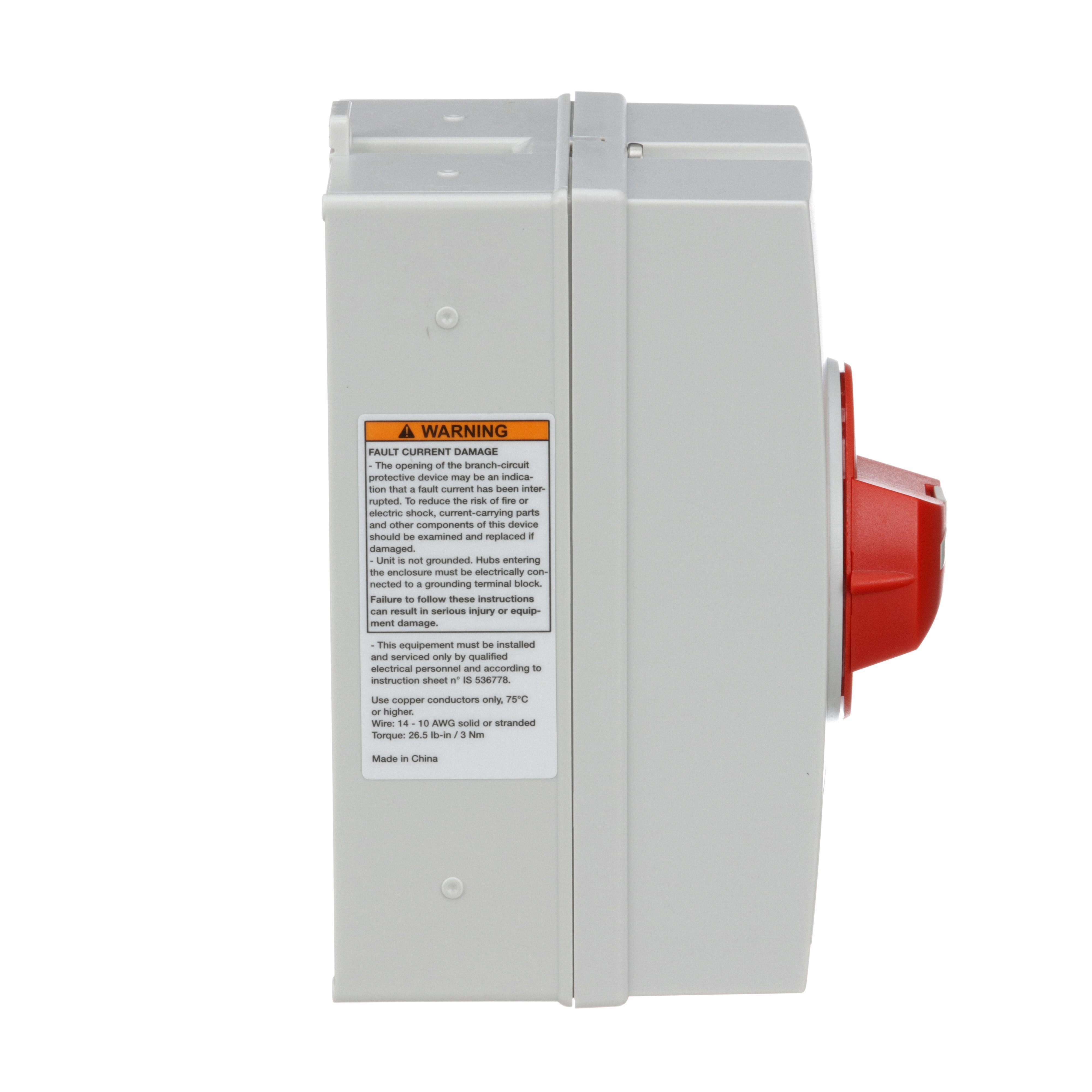

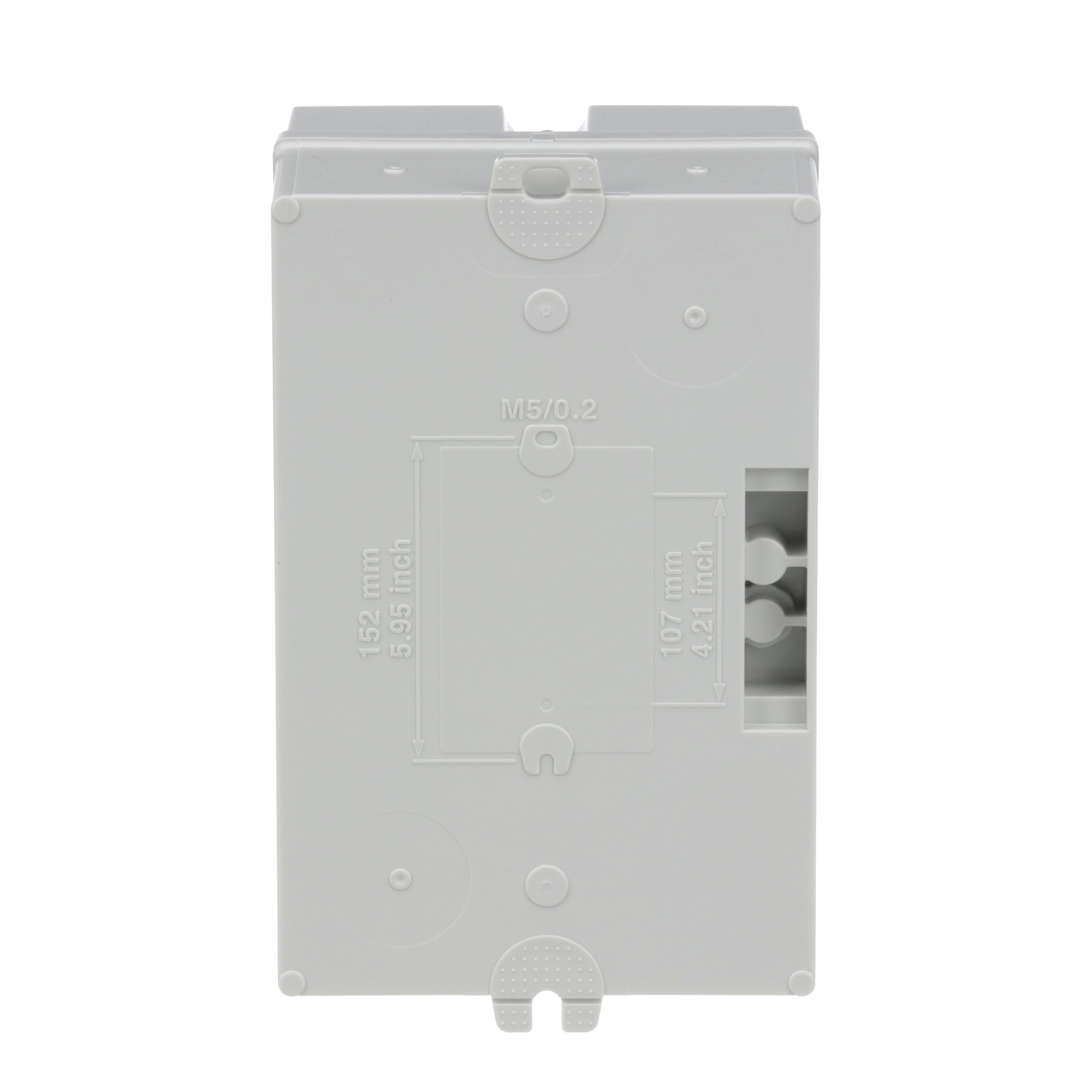

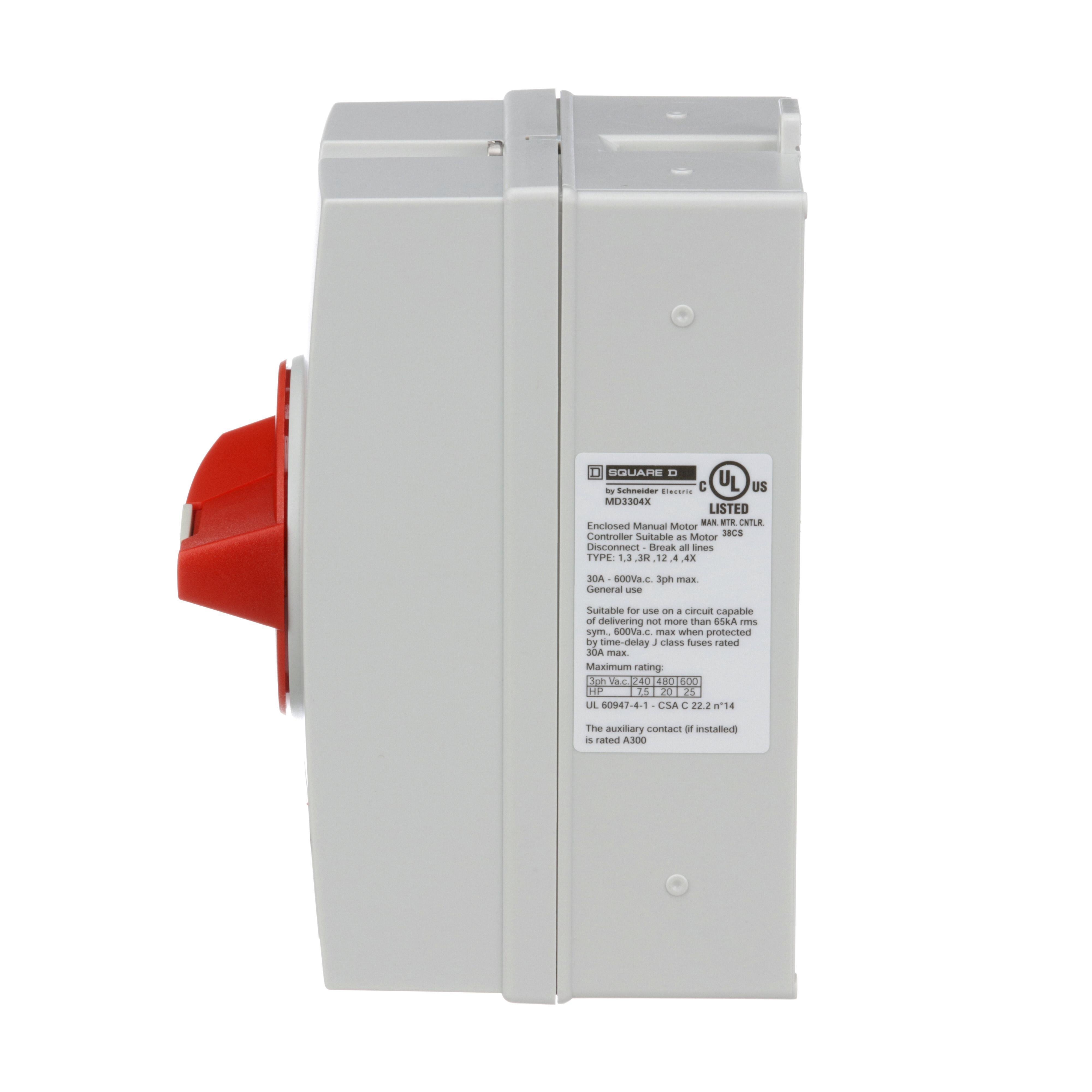

Picture of MD3304X - Motor disconnect switch, 3P, 30A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure Picture of MD3304X - Motor disconnect switch, 3P, 30A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure
Picture of MD3304X - Motor disconnect switch, 3P, 30A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure Picture of MD3304X - Motor disconnect switch, 3P, 30A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure
Picture of MD3304X - Motor disconnect switch, 3P, 30A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure Picture of MD3304X - Motor disconnect switch, 3P, 30A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure
Picture of MD3304X - Motor disconnect switch, 3P, 30A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure Picture of MD3304X - Motor disconnect switch, 3P, 30A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure
Schneider Electric

MD3304X - Motor disconnect switch, 3P, 30A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure

Item Code: 761393
Category Manual Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MD3304X

Document
Document
Call for Availability
Add to Favorites
Compare

Description

The MD motor disconnect switch is listed UL 508 Suitable for Motor Control (UL File E164864) and conforms to IEC standard 60947-3. It is in a compact NEMA 4X enclosure suitable for use in NEMA 1, 3, 3R, 4, 4X, and 12 applications. This three pole 30 A motor disconnect switch has a 7.5 HP rating at 240 VAC, a 20 HP rating at 480 VAC and a 25 HP rating at 600VAC. The red handle interlock prevents the removal of the cover when the switch is in the ON position. This MD motor disconnect switch has an extremely small footprint. It is 6.38 inches tall, 3.9 inches wide and 4.37 deep. Switch is UL listed and CSA certified.

Specifications

Weight

1.52lb

Height

4.9mm

Width

5.19mm

Length

7.14mm

Depth

4.37mm

AD All Features

Water-tight NEMA 4X

AD Application

Wash Down/Rugged Industrial Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

SWITCH DISC MOT 600VAC 30A 3 3 NEMA 4X

AD Item Features 01

Water-tight NEMA 4X

AD Item Features 02

Covers additional enclosure types

AD Item Features 03

Horsepower rated

AD Item Features 04

OSHA lockout/tagout compatible

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.9000

AD Package Height UOM

IN

AD Package Length

7.1400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

183.4600

AD Package Volume UOM

cu-in

AD Package Weight

1.5200

AD Package Weight UOM

LB

AD Package Width

5.1900

AD Package Width UOM

IN

Brand

Square D

Category

MANUAL MOTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

6.38 in H x 3.9 in W x 4.37 in D

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 4X

Spec 4 Attribute

HORSEPOWER

Spec 4 Attribute Value

7-1/2 hp, 20 hp, 25 hp

Spec 5 Attribute

Material

Spec 5 Attribute Value

Polycarbonate

Spec 6 Attribute

Number Of Poles

Spec 6 Attribute Value

3

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

3

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

600
