Schneider Electric

MD3604X - Motor disconnect switch, 3P, 60A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure

Category Manual Motor Switches & Accessories

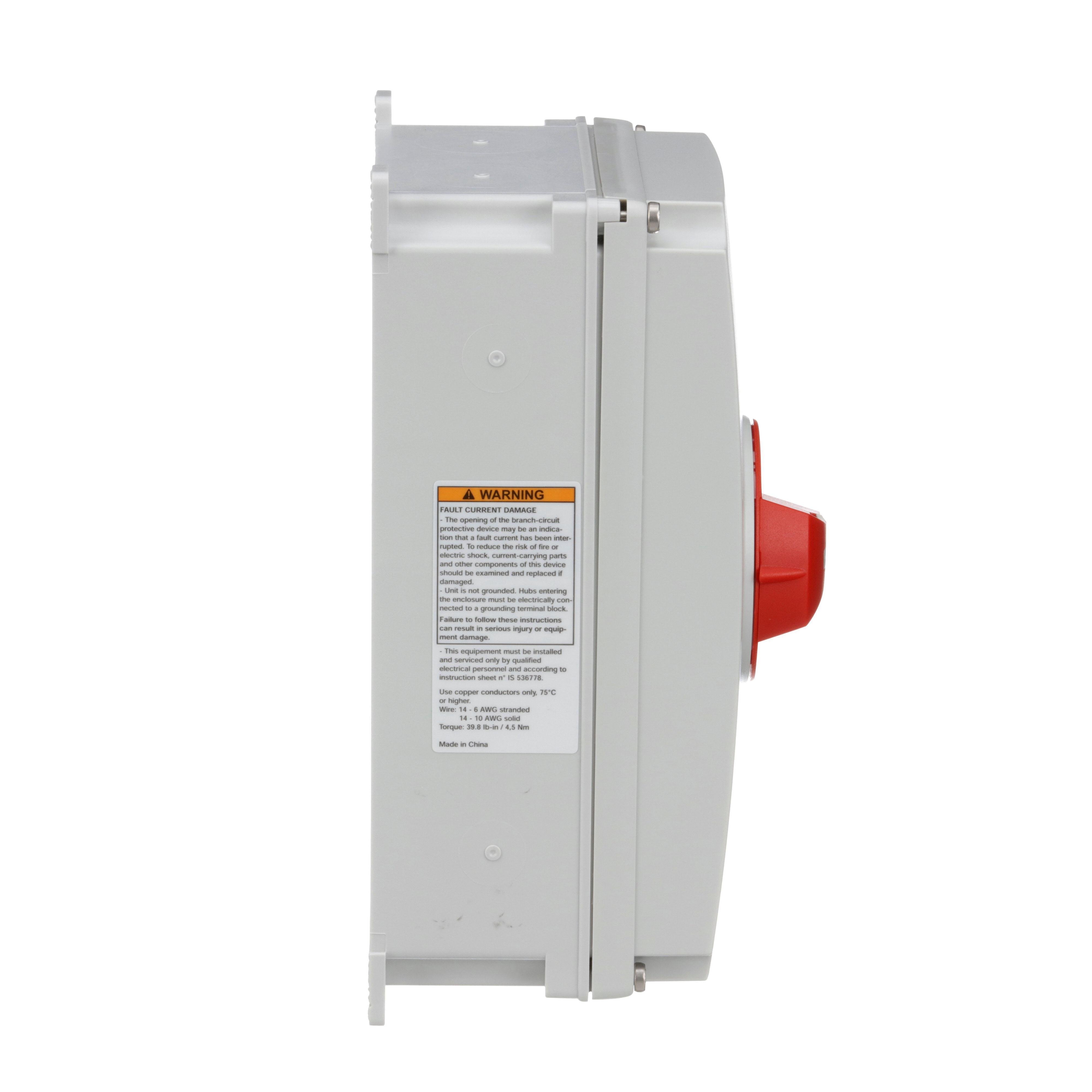

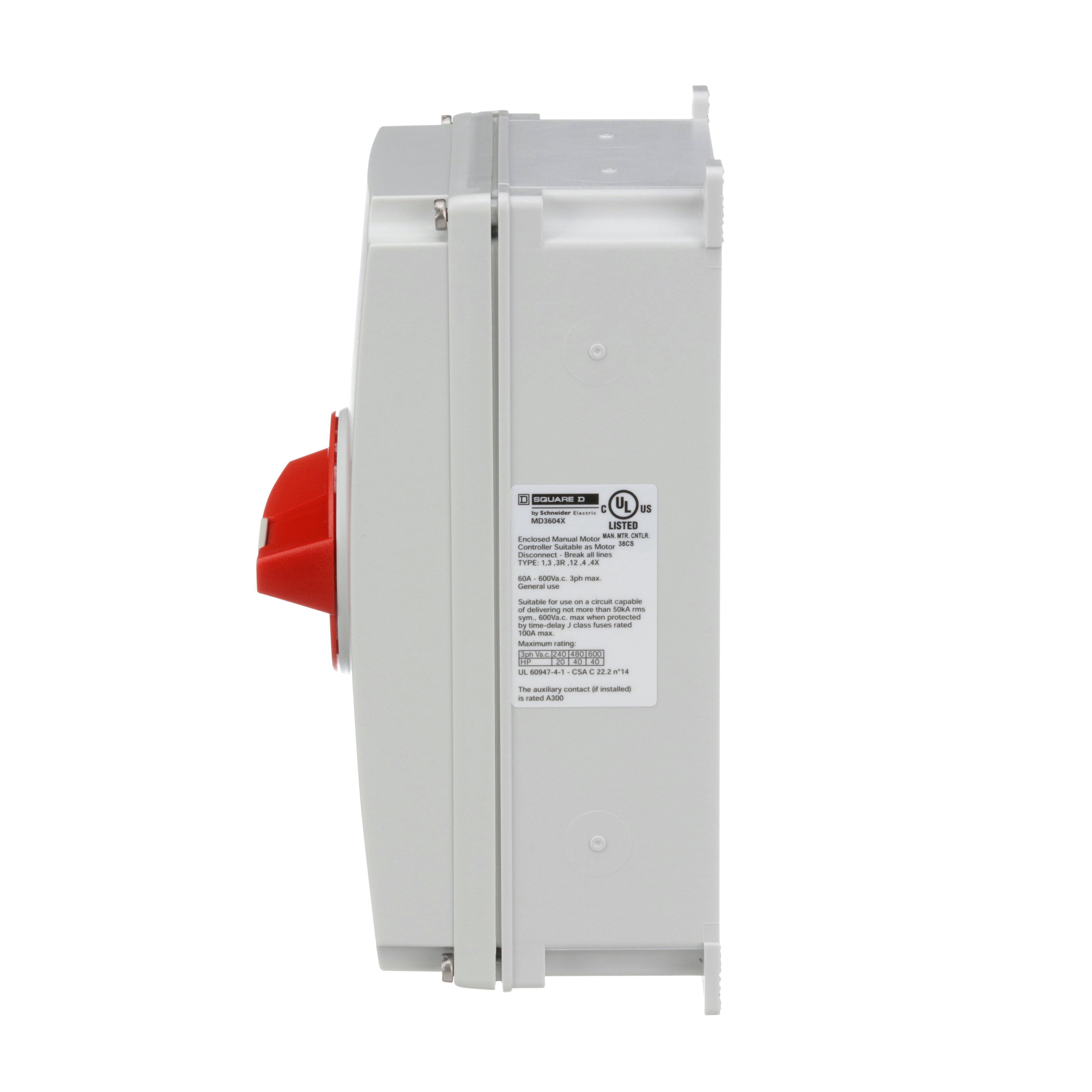

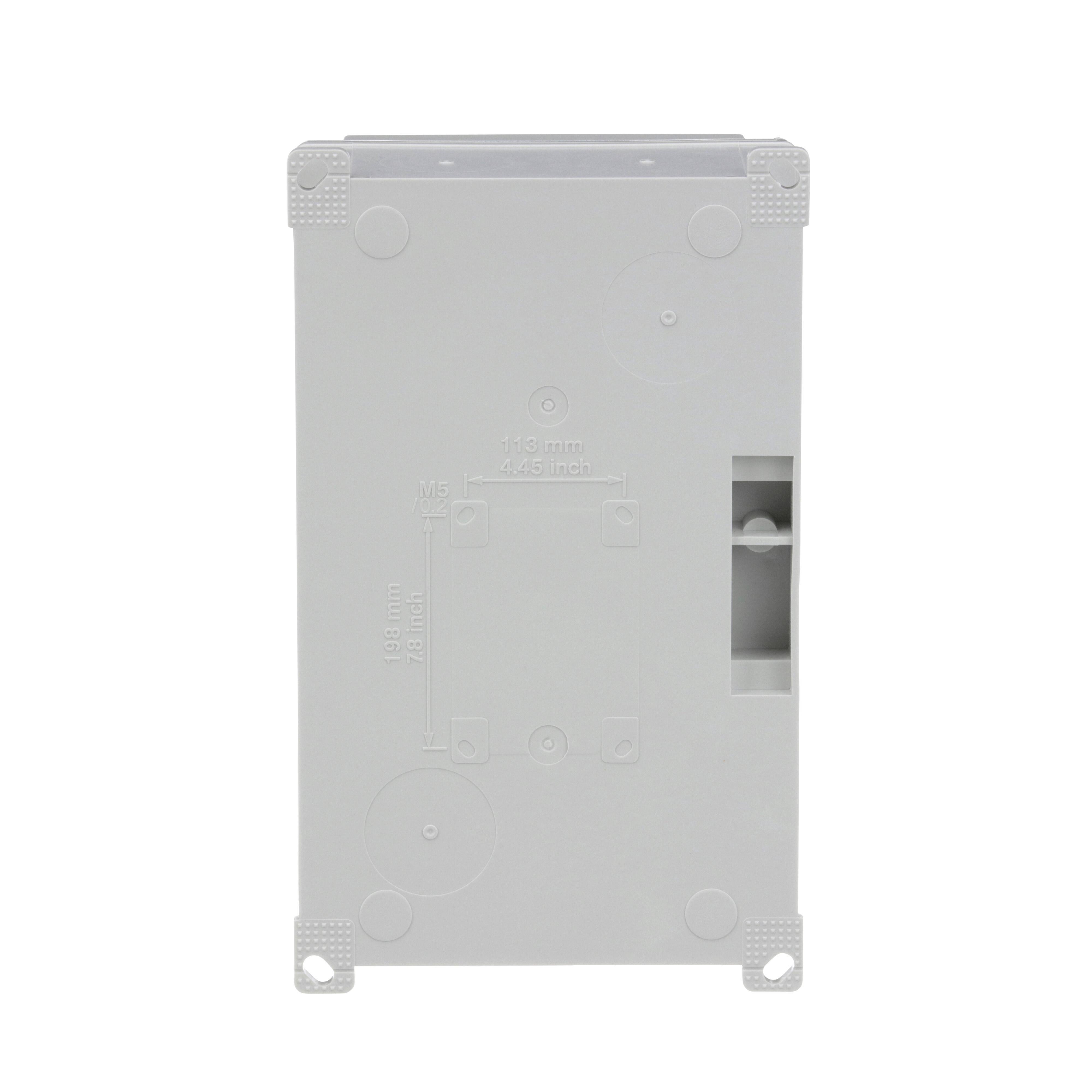

Picture of MD3604X - Motor disconnect switch, 3P, 60A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure
Schneider Electric

MD3604X - Motor disconnect switch, 3P, 60A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure

Item Code: 847819
Category Manual Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MD3604X

RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

The MD motor disconnect switch is listed UL 508 Suitable for Motor Control (UL File E164864) and conforms to IEC standard 60947-3. It is in a compact NEMA 4X enclosure suitable for use in NEMA 1, 3, 3R, 4, 4X, and 12 applications. This three pole 60 A motor disconnect switch has a 20 HP rating at 240 VAC, a 40 HP rating at 480 VAC and a 40 HP rating at 600VAC. The red handle interlock prevents the removal of the cover when the switch is in the ON position. This MD motor disconnect switch has an extremely small footprint. It is 6.38 inches tall, 3.9 inches wide and 4.37 deep. Switch is UL listed and CSA certified.

Specifications

Weight

2.09lb

Height

4.8mm

Width

5.46mm

Length

9.95mm

Depth

4.37mm

Amperage Rating

60 A

Brand

Schneider Electric

Category

MANUAL MOTOR SWITCHES & ACCESSORIES

Dimensions

8.27 in H x 4.94 in W x 4.37 in D

Enclosure Type

NEMA 4X

Horsepower

20 hp, 40 hp

Material

Polycarbonate

Number Of Poles

3

Phase

3

Voltage Rating

220 to 600 V AC
