Schneider Electric

METSEEM3570A - DIN rail meter, PowerLogic EM3570, Ethernet, LVDC, Rogowski CT input bundled with external Power Supply

Category Miscellaneous

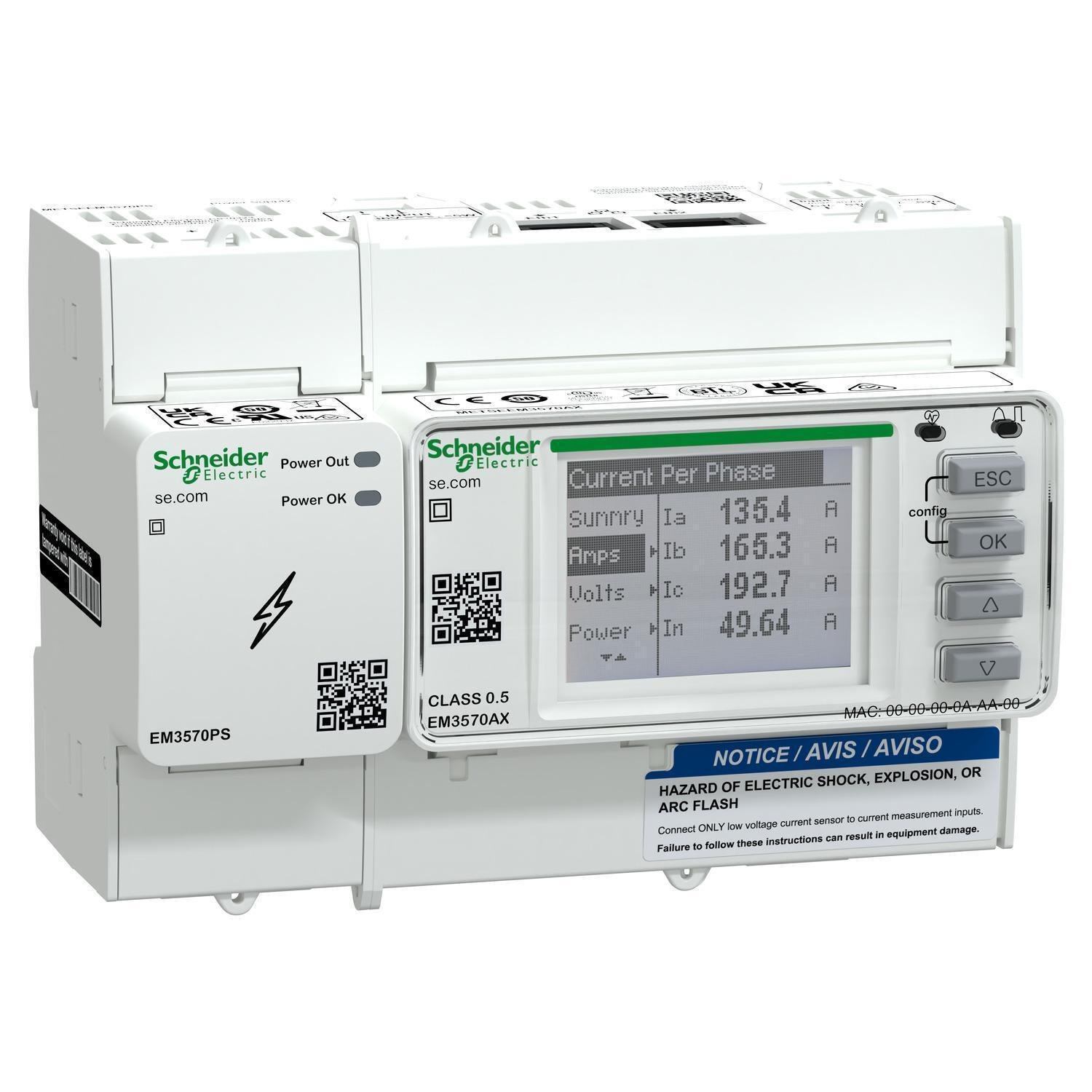

Picture of METSEEM3570A - DIN rail meter, PowerLogic EM3570, Ethernet, LVDC, Rogowski CT input bundled with external Power Supply Picture of METSEEM3570A - DIN rail meter, PowerLogic EM3570, Ethernet, LVDC, Rogowski CT input bundled with external Power Supply
Picture of METSEEM3570A - DIN rail meter, PowerLogic EM3570, Ethernet, LVDC, Rogowski CT input bundled with external Power Supply Picture of METSEEM3570A - DIN rail meter, PowerLogic EM3570, Ethernet, LVDC, Rogowski CT input bundled with external Power Supply
Schneider Electric

METSEEM3570A - DIN rail meter, PowerLogic EM3570, Ethernet, LVDC, Rogowski CT input bundled with external Power Supply

Item Code: 1245879
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref METSEEM3570A

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The EM3570 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM3570A models are designed for use exclusively with Rogowski coil CTs where integrator and power supply for the CTs are built into the meter. Current input from 20A to 5000A with the Rogowski coil (CTs must be rated for use with Class 1 voltage inputs). Bidirectional monitoring supports both upstream and downstream power flow, critical for renewable energy applications. Not recommanded for high harmonic application. BACnet/IP, Modbus TCP/ IP and SNMP come native, along with Dual Ethernet ports for daisy chain for good versatility and flexibility. Product need to be supplied by a 24VDC source. Two digital inputs support status monitoring, pulse counting, multi tariff and partial resets. Relay output for alarm notification. Product dimensions are as follows: width 90 mm, depth 70 mm, height 91 mm. Compliant with the standards IEC 61010-1:2010, UL61010-1:2019, IEC/UL 61010-2-30, CSA C22.2 No. 61010-1-12, CSA C22.2 No. 61010-2-030. Use Rogowski rope style CTs. Meter need to be supplied in 24VDC, no voltage transformer included. The PowerLogic EM3570 supports IPv6 and network auto-detection. It comes with embedded web pages that display real time data, usage peaks and alarm status. Designed with cybersecurity in mind, it also allows full configuration of all network services.

Specifications

AD All Features

Energy monitoring in building automation systems

AD Application

Designed for use exclusively with Rogowski coil CTs where integrator and power supply for the CTs are built into the meter

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Invoice Description

MON M ASSY 125TO300VDC -13TO158DEG F

AD Item Features 01

Energy monitoring in building automation systems

AD Item Features 02

Ease of setup and integration

AD Item Features 03

Billing flexibility

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

Brand

Square D

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

3.6 in H x 5 in W x 2.8 in D

Spec 2 Attribute

Operating Temperature

Spec 2 Attribute UOM

deg F

Spec 2 Attribute Value

-13 To 158

Spec 3 Attribute

Voltage Rating

Spec 3 Attribute UOM

V DC

Spec 3 Attribute Value

125 to 300
