Schneider Electric

MG24432 - Supplementary Protector

Category Motor Circuit & Supplementary Protector Circuit Breakers

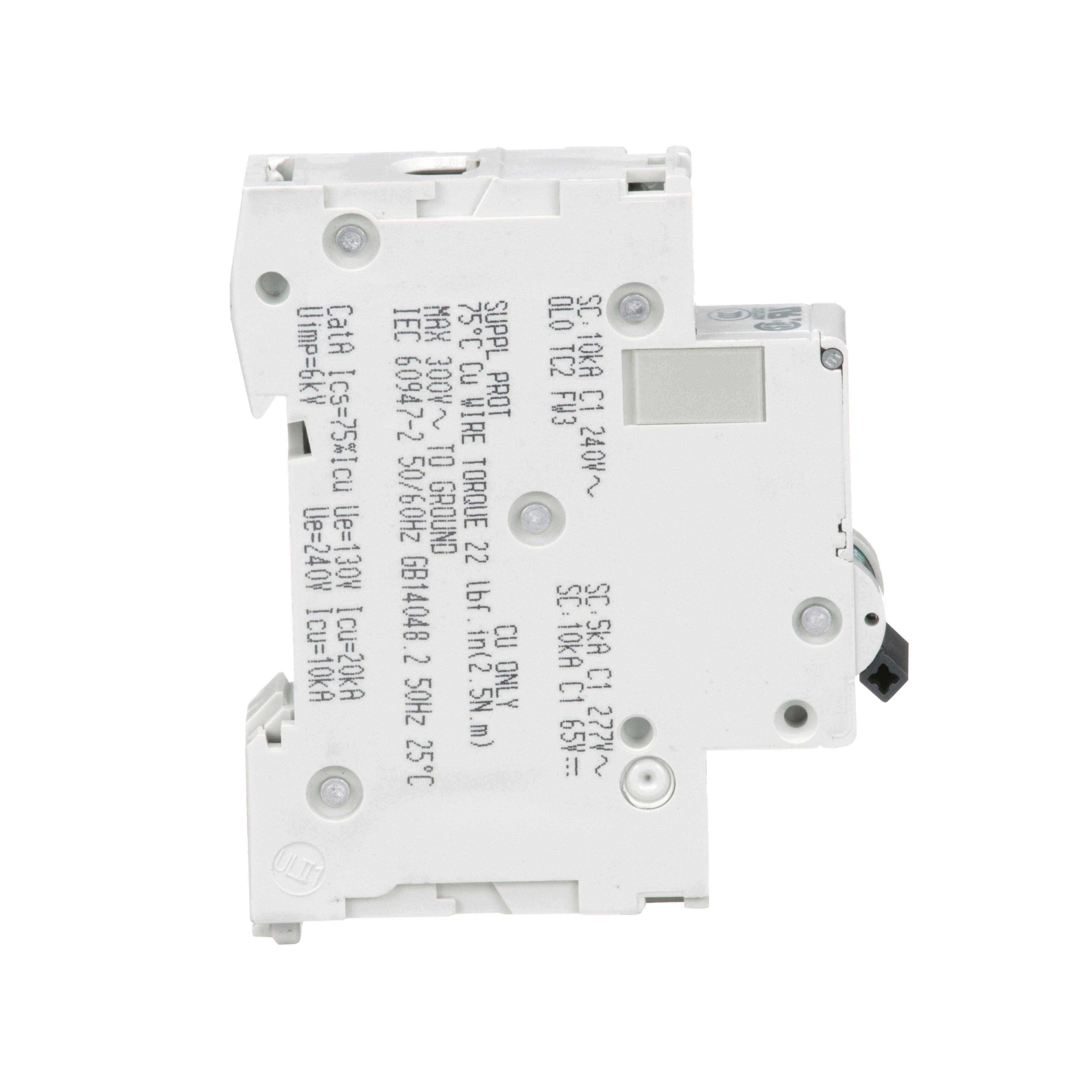

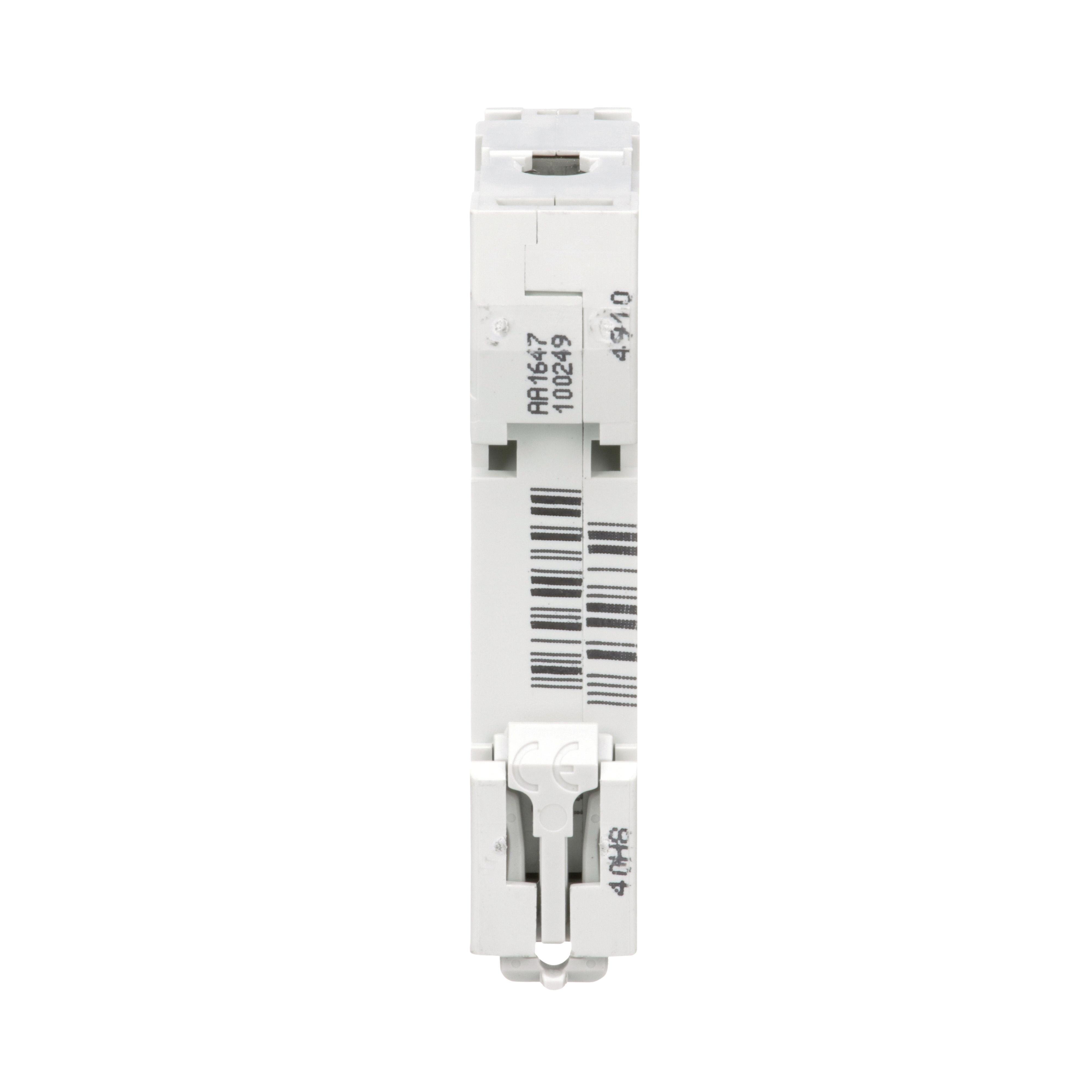

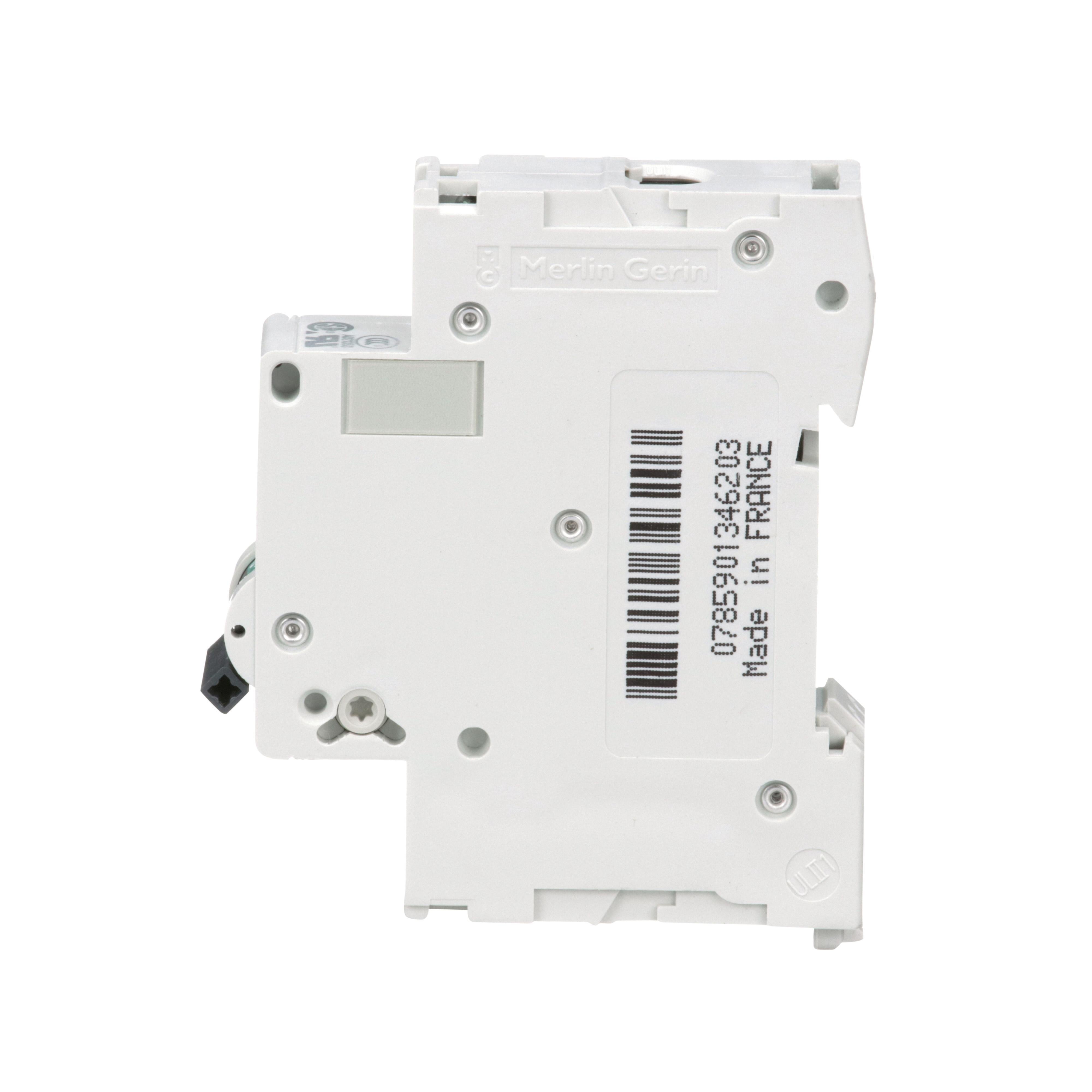

Picture of MG24432 - Supplementary Protector Picture of MG24432 - Supplementary Protector
Picture of MG24432 - Supplementary Protector Picture of MG24432 - Supplementary Protector
Picture of MG24432 - Supplementary Protector Picture of MG24432 - Supplementary Protector
Picture of MG24432 - Supplementary Protector Picture of MG24432 - Supplementary Protector
Schneider Electric

MG24432 - Supplementary Protector

Item Code: 913381
Category Motor Circuit & Supplementary Protector Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MG24432

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Supplementary Protector; Type Current Limiting, Thermal Magnetic; Number of Poles 1; Voltage Rating 120/240/277 VAC at 50/60 Hz (UL/CSA), 240 VAC at 50/60 Hz (IEC), 48/65 VDC; Current Rating 10 Ampere; Interrupting Rating 10 Kiloampere at 120/240 VAC, 5 Kiloampere at 277 VAC (UL/CSA), 10 Kiloampere at 240 VAC (IEC), 10 Kiloampere at 48/65 VDC; Trip Setting 7 to 10 x Rated Current; Wire Size 14 to 4 AWG (Copper); Mounting 35 MM DIN Rail; Size 0.71 Inch W x 2.76 Inch D x 3.19 Inch H; Approval UL 1077, CSA C22.2; Used On OEM Panel; Application DC Telecommunications

Specifications

AD Application

For supplementary protectors to provide overcurrent protection within appliances or electrical equipment

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

BREAKER CKT MINTR 240/415 VAC 60 VDC

AD Item Features 01

Trip-free mechanism contacts cannot be held in the on position when the C60 is tripped automatically

AD Item Features 02

Positive indication of contact disconnect

AD Item Features 03

Green mechanical indication on front face of circuit breaker shows that all poles are open

AD Item Features 04

Overcurrent protection for all application types

AD Item Features 05

Magnetic release operates from 7 to 10 times ampere rating (between 7 and 14 for DC)

AD Item Features 06

Allows locking in ON-OFF position using padlock attachment

AD Item Features 07

Suitable for reverse feeding

AD Item Features 08

10 kA at 240 VAC, 3 kA at 415 VAC, 10 kA at 65 VDC interrupt rating

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

AD Package Volume

8.6800

AD Package Volume UOM

cu-in

Brand

Schneider Electric

Category

MOTOR CIRCUIT & SUPPLEMENTARY PROTECTOR CIRCUIT BREAKERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Clip-On/DIN Rail

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

1

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

1

Spec 13 Attribute

Series

Spec 13 Attribute Value

C60

Spec 14 Attribute

Temperature Rating

Spec 14 Attribute UOM

deg F

Spec 14 Attribute Value

-22 To 158

Spec 15 Attribute

Trip Range

Spec 15 Attribute Value

8.5X In AC/12X In DC

Spec 16 Attribute

Trip Type

Spec 16 Attribute Value

Thermal Magnetic

Spec 17 Attribute

Voltage Rating

Spec 17 Attribute Value

240 to 415 V AC/60 V DC

Spec 18 Attribute

Wire Size

Spec 18 Attribute UOM

AWG

Spec 18 Attribute Value

14 to 4

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

10

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Box Lug

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

3.19 in H x 0.71 in W x 2.87 in D

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP20/IP40

Spec 7 Attribute

Frame

Spec 7 Attribute Value

63A/C100N

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50/60

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute Value

5 kA at 277 VAC
