Square D

MGL36400 - Circuit breaker, PowerPacT M, 400A, 3 pole, 600VAC, 18kA, lugs, ET 1.0, 80%, ABC

Category Miscellaneous

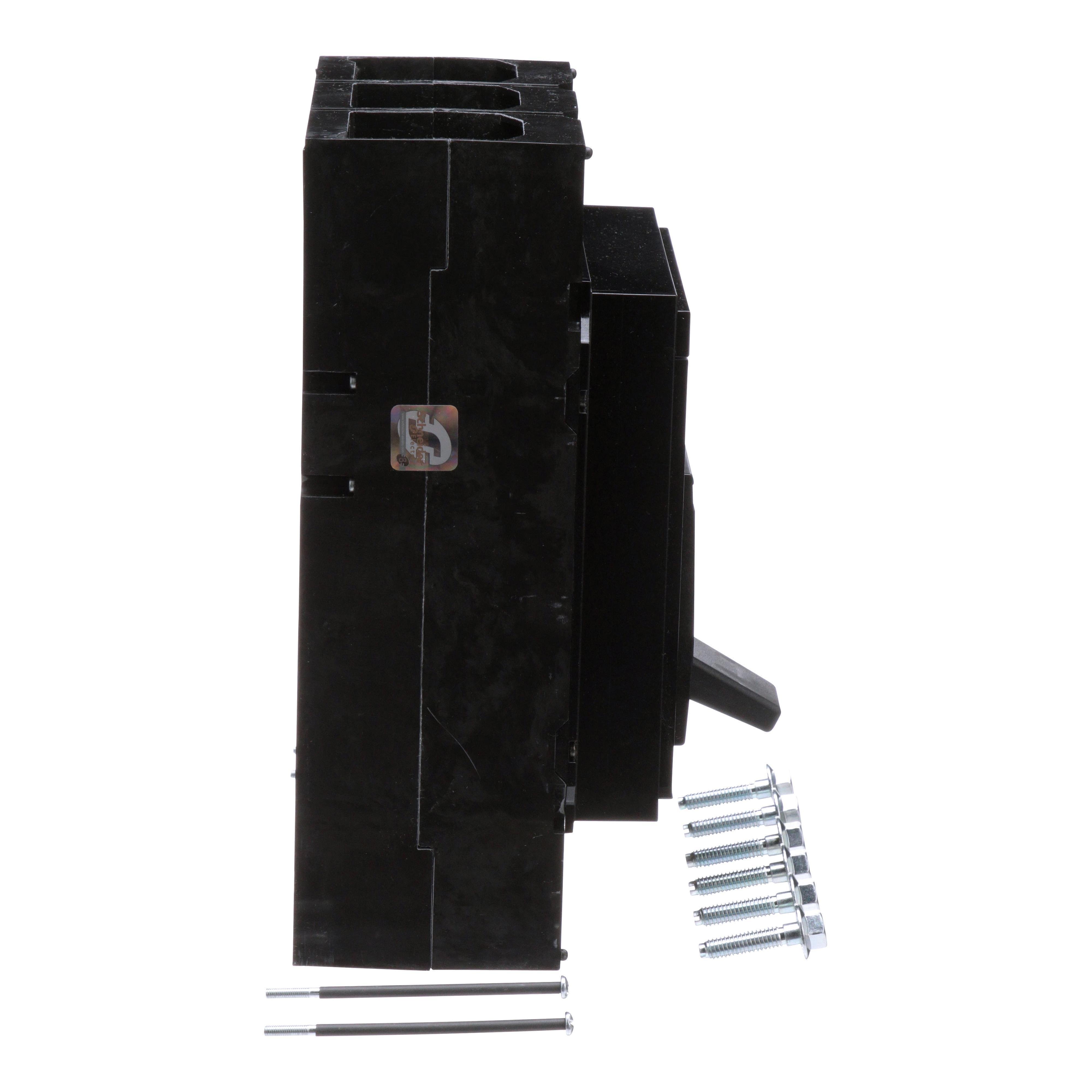

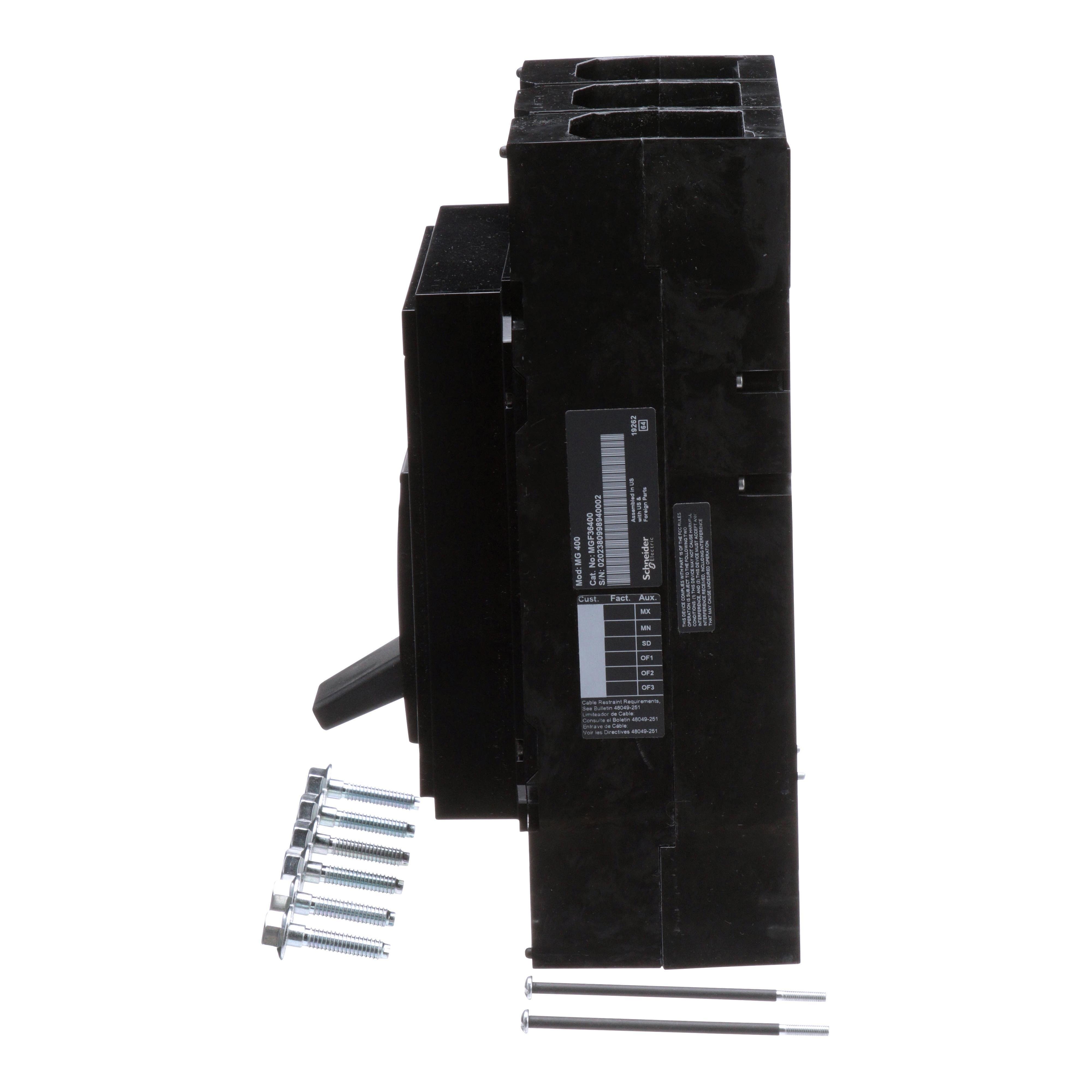

Picture of MGL36400 - Circuit breaker, PowerPacT M, 400A, 3 pole, 600VAC, 18kA, lugs, ET 1.0, 80%, ABC Picture of MGL36400 - Circuit breaker, PowerPacT M, 400A, 3 pole, 600VAC, 18kA, lugs, ET 1.0, 80%, ABC
Picture of MGL36400 - Circuit breaker, PowerPacT M, 400A, 3 pole, 600VAC, 18kA, lugs, ET 1.0, 80%, ABC Picture of MGL36400 - Circuit breaker, PowerPacT M, 400A, 3 pole, 600VAC, 18kA, lugs, ET 1.0, 80%, ABC
Picture of MGL36400 - Circuit breaker, PowerPacT M, 400A, 3 pole, 600VAC, 18kA, lugs, ET 1.0, 80%, ABC Picture of MGL36400 - Circuit breaker, PowerPacT M, 400A, 3 pole, 600VAC, 18kA, lugs, ET 1.0, 80%, ABC
Square D

MGL36400 - Circuit breaker, PowerPacT M, 400A, 3 pole, 600VAC, 18kA, lugs, ET 1.0, 80%, ABC

Item Code: 580254
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MGL36400

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on both the line and load sides. This PowerPacT M, 400A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

28.84

Height

10.8

Width

11.89

Length

18.03

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/MGL36400/MGL36400.spin

AD All Features

Available in 2 or 3 pole design

AD Alternative Part Number

9135258

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901507659

AD Gtin

00785901507659

AD IDEA Index ID

9135258

AD Invoice Description

BREAKER MLD CASE CKT 600 VAC/250 VDC 3 M

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Standard 80% rating only

AD Item Features 03

Common mounting holes, handle locations, and trim dimensions

AD Item Features 04

Wide range of field installable accessories

AD Manufacturer (Description)

Schneider Electric

AD Package Height

10.8000

AD Package Height UOM

IN

AD Package Length

18.0300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

2358.7200

AD Package Volume UOM

cu-in

AD Package Weight

28.8400

AD Package Weight UOM

LB

AD Package Width

11.8900

AD Package Width UOM

IN

AD Part Number Keywords

MGL36400 ; 9135258 ; 785901507659 ; 78590150765 ; 00785901507659 ; 0785901507659

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Electronic

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

40

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

300 to 800

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Electronic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type MGL

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute Value

600 V AC/250 V DC

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

3/0 AWG to 500 kcmil

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

400

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

8.1 in L x 8.3 in W x 12.8 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

M

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute Value

65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
