Square D

MGL36800E10 - Circuit breaker, PowerPacT M, 300A to 800A, 3 pole, 600VAC, 18kA, lugs, adjustable trip, 80%

Category Miscellaneous

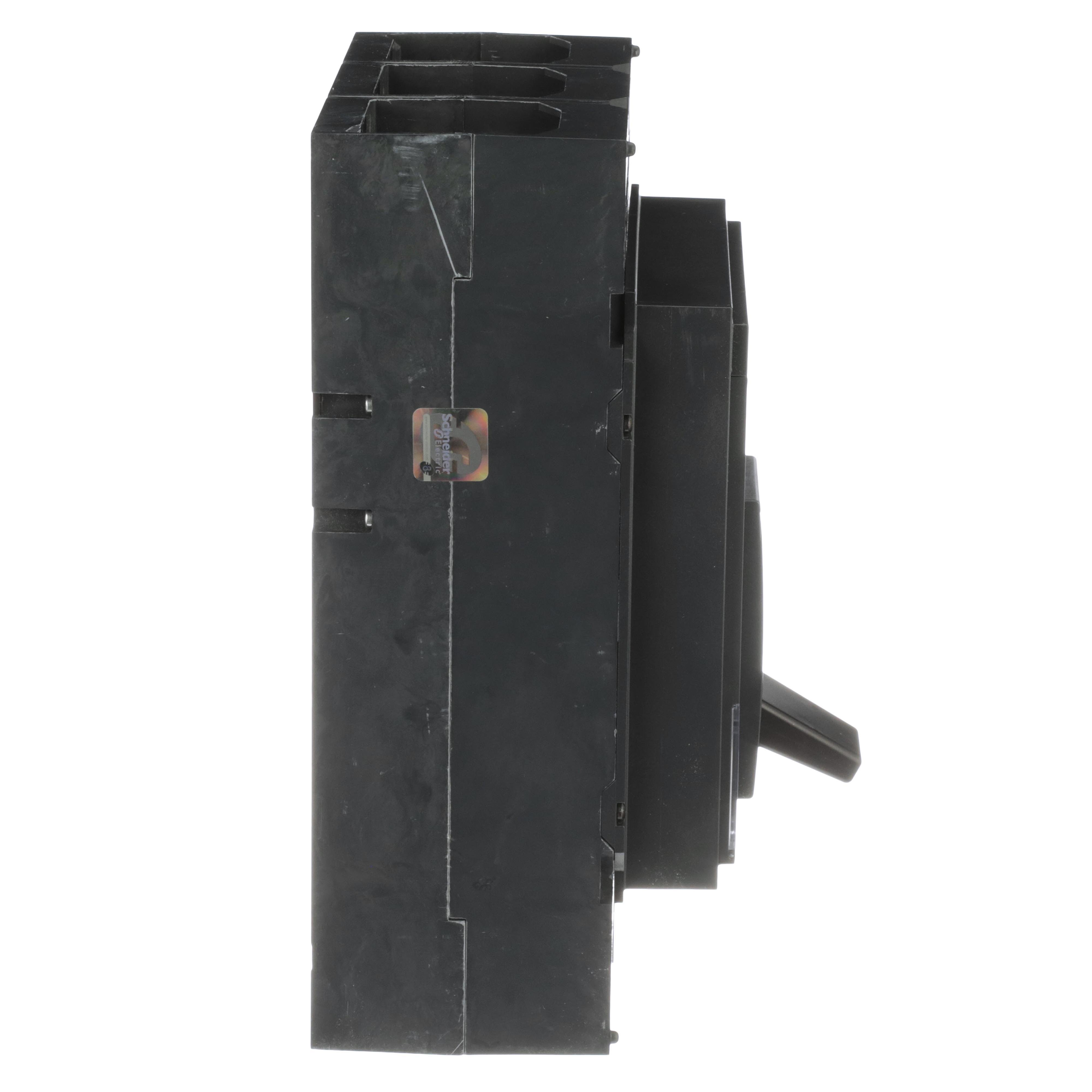

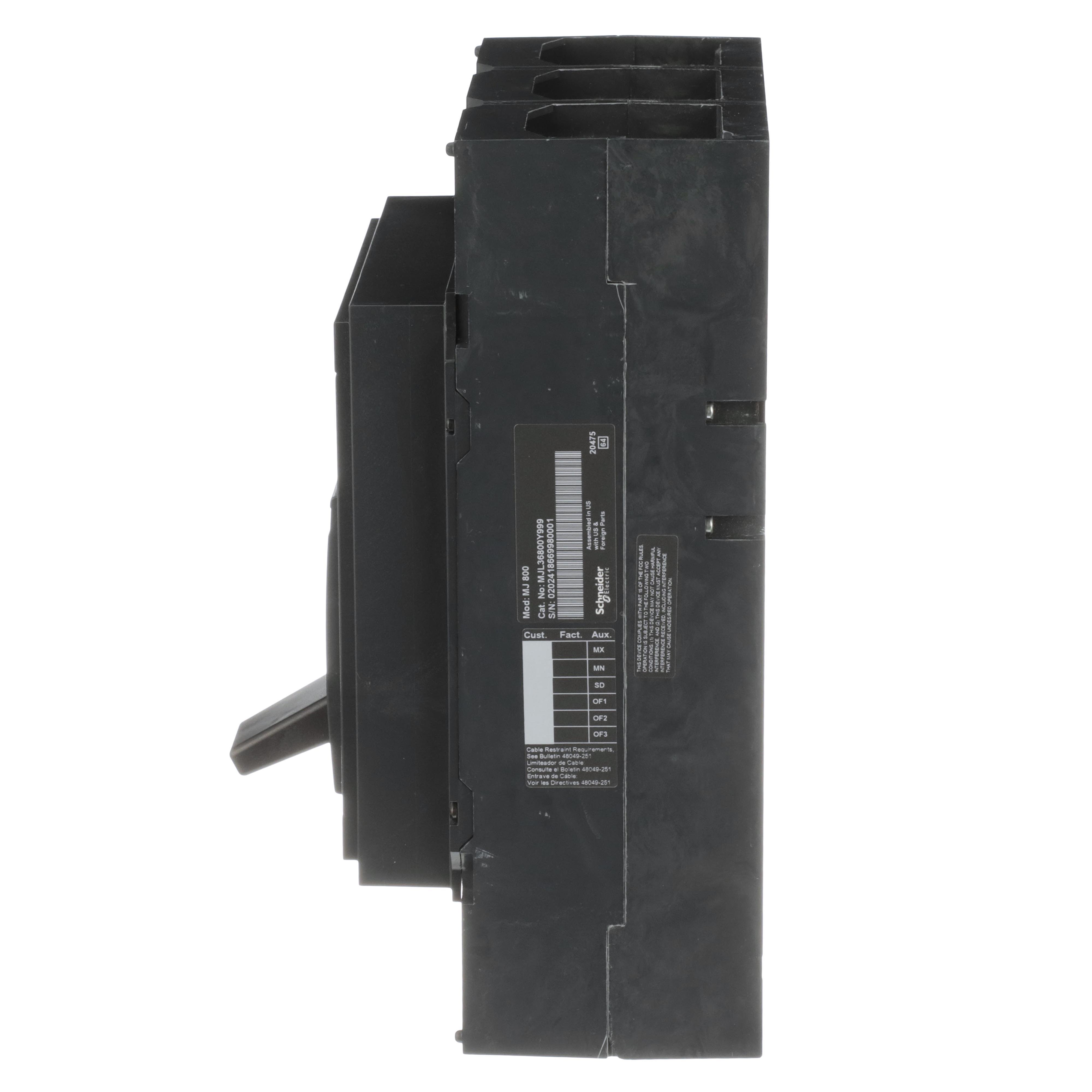

Picture of MGL36800E10 - Circuit breaker, PowerPacT M, 300A to 800A, 3 pole, 600VAC, 18kA, lugs, adjustable trip, 80% Picture of MGL36800E10 - Circuit breaker, PowerPacT M, 300A to 800A, 3 pole, 600VAC, 18kA, lugs, adjustable trip, 80%
Picture of MGL36800E10 - Circuit breaker, PowerPacT M, 300A to 800A, 3 pole, 600VAC, 18kA, lugs, adjustable trip, 80% Picture of MGL36800E10 - Circuit breaker, PowerPacT M, 300A to 800A, 3 pole, 600VAC, 18kA, lugs, adjustable trip, 80%
Picture of MGL36800E10 - Circuit breaker, PowerPacT M, 300A to 800A, 3 pole, 600VAC, 18kA, lugs, adjustable trip, 80% Picture of MGL36800E10 - Circuit breaker, PowerPacT M, 300A to 800A, 3 pole, 600VAC, 18kA, lugs, adjustable trip, 80%
Square D

MGL36800E10 - Circuit breaker, PowerPacT M, 300A to 800A, 3 pole, 600VAC, 18kA, lugs, adjustable trip, 80%

Item Code: 1134331
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MGL36800E10

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has the adjustable amperage option, allowing trip setting changes between 300A to 800A using a selector switch. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on both the line and load sides. This PowerPacT M, 300A to 800A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

29

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/MGF26800E10/MGF26800E10.spin

AD All Features

Available in 2 or 3 pole design

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Invoice Description

MLD CASE CKT BRKR 600VAC 300-800A

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Standard 80% rating only

AD Item Features 03

Wide range of field installable accessories

AD Keywords

Square D™ MGL36800E10 PowerPact M Series Circuit Breaker, 600 V AC, 300-800 A, 35 to 60 kA interrupt, 3 poles, Magnetic trip ; Square D ; MGL36800E10 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

AD Package Weight

29.0000

AD Package Weight UOM

LB

AD Part Number Keywords

MGL36800E10

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Operating Handle

Spec 10 Attribute

Series

Spec 10 Attribute Value

PowerPact M Series

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

-13 To 158

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Circuit Breaker

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 15 Attribute

Wire Size

Spec 15 Attribute UOM

kcmil

Spec 15 Attribute Value

3/0 to 500

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

300-800

Spec 3 Attribute

Color

Spec 3 Attribute Value

Black

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Lug Load/Lug Line

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

12.86 in H x 8.27 in W x 8.05 in D

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

35 to 60

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Unit

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
