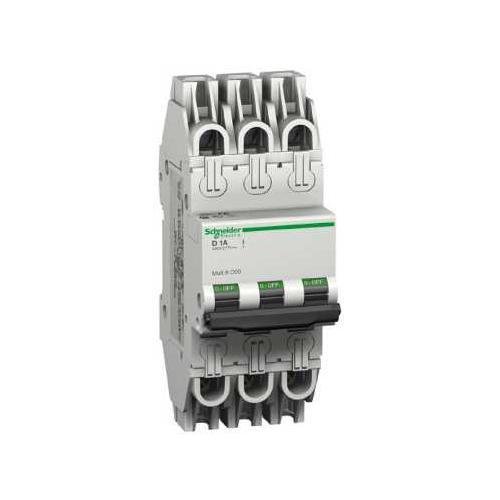

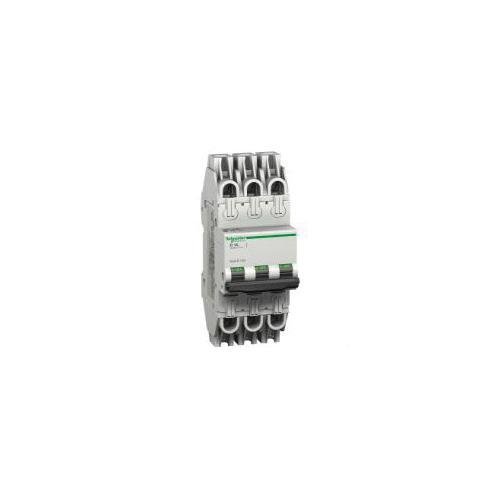

MGN61327 - Low Voltage Mini Circuit Breaker, 3P 5A
Description
Specifications
1.08lb
2.4mm
3mm
5.6mm
For 480Y/277 VAC systems, branch circuit and distribution applications
Schneider Electric
USA
FR
BREAKER CKT MINTR 277/480YVAC 5/25A 10KA
Trip-free mechanism contact cannot be held in the I-On position when the circuit breaker is tripped automatically
Positive indication of contact disconnect
Green mechanical indication on front face of circuit breaker shows that all poles are open
Overcurrent protection for all application types
Magnetic release operates from 7 to 10 times ampere rating (between 7 and 14 for DC)
Allows locking in On/Off position using padlock attachment
Suitable for reverse feeding
Fast closing allows increased withstand to the high inrush currents of some load
ON/OFF indication
Schneider Electric
2.4000
IN
5.6000
IN
1
40.3200
cu-in
1.0800
LB
3.0000
IN
Schneider Electric
THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS
Actuator Type
Toggle
Number Of Poles
3
PHASE
3
Series
C60
Temperature Rating
deg C
-30 To 70
Trip Range
7 to 10X In
Trip Type
Thermal Magnetic
Voltage Rating
V AC
277/480Y
Wire Size
AWG
18 To 16
Amperage Rating
A
25-May
Color
Gray
Connection Type
Single Barrel Lug/Tunnel
Dimensions
68.7 mm L x 54 mm W x 141 mm H
Enclosure Type
IP20/IP40
Frequency Rating
HZ
50/60
Interrupt Rating
KA
10
Mounting Type
DIN Rail
