Square D

MH26WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 26in H x 6.5in D

Category Lighting Panelboard Boxes

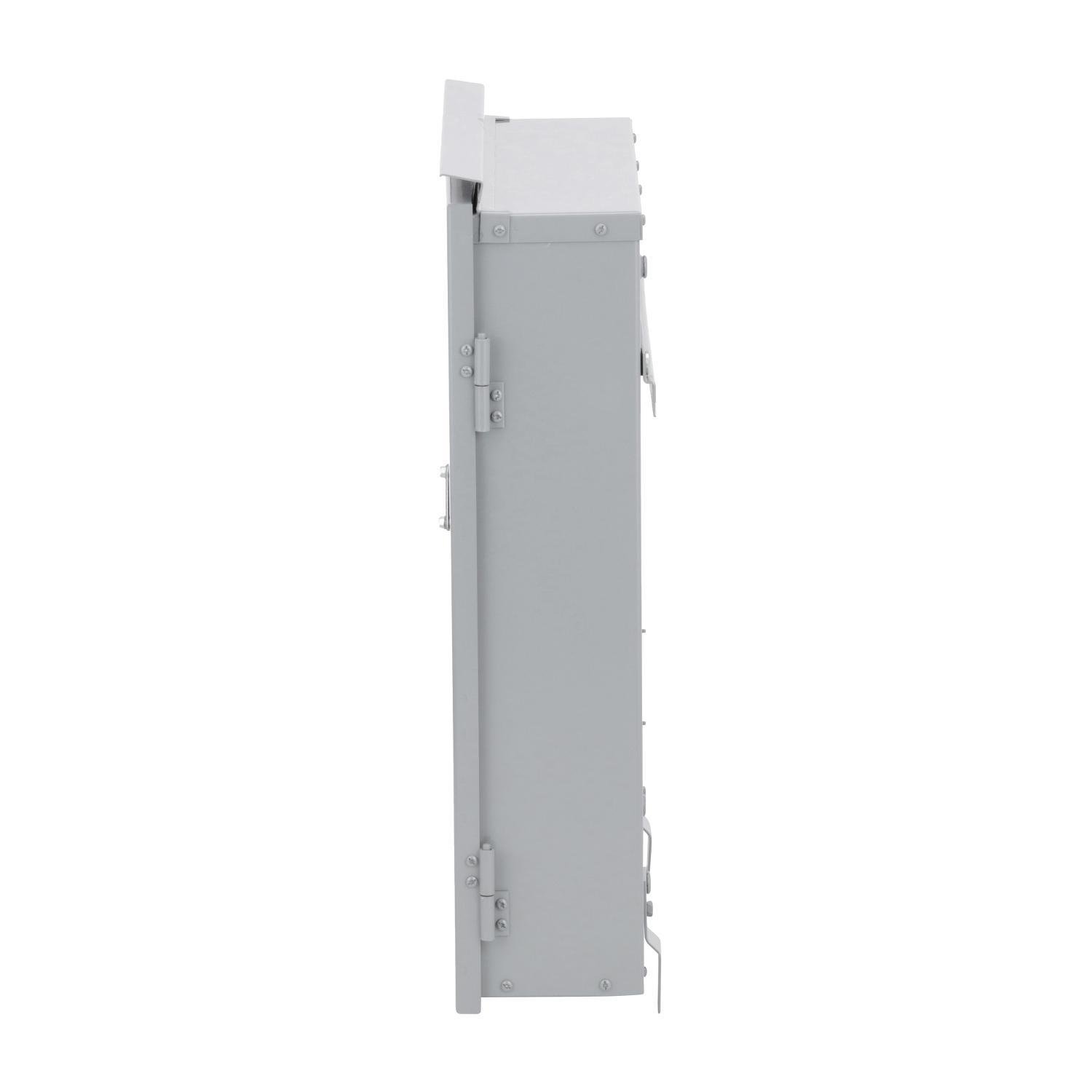

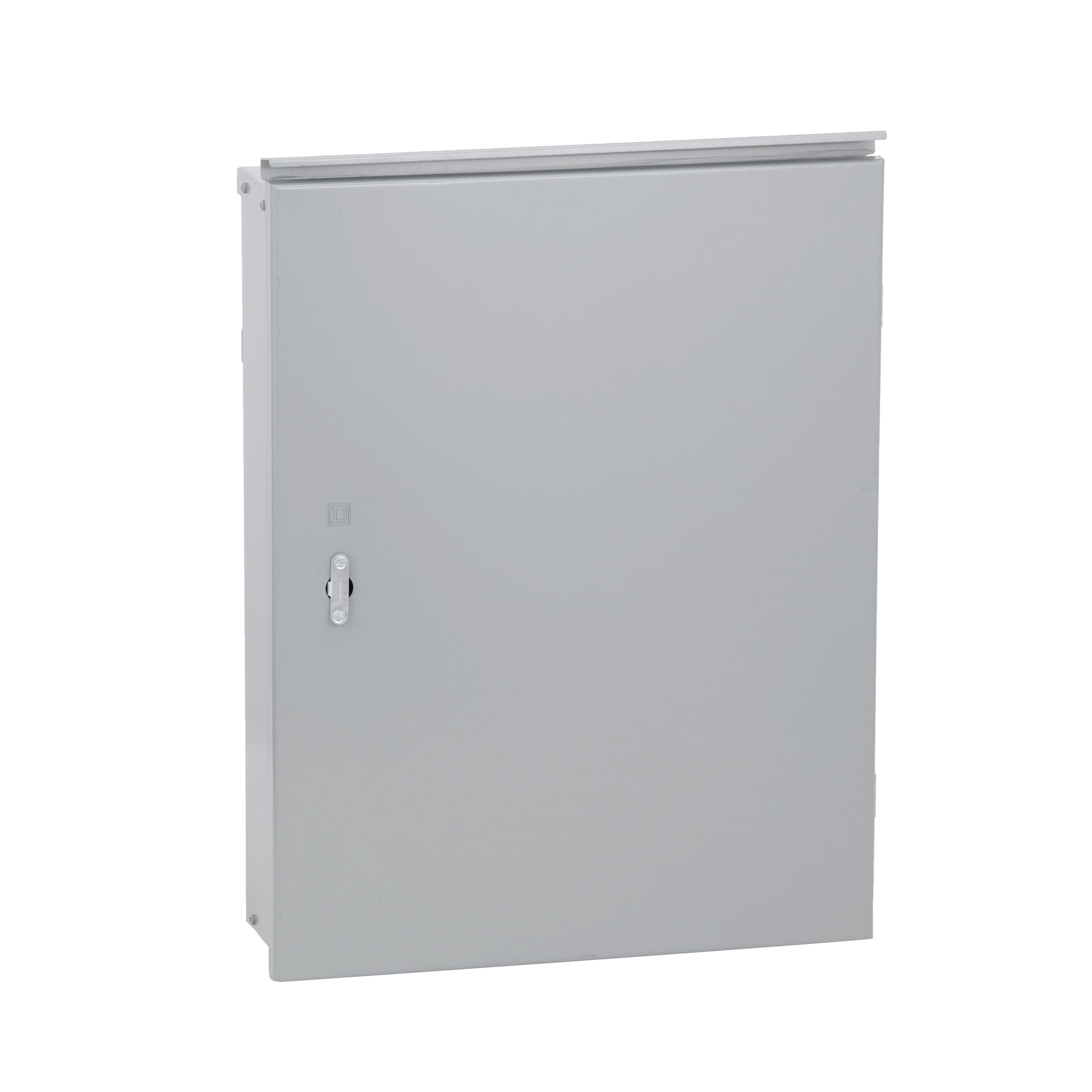

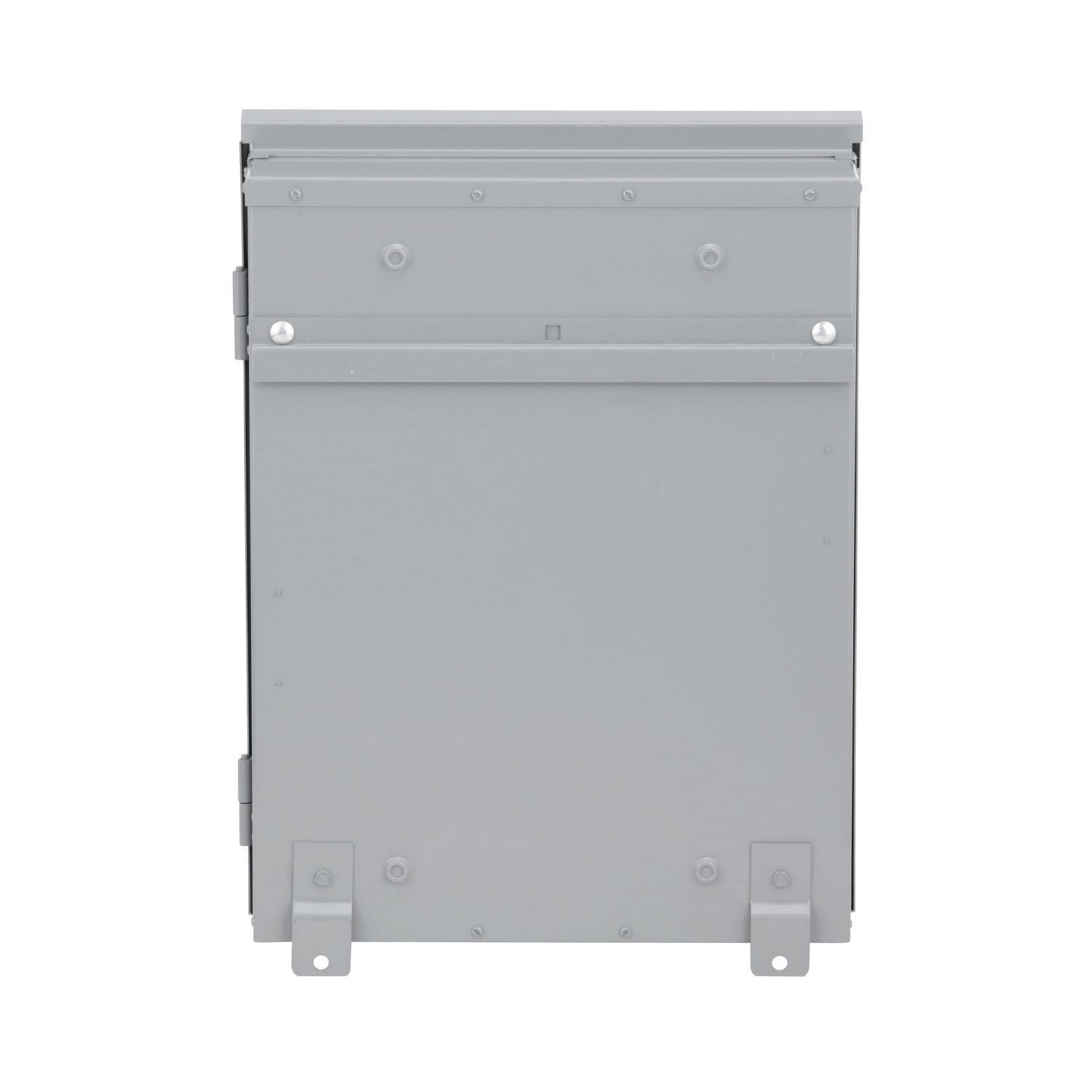

Picture of MH26WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 26in H x 6.5in D Picture of MH26WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 26in H x 6.5in D
Picture of MH26WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 26in H x 6.5in D Picture of MH26WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 26in H x 6.5in D
Picture of MH26WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 26in H x 6.5in D Picture of MH26WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 26in H x 6.5in D
Picture of MH26WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 26in H x 6.5in D Picture of MH26WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 26in H x 6.5in D
Square D

MH26WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 26in H x 6.5in D

Item Code: 33000
Category Lighting Panelboard Boxes
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MH26WP

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ and NF Panelboards provide 200% rated neutrals for nonlinear loads. NQ and NF Panelboards are convertible from main lug to main breaker. NQ and NF Panelboards have many different options for your enclosure box. This enclosure box is rated as a type 3R/5/12. The dimensions for this box are 20 x 26 x 6.50 in. NQ and NF Panelboard interiors are field convertible to top or bottom feed. NQ and NF Panelboards are suitable for use as service equipment. Panelboard enclosure box is UL listed and CSA certified by UL.

Specifications

Weight

49.9lb

Height

6.9mm

Width

21.1mm

Length

27.53mm

Depth

6.5mm

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BOX PANELBOARD ENCL NEMA 3R/5/12 26IN

AD Item Features 01

Modular construction allows for easy assembly or modification

AD Item Features 02

Accessories and replacement parts allow design flexibility and maximizes job productivity

AD Item Features 03

Type 1, 2, 3R/5/12 available ready to install from distributor inventory

AD Item Features 04

Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.9000

AD Package Height UOM

IN

AD Package Length

27.5300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

3687.9100

AD Package Volume UOM

cu-in

AD Package Weight

49.9000

AD Package Weight UOM

LB

AD Package Width

21.1000

AD Package Width UOM

IN

Brand

Square D

Category

LIGHTING PANELBOARD BOXES

Spec 1 Attribute

Depth

Spec 1 Attribute UOM

IN

Spec 1 Attribute Value

6/1/2002

Spec 2 Attribute

Finish

Spec 2 Attribute Value

Hot dipped galvanized

Spec 3 Attribute

Length

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

26

Spec 4 Attribute

Material

Spec 4 Attribute Value

Steel

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Flush/Surface

Spec 6 Attribute

NEMA Rating

Spec 6 Attribute Value

NEMA 3R/5/12

Spec 7 Attribute

Series

Spec 7 Attribute Value

MH Series

Spec 8 Attribute

Type

Spec 8 Attribute Value

1-Phase 3-Wire NQ+NF

Spec 9 Attribute

Width

Spec 9 Attribute UOM

IN

Spec 9 Attribute Value

20
