Square D

MH44BE - Panelboard enclosure box, NQ/NF, Type 1, blank end walls, 20in W x 44in H x 5.75in D

Category Lighting Panelboard Boxes

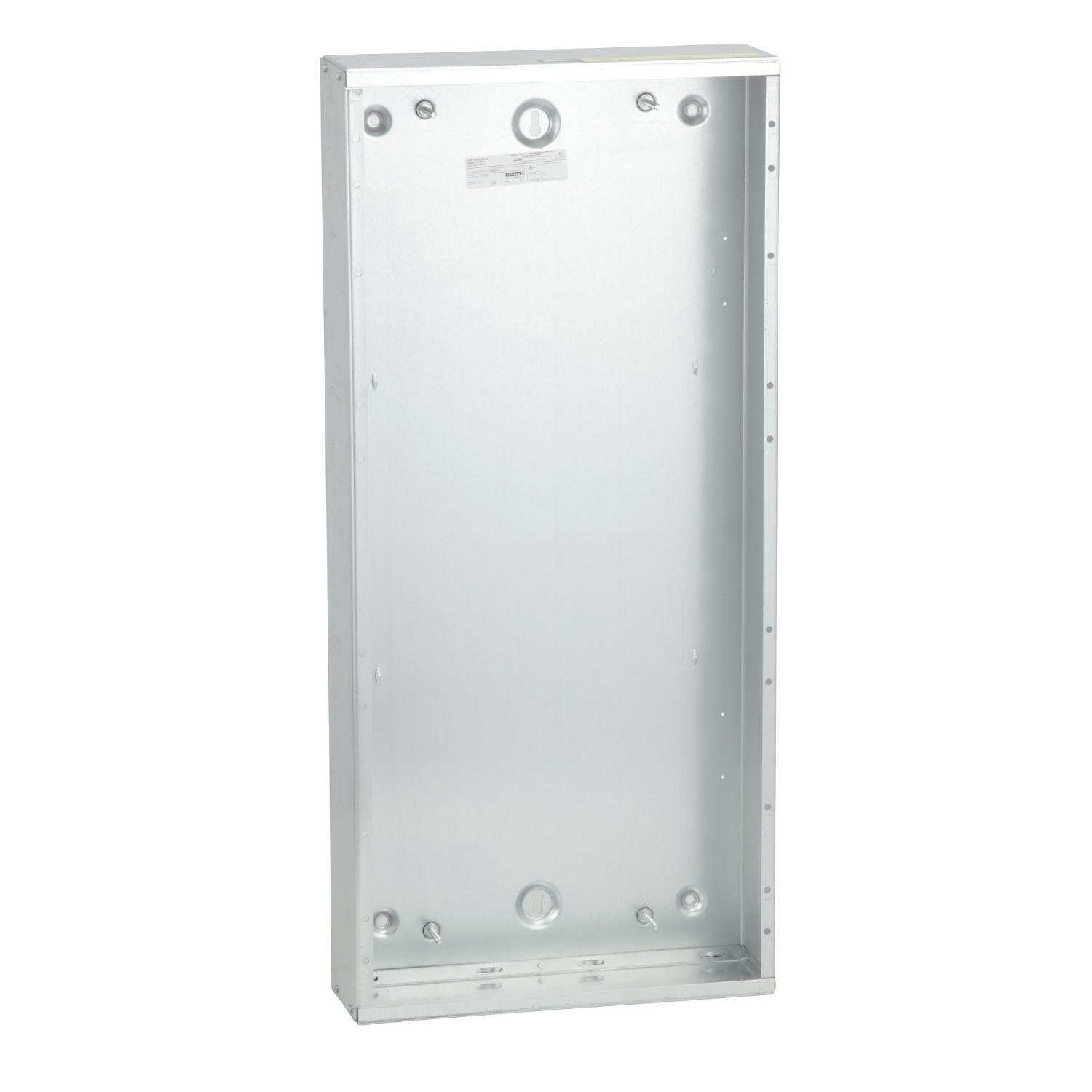

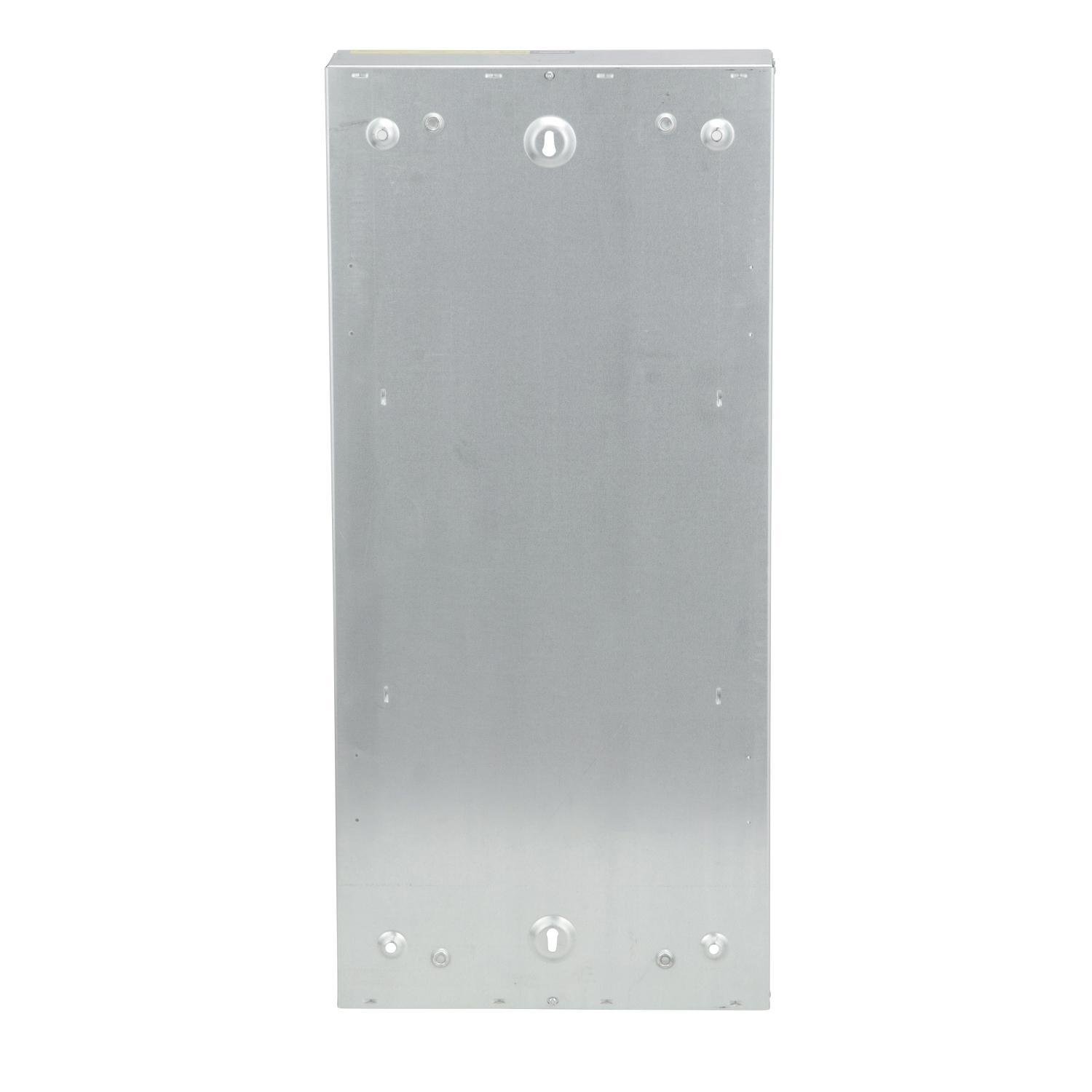

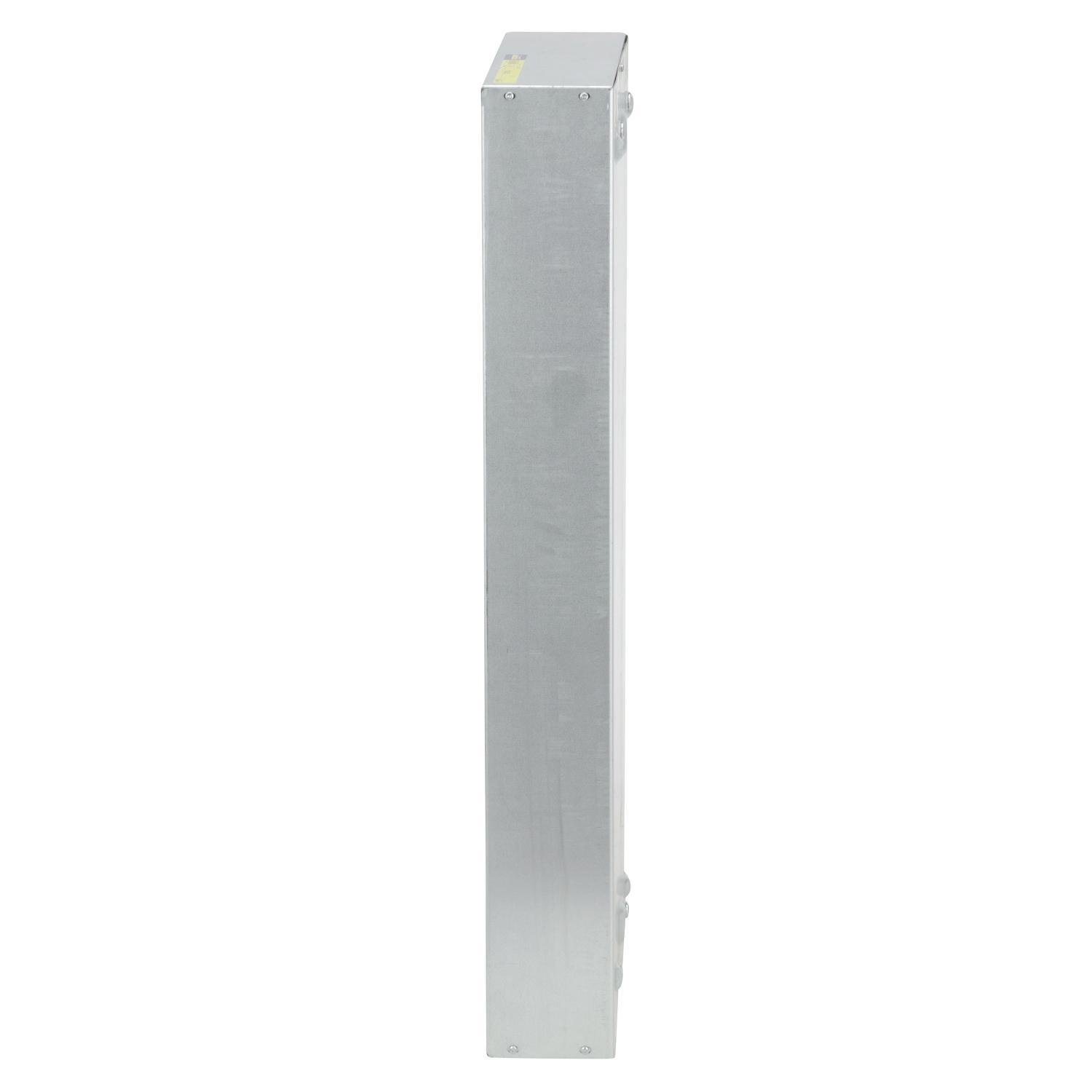

Picture of MH44BE - Panelboard enclosure box, NQ/NF, Type 1, blank end walls, 20in W x 44in H x 5.75in D Picture of MH44BE - Panelboard enclosure box, NQ/NF, Type 1, blank end walls, 20in W x 44in H x 5.75in D
Picture of MH44BE - Panelboard enclosure box, NQ/NF, Type 1, blank end walls, 20in W x 44in H x 5.75in D Picture of MH44BE - Panelboard enclosure box, NQ/NF, Type 1, blank end walls, 20in W x 44in H x 5.75in D
Picture of MH44BE - Panelboard enclosure box, NQ/NF, Type 1, blank end walls, 20in W x 44in H x 5.75in D Picture of MH44BE - Panelboard enclosure box, NQ/NF, Type 1, blank end walls, 20in W x 44in H x 5.75in D
Picture of MH44BE - Panelboard enclosure box, NQ/NF, Type 1, blank end walls, 20in W x 44in H x 5.75in D Picture of MH44BE - Panelboard enclosure box, NQ/NF, Type 1, blank end walls, 20in W x 44in H x 5.75in D
Square D

MH44BE - Panelboard enclosure box, NQ/NF, Type 1, blank end walls, 20in W x 44in H x 5.75in D

Item Code: 696029
Category Lighting Panelboard Boxes
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MH44BE

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This enclosure box is rated as a Type 1 with removable blank end walls at both ends. The enclosure dimensions are 20 inch width x 44 inch height x 5.75 inch depth. NQ and NF enclosures are UL listed for use in the USA and Canada. The end walls of NF and NQ enclosures are removable to simplify field modification to support the widest range of electrical conduit connections. NC trim fronts for interiors rated up to 250A may be screwed directly to the deadfront of the NF or NQ panelboard. NC trim fronts for interiors rated 400A or greater are vented and designed to be screwed directly to the Type 1, 2 enclosure of the NF or NQ panelboard. MHxxWP enclosures provide Type 3R/5/12 protection to NF and NQ Panelboards, and are supplied with removable blank end walls. MHxxBE and MHxxD9 Type 1 enclosures are supplied with removable blank end walls at both ends. MHxx enclosures have one blank end wall and one end wall with knockouts for common conduit sizes.

Specifications

Weight

31.34

Width

19.81

Length

43.6

AD Application

For NQ and NF Panelboard applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BOX PANELBOARD ENCL NEMA 1 44IN 20IN STL

AD Item Features 01

Modular construction allows for easy assembly or modification

AD Item Features 02

Accessories and replacement parts allow design flexibility and maximizes job productivity

AD Item Features 03

Type 1, 2, 3R/5/12 available ready to install from distributor inventory

AD Item Features 04

Modular construction accepts field installable accessories

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

43.6000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

31.3400

AD Package Weight UOM

LB

AD Package Width

19.8100

AD Package Width UOM

IN

Brand

Square D

Category

LIGHTING PANELBOARD BOXES

Spec 1 Attribute

Depth

Spec 1 Attribute UOM

IN

Spec 1 Attribute Value

5/3/2004

Spec 2 Attribute

Finish

Spec 2 Attribute Value

Hot dipped galvanized

Spec 3 Attribute

Length

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

44

Spec 4 Attribute

Material

Spec 4 Attribute Value

Steel

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Flush/Surface

Spec 6 Attribute

NEMA Rating

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Series

Spec 7 Attribute Value

MH Series

Spec 8 Attribute

Type

Spec 8 Attribute Value

30-Feeder 4/3-Wire 1/3-ph NQ+NF Blank End Wall

Spec 9 Attribute

Width

Spec 9 Attribute UOM

IN

Spec 9 Attribute Value

20

Square D
