Square D

MH62D9VWP - Panelboard enclosure box, NQ/NF, Type 3R, ventilated, 20in W x 62in H x 8.75in D

Category Miscellaneous

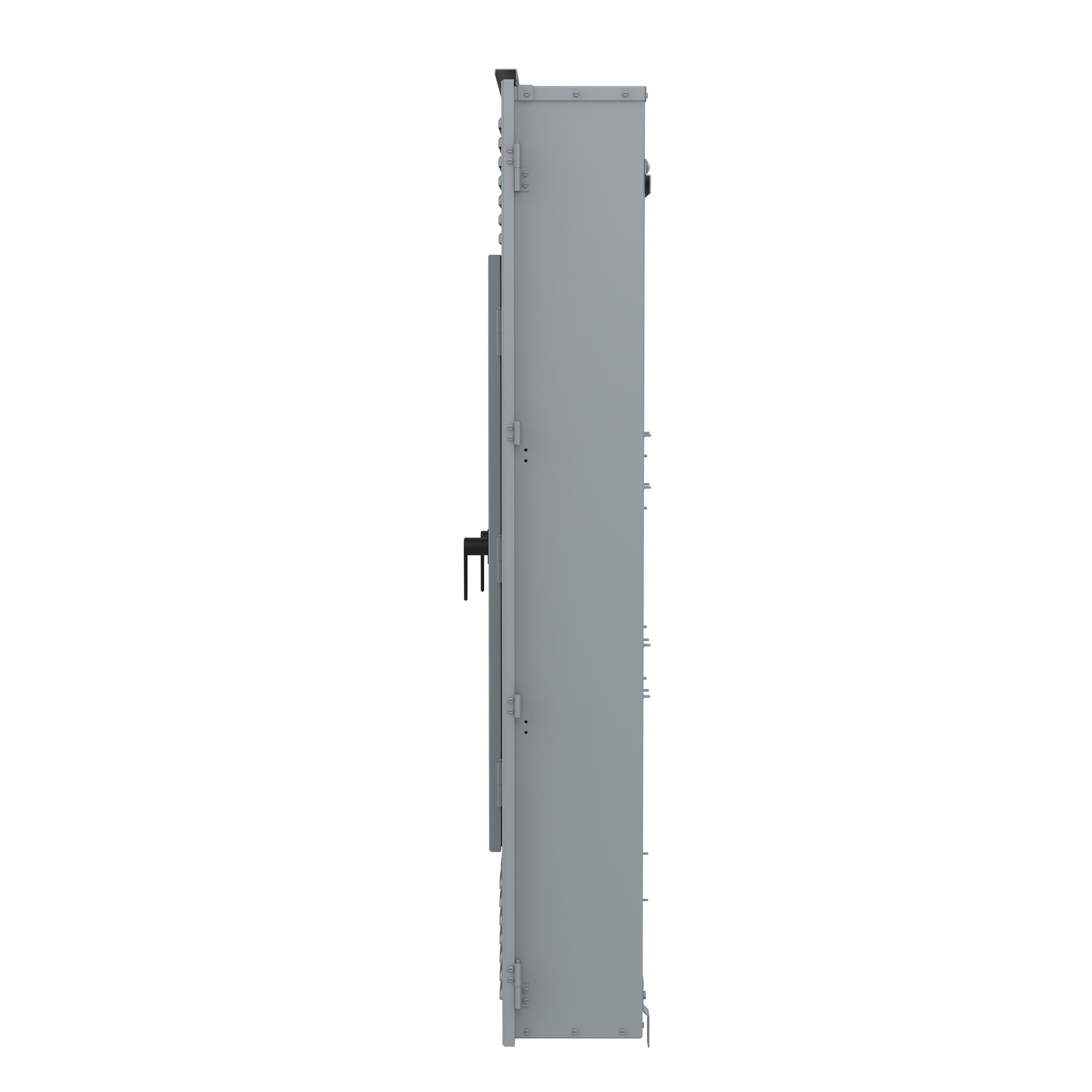

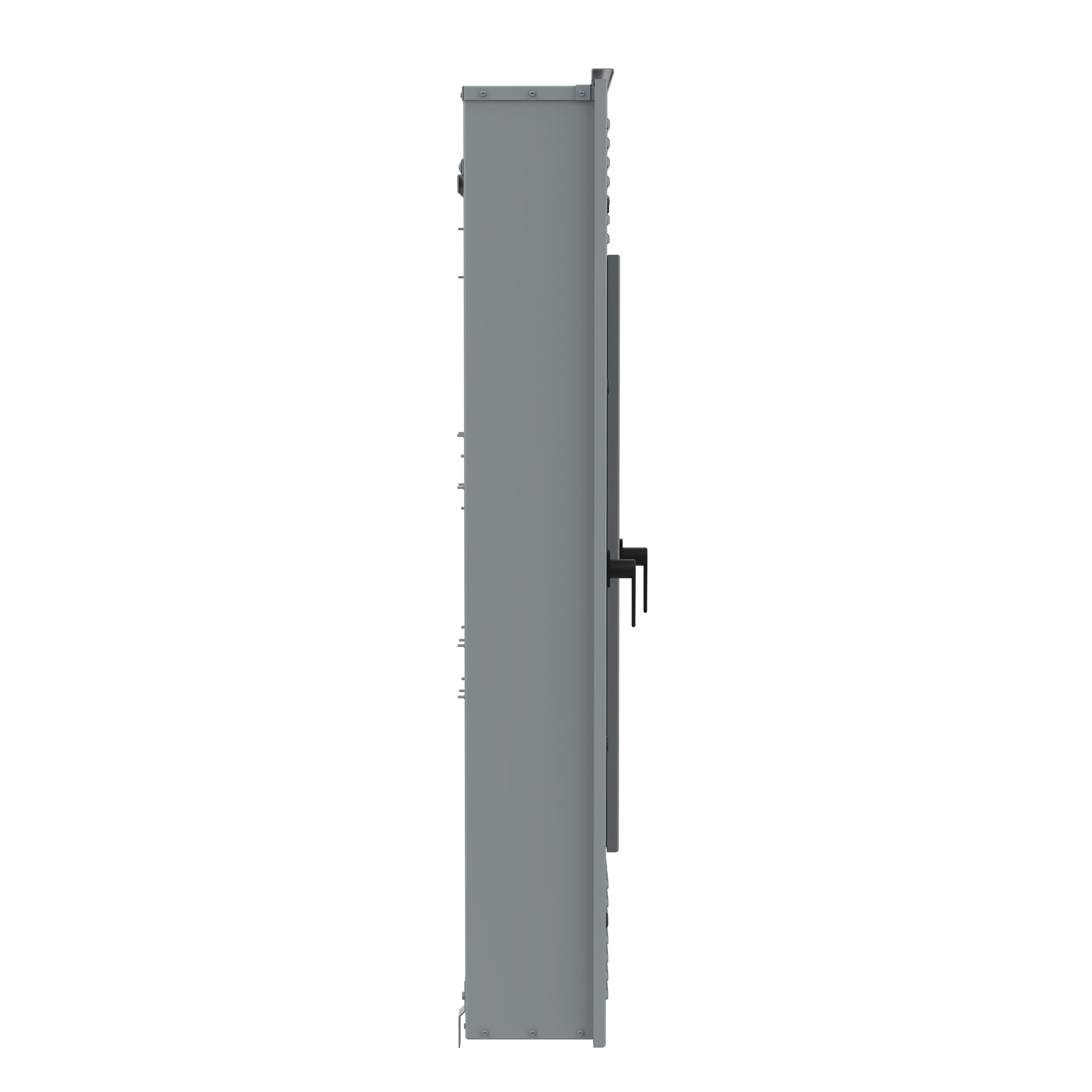

Picture of MH62D9VWP - Panelboard enclosure box, NQ/NF, Type 3R, ventilated, 20in W x 62in H x 8.75in D Picture of MH62D9VWP - Panelboard enclosure box, NQ/NF, Type 3R, ventilated, 20in W x 62in H x 8.75in D
Picture of MH62D9VWP - Panelboard enclosure box, NQ/NF, Type 3R, ventilated, 20in W x 62in H x 8.75in D Picture of MH62D9VWP - Panelboard enclosure box, NQ/NF, Type 3R, ventilated, 20in W x 62in H x 8.75in D
Picture of MH62D9VWP - Panelboard enclosure box, NQ/NF, Type 3R, ventilated, 20in W x 62in H x 8.75in D Picture of MH62D9VWP - Panelboard enclosure box, NQ/NF, Type 3R, ventilated, 20in W x 62in H x 8.75in D
Square D

MH62D9VWP - Panelboard enclosure box, NQ/NF, Type 3R, ventilated, 20in W x 62in H x 8.75in D

Item Code: 1162618
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MH62D9VWP

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box. This enclosure box is rated as a Type 3R with removable blank end walls. The enclosure dimensions are 20in width x 62in height x 8.75in depth. NQ and NF enclosures are UL listed for use in the USA and Canada. The end walls of NF and NQ enclosures are removable to simplify field modification to support the widest range of electrical conduit connections. NC trim fronts for interiors rated up to 250A may be screwed directly to the deadfront of the NF or NQ panelboard. NC trim fronts for interiors rated 400A or greater are vented, and designed to be screwed directly to the Type 1, 2 enclosure of the NF or NQ panelboard. MHxxWP enclosures provide Type 3R/5/12 protection to NF and NQ Panelboards and are supplied with removable blank end walls. MHxxBE and MHxxD9 Type 1 enclosures are supplied with removable blank end walls at both ends. MHxx enclosures have one blank end wall and one end wall with knockouts for common conduit sizes.

Specifications

Weight

315.26

Height

63.08

Width

10.64

Length

27.25

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/MH62D9VWP/MH62D9VWP.spin

AD All Features

Modular construction allows for easy assembly or modification

AD Alternative Part Number

17368912

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3606482128750

AD Gtin

03606482128750

AD IDEA Index ID

17368912

AD Invoice Description

PNLBD BX 62IN 20IN 8.75IN NEMA 3R

AD Item Features 01

Modular construction allows for easy assembly or modification

AD Item Features 02

Accessories and replacement parts allow design flexibility and maximizes job productivity

AD Item Features 03

Type 1, 2, 3R/5/12 available ready to install from distributor inventory

AD Keywords

MH62D9VWP NF Enclosure, 62 in H x 20 in W x 8.75 in D, NEMA 3R NEMA Rating ; Square D ; MH62D9VWP ; 17368912 ; Panelboard Boxes

AD Manufacturer (Description)

Schneider Electric

AD Package Height

63.0800

AD Package Height UOM

IN

AD Package Length

27.2500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

315.2600

AD Package Weight UOM

LB

AD Package Width

10.6400

AD Package Width UOM

IN

AD Part Number Keywords

MH62D9VWP ; 03606482128750 ; 3606482128750

Brand

Square D

Spec 1 Attribute

Color

Spec 1 Attribute Value

Gray

Spec 2 Attribute

Depth

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

8.75

Spec 3 Attribute

Height

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

62

Spec 4 Attribute

Material

Spec 4 Attribute Value

Steel

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

NEMA Rating

Spec 6 Attribute Value

NEMA 3R

Spec 7 Attribute

Series

Spec 7 Attribute Value

NF

Spec 8 Attribute

Width

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

20
