Square D

MH68WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 68in H x 6.5in D

Category Miscellaneous

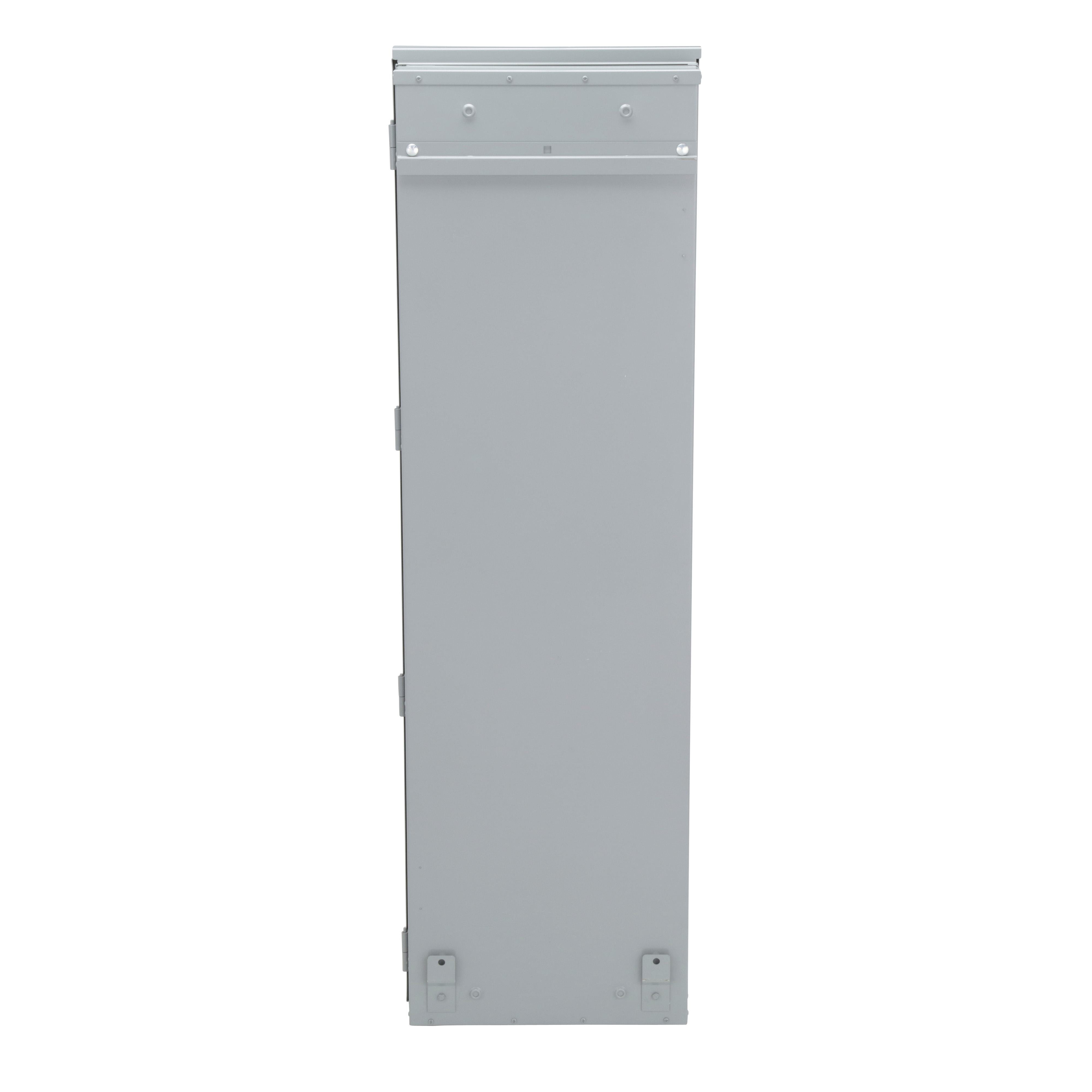

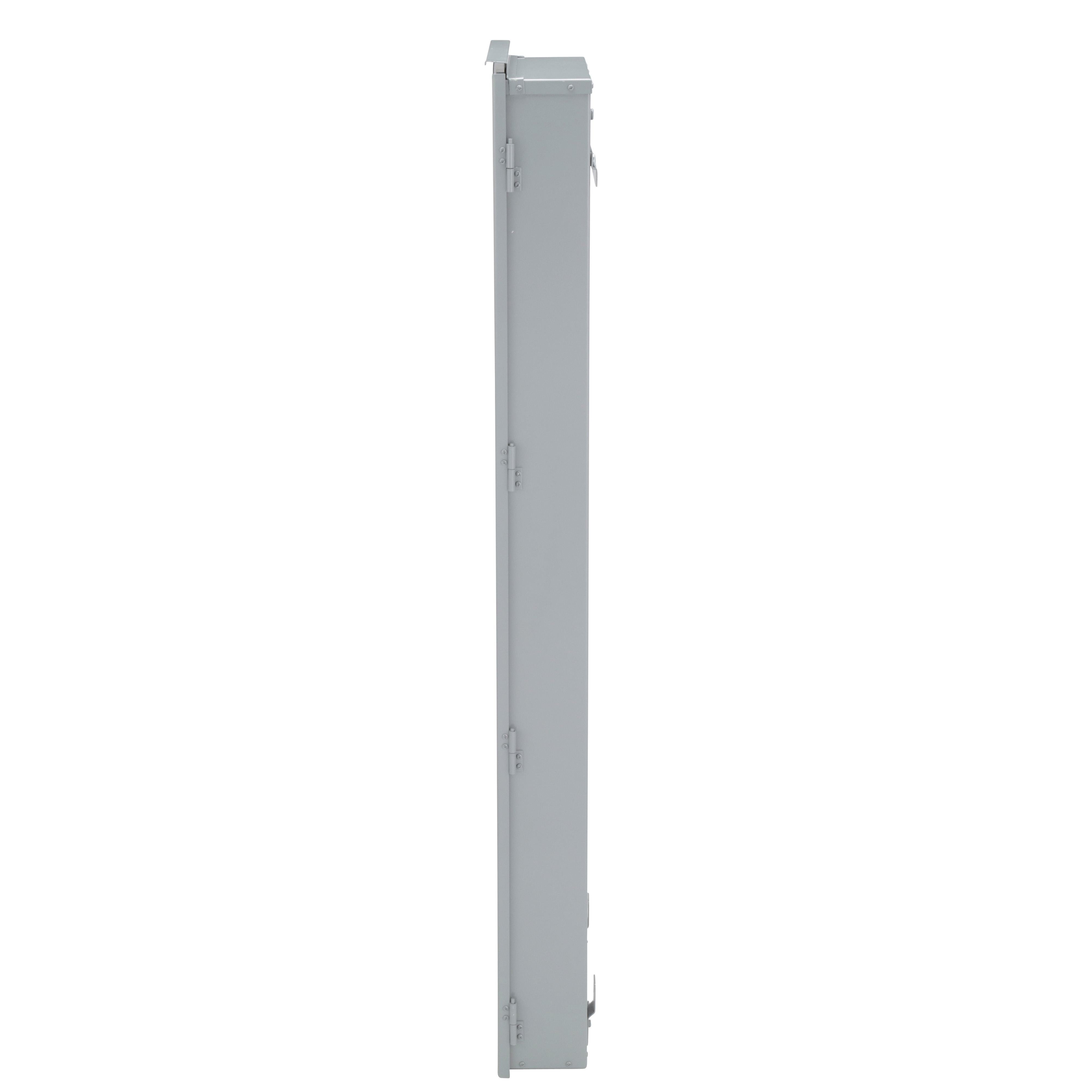

Picture of MH68WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 68in H x 6.5in D Picture of MH68WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 68in H x 6.5in D
Picture of MH68WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 68in H x 6.5in D Picture of MH68WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 68in H x 6.5in D
Picture of MH68WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 68in H x 6.5in D Picture of MH68WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 68in H x 6.5in D
Square D

MH68WP - Panelboard enclosure box, NQ/NF, Type 3R/5/12, 20in W x 68in H x 6.5in D

Item Code: 119824
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MH68WP

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This enclosure box is rated as a Type 3R/5/12 with removable blank end walls. The enclosure dimensions are 20 inch width x 68 inch height x 6.5 inch depth. NQ and NF enclosures are UL listed for use in the USA and Canada. The end walls of NF and NQ enclosures are removable to simplify field modification to support the widest range of electrical conduit connections. NC trim fronts for interiors rated up to 250A may be screwed directly to the deadfront of the NF or NQ panelboard. NC trim fronts for interiors rated 400A or greater are vented and designed to be screwed directly to the Type 1, 2 enclosure of the NF or NQ panelboard. MHxxWP enclosures provide Type 3R/5/12 protection to NF and NQ Panelboards, and are supplied with removable blank end walls. MHxxBE and MHxxD9 Type 1 enclosures are supplied with removable blank end walls at both ends. MHxx enclosures have one blank end wall and one end wall with knockouts for common conduit sizes.

Specifications

Weight

111.76

Height

7

Width

21.1

Length

69.03

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/MH68WP/MH68WP.spin

AD Alternative Part Number

7997499

AD Application

For NQ and NF Panelboard applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901056829

AD Gtin

00785901056829

AD IDEA Index ID

7997499

AD Invoice Description

BOX ENCL PANELBOARD NEMA 3R/5/12 68IN FL

AD Item Features 01

Modular construction allows for easy assembly or modification

AD Item Features 02

Accessories and replacement parts allow design flexibility and maximizes job productivity

AD Item Features 03

Type 1, 2, 3R/5/12 available ready to install from distributor inventory

AD Item Features 04

Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all

AD Keywords

MH68WP MH Series Panelboard Enclosure Box, NEMA 3R/5/12 NEMA Rating, 68 in L x 20 in W x 6-1/2 in D, Steel ; Schneider Electric ; Square D ; MH68WP ; MH68WP ; 785901056829 ; Panelboard Enclosures

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.0000

AD Package Height UOM

IN

AD Package Length

69.0300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

10332.6000

AD Package Volume UOM

cu-in

AD Package Weight

111.7600

AD Package Weight UOM

LB

AD Package Width

21.1000

AD Package Width UOM

IN

AD Part Number Keywords

MH68WP ; 7997499 ; 785901056829 ; 78590105682 ; 00785901056829 ; 0785901056829

Brand

Square D

Spec 1 Attribute

Depth

Spec 1 Attribute UOM

IN

Spec 1 Attribute Value

6/1/2002

Spec 2 Attribute

Finish

Spec 2 Attribute Value

Galvanized

Spec 3 Attribute

Length

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

68

Spec 4 Attribute

Material

Spec 4 Attribute Value

Steel

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Flush

Spec 6 Attribute

NEMA Rating

Spec 6 Attribute Value

NEMA 3R/5/12

Spec 7 Attribute

Series

Spec 7 Attribute Value

MH Series

Spec 8 Attribute

Width

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

20
