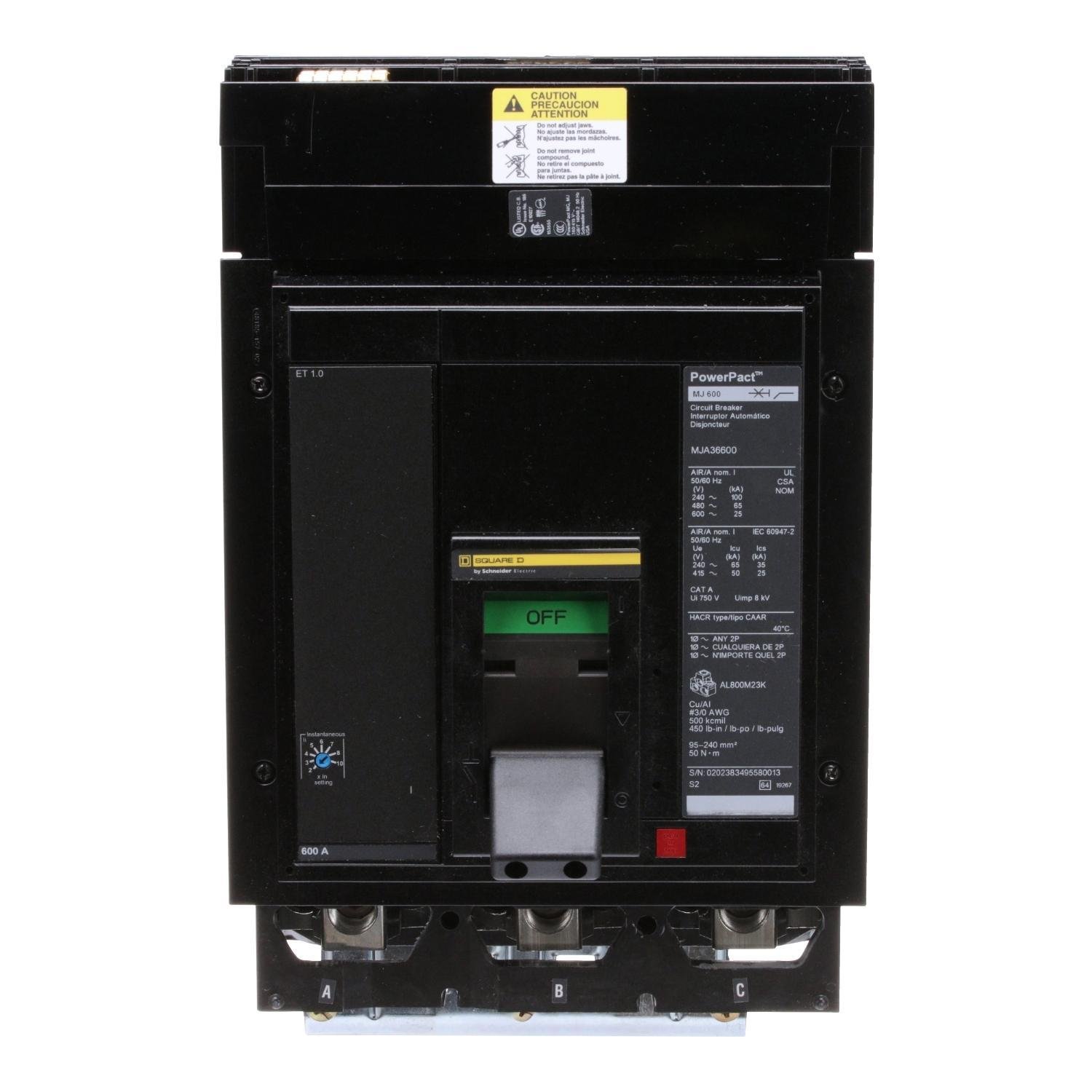

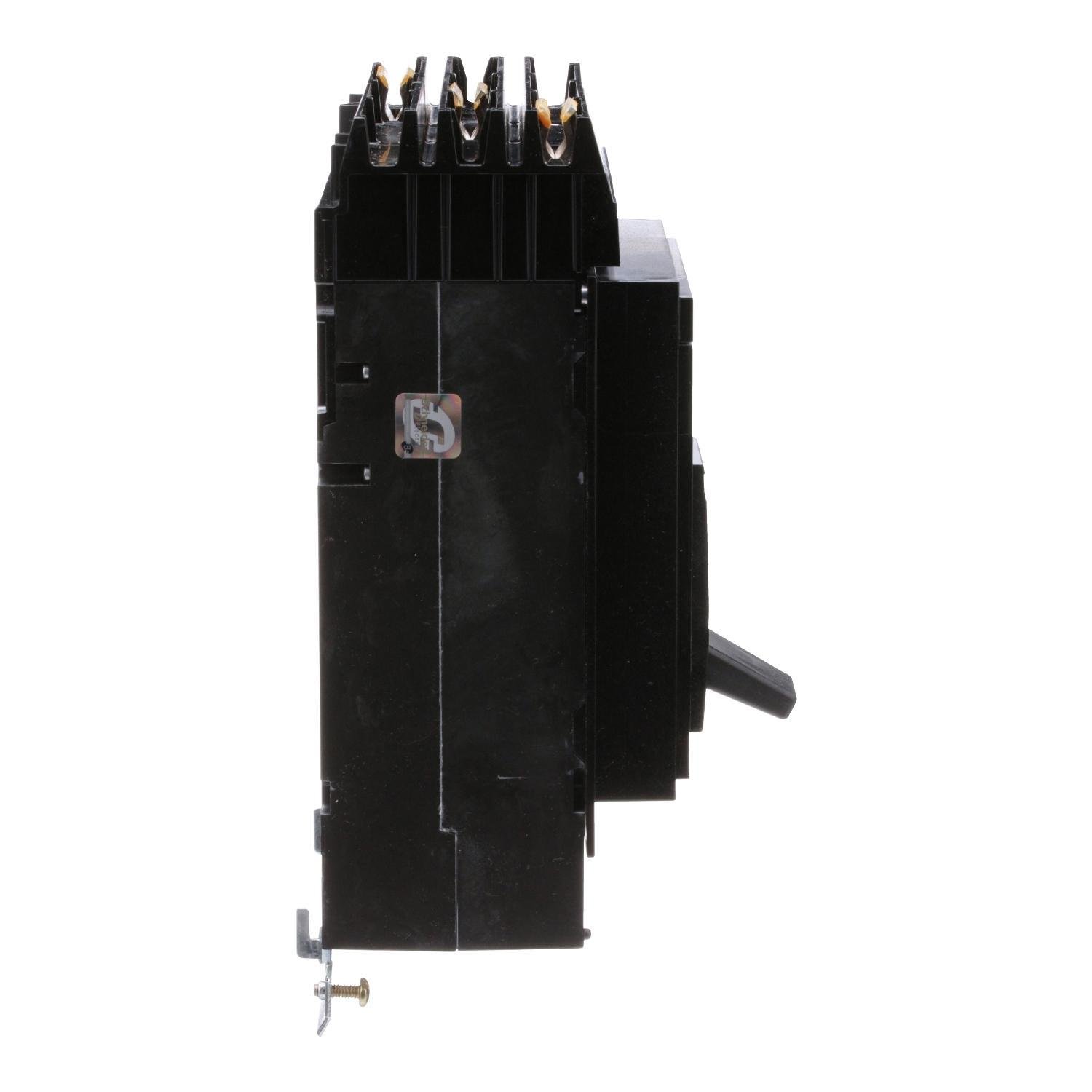

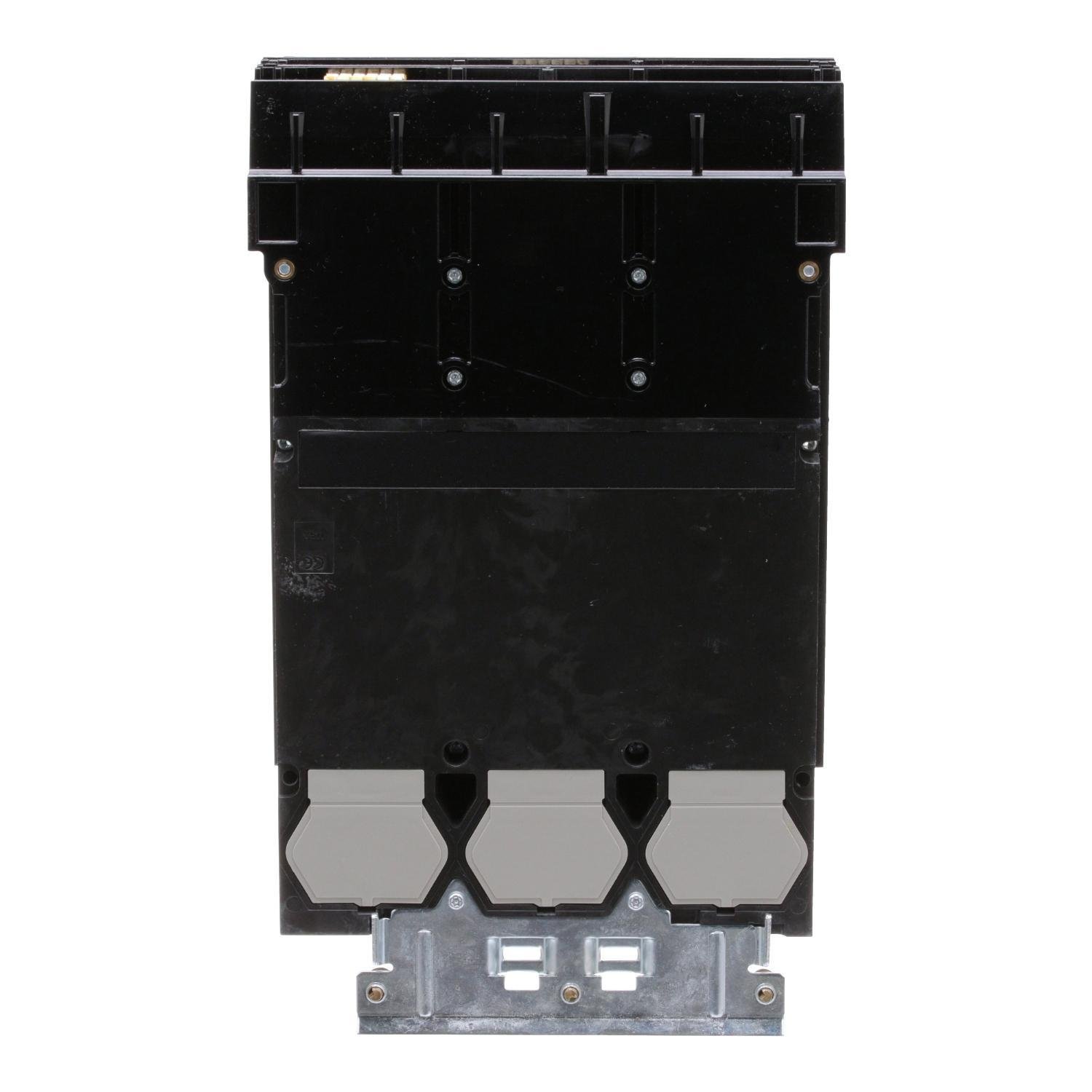

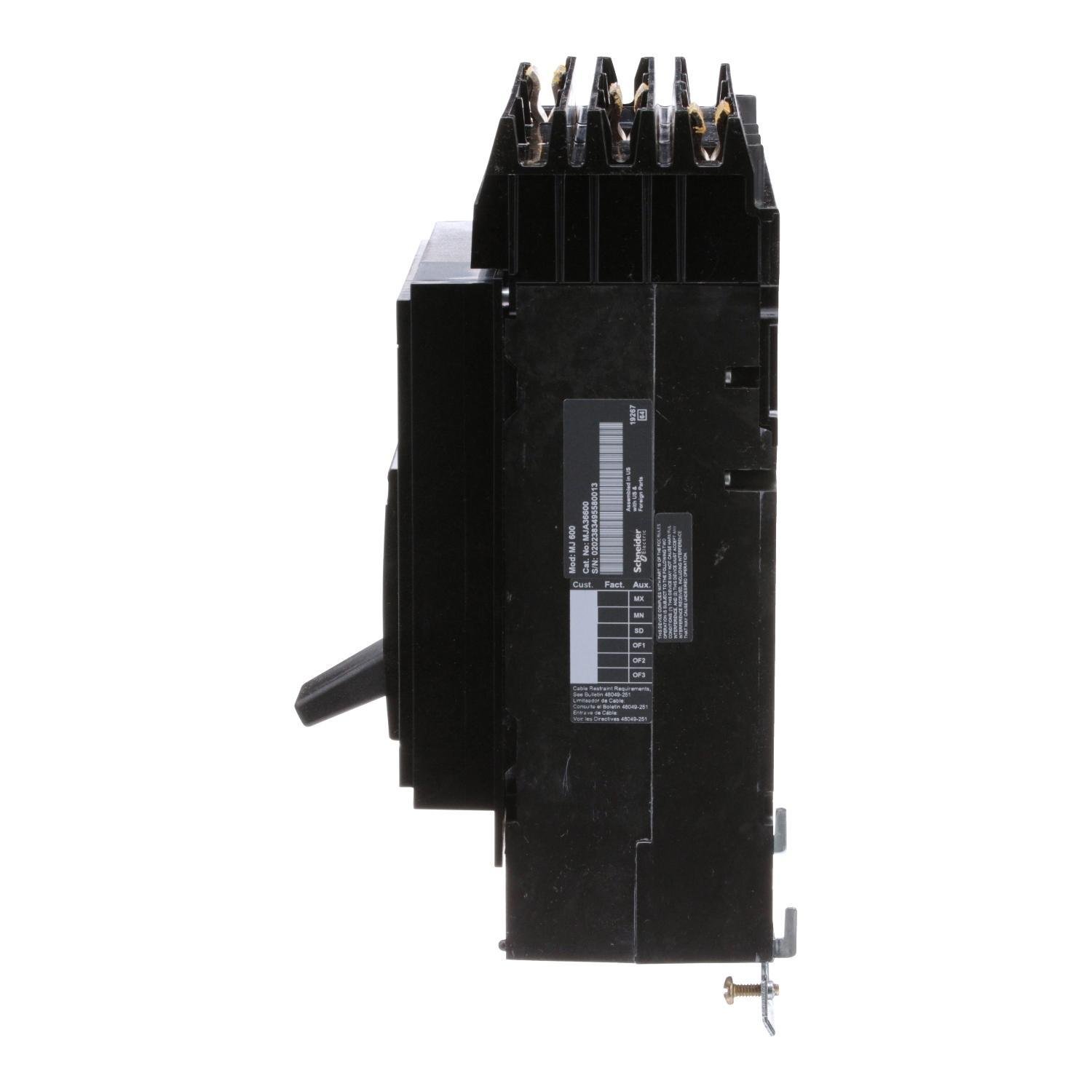

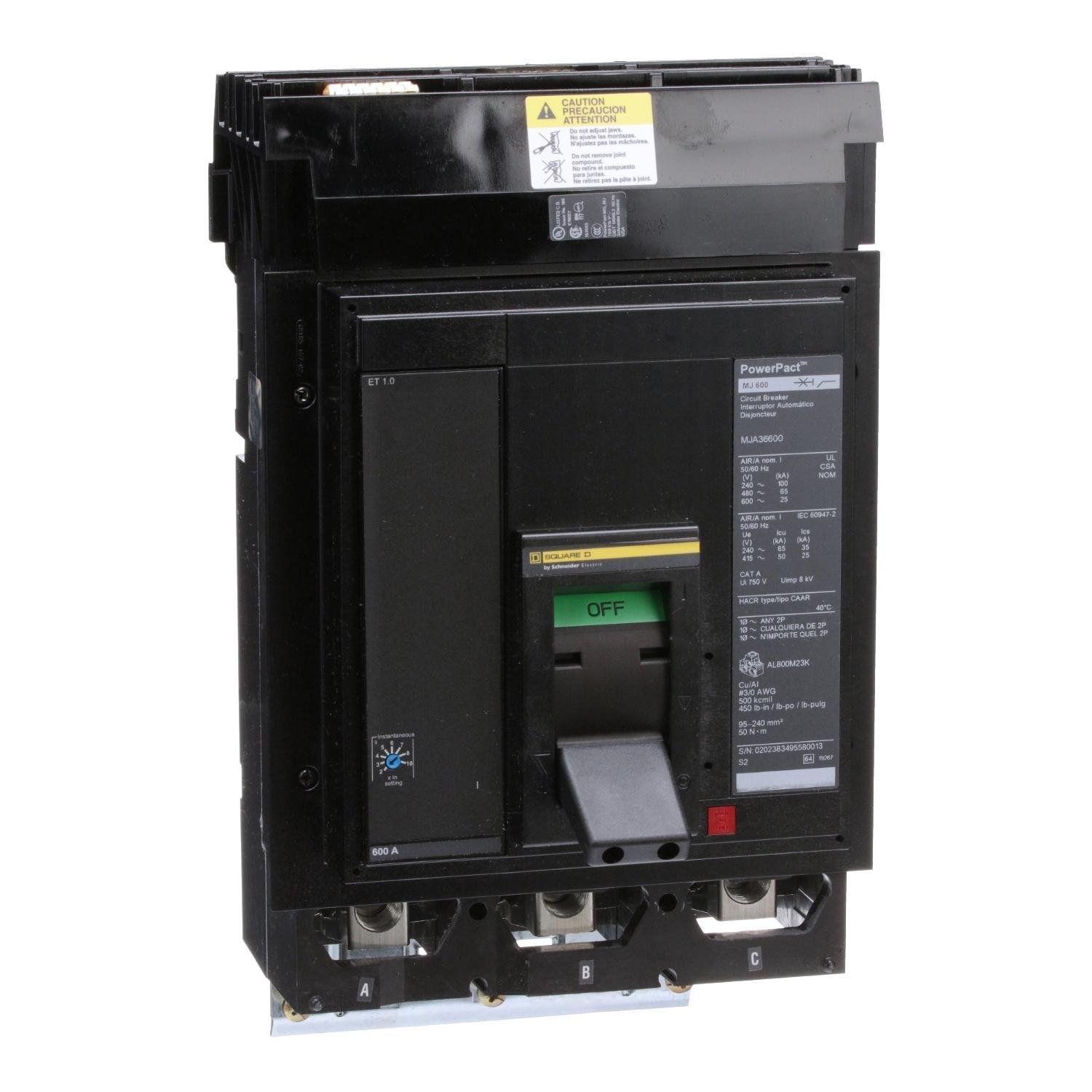

Picture of MJA36600 - Circuit breaker, PowerPacT M, 600A, 3 pole, 600VAC, 25kA, I-Line, ET 1.0, 80%, ABC

MJA36600 - Circuit breaker, PowerPacT M, 600A, 3 pole, 600VAC, 25kA, I-Line, ET 1.0, 80%, ABC

Item Code: 326070

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref MJA36600

Document
Document
Document
Document

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT M, 600A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

29.13

Height

10.6

Width

11.89

Length

18.13

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/MJA36600/MJA36600.spin

AD All Features

Available in 2 or 3 pole design

AD Alternative Part Number

8073628

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901504757

AD Gtin

00785901504757

AD IDEA Index ID

8073628

AD Invoice Description

BREAKER MLD CASE CKT 600VAC 600A 25KA 3

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Standard 80% rating only

AD Item Features 03

Common mounting holes, handle locations, and trim dimensions

AD Item Features 04

Wide range of field installable accessories

AD Keywords

PowerPact M MJA36600 Type MJA Molded Case Circuit Breaker, 600 V AC, 600 A, 25 kA Interrupt, 3 Poles, Electronic Trip ; Schneider Electric ; Square D ; MJA36600 ; MJA36600 ; 785901504757 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

10.6000

AD Package Height UOM

AD Package Length

18.1300

AD Package Length UOM

AD Package Quantity

AD Package Volume

2327.7600

AD Package Volume UOM

cu-in

AD Package Weight

29.1300

AD Package Weight UOM

AD Package Width

11.8900

AD Package Width UOM

AD Part Number Keywords

MJA36600 ; 8073628 ; 785901504757 ; 78590150475 ; 00785901504757 ; 0785901504757

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Electrical

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

Spec 12 Attribute

Trip Range

Spec 12 Attribute UOM

Spec 12 Attribute Value

300 to 800

Spec 13 Attribute

Trip Type

Spec 13 Attribute Value

Electronic

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type MJA

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

600

Spec 16 Attribute

Wire Size

Spec 16 Attribute Value

3/0 AWG to 500 kcmil

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

Spec 2 Attribute Value

600

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

I-Line™/Load Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

8.1 in L x 8.3 in W x 12.8 in H

Spec 5 Attribute

Frame

Spec 5 Attribute Value

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

Spec 7 Attribute Value

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Plug-On

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value
