Square D

MJA36800 - Circuit breaker, PowerPacT M, 800A, 3 pole, 600VAC, 25kA, I-Line, ET 1.0, 80%, ABC

Category Electronic Trip Molded Case Circuit Breakers

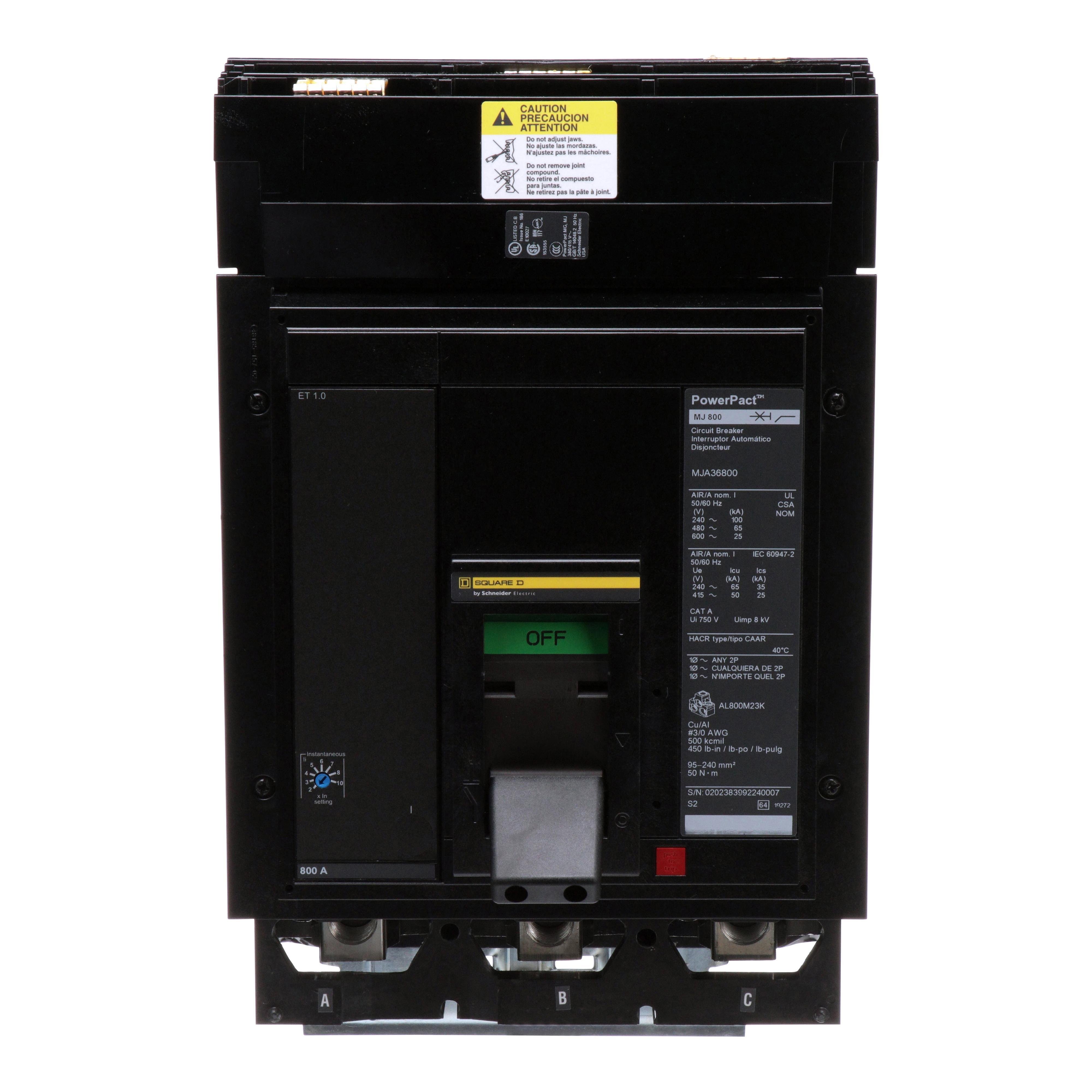

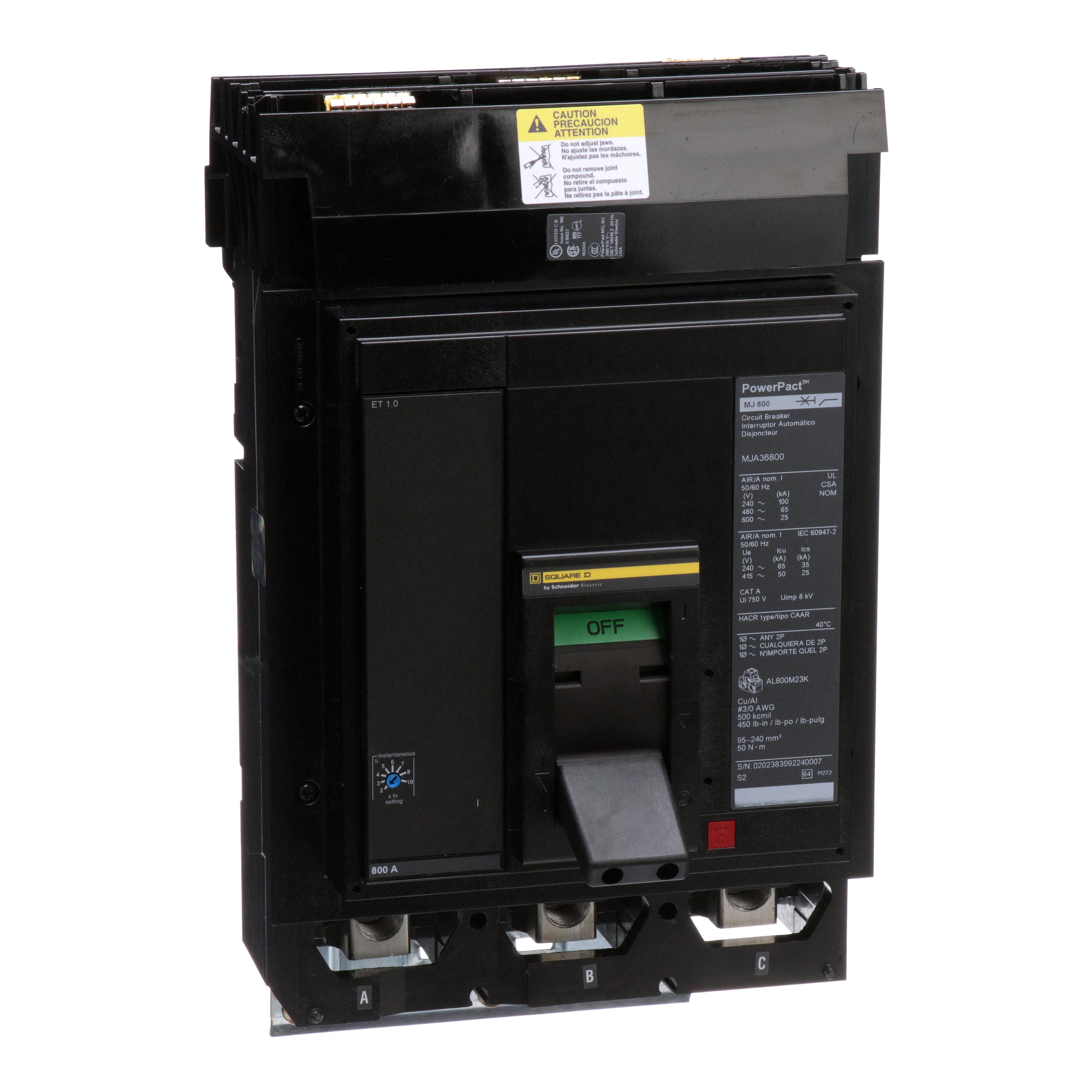

Picture of MJA36800 - Circuit breaker, PowerPacT M, 800A, 3 pole, 600VAC, 25kA, I-Line, ET 1.0, 80%, ABC Picture of MJA36800 - Circuit breaker, PowerPacT M, 800A, 3 pole, 600VAC, 25kA, I-Line, ET 1.0, 80%, ABC

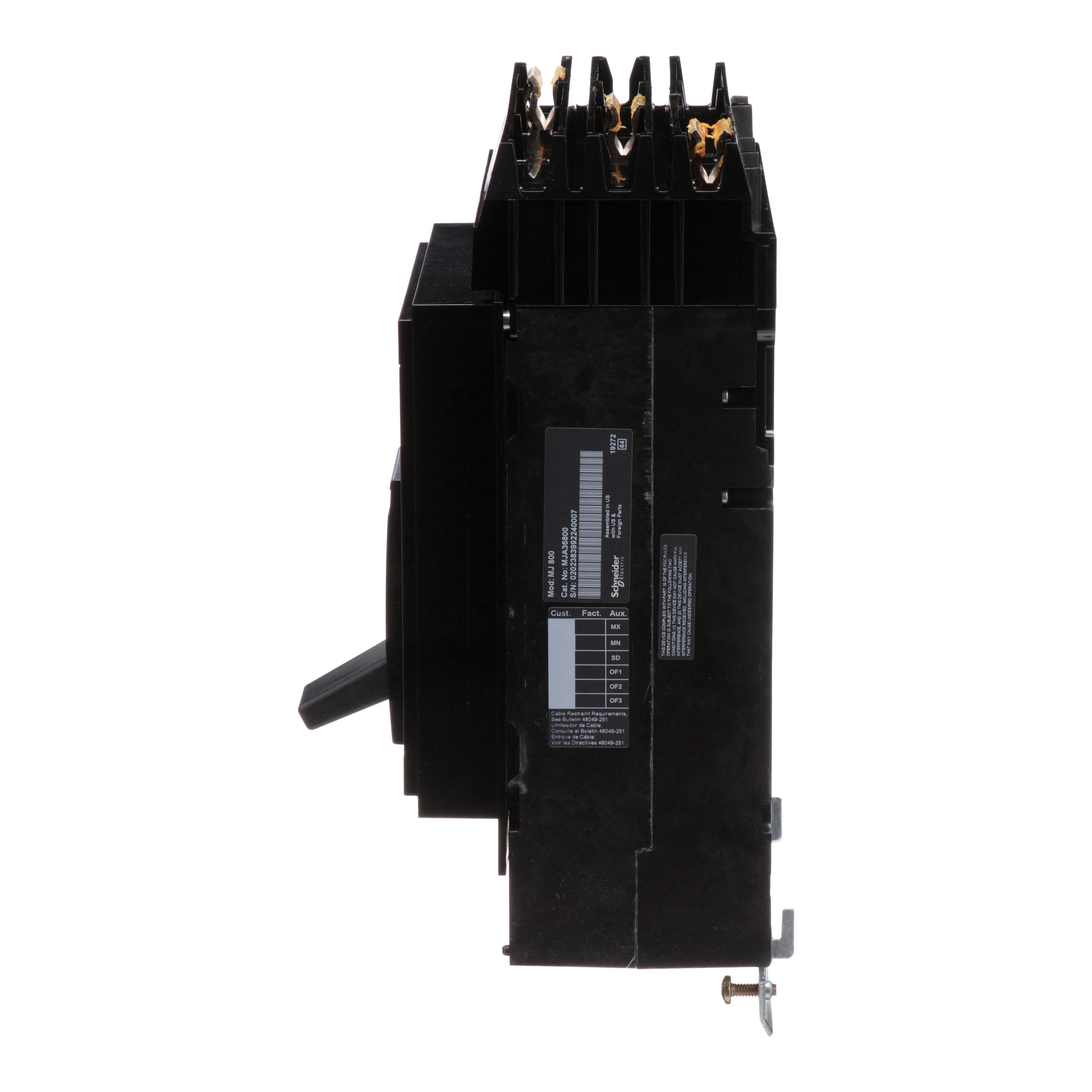

Picture of MJA36800 - Circuit breaker, PowerPacT M, 800A, 3 pole, 600VAC, 25kA, I-Line, ET 1.0, 80%, ABC Picture of MJA36800 - Circuit breaker, PowerPacT M, 800A, 3 pole, 600VAC, 25kA, I-Line, ET 1.0, 80%, ABC
Picture of MJA36800 - Circuit breaker, PowerPacT M, 800A, 3 pole, 600VAC, 25kA, I-Line, ET 1.0, 80%, ABC Picture of MJA36800 - Circuit breaker, PowerPacT M, 800A, 3 pole, 600VAC, 25kA, I-Line, ET 1.0, 80%, ABC
Square D

MJA36800 - Circuit breaker, PowerPacT M, 800A, 3 pole, 600VAC, 25kA, I-Line, ET 1.0, 80%, ABC

Item Code: 590181
Category Electronic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MJA36800

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT M, 800A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT M circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

28.74lb

Width

11.89mm

Length

18.13mm

AD All Features

Available in 2 or 3 pole design

AD Application

For providing overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER MLD CASE CKT 600VAC 800A 3 M 3

AD Item Features 01

Available in 2 or 3 pole design

AD Item Features 02

Standard 80% rating only

AD Item Features 03

Common mounting holes, handle locations, and trim dimensions

AD Item Features 04

Wide range of field installable accessories

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

18.1300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

28.7400

AD Package Weight UOM

LB

AD Package Width

11.8900

AD Package Width UOM

IN

Brand

Square D

Category

ELECTRONIC TRIP MOLDED CASE CIRCUIT BREAKERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Electronic

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

PHASE

Spec 11 Attribute Value

3

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

104

Spec 13 Attribute

Trip Range

Spec 13 Attribute UOM

A

Spec 13 Attribute Value

300 to 800

Spec 14 Attribute

Trip Type

Spec 14 Attribute Value

Electronic

Spec 15 Attribute

Type

Spec 15 Attribute Value

80% Rated Type MJA

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC

Spec 16 Attribute Value

600

Spec 17 Attribute

Wire Size

Spec 17 Attribute Value

3/0 AWG to 500 kcmil Aluminum/Copper

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

800

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

I-Line™/Load Lug

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

8.1 in L x 8.3 in W x 12.8 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA AB1

Spec 6 Attribute

Frame

Spec 6 Attribute Value

M

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute Value

100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Plug-On
