Square D

MP43200 - Meter center, MP Meter-Pak, 3 sockets, no bypass, 4 jaws, 400A bus, 200A max breaker rating, ringed

Category Multiple Meter Banks, Centers & Packs

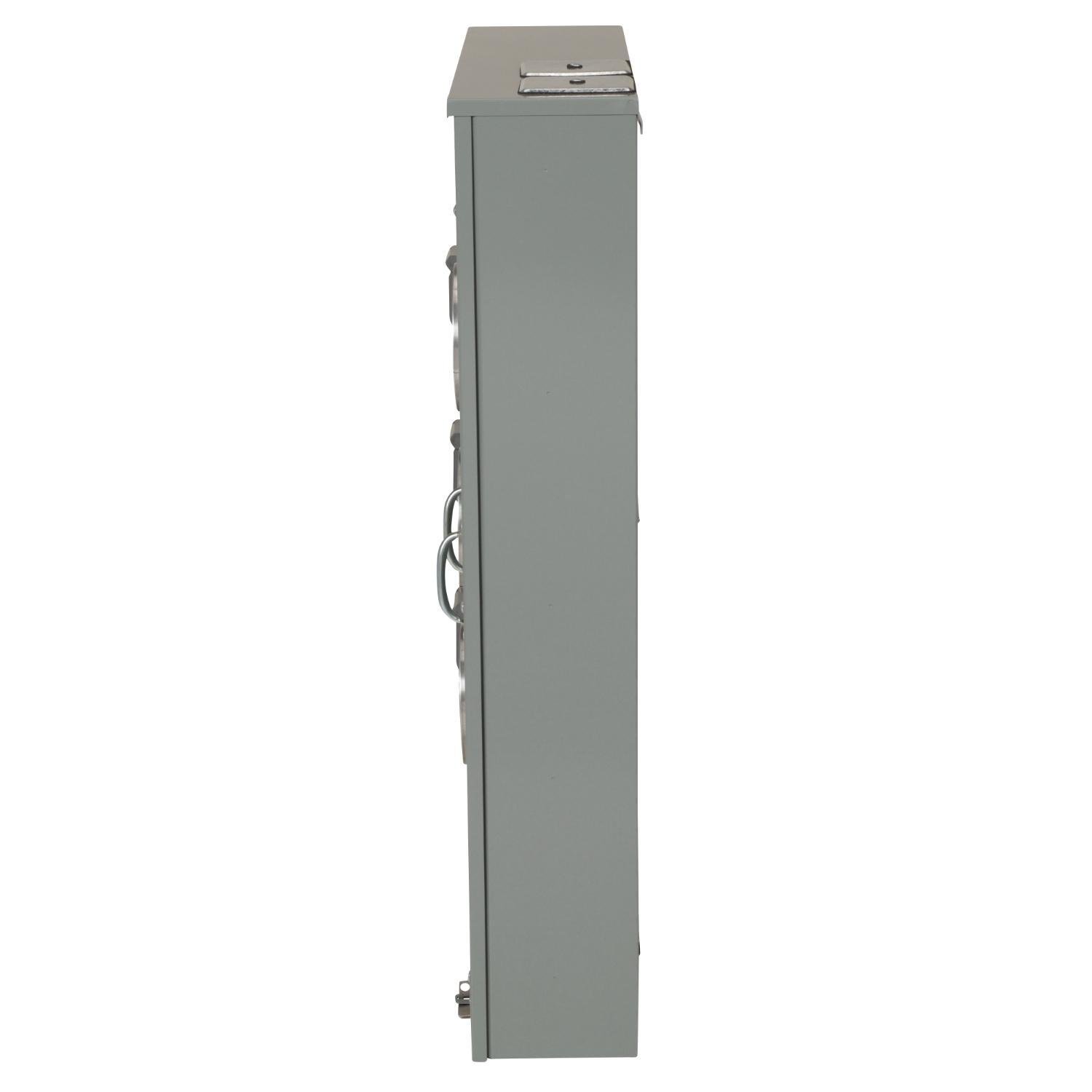

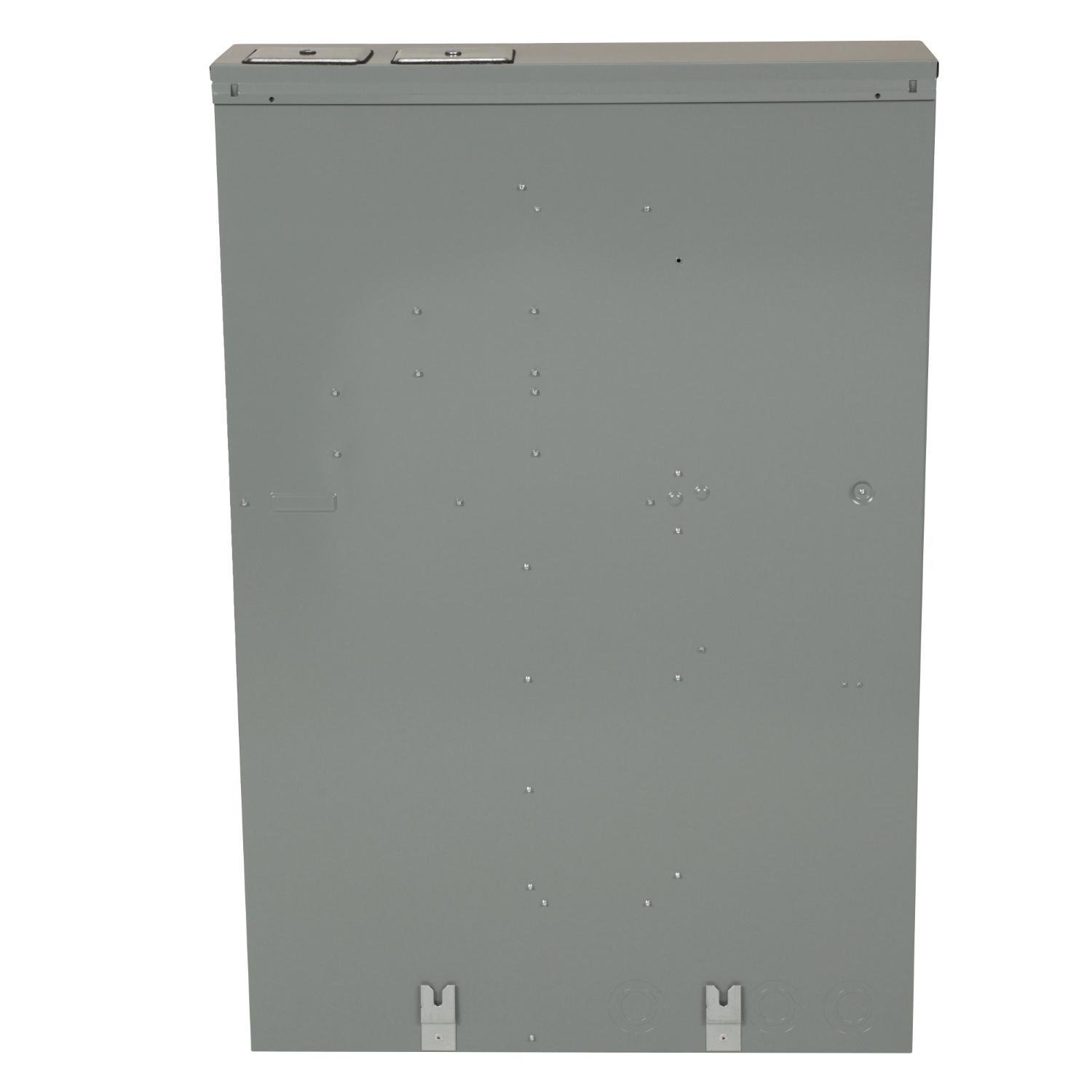

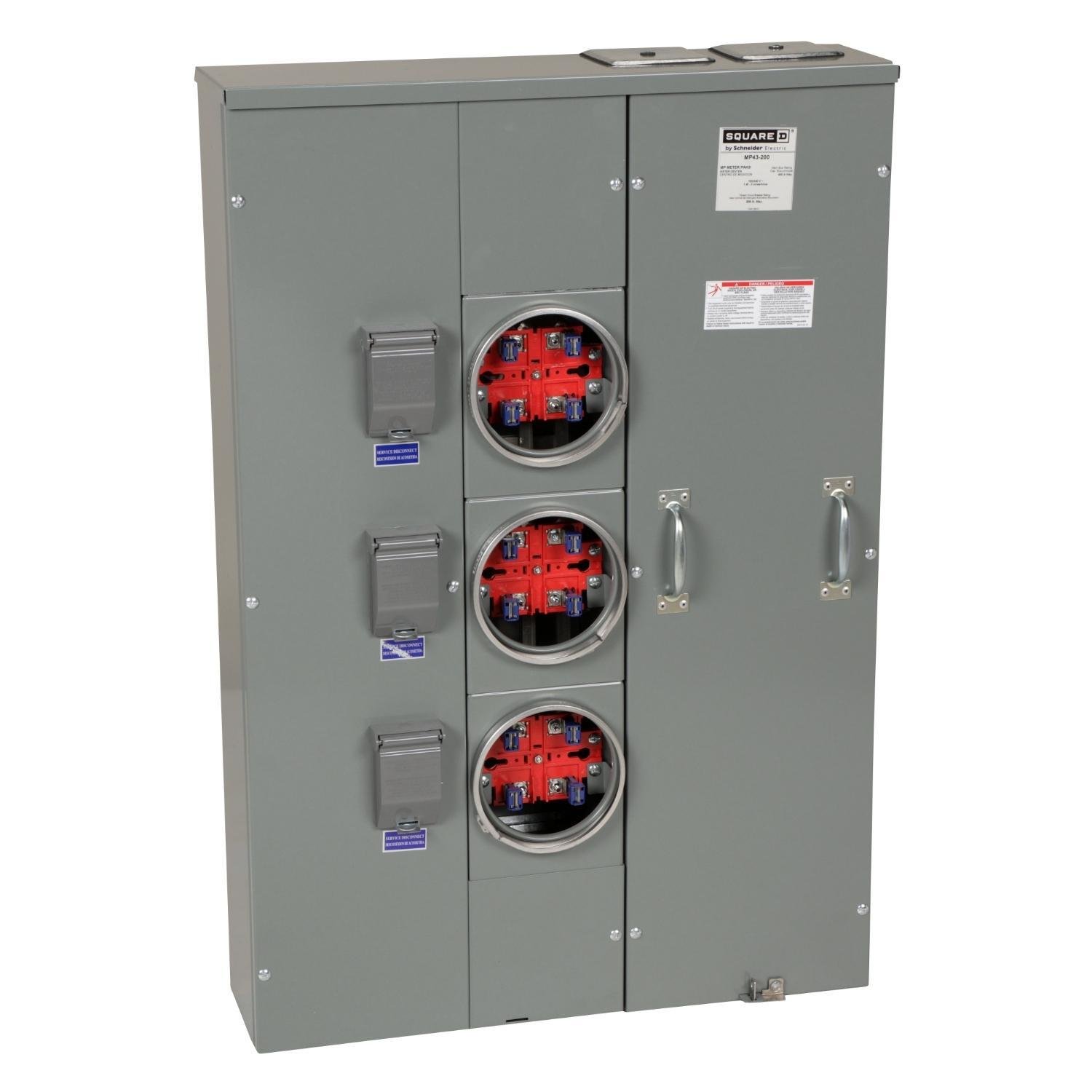

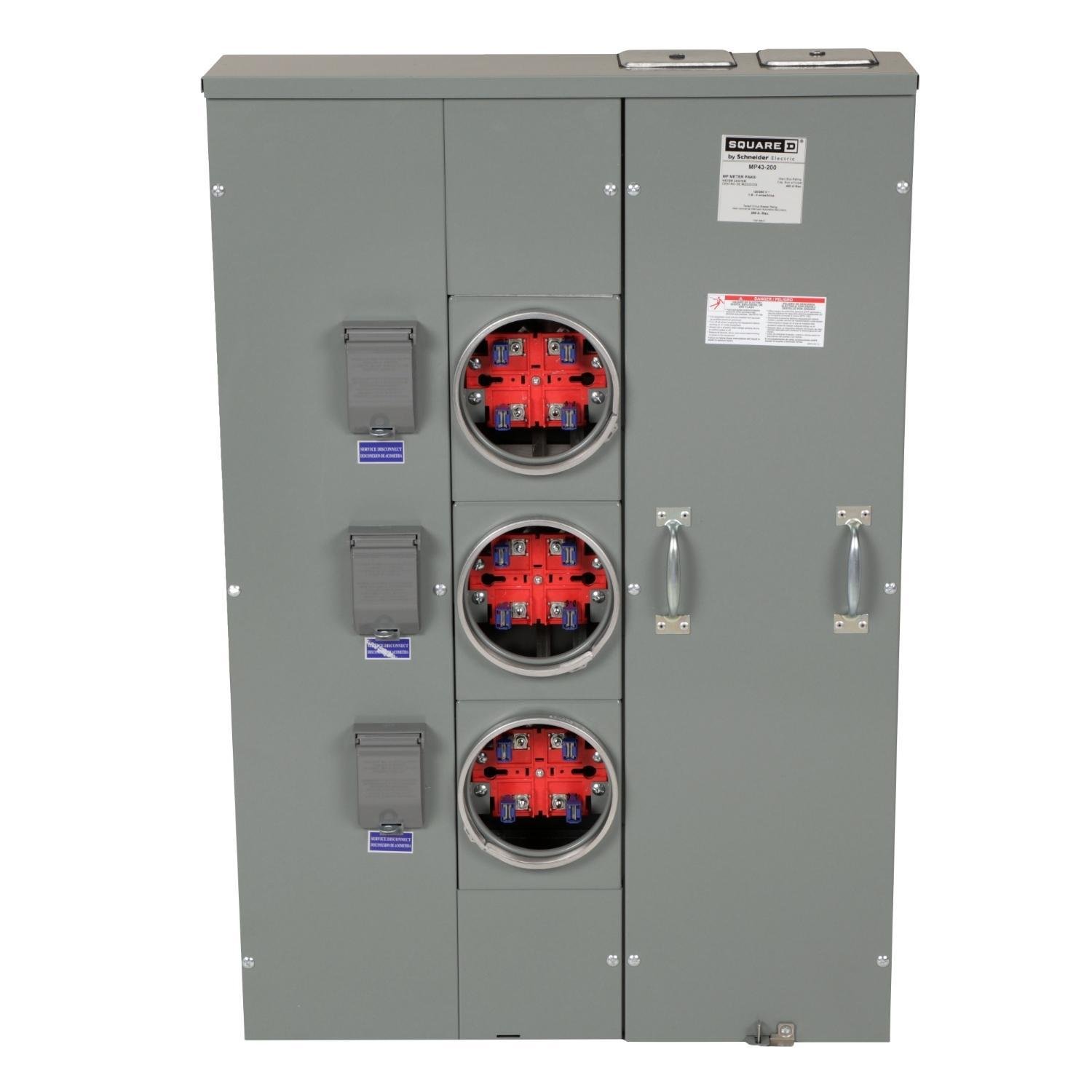

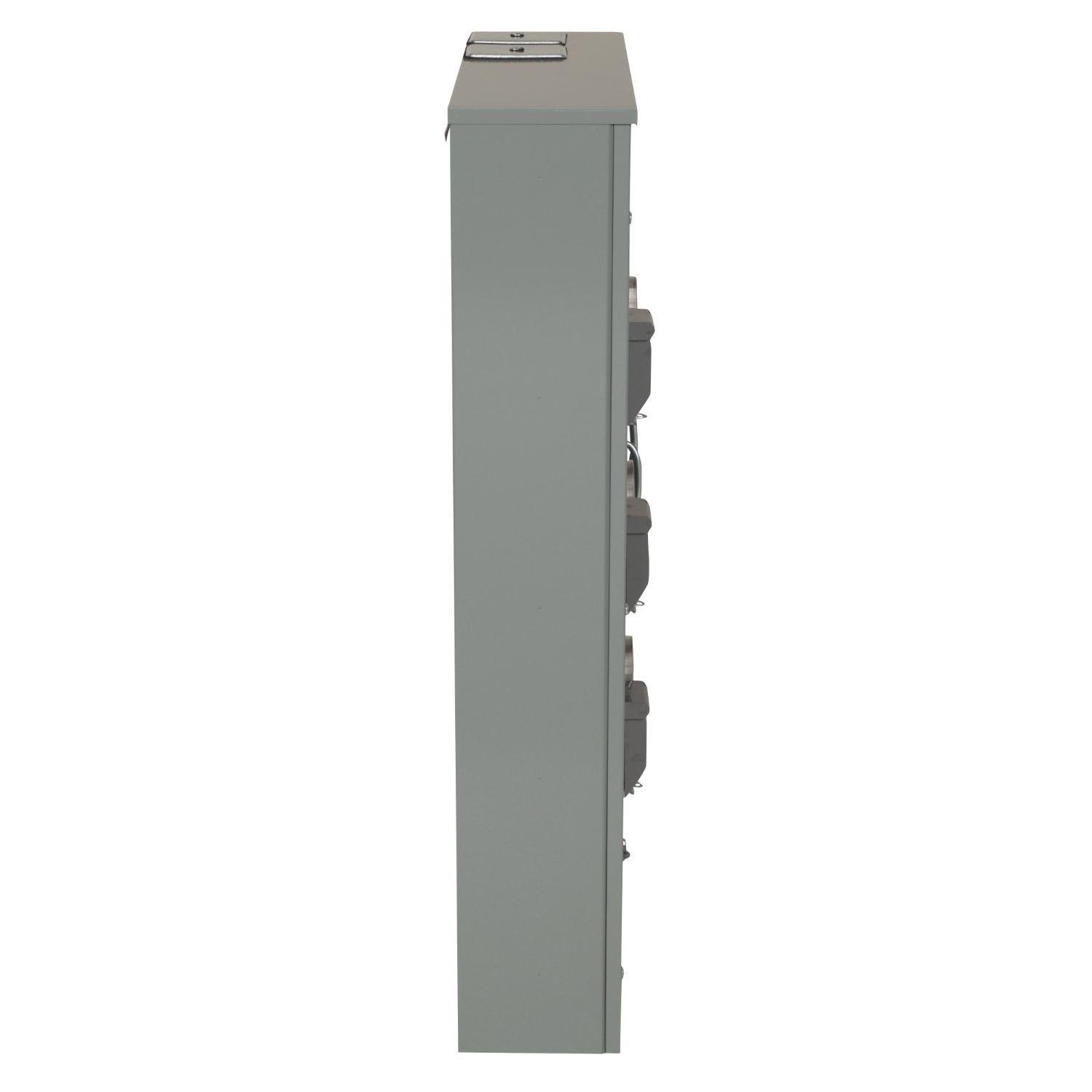

Picture of MP43200 - Meter center, MP Meter-Pak, 3 sockets, no bypass, 4 jaws, 400A bus, 200A max breaker rating, ringed
Square D

MP43200 - Meter center, MP Meter-Pak, 3 sockets, no bypass, 4 jaws, 400A bus, 200A max breaker rating, ringed

Item Code: 47809
Category Multiple Meter Banks, Centers & Packs
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MP43200

Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

Square D brand MP Meter Pak meter centers offer a wide range of multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter pak is rated at 200 A with 3 positions. It has a 400 A main bus. This system is ring type.

Specifications

Weight

98.79

Height

9.8

Width

29.72

Length

52.22

Amperage Rating

200 A

Brand

Square D

Category

MULTIPLE METER BANKS, CENTERS & PACKS

Cover Type

Ring

Dimensions

43.41 in L x 29.44 in W x 8.28 in H

Enclosure Type

NEMA 3R

Feed Type

Overhead/Underground

Hub Size

(2) A-L

Mounting Type

Surface

Number of Jaws

4

Phase

1

Series

MP series

Type

3-Position 3-Wire Main Lug

Voltage Rating

240 V AC

Wire Size

1/0 AWG to 600 kcmil
