Square D™

MP86200 - Meter center, MP Meter-Pak, 6 sockets, no bypass, 4 jaws, 800A bus, 200A max breaker rating, ringed

Category Miscellaneous

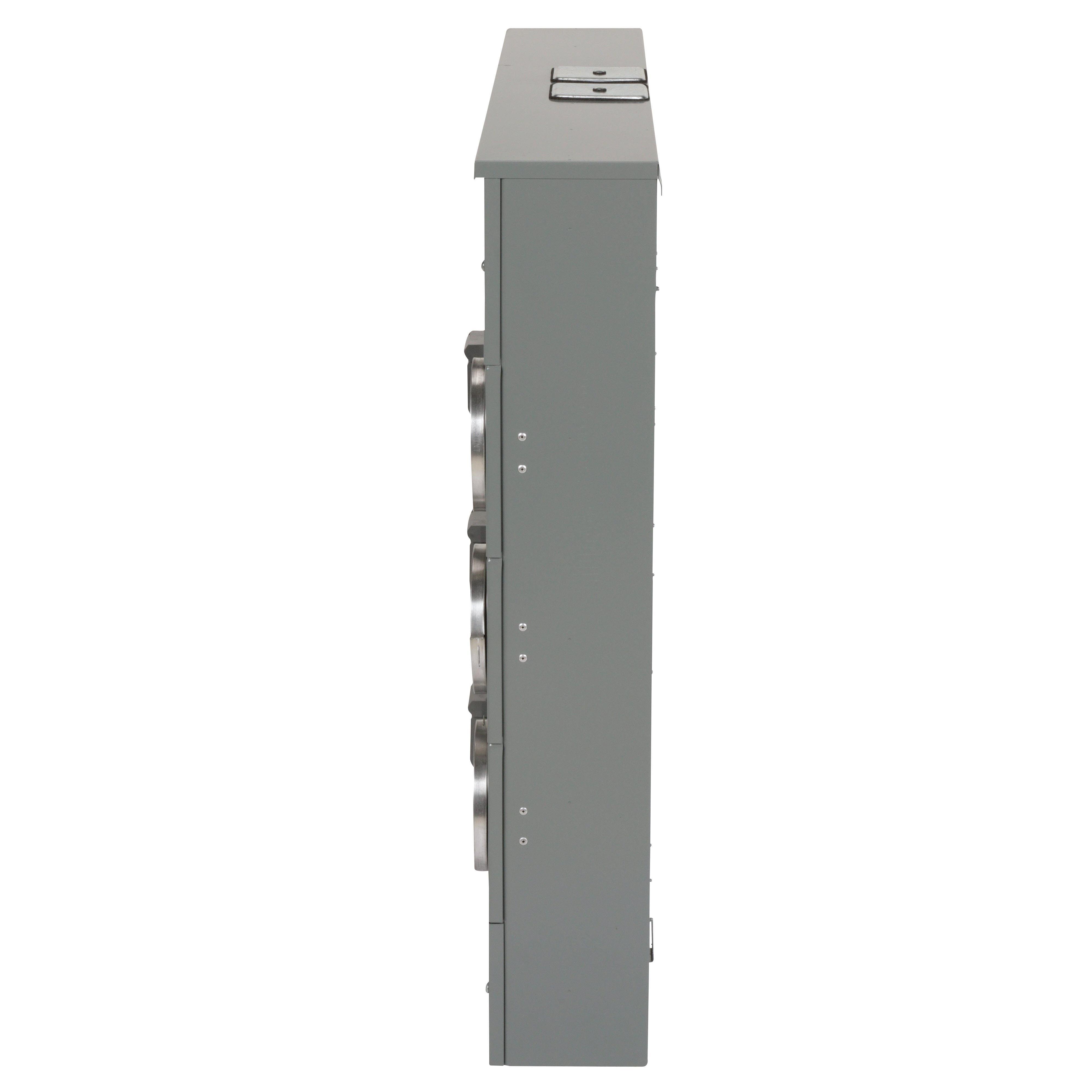

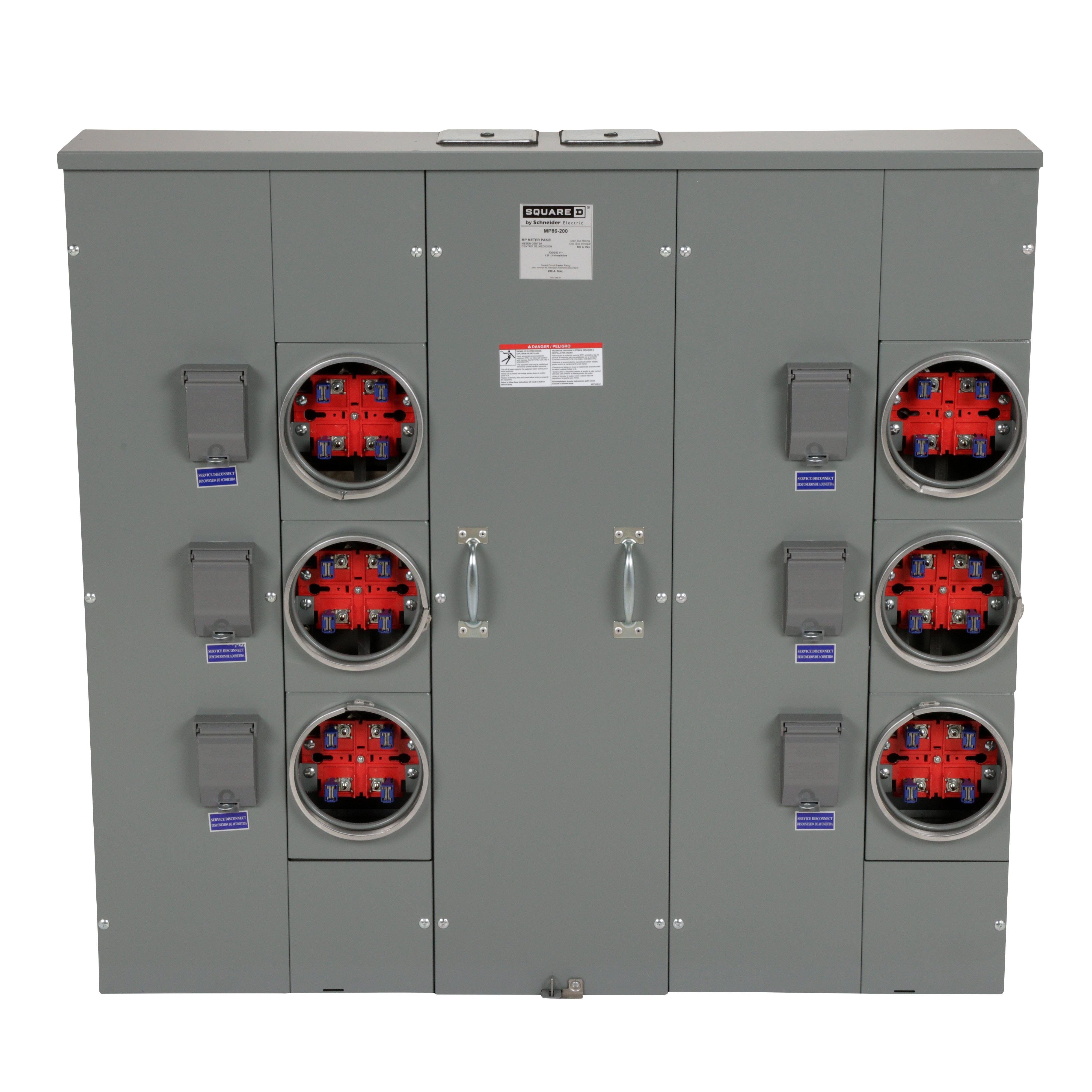

Picture of MP86200 - Meter center, MP Meter-Pak, 6 sockets, no bypass, 4 jaws, 800A bus, 200A max breaker rating, ringed Picture of MP86200 - Meter center, MP Meter-Pak, 6 sockets, no bypass, 4 jaws, 800A bus, 200A max breaker rating, ringed
Picture of MP86200 - Meter center, MP Meter-Pak, 6 sockets, no bypass, 4 jaws, 800A bus, 200A max breaker rating, ringed Picture of MP86200 - Meter center, MP Meter-Pak, 6 sockets, no bypass, 4 jaws, 800A bus, 200A max breaker rating, ringed
Picture of MP86200 - Meter center, MP Meter-Pak, 6 sockets, no bypass, 4 jaws, 800A bus, 200A max breaker rating, ringed Picture of MP86200 - Meter center, MP Meter-Pak, 6 sockets, no bypass, 4 jaws, 800A bus, 200A max breaker rating, ringed
Square D™

MP86200 - Meter center, MP Meter-Pak, 6 sockets, no bypass, 4 jaws, 800A bus, 200A max breaker rating, ringed

Item Code: 1011780
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MP86200

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D brand MP Meter Pak meter centers offer a wide range of multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter pak is rated at 200 A with 6 positions. It has a 800 A main bus. This system is ring type.

Specifications

Weight

166.65

Width

44.58

Length

46.57

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/MP86200/MP86200.spin

AD Alternative Part Number

8034116

AD Application

For service equipment

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901410447

AD Gtin

00785901410447

AD IDEA Index ID

8034116

AD Invoice Description

CENTER MTR 240VAC 200A 1PH NEMA 3R 4

AD Item Features 01

Two to six meter sockets and tenant circuit breaker slots for downstream metering and protection

AD Item Features 02

125A, 200A, and 225A units available, ringless or ring type with varied bypass options

AD Item Features 03

Surface mount, convertible to semi flush with field installed flange kit

AD Item Features 04

Pivoting mounting feet at meter center base

AD Item Features 05

For outdoor and indoor installation

AD Keywords

Meter-Pak MP86200 6-Position 3-Wire Main Lug Meter Center, 240 V AC, 200 A, 1 Phase , NEMA 3R Enclosure ; Schneider Electric ; Square D ; MP86200 ; MP86200 ; 785901410447 ; Meter Sockets - Multi Position

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

46.5700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

166.6500

AD Package Weight UOM

LB

AD Package Width

44.5800

AD Package Width UOM

IN

AD Part Number Keywords

MP86200 ; 8034116 ; 785901410447 ; 78590141044 ; 00785901410447 ; 0785901410447

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Type

Spec 10 Attribute Value

6-Position 3-Wire Main Lug

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

240

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

3/0 AWG to 500 kcmil

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ring

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Feed Type

Spec 4 Attribute Value

Overhead/Underground

Spec 5 Attribute

Hub Size

Spec 5 Attribute Value

(2) A-L

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Surface

Spec 7 Attribute

Number of Jaws

Spec 7 Attribute Value

4

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Series

Spec 9 Attribute Value

MP series
