Square D

MPH22125 - Meter center, MP Meter-Pak, 2 sockets, horn bypass, 5 jaws, 200A bus, 125A max breaker rating, ringless

Category Multiple Meter Banks, Centers & Packs

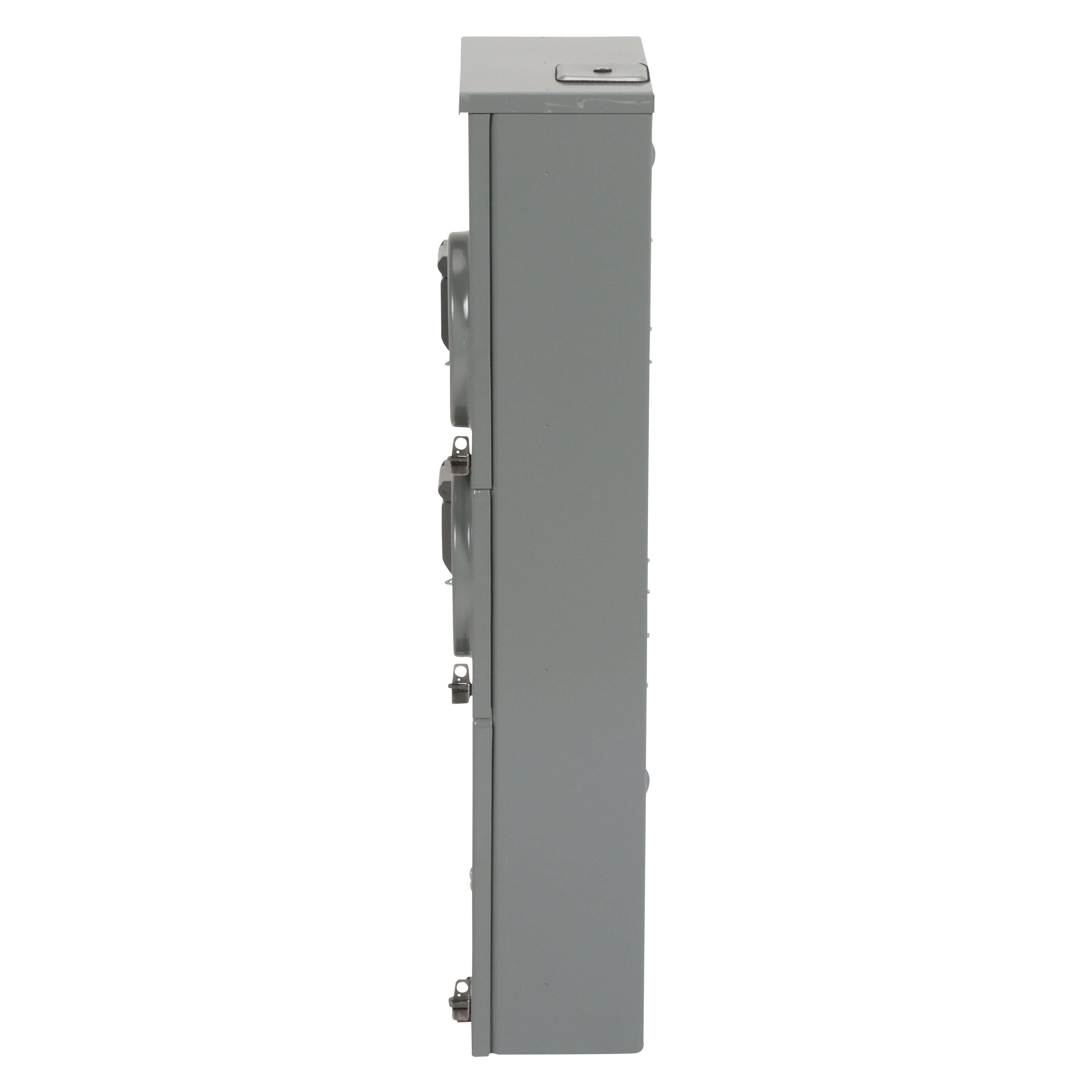

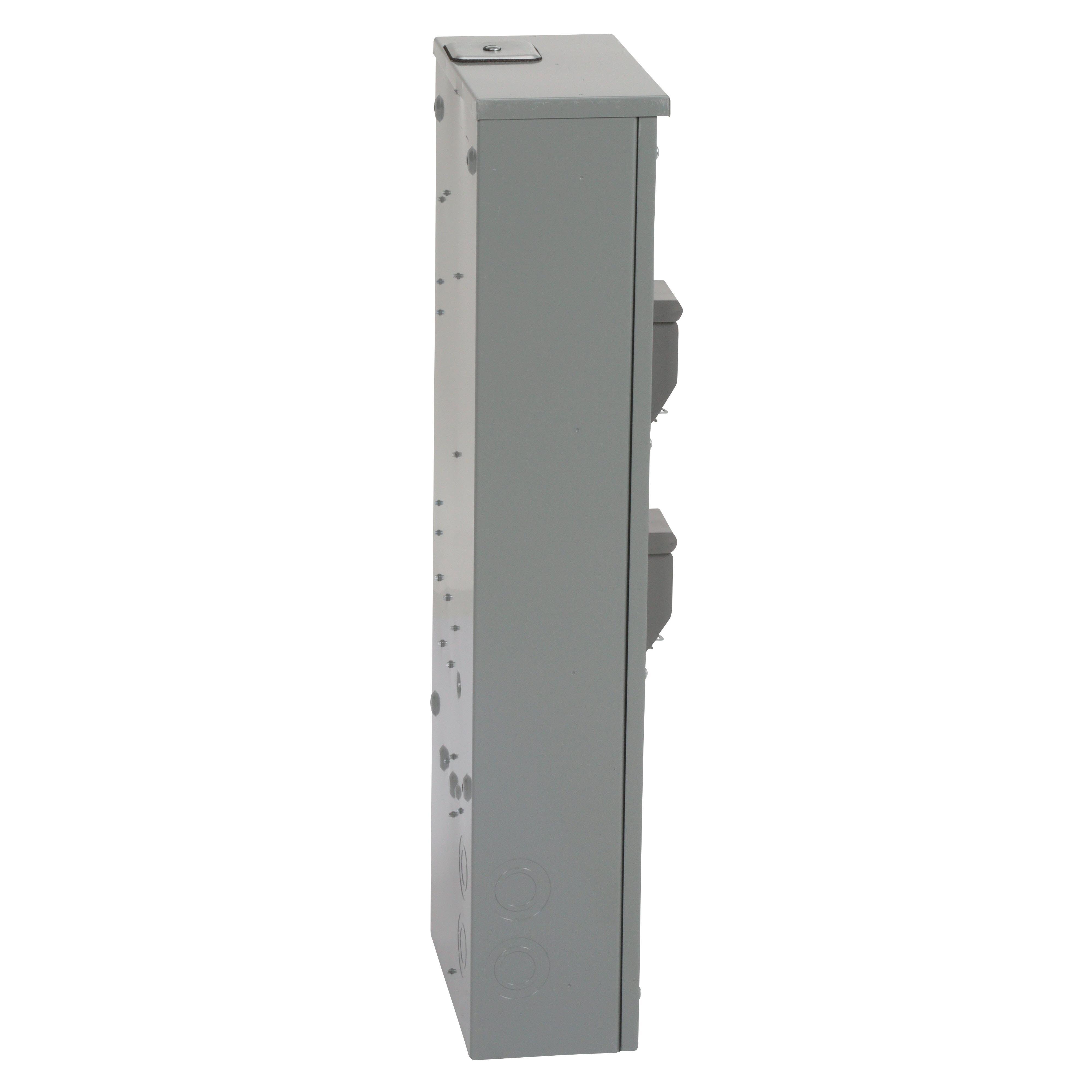

Picture of MPH22125 - Meter center, MP Meter-Pak, 2 sockets, horn bypass, 5 jaws, 200A bus, 125A max breaker rating, ringless Picture of MPH22125 - Meter center, MP Meter-Pak, 2 sockets, horn bypass, 5 jaws, 200A bus, 125A max breaker rating, ringless
Picture of MPH22125 - Meter center, MP Meter-Pak, 2 sockets, horn bypass, 5 jaws, 200A bus, 125A max breaker rating, ringless Picture of MPH22125 - Meter center, MP Meter-Pak, 2 sockets, horn bypass, 5 jaws, 200A bus, 125A max breaker rating, ringless
Picture of MPH22125 - Meter center, MP Meter-Pak, 2 sockets, horn bypass, 5 jaws, 200A bus, 125A max breaker rating, ringless Picture of MPH22125 - Meter center, MP Meter-Pak, 2 sockets, horn bypass, 5 jaws, 200A bus, 125A max breaker rating, ringless
Square D

MPH22125 - Meter center, MP Meter-Pak, 2 sockets, horn bypass, 5 jaws, 200A bus, 125A max breaker rating, ringless

Item Code: 621155
Category Multiple Meter Banks, Centers & Packs
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MPH22125

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D brand MP Meter Pak meter centers offer a wide range of multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter pak is rated at 125 A with 2 positions. It has a horn bypass and a 200 A main bus. This system is a ringless type.

Specifications

Weight

42.68

Width

12.48

Length

38.24

AD Application

For service equipment applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

CENTER MTR 240VAC 125A 1 NEMA 3R 5 SURF

AD Item Features 01

Two to six meter sockets and tenant circuit breaker slots for downstream metering and protection

AD Item Features 02

125A, 200A, and 225A units available, ringless or ring type with varied bypass options

AD Item Features 03

Surface mount, convertible to semi flush with field installed flange kit

AD Item Features 04

NEMA Type 3R for outdoor and indoor installation

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

38.2400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

42.6800

AD Package Weight UOM

LB

AD Package Width

12.4800

AD Package Width UOM

IN

Brand

Square D

Category

MULTIPLE METER BANKS, CENTERS & PACKS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Bus Bar/Main Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

2-Position 3-Wire

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

240

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

4 AWG to 250 kcmil

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Feed Type

Spec 4 Attribute Value

Overhead/Underground

Spec 5 Attribute

Hub Size

Spec 5 Attribute Value

A/B300

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Surface

Spec 7 Attribute

Number of Jaws

Spec 7 Attribute Value

5

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Series

Spec 9 Attribute Value

MP series
