Square D™

MPH55125 - Meter center, MP Meter-Pak, 5 sockets, horn bypass, 5 jaws, 500A bus, 125A max breaker rating, ringless

Category Miscellaneous

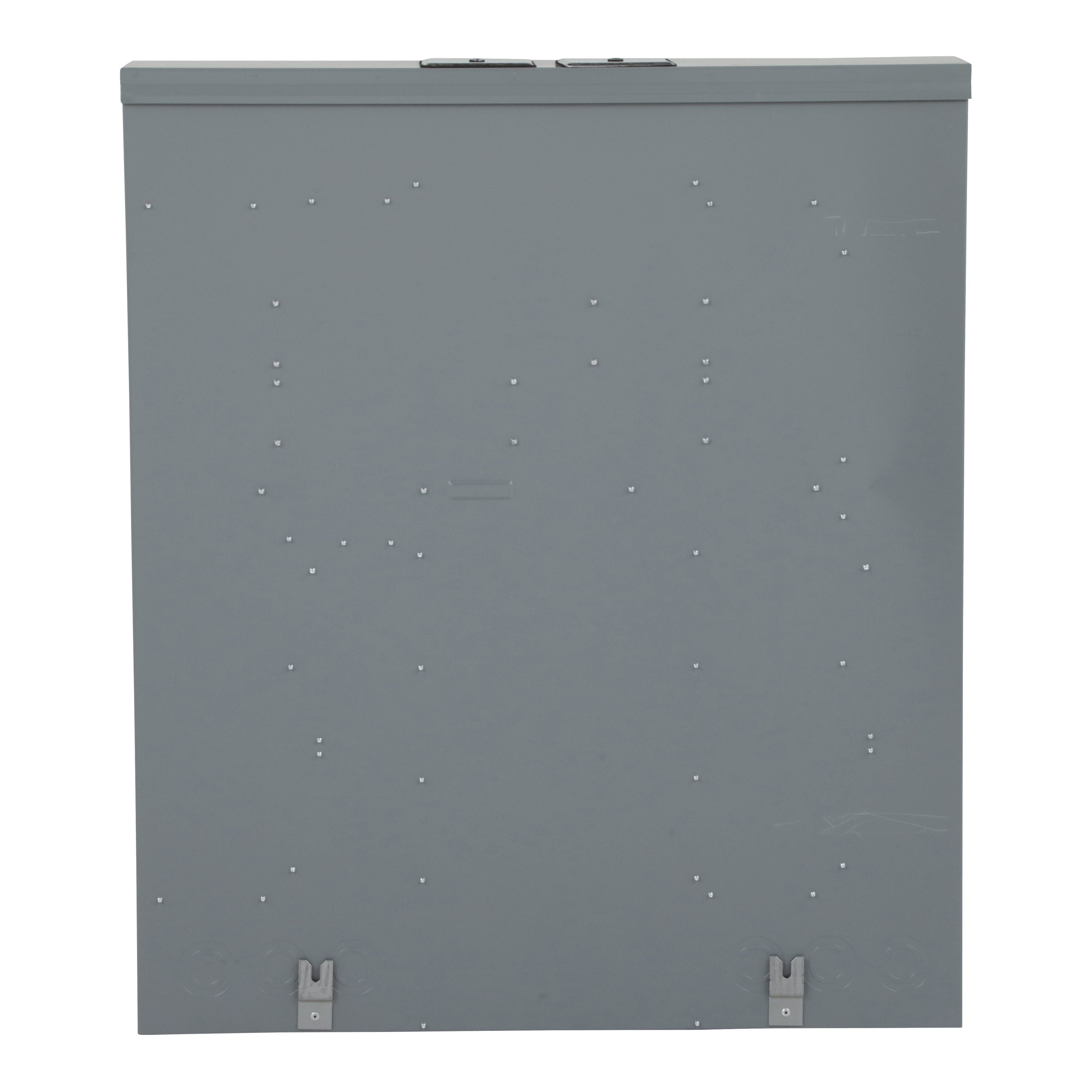

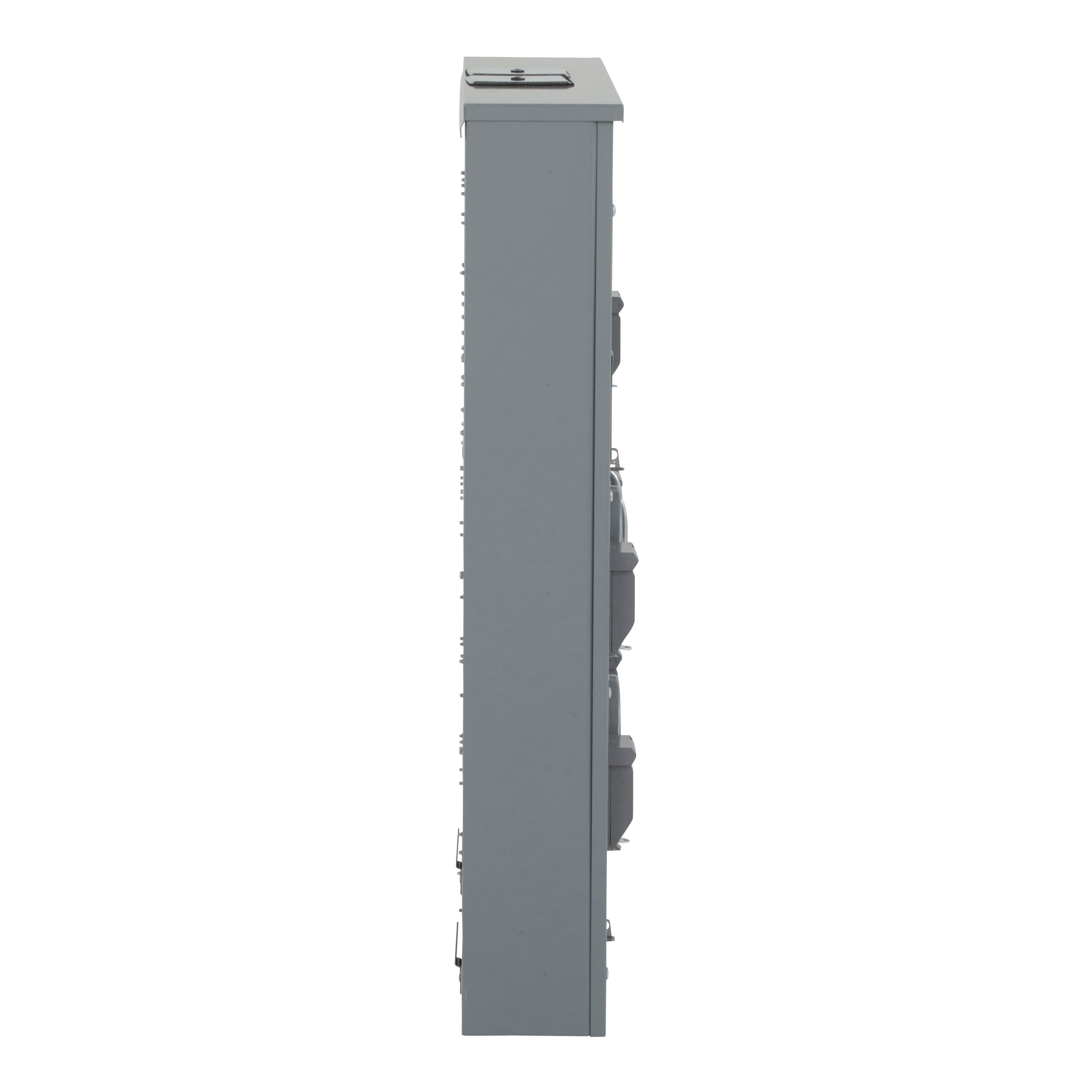

Picture of MPH55125 - Meter center, MP Meter-Pak, 5 sockets, horn bypass, 5 jaws, 500A bus, 125A max breaker rating, ringless Picture of MPH55125 - Meter center, MP Meter-Pak, 5 sockets, horn bypass, 5 jaws, 500A bus, 125A max breaker rating, ringless
Picture of MPH55125 - Meter center, MP Meter-Pak, 5 sockets, horn bypass, 5 jaws, 500A bus, 125A max breaker rating, ringless Picture of MPH55125 - Meter center, MP Meter-Pak, 5 sockets, horn bypass, 5 jaws, 500A bus, 125A max breaker rating, ringless
Picture of MPH55125 - Meter center, MP Meter-Pak, 5 sockets, horn bypass, 5 jaws, 500A bus, 125A max breaker rating, ringless Picture of MPH55125 - Meter center, MP Meter-Pak, 5 sockets, horn bypass, 5 jaws, 500A bus, 125A max breaker rating, ringless
Square D™

MPH55125 - Meter center, MP Meter-Pak, 5 sockets, horn bypass, 5 jaws, 500A bus, 125A max breaker rating, ringless

Item Code: 1005111
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MPH55125

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D brand MP Meter Pak meter centers offer a wide range of multi metering applications. UL Listed NEMA Type 3R construction meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MP meter pak is rated at 125 A with 5 positions. It has a horn bypass and a 500 A main bus. This system is a ringless type.

Specifications

Weight

99.79

Width

36.54

Length

42.98

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/MPH55125/MPH55125.spin

AD Alternative Part Number

8085124

AD Application

For service equipment applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901208136

AD Gtin

00785901208136

AD IDEA Index ID

8085124

AD Invoice Description

CENTER MTR 240VAC 125A 1 NEMA 3R 5 SURF

AD Item Features 01

Two to six meter sockets and tenant circuit breaker slots for downstream metering and protection

AD Item Features 02

125A, 200A, and 225A units available, ringless or ring type with varied bypass options

AD Item Features 03

Surface mount, convertible to semi flush with field installed flange kit

AD Item Features 04

For outdoor and indoor installation

AD Keywords

Meter-Pak MPH55125 MP Series 5-Position 3-Wire Meter Center With Horn Bypass, 240 V AC, 125 A, 1 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; MPH55125 ; MPH55125 ; 785901208136 ; Meter Sockets - Multi Position

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

42.9800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

99.7900

AD Package Weight UOM

LB

AD Package Width

36.5400

AD Package Width UOM

IN

AD Part Number Keywords

MPH55125 ; 8085124 ; 785901208136 ; 78590120813 ; 00785901208136 ; 0785901208136

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Series

Spec 10 Attribute Value

MP series

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Bus Bar/Main Lug

Spec 12 Attribute

Type

Spec 12 Attribute Value

5-Position 3-Wire

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

240

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

1/0 AWG to 600 kcmil

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

39.46 in W x 7.28 in D x 42.37 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Hub Size

Spec 6 Attribute Value

(2) A-L

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

Number of Jaws

Spec 8 Attribute Value

5

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
