Square D™

MPH85200 - Meter center, MP Meter-Pak, 5 sockets, horn bypass, 5 jaws, 800A bus, 200A max breaker rating, ringless

Category Miscellaneous

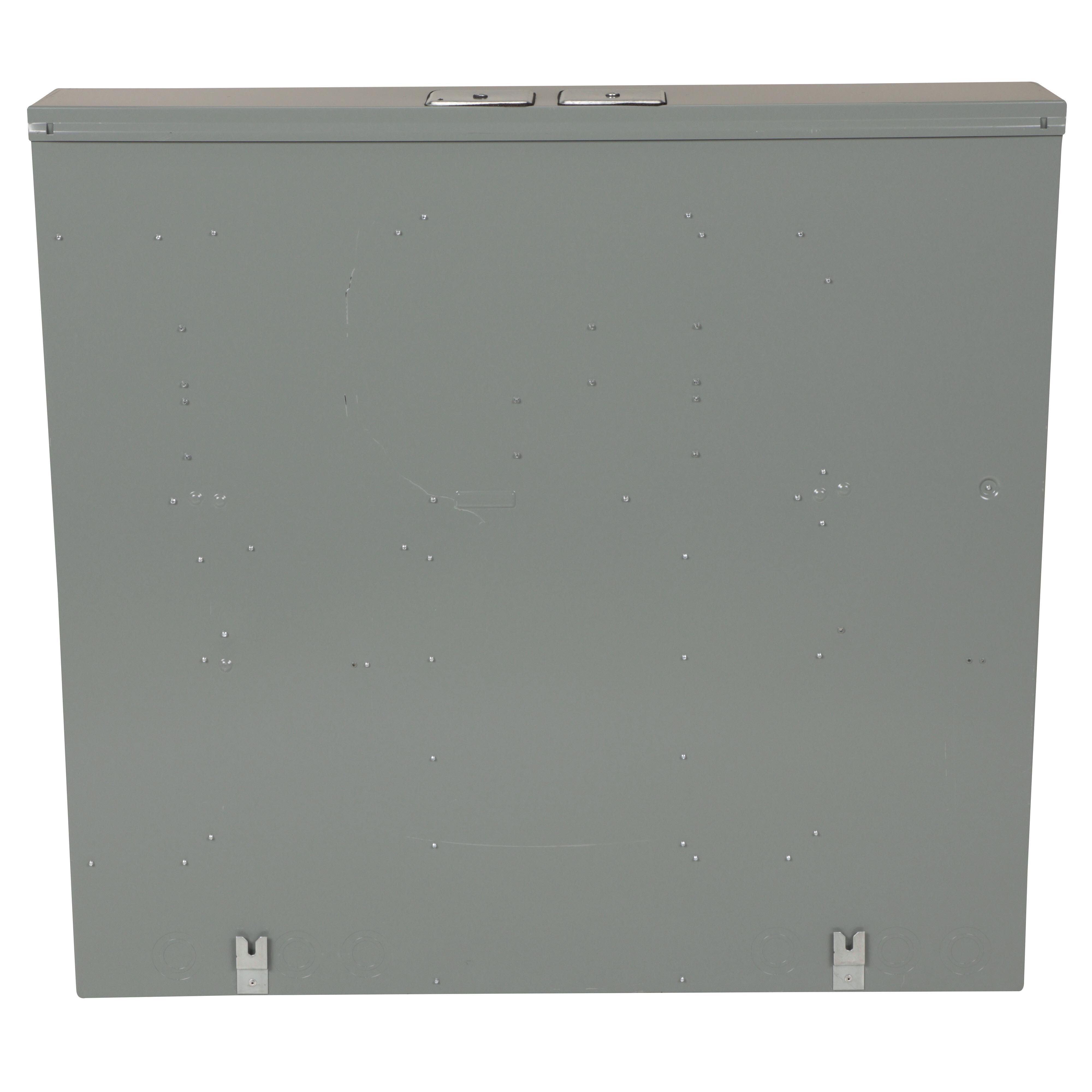

Picture of MPH85200 - Meter center, MP Meter-Pak, 5 sockets, horn bypass, 5 jaws, 800A bus, 200A max breaker rating, ringless Picture of MPH85200 - Meter center, MP Meter-Pak, 5 sockets, horn bypass, 5 jaws, 800A bus, 200A max breaker rating, ringless
Picture of MPH85200 - Meter center, MP Meter-Pak, 5 sockets, horn bypass, 5 jaws, 800A bus, 200A max breaker rating, ringless Picture of MPH85200 - Meter center, MP Meter-Pak, 5 sockets, horn bypass, 5 jaws, 800A bus, 200A max breaker rating, ringless
Square D™

MPH85200 - Meter center, MP Meter-Pak, 5 sockets, horn bypass, 5 jaws, 800A bus, 200A max breaker rating, ringless

Item Code: 1011781
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref MPH85200

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

MPH Meter Pak meter centers offer a wide range of multimetering applications. MPH meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. The 9 inch meter center spacing allows for more sockets per device. This creates lighter and more compact branch enclosures. Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release. This MPH meter center has a ringless socket with a horn bypass and a 5th jaw. The aluminum main bus ampacity is 800 A. This MPH meter pak meter center has 5 meter sockets. The maximum tenant main lugs amperage is 200 A with a 240 VAC single phase maximum. This MPH meter center with accept 3/0 AWG to two 500 kcmil copper or aluminum wire. Meter center is UL listed.

Specifications

Weight

153.68

Width

46.06

Length

44.07

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/MPH85200/MPH85200.spin

AD Alternative Part Number

8034187

AD Application

For used as service equipment

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901410539

AD Gtin

00785901410539

AD IDEA Index ID

8034187

AD Invoice Description

CENTER MTR 240VAC 200A 1 NEMA 3R 5 SURF

AD Item Features 01

Two to six meter sockets and tenant circuit breaker slots for downstream metering and protection

AD Item Features 02

125A, 200A, and 225A units available, ringless or ring type with varied bypass options

AD Item Features 03

Surface mount, convertible to semi flush with field installed flange kit

AD Item Features 04

Pivoting mounting feet at meter center base

AD Item Features 05

For outdoor and indoor installation

AD Keywords

Meter-Pak MPH85200 5-Position 3-Wire Meter Center With Horn Bypass, 240 V AC, 200 A, 1 Phase , NEMA 3R Enclosure ; Schneider Electric ; Square D ; MPH85200 ; MPH85200 ; 785901410539 ; Meter Sockets - Multi Position

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

44.0700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

153.6800

AD Package Weight UOM

LB

AD Package Width

46.0600

AD Package Width UOM

IN

AD Part Number Keywords

MPH85200 ; 8034187 ; 785901410539 ; 78590141053 ; 00785901410539 ; 0785901410539

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Type

Spec 10 Attribute Value

5-Position 3-Wire

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

240

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

3/0 AWG to 500 kcmil Al/Cu

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

43.41 in H x 46.68 in W x 8.28 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Hub Type

Spec 6 Attribute Value

(2) A-L, (2) ACPL Closing Plate

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

Number of Jaws

Spec 8 Attribute Value

5

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
