NF418L1 - Panelboard interior, NF, main lugs, 125A, Al bus, 18 pole spaces, 3 phase, 4 wire, 600Y/347VAC max

Category Miscellaneous

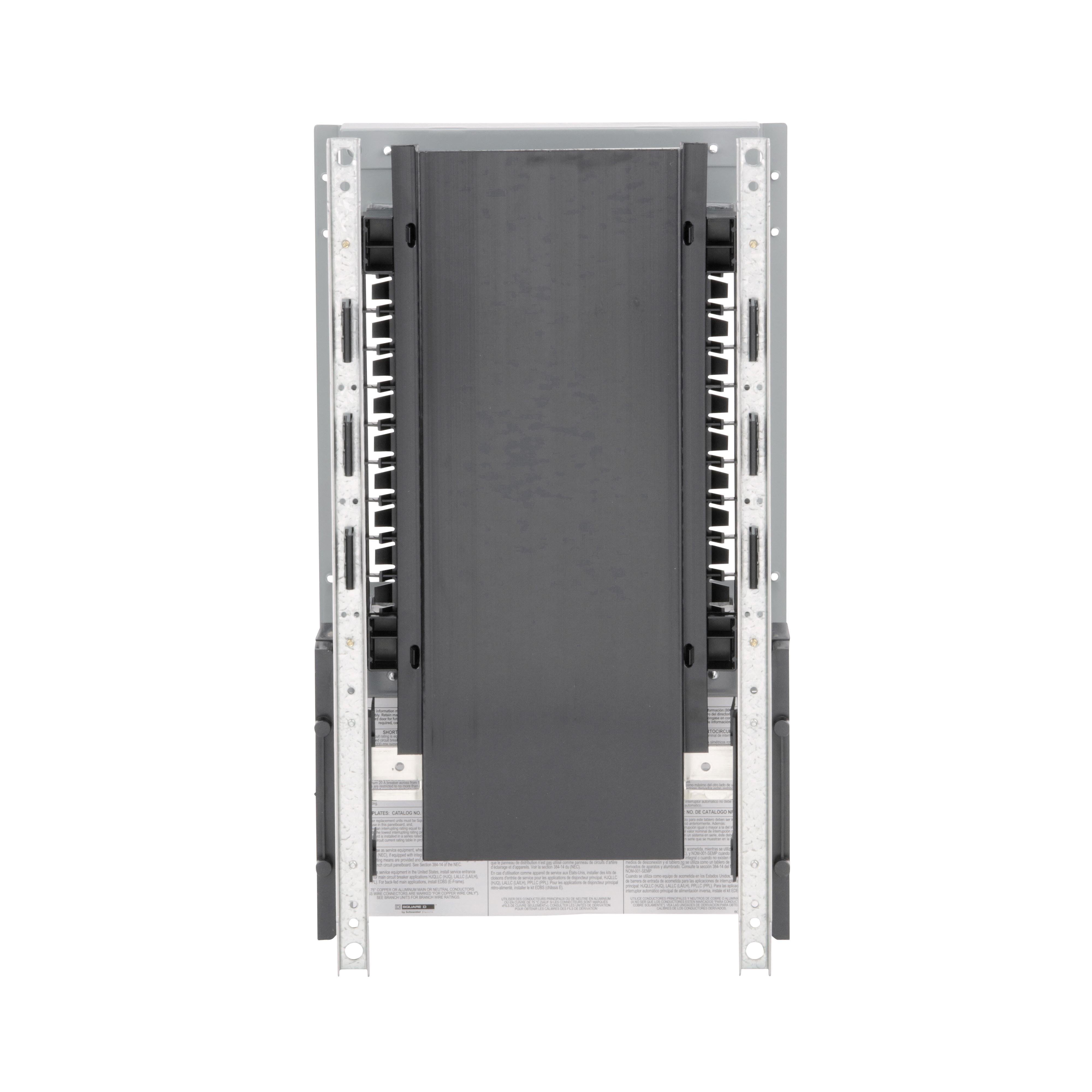

Picture of NF418L1 - Panelboard interior, NF, main lugs, 125A, Al bus, 18 pole spaces, 3 phase, 4 wire, 600Y/347VAC max Picture of NF418L1 - Panelboard interior, NF, main lugs, 125A, Al bus, 18 pole spaces, 3 phase, 4 wire, 600Y/347VAC max

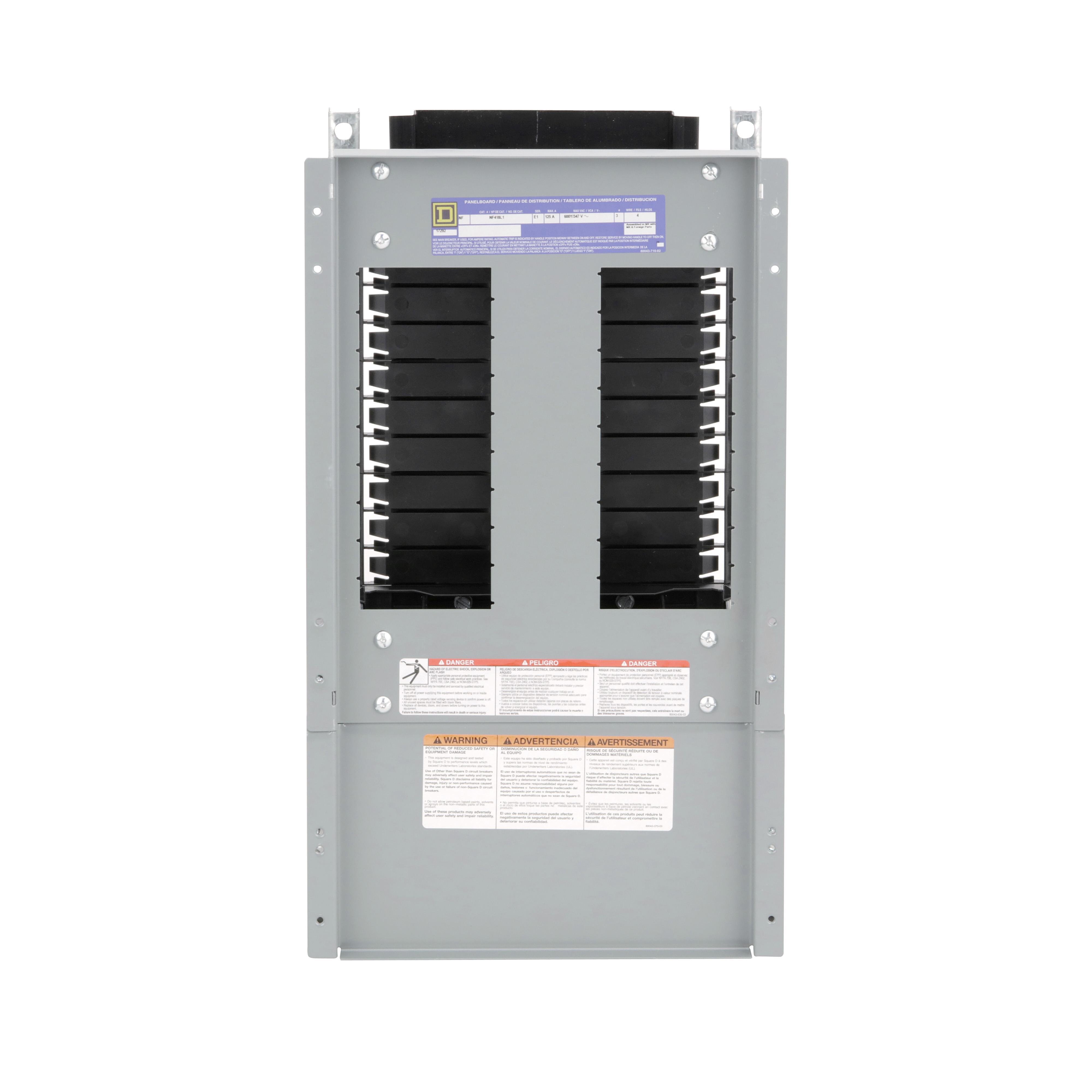

Picture of NF418L1 - Panelboard interior, NF, main lugs, 125A, Al bus, 18 pole spaces, 3 phase, 4 wire, 600Y/347VAC max Picture of NF418L1 - Panelboard interior, NF, main lugs, 125A, Al bus, 18 pole spaces, 3 phase, 4 wire, 600Y/347VAC max
Square D™

NF418L1 - Panelboard interior, NF, main lugs, 125A, Al bus, 18 pole spaces, 3 phase, 4 wire, 600Y/347VAC max

Item Code: 18427
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref NF418L1

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

NF Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NF Panelboards are versatile panelboards that feature a wide selection of bolt-on branch circuit breakers, integral main circuit breakers, bus mounted SPDs, and a wide variety of ready to install accessory kits. NF Panelboard interiors are field convertible to support top or bottom feed. This main lugs interior is rated 125A for 600Y/347VAC, has a plated aluminum bus, and 18 pole spaces. NF Panelboards are convertible from main lugs to main circuit breaker. NF Panelboards offer 200% rated neutrals for nonlinear loads. Factory installed options include phenolic nameplates, power monitoring of mains and branch circuits, split bus interiors, and neutral assemblies which support up to 36 100A branch circuit breakers. NF Panelboards are available with IP2X per IEC 60529 barriers for UL service entrance applications. Interior has an interrupt current rating of up to 65kA (depending upon the circuit breakers installed). This NF panelboard interior is UL listed for applications in the USA and Canada. Interior accepts ECB, EDB, EGB, and EJB bolt-on branch circuit breakers. Standard mechanical main lug connections will accept copper or aluminum wire. Kits available to replace standard main mechanical lugs with compression lugs, sub-feed lugs, or a vertically mounted main circuit breaker. NF Panelboard interiors are available with plated aluminum or copper bus. Standard 100% rated neutrals accept aluminum and copper wire; field installable kits support 200% rated or copper neutral assembly requirements. NF Panelboards may be used in voltage systems up to 600Y/347VAC.

Specifications

Weight

14.26

Height

6.2

Width

13.69

Length

26.05

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/NF418L1/NF418L1.spin

AD Alternative Part Number

8070938

AD Application

For I-Line™ panelboards applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901871286

AD Gtin

00785901871286

AD IDEA Index ID

8070938

AD Includes

Aluminum busbar

AD Invoice Description

INTERIOR PANELBOARD 125A 18 100KA EDB AL

AD Item Features 01

Ready to install interior assembly

AD Item Features 02

Field convertible to top or bottom feed

AD Item Features 03

Accepts bolt-on EDB, EGB, and EJB miniature circuit breakers

AD Item Features 04

100% rated neutrals standard (accept Al and Cu wire), field installable kits for 200% rated or Cu neutral

AD Item Features 05

Kits for compression and subfeed lugs or vertically mounted main circuit breaker

AD Keywords

NF418L1 NF Series Bottom Panelboard Interior, 480Y/277 VAC, 600Y/347 VAC, 125 A, 18 Spaces, 100 kA Short Circuit ; Square D ; NF418L1 ; 8070938 ; 785901871286 ; Panelboard Interiors

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.2000

AD Package Height UOM

IN

AD Package Length

26.0500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

14.2600

AD Package Weight UOM

LB

AD Package Width

13.6900

AD Package Width UOM

IN

AD Part Number Keywords

NF418L1 ; 8070938 ; 785901871286 ; 78590187128 ; 00785901871286 ; 0785901871286

AD Video Links

https://www.youtube.com/watch?v=abIf06C7qgc

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Series

Spec 10 Attribute Value

NF Series

Spec 11 Attribute

Short Circuit Current Rating

Spec 11 Attribute UOM

KA

Spec 11 Attribute Value

100

Spec 12 Attribute

Type

Spec 12 Attribute Value

3-Phase Bottom

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

480Y to 277/600Y to 347

Spec 14 Attribute

Wiring Configuration

Spec 14 Attribute Value

4-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Bolt-on

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

EDB

Spec 4 Attribute

Bus Material

Spec 4 Attribute Value

Aluminum

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

20 in W x 5-3/4 in D x 38 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1/3R/5/12

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Aluminum

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Panel

Spec 9 Attribute

Number of Spaces

Spec 9 Attribute Value

18
