Square D

NF430L1C - Panelboard interior, NF, main lugs, 125A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 600Y/347VAC max

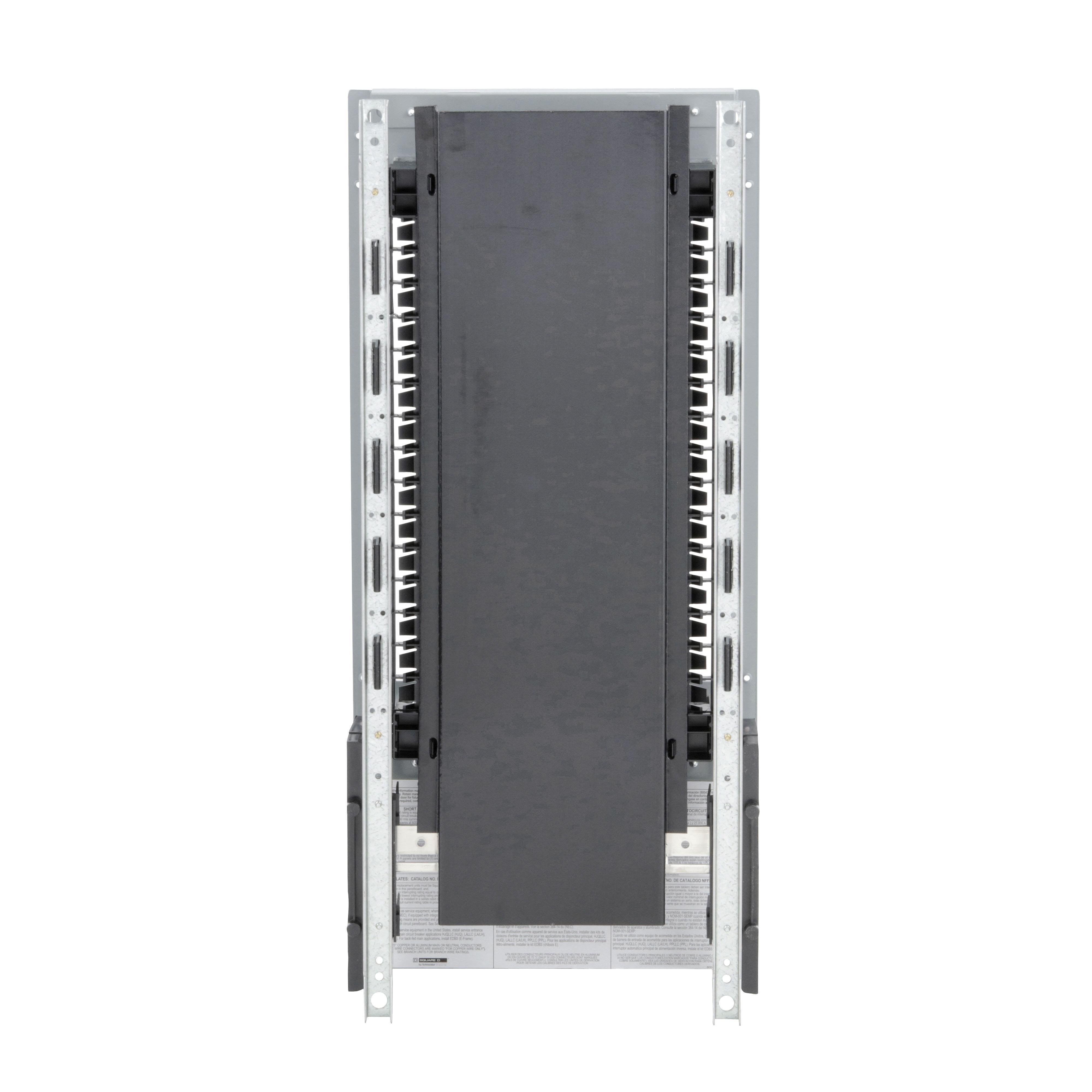

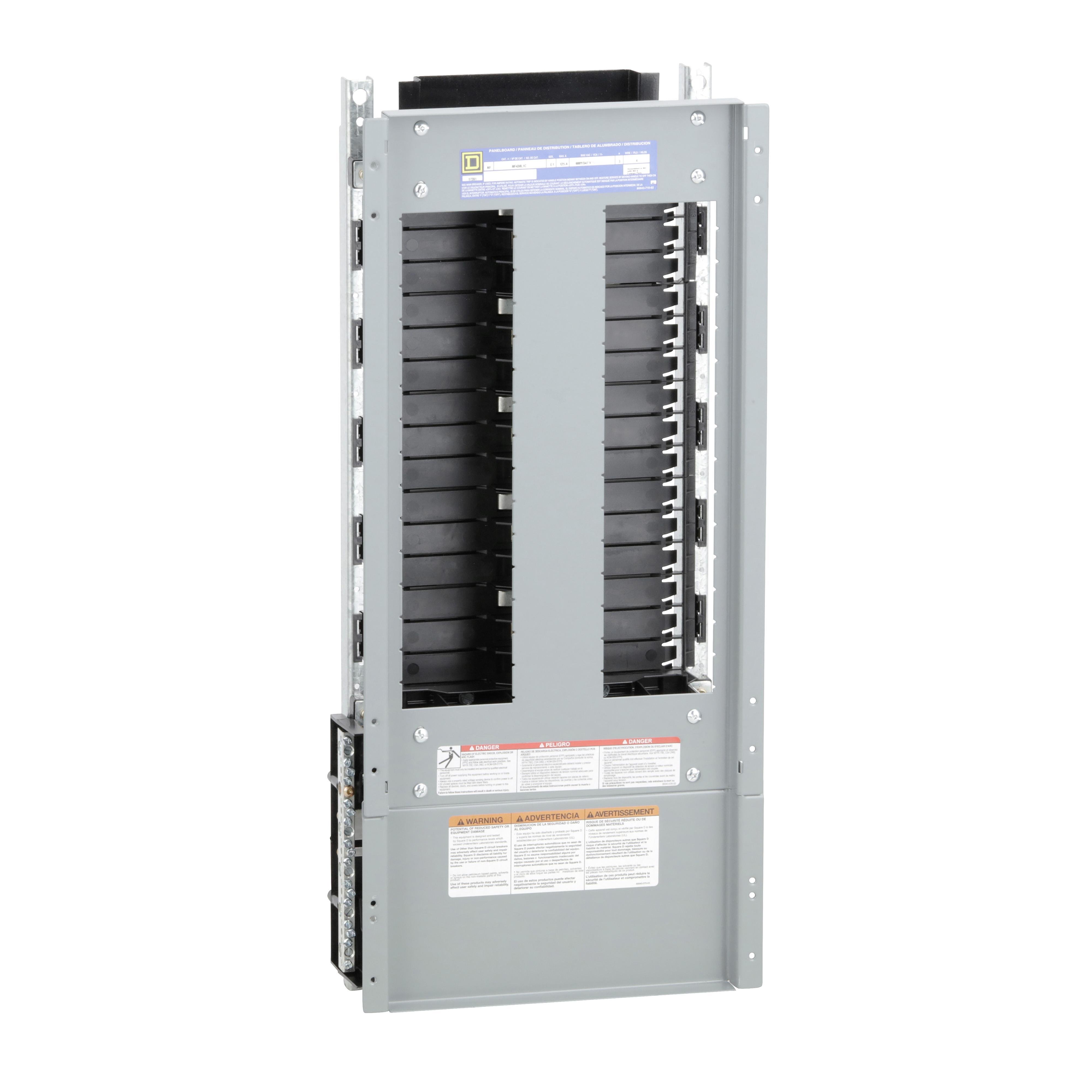

Picture of NF430L1C - Panelboard interior, NF, main lugs, 125A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 600Y/347VAC max Picture of NF430L1C - Panelboard interior, NF, main lugs, 125A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 600Y/347VAC max
Picture of NF430L1C - Panelboard interior, NF, main lugs, 125A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 600Y/347VAC max Picture of NF430L1C - Panelboard interior, NF, main lugs, 125A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 600Y/347VAC max
Picture of NF430L1C - Panelboard interior, NF, main lugs, 125A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 600Y/347VAC max Picture of NF430L1C - Panelboard interior, NF, main lugs, 125A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 600Y/347VAC max
Picture of NF430L1C - Panelboard interior, NF, main lugs, 125A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 600Y/347VAC max Picture of NF430L1C - Panelboard interior, NF, main lugs, 125A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 600Y/347VAC max
Square D

NF430L1C - Panelboard interior, NF, main lugs, 125A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 600Y/347VAC max

Item Code: 33069
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref NF430L1C

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 125A 480Y/277 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 30 spaces and has a copper bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Lug connections will accept 6 AWG to 2/0 AWG copper or aluminum wire. The interior is 27 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified.

Specifications

Weight

19.91lb

Height

6.2mm

Width

13.87mm

Length

31.9mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/NF430L1C/NF430L1C.spin

AD Alternative Part Number

8070995

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901871446

AD Gtin

00785901871446

AD IDEA Index ID

8070995

AD Invoice Description

INTERIOR PANELBOARD 125A 30 100KA 4-W

AD Item Features 01

Ready to install interior assembly

AD Item Features 02

Field convertible to top or bottom feed

AD Item Features 03

Accepts bolt-on EDB, EGB, and EJB miniature circuit breakers

AD Item Features 04

100% rated neutrals standard (accept Al and Cu wire), field installable kits for 200% rated or Cu neutral

AD Item Features 05

Kits for compression and subfeed lugs or vertically mounted main circuit breaker

AD Keywords

NF430L1C NF Series 3-Phase Bottom Panelboard Interior, 480Y/277 VAC, 600Y/347 VAC, 125 A, 30 Spaces, 100 kA SCCR ; Schneider Electric ; Square D ; NF430L1C ; NF430L1C ; 785901871446 ; Panelboard Interiors

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.2000

AD Package Height UOM

IN

AD Package Length

31.9000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

2794.9600

AD Package Volume UOM

cu-in

AD Package Weight

19.9100

AD Package Weight UOM

LB

AD Package Width

13.8700

AD Package Width UOM

IN

AD Part Number Keywords

NF430L1C ; 8070995 ; 785901871446 ; 78590187144 ; 00785901871446 ; 0785901871446

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Short Circuit Current Rating

Spec 10 Attribute UOM

KA

Spec 10 Attribute Value

100

Spec 11 Attribute

Type

Spec 11 Attribute Value

3-Phase Bottom

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

480Y to 277/600Y to 347

Spec 13 Attribute

Wiring Configuration

Spec 13 Attribute Value

4-Wire

Spec 2 Attribute

Breaker Type

Spec 2 Attribute Value

EDB/LAL/LHL

Spec 3 Attribute

Bus Material

Spec 3 Attribute Value

Copper

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

10-7/16 in W x 5-3/4 in D x 27 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1/3R/5/12

Spec 6 Attribute

Housing Material

Spec 6 Attribute Value

Copper

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Panel

Spec 8 Attribute

Number of Spaces

Spec 8 Attribute Value

30

Spec 9 Attribute

Series

Spec 9 Attribute Value

NF Series
