Square D

NF442L6C - Panelboard interior, NF, main lugs, 600A, Cu bus, Al neutral assembly, 42 pole spaces, 3 phase, 4 wire, 600Y/347VAC max

Category Main Lug Bolt-On Lighting Panelboard Interiors

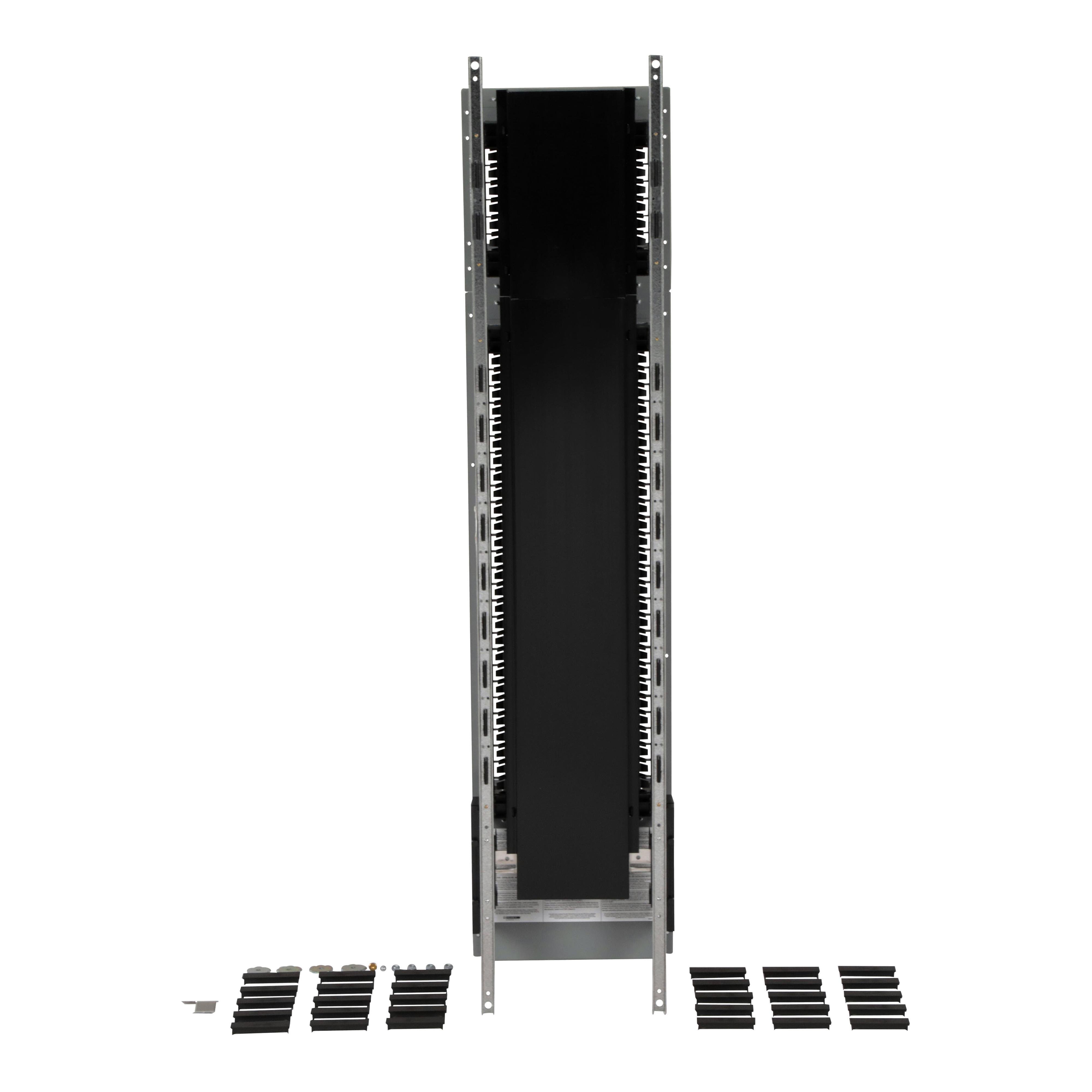

Picture of NF442L6C - Panelboard interior, NF, main lugs, 600A, Cu bus, Al neutral assembly, 42 pole spaces, 3 phase, 4 wire, 600Y/347VAC max Picture of NF442L6C - Panelboard interior, NF, main lugs, 600A, Cu bus, Al neutral assembly, 42 pole spaces, 3 phase, 4 wire, 600Y/347VAC max
Picture of NF442L6C - Panelboard interior, NF, main lugs, 600A, Cu bus, Al neutral assembly, 42 pole spaces, 3 phase, 4 wire, 600Y/347VAC max Picture of NF442L6C - Panelboard interior, NF, main lugs, 600A, Cu bus, Al neutral assembly, 42 pole spaces, 3 phase, 4 wire, 600Y/347VAC max
Square D

NF442L6C - Panelboard interior, NF, main lugs, 600A, Cu bus, Al neutral assembly, 42 pole spaces, 3 phase, 4 wire, 600Y/347VAC max

Item Code: 634240
Category Main Lug Bolt-On Lighting Panelboard Interiors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref NF442L6C

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

NF Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NF Panelboards are versatile panelboards that feature a wide selection of bolt-on branch circuit breakers, integral main circuit breakers, bus mounted SPDs, and a wide variety of ready to install accessory kits. NF Panelboard interiors are field convertible to support top or bottom feed. This main lugs interior is rated 600A for 600Y/347VAC, has a plated copper bus, and 42 pole spaces. NF Panelboards are convertible from main lugs to main circuit breaker. NF Panelboards offer 200% rated neutrals for nonlinear loads. Factory installed options include phenolic nameplates, power monitoring of mains and branch circuits, split bus interiors, and neutral assemblies which support up to 36 100A branch circuit breakers. NF Panelboards are available with IP2X per IEC 60529 barriers for UL service entrance applications. Interior has an interrupt current rating of up to 65kA (depending upon the circuit breakers installed). This NF panelboard interior is UL listed for applications in the USA and Canada. Interior accepts ECB, EDB, EGB, and EJB bolt-on branch circuit breakers. Standard mechanical main lug connections will accept copper or aluminum wire. Kits available to replace standard main mechanical lugs with compression lugs, sub-feed lugs, or a vertically mounted main circuit breaker. NF Panelboard interiors are available with plated aluminum or copper bus. Standard 100% rated neutrals accept aluminum and copper wire; field installable kits support 200% rated or copper neutral assembly requirements. NF Panelboards may be used in voltage systems up to 600Y/347VAC.

Specifications

Weight

37.53

Width

13.96

Length

55.65

AD Application

For main lug load center applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

INTERIOR PANELBOARD 480Y/277VAC 600A 42

AD Item Features 01

Ready to install interior assembly

AD Item Features 02

Field convertible to top or bottom feed

AD Item Features 03

Accepts bolt-on EDB, EGB, and EJB miniature circuit breakers

AD Item Features 04

100% rated neutrals standard (accept Al and Cu wire), field installable kits for 200% rated or Cu neutral

AD Item Features 05

Kits for compression and subfeed lugs or vertically mounted main circuit breaker

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

55.6500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

37.5300

AD Package Weight UOM

LB

AD Package Width

13.9600

AD Package Width UOM

IN

Brand

Square D

Category

MAIN LUG BOLT-ON LIGHTING PANELBOARD INTERIORS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

600

Spec 10 Attribute

Type

Spec 10 Attribute Value

3-Phase TVSS

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

480Y to 277/600Y to 347

Spec 12 Attribute

Wiring Configuration

Spec 12 Attribute Value

3-Phase, 4-Wire

Spec 2 Attribute

Breaker Type

Spec 2 Attribute Value

EDB/EDG/EDJ

Spec 3 Attribute

Bus Material

Spec 3 Attribute Value

Copper

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

20 in W x 6-1/2 in D x 56 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1/3R/5/12

Spec 6 Attribute

Housing Material

Spec 6 Attribute Value

Copper

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Panel

Spec 8 Attribute

Number of Spaces

Spec 8 Attribute Value

42

Spec 9 Attribute

Series

Spec 9 Attribute Value

NF Series
