Square D

NF466L2C - Panelboard interior, NF, main lugs, 250A, Cu bus, 66 pole spaces, 3 phase, 4 wire, 600Y/347VAC max

Category Main Lug Bolt-On Lighting Panelboard Interiors

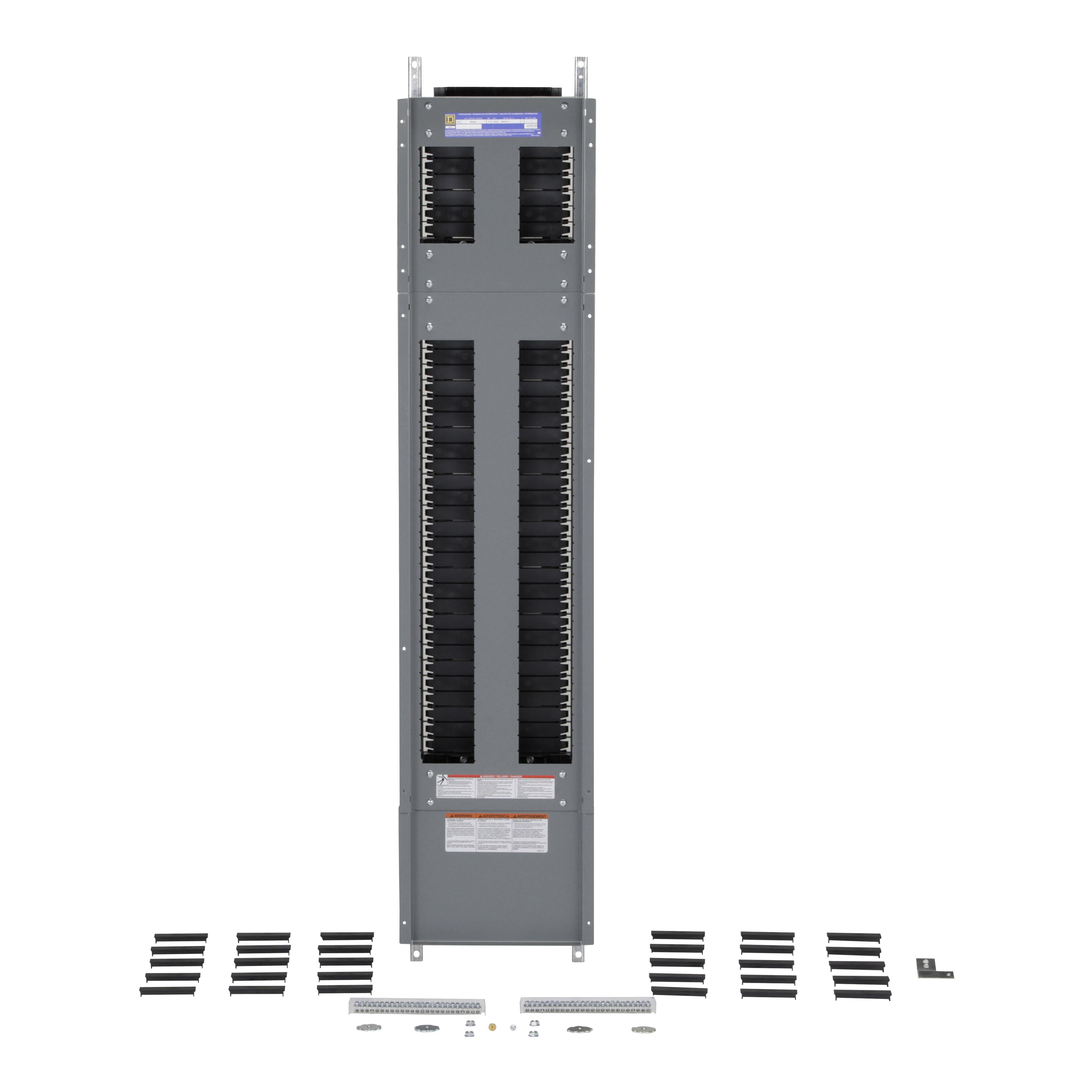

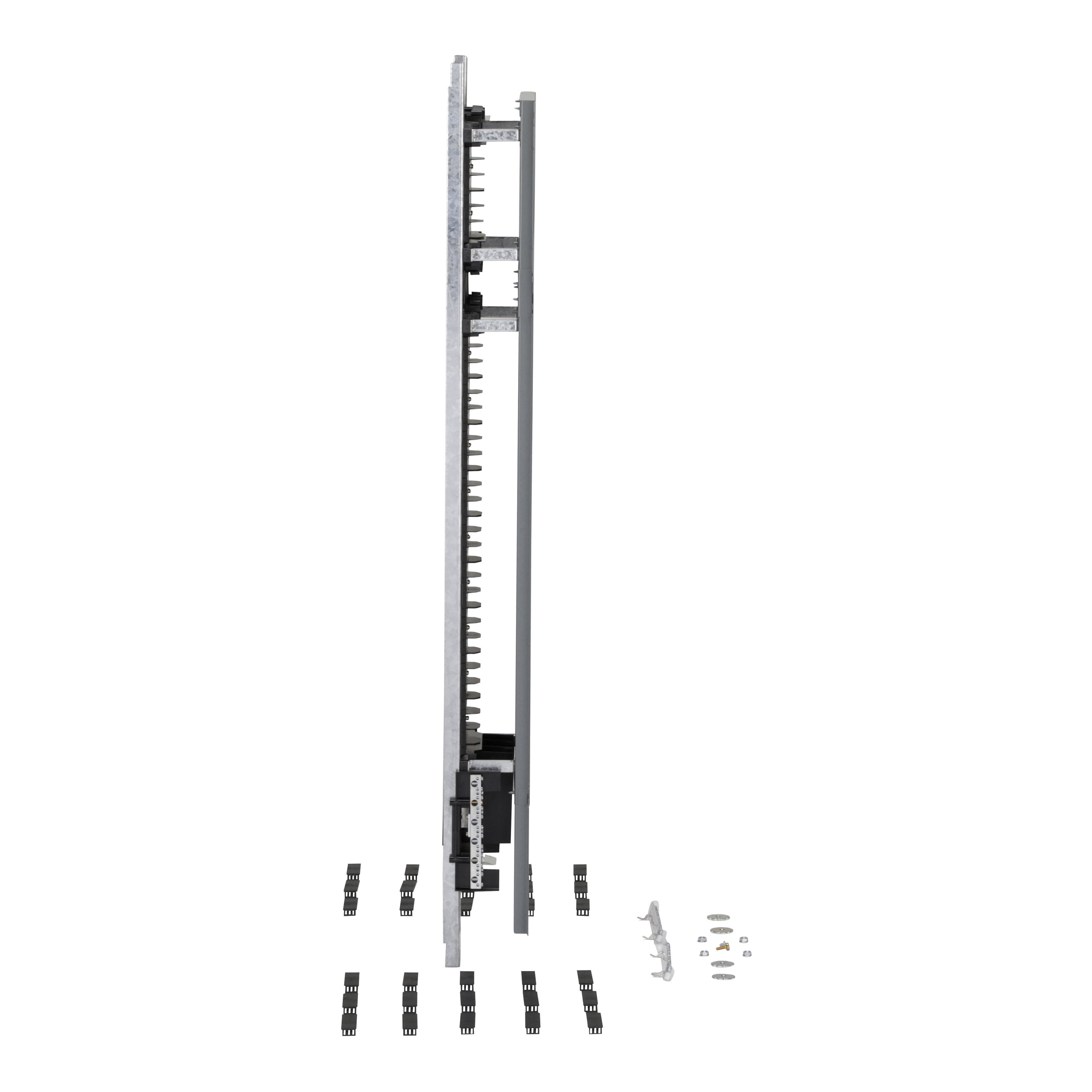

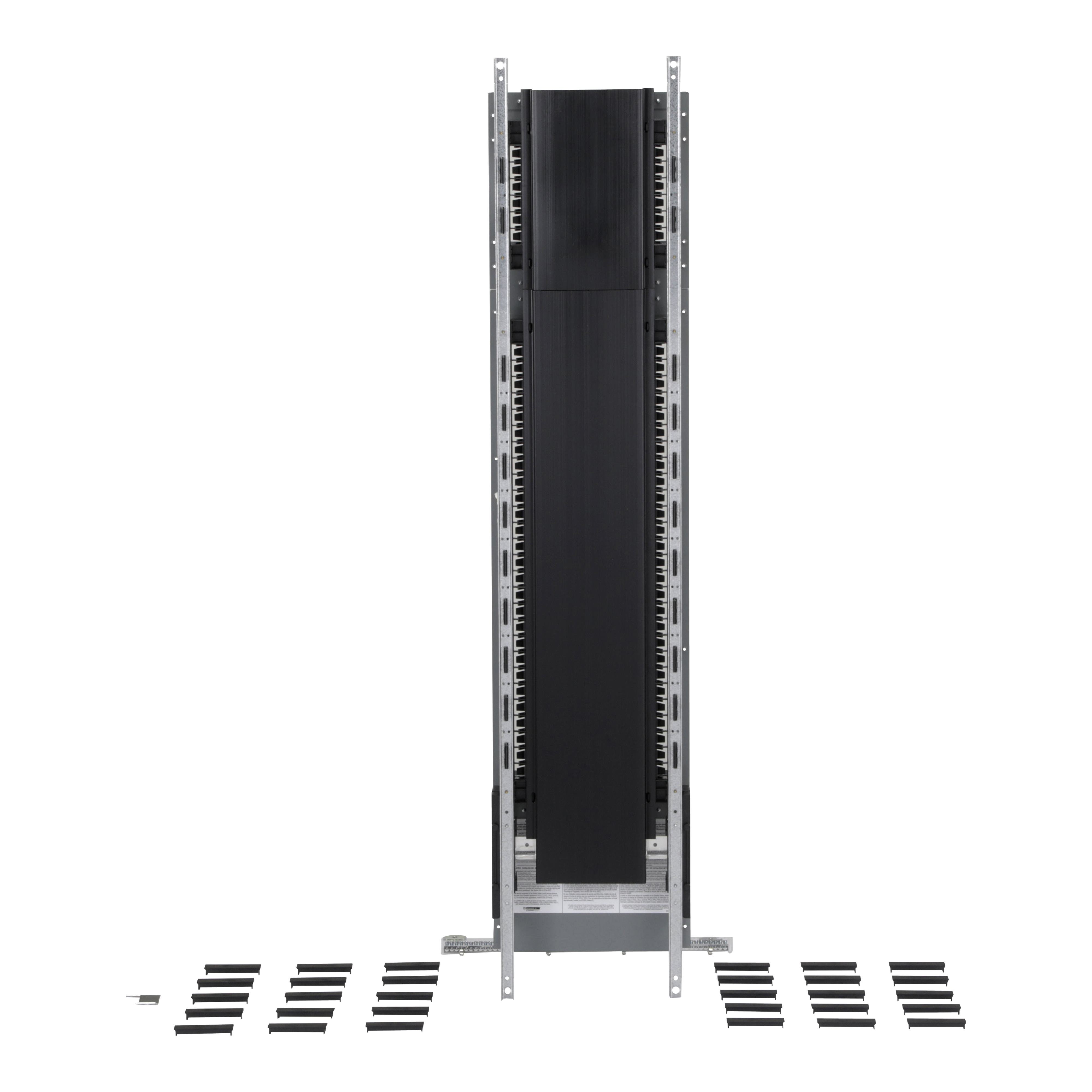

Picture of NF466L2C - Panelboard interior, NF, main lugs, 250A, Cu bus, 66 pole spaces, 3 phase, 4 wire, 600Y/347VAC max Picture of NF466L2C - Panelboard interior, NF, main lugs, 250A, Cu bus, 66 pole spaces, 3 phase, 4 wire, 600Y/347VAC max
Picture of NF466L2C - Panelboard interior, NF, main lugs, 250A, Cu bus, 66 pole spaces, 3 phase, 4 wire, 600Y/347VAC max Picture of NF466L2C - Panelboard interior, NF, main lugs, 250A, Cu bus, 66 pole spaces, 3 phase, 4 wire, 600Y/347VAC max
Picture of NF466L2C - Panelboard interior, NF, main lugs, 250A, Cu bus, 66 pole spaces, 3 phase, 4 wire, 600Y/347VAC max Picture of NF466L2C - Panelboard interior, NF, main lugs, 250A, Cu bus, 66 pole spaces, 3 phase, 4 wire, 600Y/347VAC max
Picture of NF466L2C - Panelboard interior, NF, main lugs, 250A, Cu bus, 66 pole spaces, 3 phase, 4 wire, 600Y/347VAC max Picture of NF466L2C - Panelboard interior, NF, main lugs, 250A, Cu bus, 66 pole spaces, 3 phase, 4 wire, 600Y/347VAC max
Square D

NF466L2C - Panelboard interior, NF, main lugs, 250A, Cu bus, 66 pole spaces, 3 phase, 4 wire, 600Y/347VAC max

Item Code: 652561
Category Main Lug Bolt-On Lighting Panelboard Interiors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref NF466L2C

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

NF Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NF Panelboards are versatile panelboards that feature a wide selection of bolt-on branch circuit breakers, integral main circuit breakers, bus mounted SPDs, and a wide variety of ready to install accessory kits. NF Panelboard interiors are field convertible to support top or bottom feed. This main lugs interior is rated 250A for 600Y/347VAC, has a plated copper bus, and 66 pole spaces. NF Panelboards are convertible from main lugs to main circuit breaker. NF Panelboards offer 200% rated neutrals for nonlinear loads. Factory installed options include phenolic nameplates, power monitoring of mains and branch circuits, split bus interiors, and neutral assemblies which support up to 36 100A branch circuit breakers. NF Panelboards are available with IP2X per IEC 60529 barriers for UL service entrance applications. Interior has an interrupt current rating of up to 65kA (depending upon the circuit breakers installed). This NF panelboard interior is UL listed for applications in the USA and Canada. Interior accepts ECB, EDB, EGB, and EJB bolt-on branch circuit breakers. Standard mechanical main lug connections will accept copper or aluminum wire. Kits available to replace standard main mechanical lugs with compression lugs, sub-feed lugs, or a vertically mounted main circuit breaker. NF Panelboard interiors are available with plated aluminum or copper bus. Standard 100% rated neutrals accept aluminum and copper wire; field installable kits support 200% rated or copper neutral assembly requirements. NF Panelboards may be used in voltage systems up to 600Y/347VAC.

Specifications

Weight

39.91

Width

13.88

Length

61.5

Amperage Rating

250 A

Brand

Square D

Breaker Type

EDB/EDG/EDJ

Bus Material

Copper

Category

MAIN LUG BOLT-ON LIGHTING PANELBOARD INTERIORS

Dimensions

74 in H x 20 in W

Enclosure Type

NEMA 1/3R/5/12

Number of Spaces

66

Series

NF Series

Type

3-Phase

Voltage Rating

227/480Y V AC

Wiring Configuration

4-Wire
